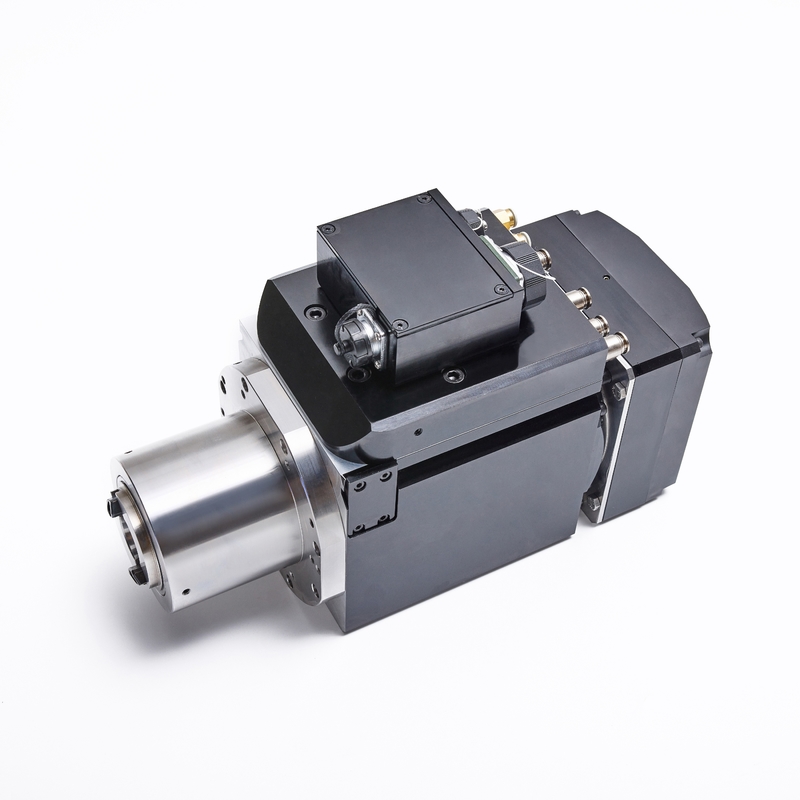

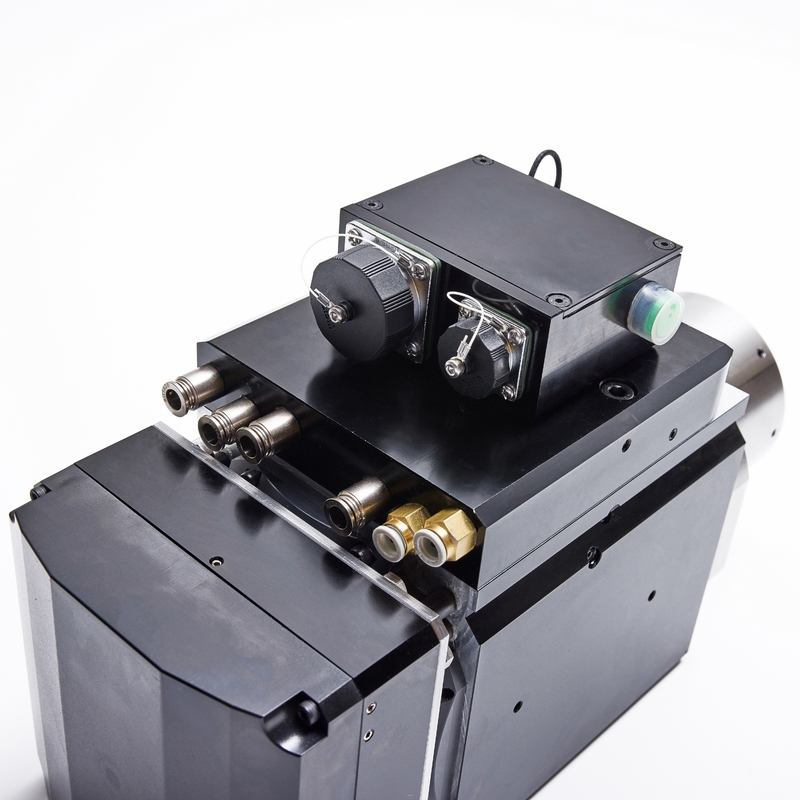

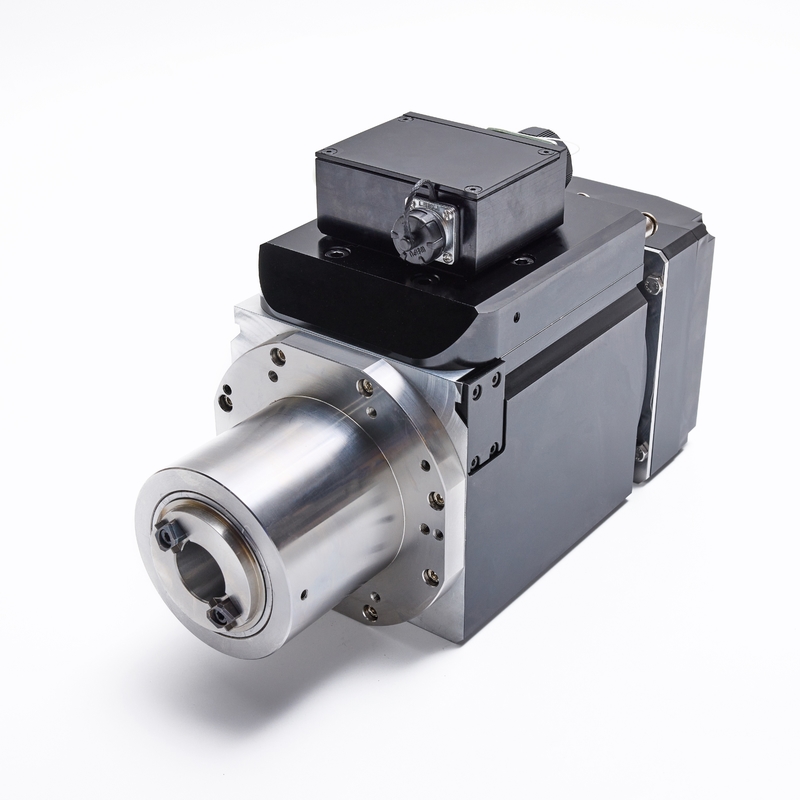

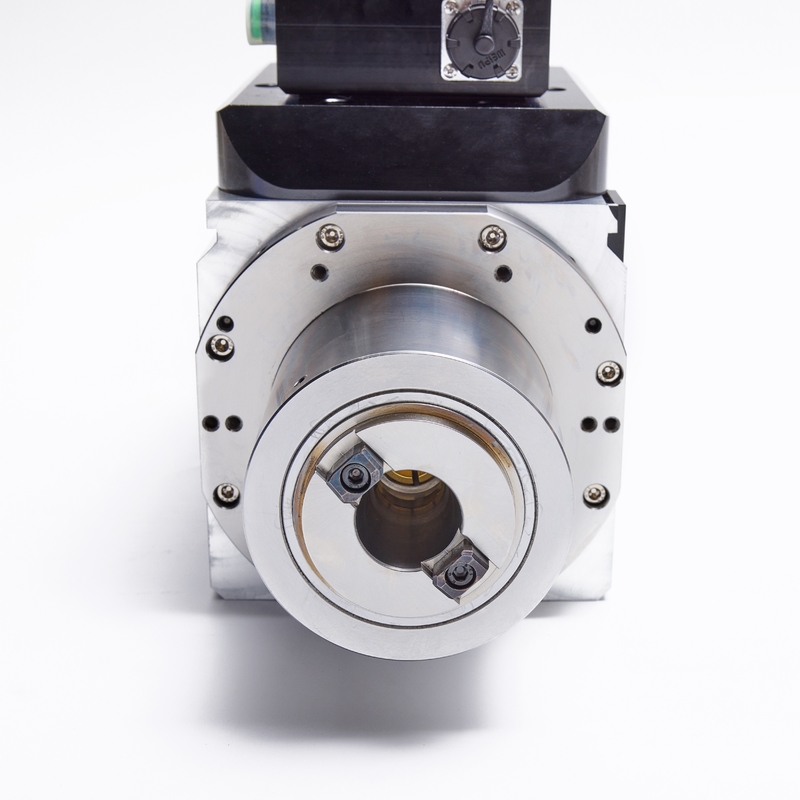

DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle

DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle

Products - Metal Engraving Spindle
  • Condition
    New
  • Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Construction Works , Energy & Mining
  • Weight (KG)
    28
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Milling
  • Maximum Torque
    12.2
  • Drive
    Motor
  • Operating Speed
    24000rpm
  • Warranty
    1 Year
  • Core Components
    Engine, Bearing, Motor, Gear
  • Product Name
    CNC Spindle
  • Power
    15KW
  • Cooling Type
    Water Cooling Spindle Motor
  • Voltage
    220V/380V
  • Speed
    24000 Rpm
  • Joint Of Nose
    BT30
  • Collet
    BT30 CNC ATC Spindle
  • Frequency
    800Hz
  • Current
    42
  • Material
    Metal Or Non-metal
  • Place of Origin
    Guangdong, China
  • Brand Name
    DECI
  • Price
    $2,985.00/pieces 1-9 pieces

DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle

  • DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle
  • DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle
  • DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle
  • DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle
  • DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle
  • DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle
Get Price Contact Now
DC-WZ-150AC-BT30(SZ)
Parameters
Moter Power(KW)
15
Rated voltage (V/AC)
380 / 220
Maximum speed(Rpm)
24000
Maximum current (A)
42
Maximum frequency (Hz)
800
Torque (N·M)
12.2
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
2900
Tool return pressure(Kgf/cm²)
Spring return knife
Tooling Connection
BT30
Cooling method
Water cooling
Encoder (Optional)
 Sin or Cos, 1 VPP
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
PNP
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Base Flange
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
28
DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle 0
DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle 1
DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle 2
DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle 3
DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle 4
DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle 5
DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle 6
DECI 15KW 800Hz High Precision Water cooling Metal Milling Spindle 24000Rpm 380V 12.2NM Motor Automatic BT30 PNP Spindle 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
