This product is a high-speed woodworking milling electric spindle. It is mainly used for engraving and milling machines or machining centers for drilling and milling wood, plastic, aluminum and fiberboard. Please do not use it for processing steel, stone, glass and other materials. Due to its compact structure, light weight, low inertia, low vibration and low noise, the spindle can achieve high speed, high precision and high running stability.
DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
DECI More Spindle is also available with best price, if needed, welcome contact us.
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw
Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.

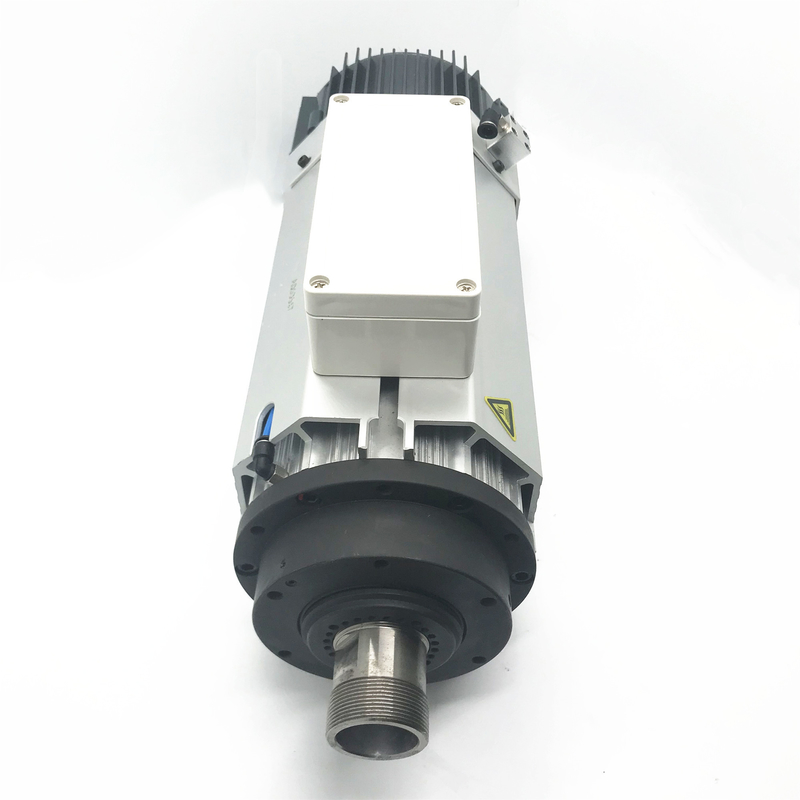

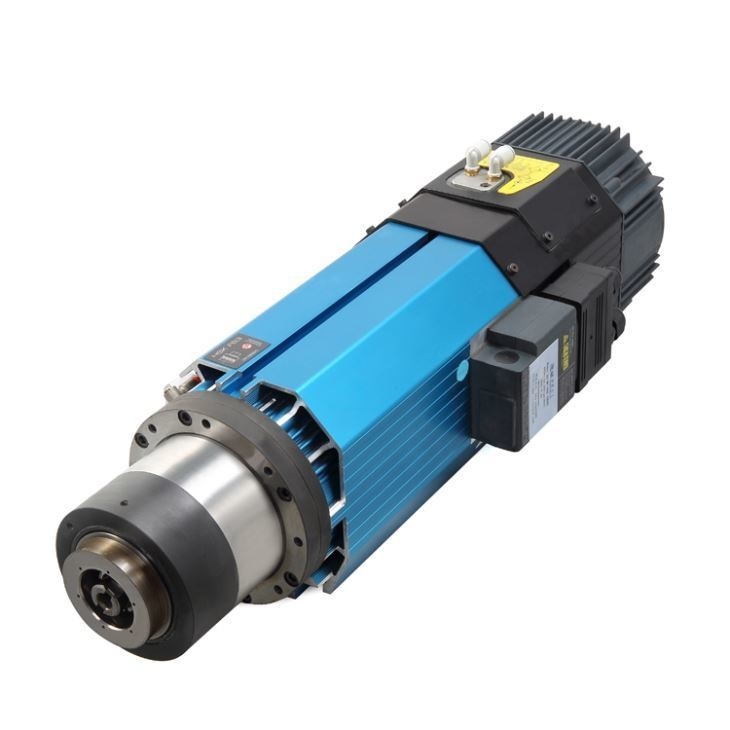

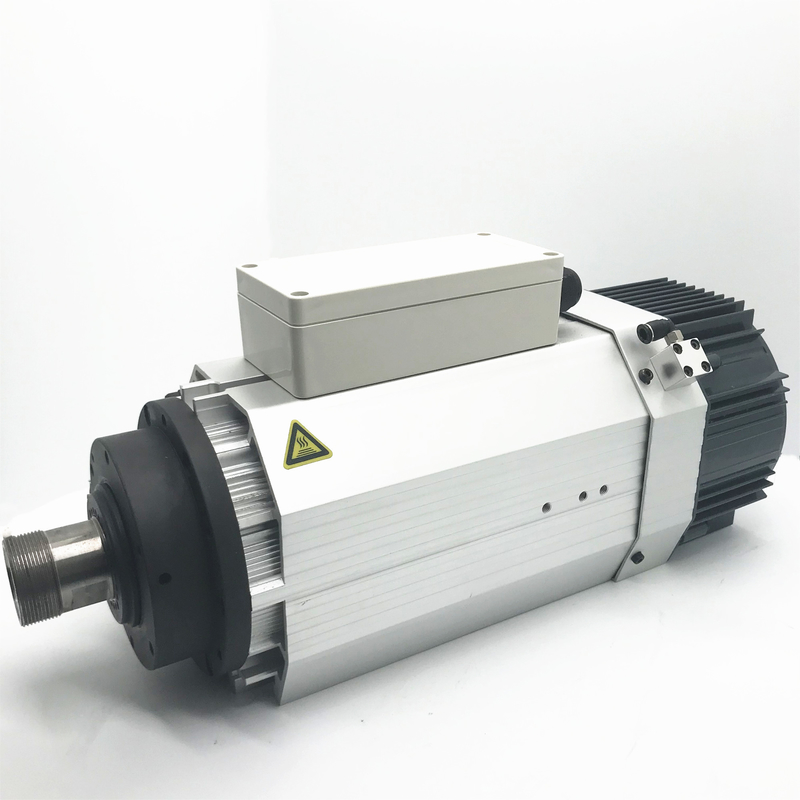

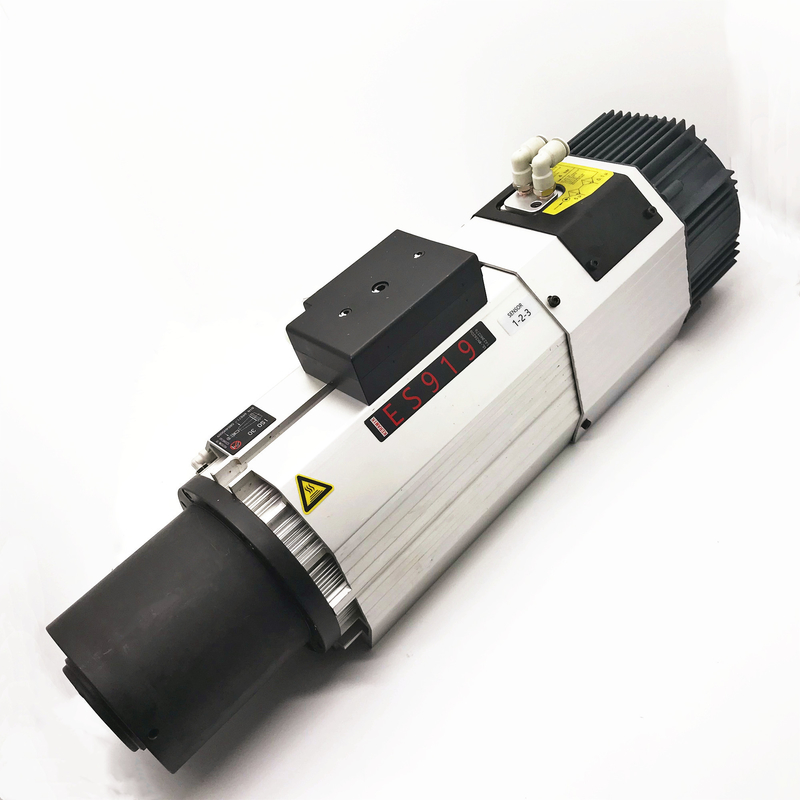

| DECI RHWP145B-HSK63FParameters Motor Power:9/12KW Rated voltage: 380v(3~) Max rotate speed :24000Rpm/min Max currency:23/17A Max Frequency:800Hz Torque:9.55/7.16N.MSpecification Cone surface spring at shaft end: ≤0.001mmTooling Releasing Air curtain: 5.6-6.0 Kgf/cm² Tooling Exchange Method: ATCAir curtain pressure at front end: 2.5-3.0 Kgf/cm² Tooling Pulling Force: 11000Tooling Back Air Pressure:~ Tooling Connection:HSK63FCooling:water air cooling optional Encoder:Sine-Cosine 1VPP(Optional)Coolant Pressure:2.5-3.0Kgf/cm² Approach Switch: PNP OnBearing Lubrication Method: GreaseBalance Level : G1Tooling Instalation Method:T-slotVibration Value: ≤0.8Weight:29.6kg |
Q:Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?A
A:we have all the packages. We can get the engineer to program you.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship?
A: 1. DECI keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
