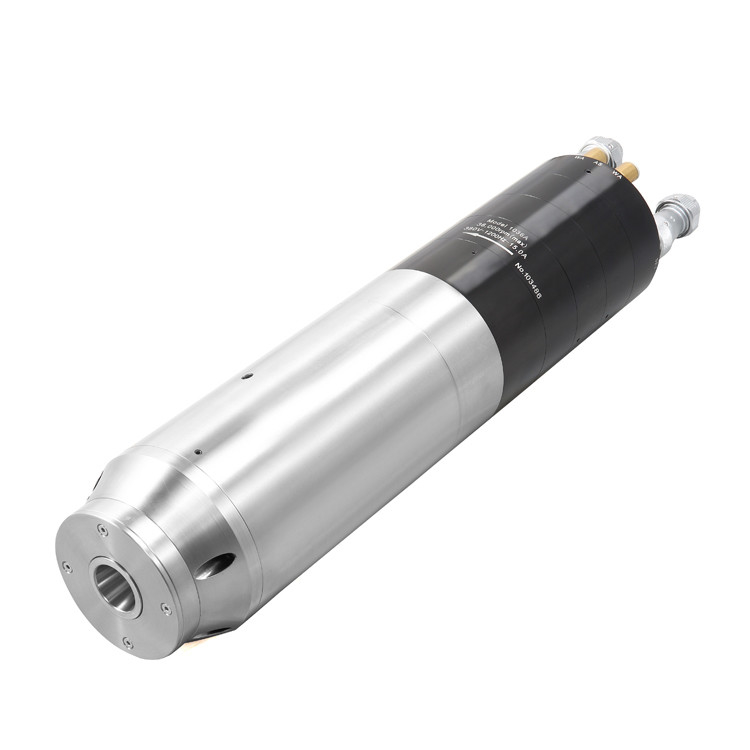

This product is a metal cutting high speed electric spindle with a maximum speed of 36000 rpm and a rated power of 5.5 kW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.
Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.
Advance/Features:
1.Reasonable structure desgin ,simple and compact configuration ,easy to take apart.
2.High precision.high inflexibility ,high efficiency,long operation life.
3.With high grade size .shape,.position precision,and quality of surface .
4.Enough abrasive resistance ,vibration resistance,stable size.
5.Work stable ,low noise,enough fatigue strength

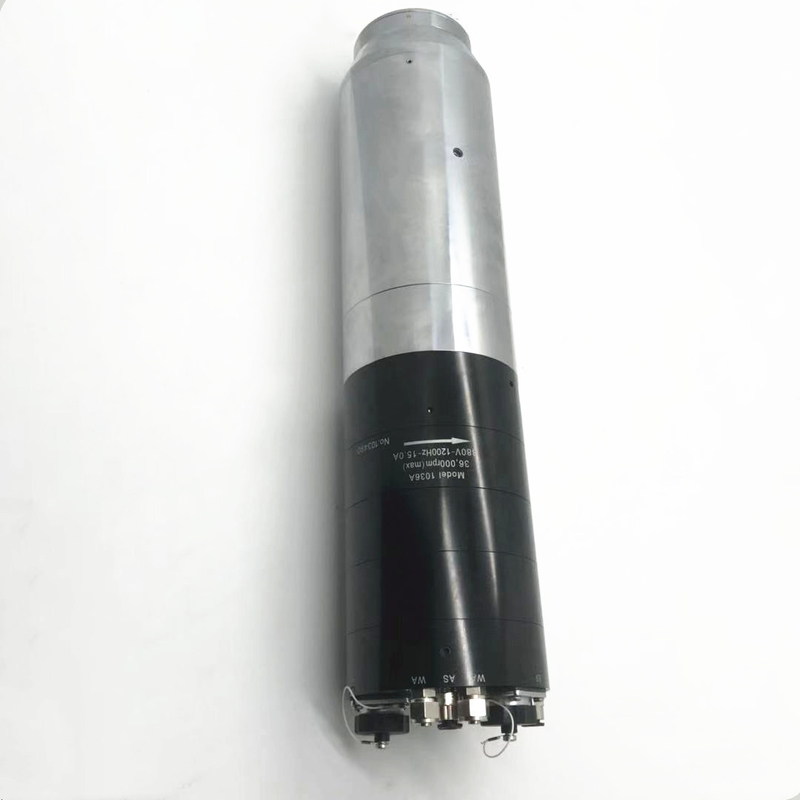

| DC-1036AParameters Motor Power:5.5KW Rated voltage: 380v(3~) Max rotate speed :36000Rpm/min Max currency:10.5A Max Frequency:1200Hz Torque:3.98N.MSpecification Cone surface spring at shaft end: ≤0.001mmTooling Releasing Air curtain: 5.6-6.0 Kgf/cm² Tooling Exchange Method: ATCAir curtain pressure at front end: 2.5-3.0 Kgf/cm² Tooling Pulling Force: 2000Tooling Back Air Pressure:5.6-6.0 Kgf/cm² Tooling Connection:ISO25 shankCooling:water cooling Encoder:Sine-Cosine 1VPP(Optional)Coolant Pressure:2.5Kgf/cm² Approach Switch: PNP OnnBearing Lubrication Method: GreaseBalance Level : G1Tooling Instalation Method:FLANGEVibration Value: ≤0.8Weight:15kg |
Q:Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?A
A:we have all the packages. We can get the engineer to program you.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
