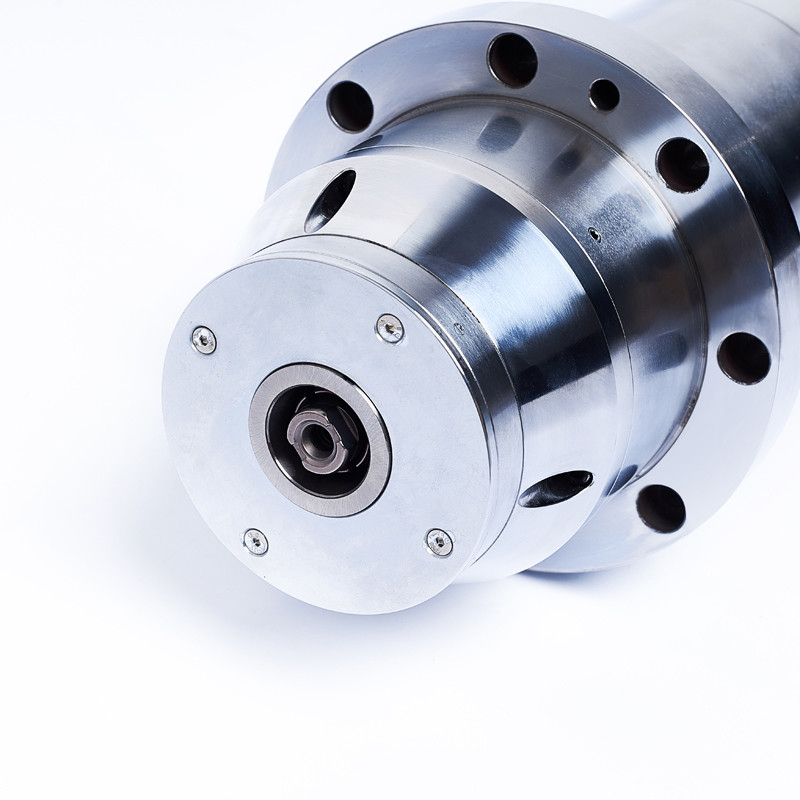

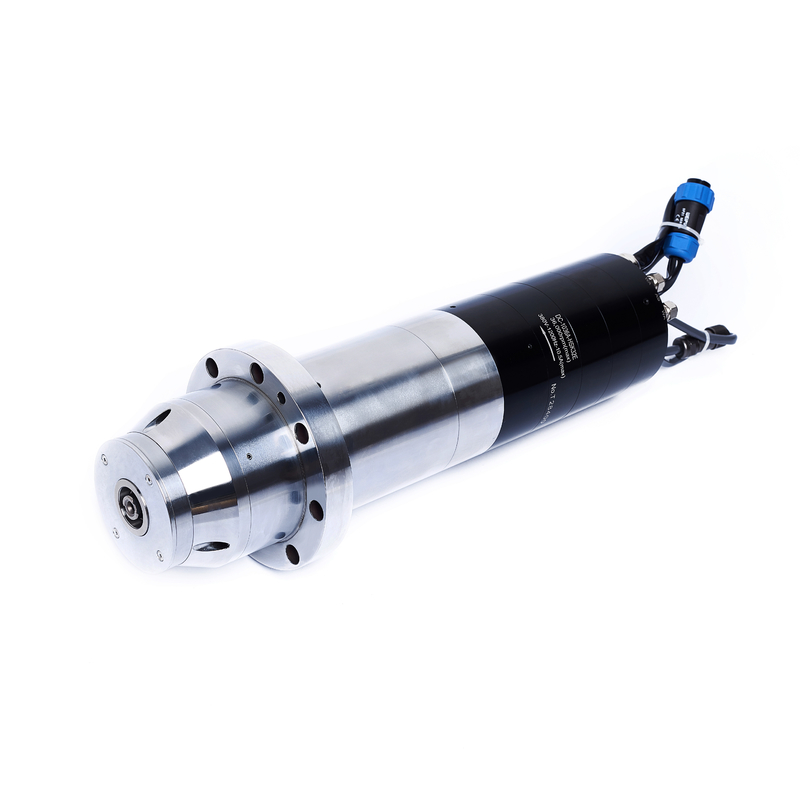

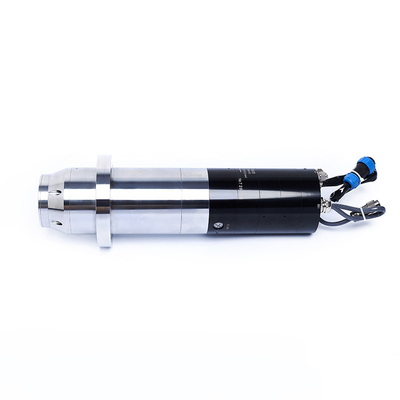

DC-1036AD-HSK32E | ||||||
Parameters | ||||||
Moter Power(KW) | 3.5 | Rated voltage (V/AC) | 380 / 220 | |||
Maximum speed(Rpm) | 36000 | Maximum current (A) | 6.5 | |||
Maximum frequency (Hz) | 1200 | Torque (N·M) | 2.0 | |||
Technical parameters | ||||||
Shaft Rotation Accuracy (mm) | ≤ 0.001 | Tooling Releasing pressure (Kgf/cm²) | 5.0-6.0 | |||
Tooling Exchange Method | ATC | Front curtain pressure (Kgf/cm²) | 2.5-3.0 | |||
Tooling Pulling Force(≥N) | 5000×（1±10%） | Tool return pressure(Kgf/cm²) | 5.6-6.0 | |||
Tooling Connection | Cooling method | Water cooling | ||||
Encoder (Optional) | Square wave / Square wave TTL / Sine wave / Sin or Cos, 1 VPP | Coolant Pressure (Kgf/cm²) | ≥ 2.5 | |||
Proximity switch | PNP | Bearing lubrication mode | Grease | |||
Balance Level | G1 | Tooling Installation Method | Flange | |||
Vibration value (mm/s) | ≤ 0.8 | Weigh (Kg) | 15.2 | |||
