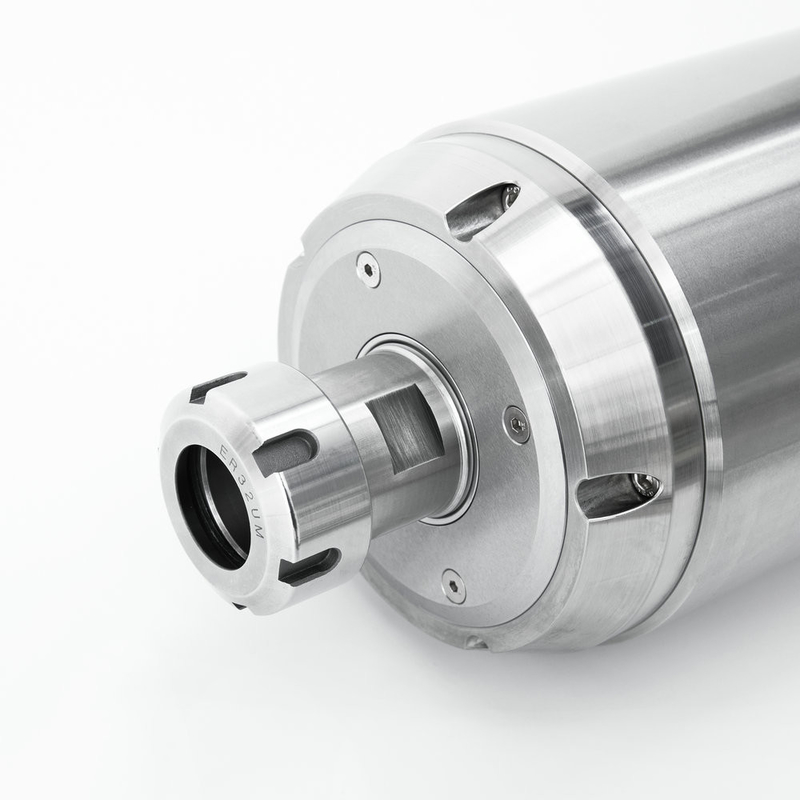

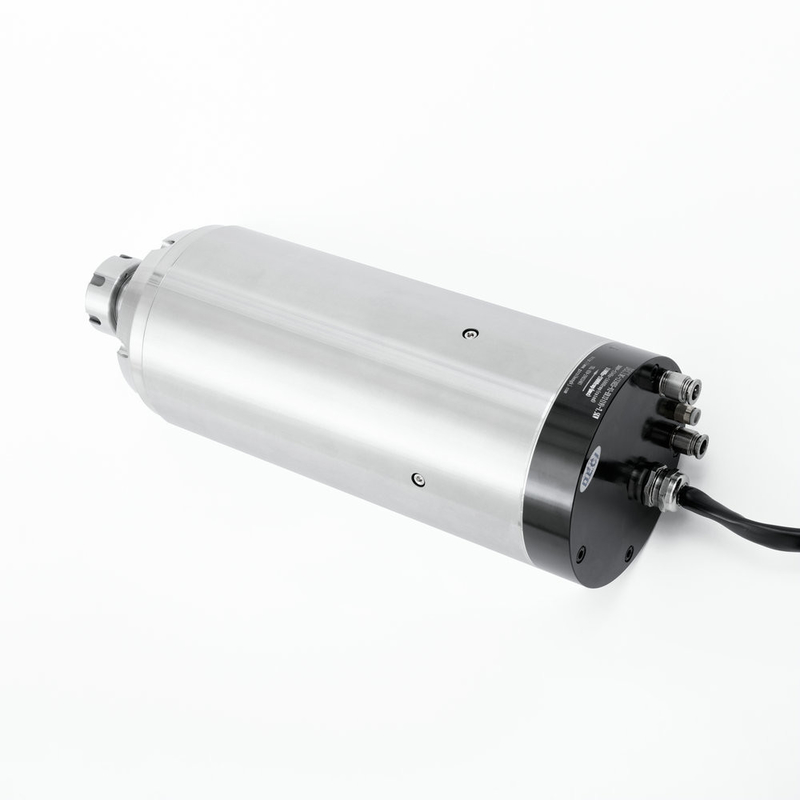

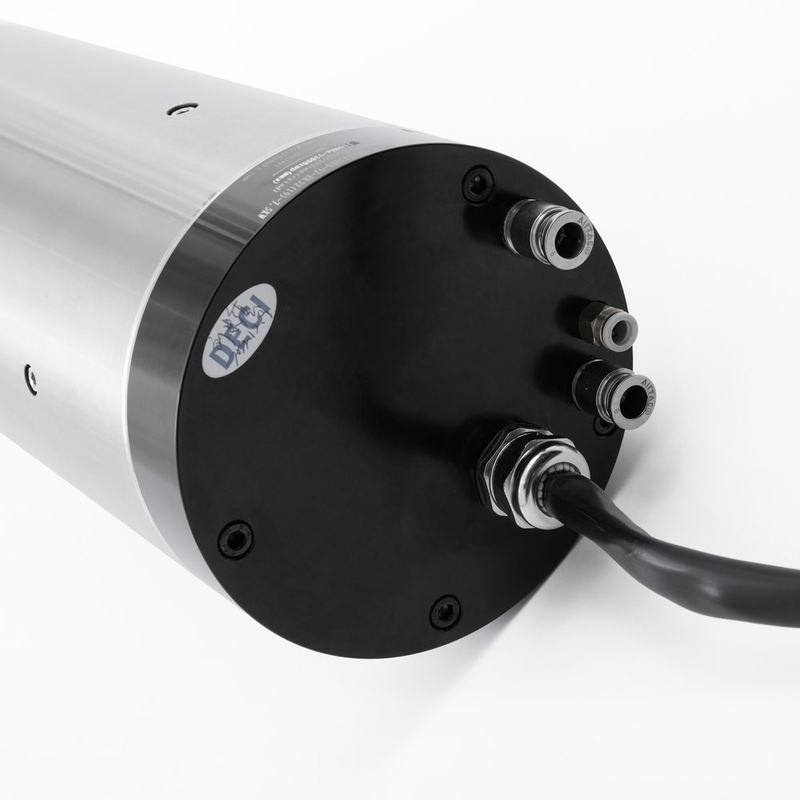

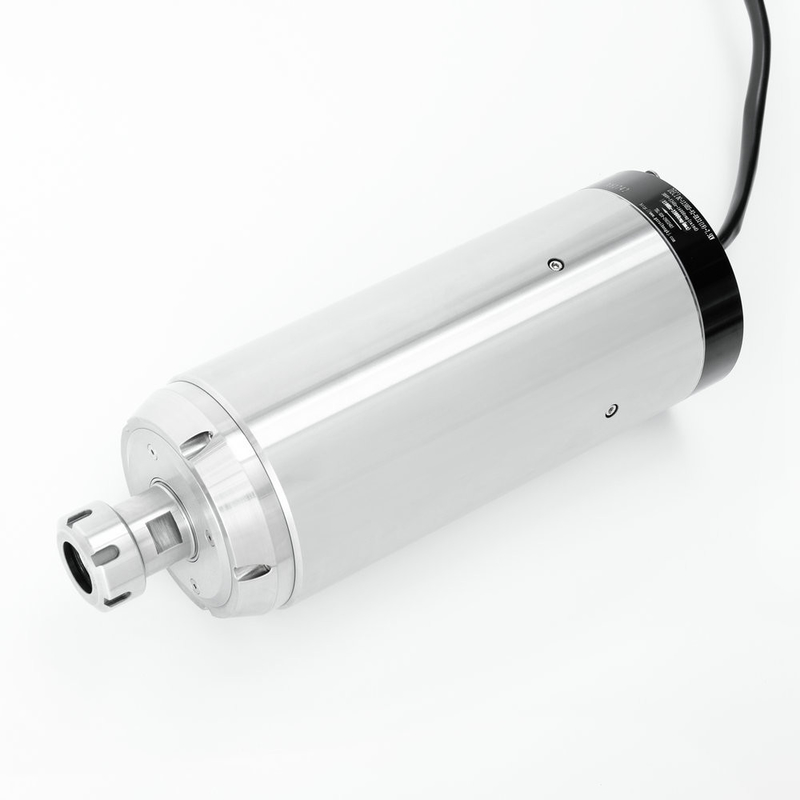

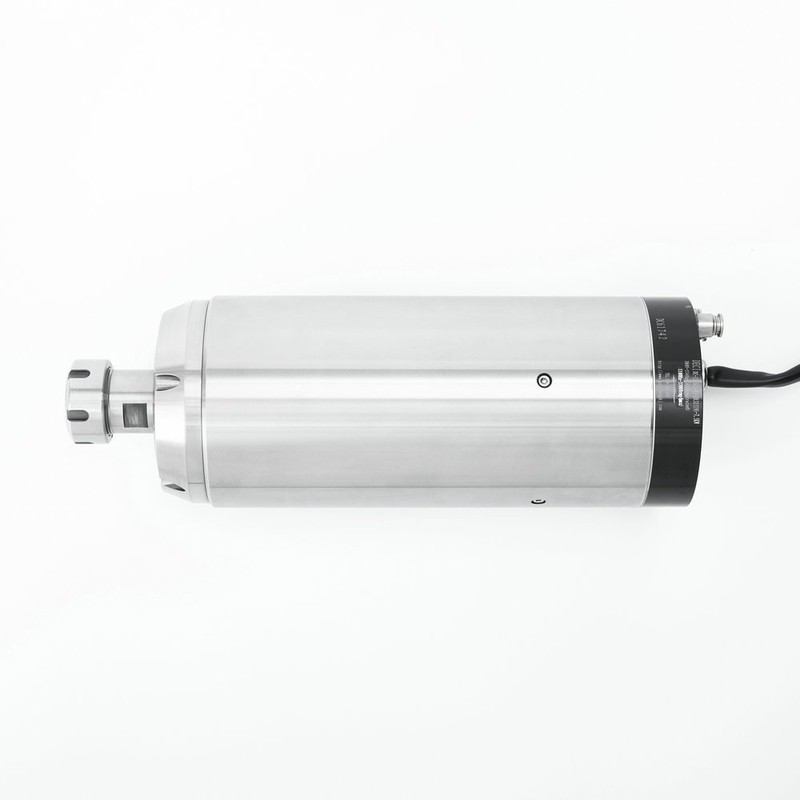

Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC

Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC

Products - Metal Engraving Spindle
  • Condition
    New
  • Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
  • Weight (KG)
    28
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    5.73N.M
  • Drive
    Motor
  • Operating Speed
    30000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Power
    7.5KW/5.5KW
  • Voltage
    380V/220V(3~)
  • Frequency
    1000HZ
  • Current
    14.5A/10.5A
  • Weight
    28kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    Manual
  • Installation Method
    Clamp Mount
  • Diameter
    120mm
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $2,500.00/sets 1-9 sets

Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC

  • Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC
  • Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC
  • Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC
  • Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC
  • Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC
  • Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC
Get Price Contact Now
Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC 0

Features of Deci CNC Spindle Motors:

1. High Speed 2. High Torque 3.High Precision Dynamic deflections and Static deflections go down to micron (μm) level. 4. Low Vibration and High Stability Vibration value is within 0.8mm/s only. And Shaft cone end runout is within 1μm only.Spindle Balance class is G1. 5. High Reliability and Long working life. Average working life can be over 3 years.
Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC 1

HOW DO CNC SPINDLE MOTORS WORK?

CNC spindle motors are electric motors with a specific design for computer numerical controlled (CNC) machinery. These motors can
achieve high speeds and torque levels while still maintaining a high degree of accuracy. This performance works through precision
bearings and a specially designed rotor.
The rotor is the part of the motor that spins, and precision bearings support it at either end. The stator is the stationary part
of the motor that houses the windings. The windings create the magnetic field that interacts with the rotor to develop torque.
The interaction between the stator and rotor allows the motor to reach such high speeds while maintaining a high degree of
accuracy. They send electrical signals to the windings to control the amount of torque generated. The strength of these signals
determines the speed and torque of the motor. A CNC spindle motor can achieve high speeds because they have a higher number of
poles than other types of electric motors.
They determine the number of poles by the number of winding pairs used in the stator. The more winding pairs you see, the higher
the speed you can achieve. For example, the average car engine has four poles. CNC spindle motors usually have six or eight poles.
This allows them to achieve speeds of up to 20,000 revolutions per minute.
Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC 2
Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC 3
Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC 4
Cooling Method Water Cooling 7KW 380V Metal Milling Machine Spindle Motor by DECI MTC 5

About DECI

We Deci starts to manufacture spindle motors since 2009. Thanks to R&D and manufacturing of over 15 years, we now own many patents and Certifications of ISO9001 and CE. With reliable quality and budget-friendly products,we already worked with many famous companies,including Fortune 500. Mainly suitable for all kinds of CNC engraving milling machine, suitable for all kinds of non-ferrous metal, non-metallic 3C electronic parts processing, can be used in medical, dental, aerospace, automotive, energy, jewelry and so on.
DECI offers a full line of spindle motor from 0.24kw to 12kw power which applied to :
* Metal Milling Spindle motor
* Wood CNC Router Spindle Motor
* PCB Drilling Spindle Motor
* Dental Milling Spindle Motor
* Motorized Spindle Motor
* Machining Center Spindle
* Rotary Table
We offer customize service for partners with fast response and reliable quality.
Sample order is welcome. For more detail catalog and other information, please feel free to contact us!!
