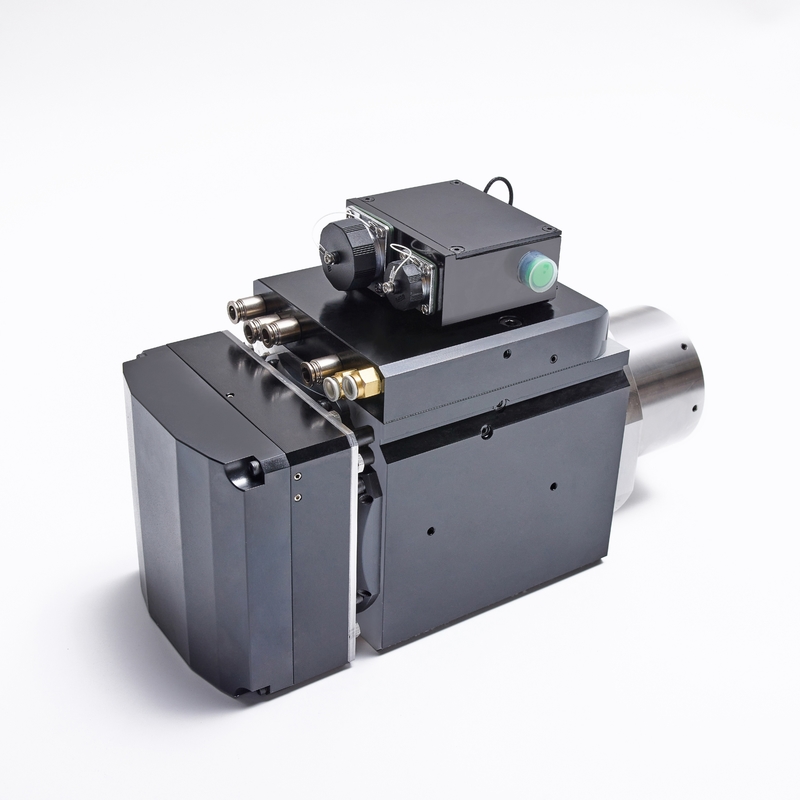

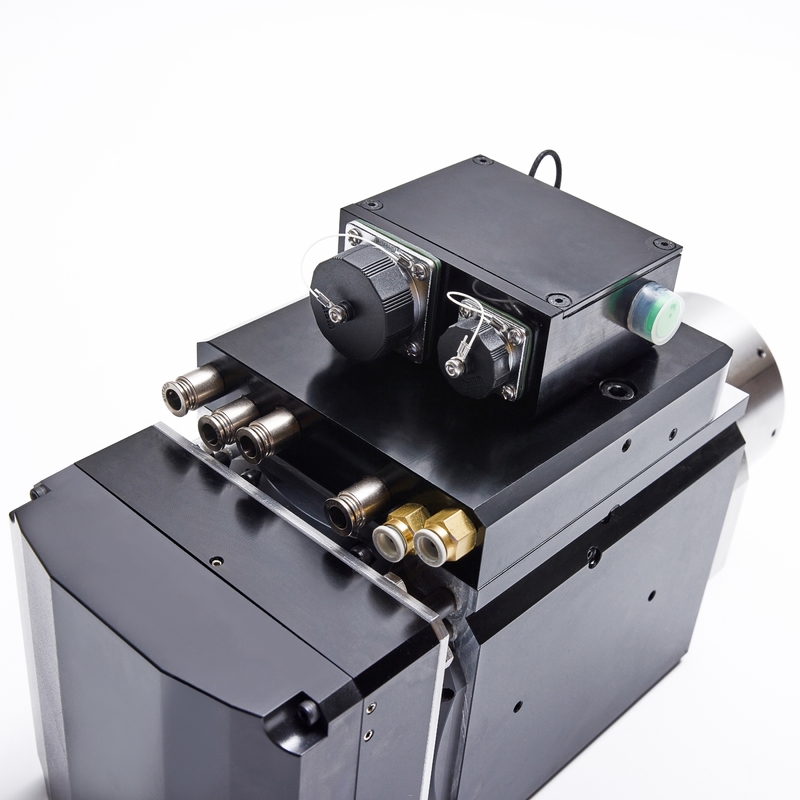

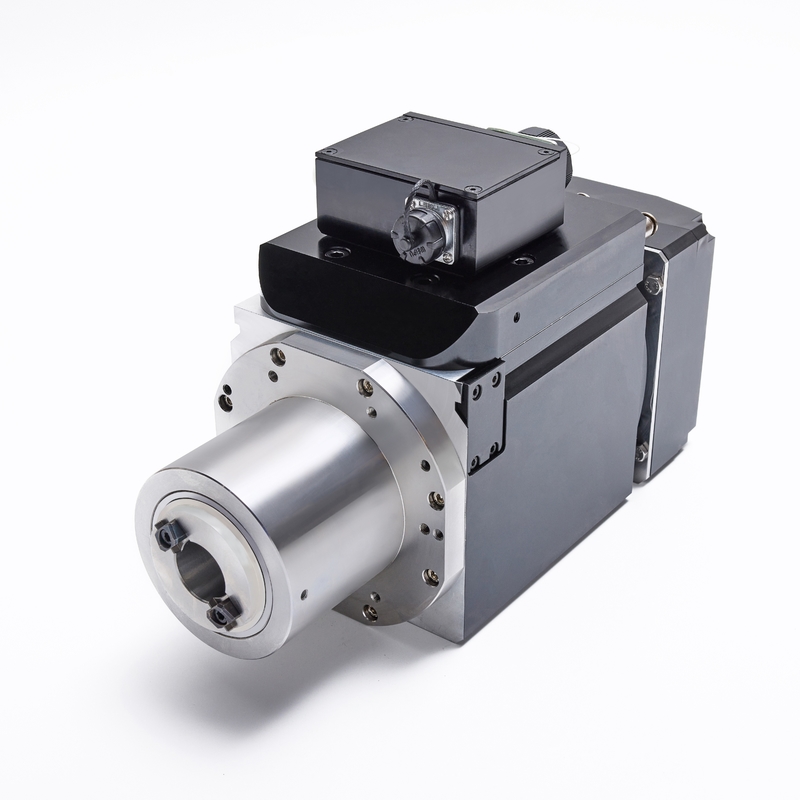

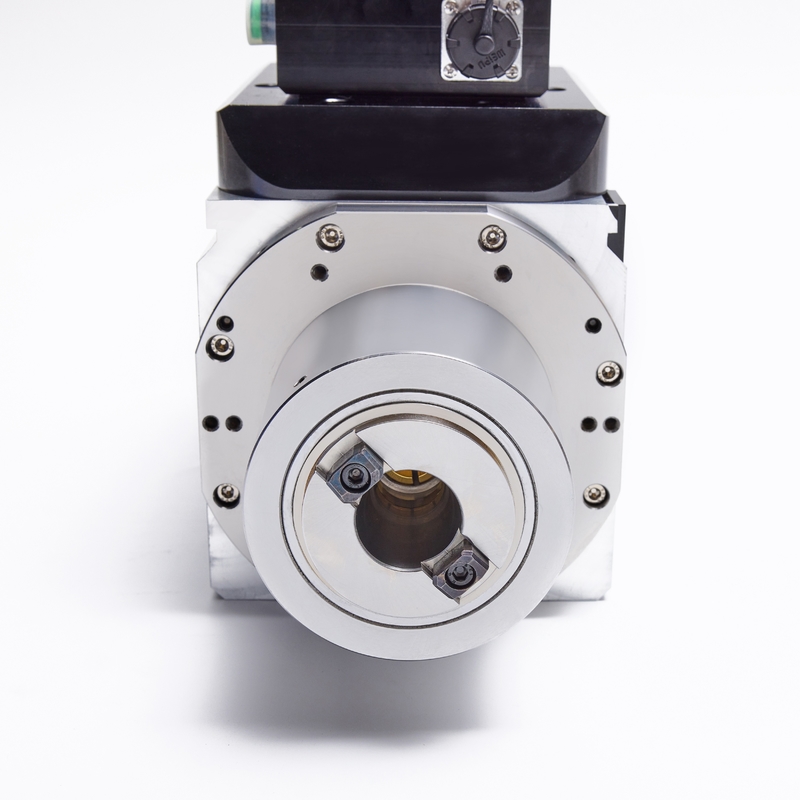

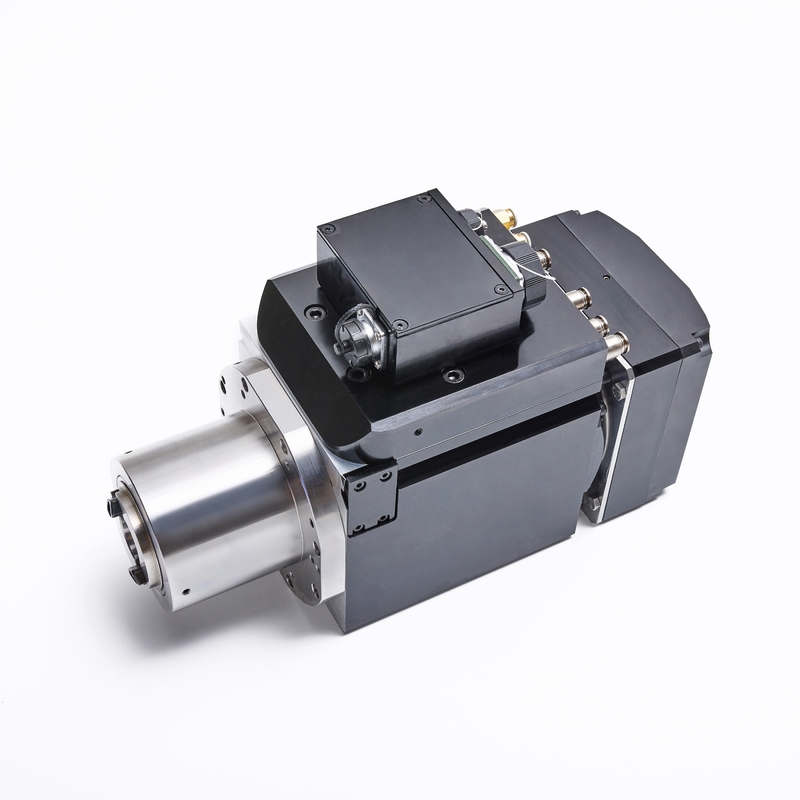

DECI High Precision Water cooling Metal Milling Spindle 24000Rpm Spindle  Automatic Tooling Exchange BT30 PNP Spindle

DECI High Precision Water cooling Metal Milling Spindle 24000Rpm Spindle Automatic Tooling Exchange BT30 PNP Spindle

  • Condition
    New
  • Range Of Spindle Speed(r.p.m)
    0 - 24000 R.p.m
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2023
  • Warranty Of Core Components
    1 Year
  • Core Components
    Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
  • Dimension(L*W*H)
    373.9*150*225
  • Weight (KG)
    28
  • Repeatability (X/Y/Z) (mm)
    0.001
  • Positioning Accuracy (mm)
    0.01 Mm
  • Spindle Power (kW)
    15
  • Warranty
    1 Year
  • Key Selling Points
    High Productivity
  • Application
    Other Applications, Hard Materials, 3C Accessories, Medical Industry, Metal Working Mould Processing
  • Showroom Location
    None
  • Type
    Milling Machine
  • Function
    Milling Engraving
  • Product Name
    DECI
  • Keyword
    Automatic Machine
  • Name
    DC-WZ-150AC-BT30(SZ)
  • Material
    Aluminum+Iron
  • Precision
    High Precision Machine
  • Usage
    Steel
  • Processing Method
    ATC
  • Place of Origin
    Guangdong, China
  • Brand Name
    DECI
  • Price
    $3,571.00/units 1-49 units
  • Packaging Details
    We can ship according to our customers.

DECI High Precision Water cooling Metal Milling Spindle 24000Rpm Spindle Automatic Tooling Exchange BT30 PNP Spindle

Specification
DC-WZ-150AC-BT30(SZ)
Parameters
Motor Power: 15 KW  Rated voltage:  380v(3~)
 Max rotate speed : 24000 Rpm/min  Max currency: 25 A
 Max Frequency: 800 Hz  Torque: 5.73 N.M
Specification
Cone surface spring at shaft end:  ≤0.001mm Tooling Releasing  Air curtain:  5.6-6.0 Kgf/cm²
 Tooling Exchange Method:  ATC Air curtain pressure at front end:  2.5-3.0 Kgf/cm²
 Tooling Pulling Force: ≥ 2900 Tooling Back Air Pressure: spring-loaded return cutter
 Tooling Connection: BT30 Cooling: water air cooling optional
 Encoder: Sine-Cosine 1VPP(Optional) Coolant Pressure: ≥ 2.5 Kgf/cm²
 Approach Switch:  PNP On Bearing Lubrication Method:  Grease
Balance Level :  G1 Tooling Instalation Method: Base Flange
Vibration Value:  ≤0.8 Weight: 28 kg
