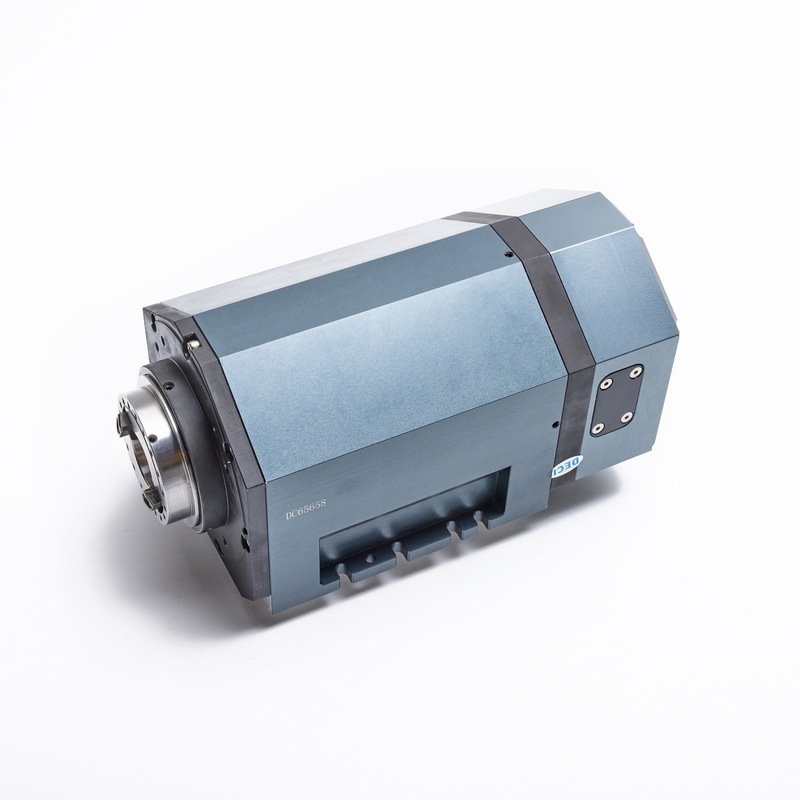

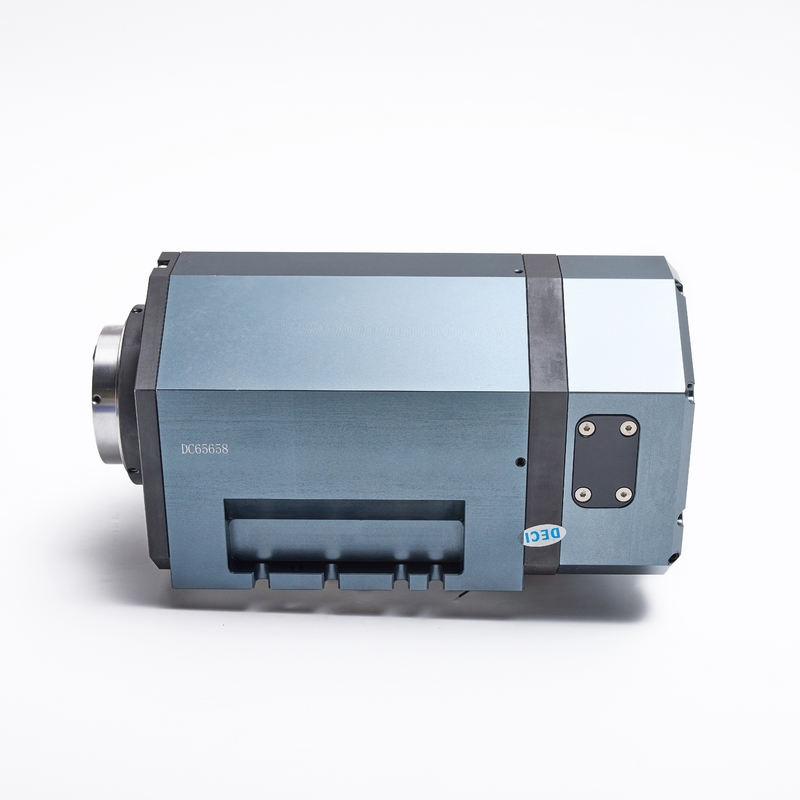

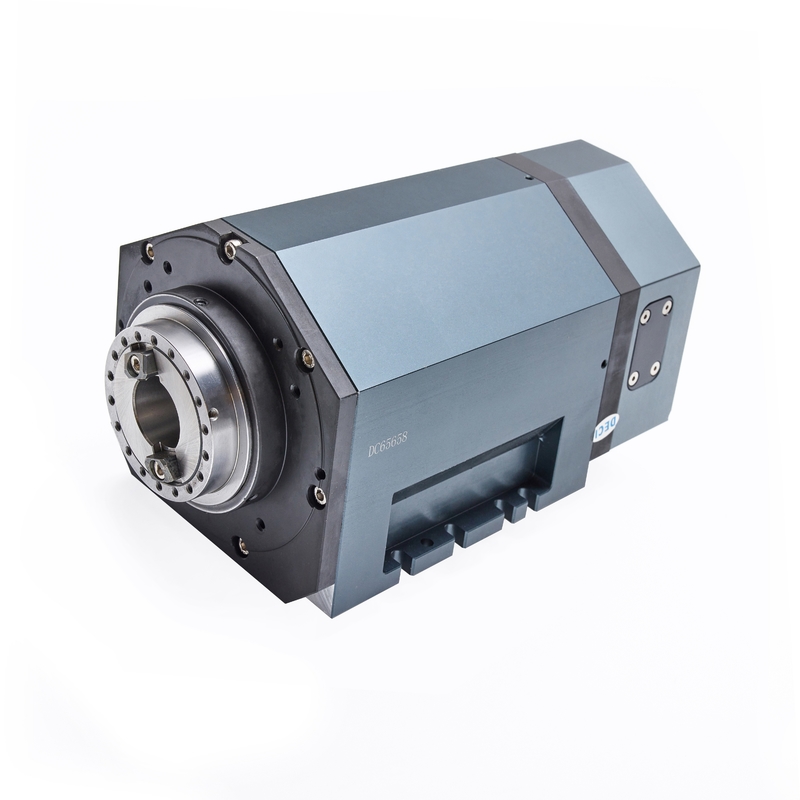

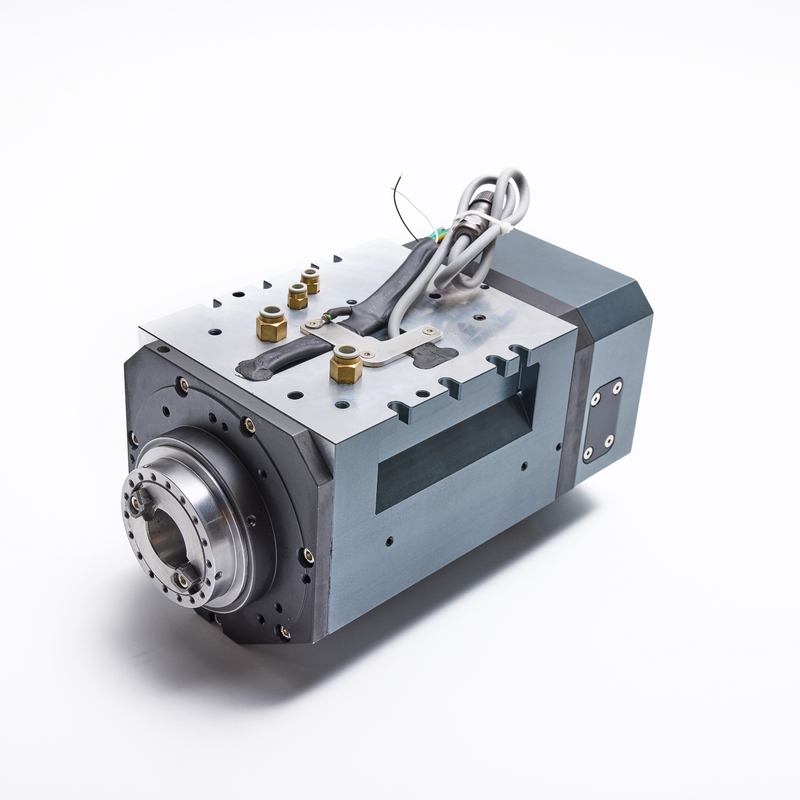

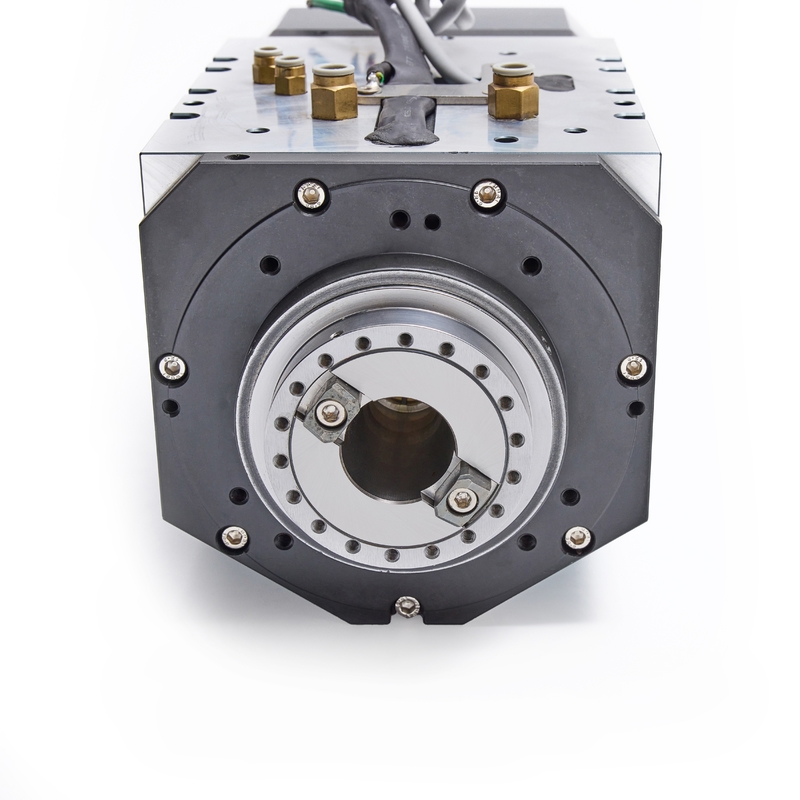

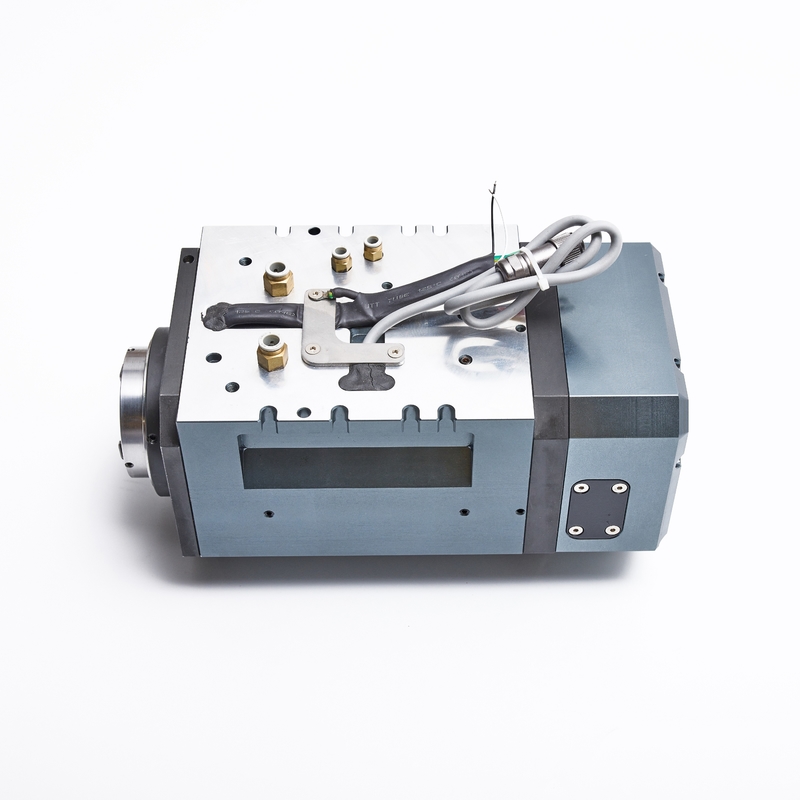

DECI High Rotation Accuracy Water cooling Metal Milling Spindle 15 Kw Spindle  Automatic Tooling Exchange Base flange Spindle

DECI High Rotation Accuracy Water cooling Metal Milling Spindle 15 Kw Spindle Automatic Tooling Exchange Base flange Spindle

  • Condition
    New
  • Range Of Spindle Speed(r.p.m)
    0 - 24000 R.p.m
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2023
  • Warranty Of Core Components
    1 Year
  • Core Components
    Engine, Bearing, Motor, Gear
  • Dimension(L*W*H)
    295.8*147*147
  • Weight (KG)
    22.5
  • Repeatability (X/Y/Z) (mm)
    0.001
  • Positioning Accuracy (mm)
    0.01 Mm
  • Spindle Power (kW)
    15
  • Warranty
    1 Year
  • Key Selling Points
    High-accuracy
  • Application
    Other Applications, Hard Materials, 3C Accessories, Medical Industry, Milling
  • Showroom Location
    None
  • Machine Name
    High Precision CNC Milling Machine
  • Product Name
    ATC CNC Mini Milling Machine
  • Function
    Milling Engraving
  • Material
    Aluminum+Iron
  • Applicable Industry
    Mould Industry
  • Keyword
    Automatic Machine
  • Usage
    Steel
  • Precision
    High Precision Machine
  • Type
    Milling Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    DECI
  • Price
    $3,392.00/units 1-49 units
  • Packaging Details
    We can ship according to our customers.

DECI High Rotation Accuracy Water cooling Metal Milling Spindle 15 Kw Spindle Automatic Tooling Exchange Base flange Spindle

Specification
DC-WP147A-BT30
Parameters
Motor Power: 15 KW  Rated voltage:  380v(3~)
 Max rotate speed : 24000Rpm/min  Max currency:  42/57 A
 Max Frequency: 800Hz  Torque:  12.2 N.M
Specification
Cone surface spring at shaft end:  ≤0.001mm Tooling Releasing  Air curtain:  5.6-6.0 Kgf/cm²
 Tooling Exchange Method:  ATC Air curtain pressure at front end:  2.5-3.0 Kgf/cm²
 Tooling Pulling Force:  ≥ 2900 Tooling Back Air Pressure: ~
 Tooling Connection:  BT30 Cooling:  water cooling optional
 Encoder: Square wave TTL(Optional) Coolant Pressure:  ≥ 2.5Kgf/cm²
 Approach Switch:  PNP On Bearing Lubrication Method:  Grease
Balance Level :  G1 Tooling Instalation Method: BASE FLANGE
Vibration Value:  ≤0.8 Weight:  22.5kg
Company Information

DECI High Rotation Accuracy Water cooling Metal Milling Spindle 15 Kw Spindle  Automatic Tooling Exchange Base flange Spindle



Applicable industry

DECI High Rotation Accuracy Water cooling Metal Milling Spindle 15 Kw Spindle  Automatic Tooling Exchange Base flange Spindle

Packaging & Shipping

DECI High Rotation Accuracy Water cooling Metal Milling Spindle 15 Kw Spindle  Automatic Tooling Exchange Base flange Spindle

Contact Us

DECI High Rotation Accuracy Water cooling Metal Milling Spindle 15 Kw Spindle  Automatic Tooling Exchange Base flange Spindle

DECI High Rotation Accuracy Water cooling Metal Milling Spindle 15 Kw Spindle  Automatic Tooling Exchange Base flange Spindle

FAQ

Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.



Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?

A: We have all the packages. We can get the engineer to program you.


Q:
What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7

      work days.


Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q:
Which payment method and Express can you accept?

A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.

     2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.


Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends

          with them, no matter where they come from.
