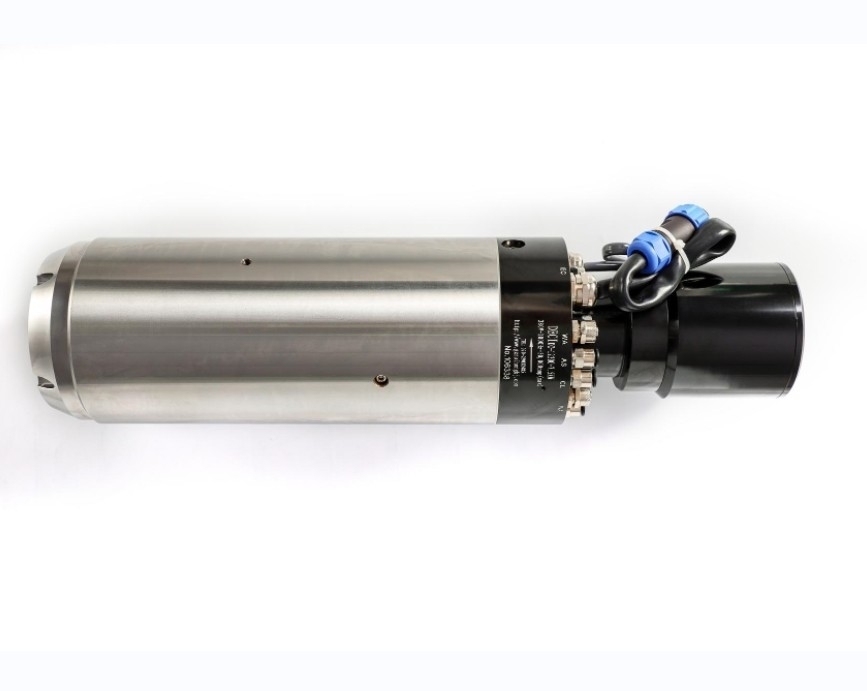

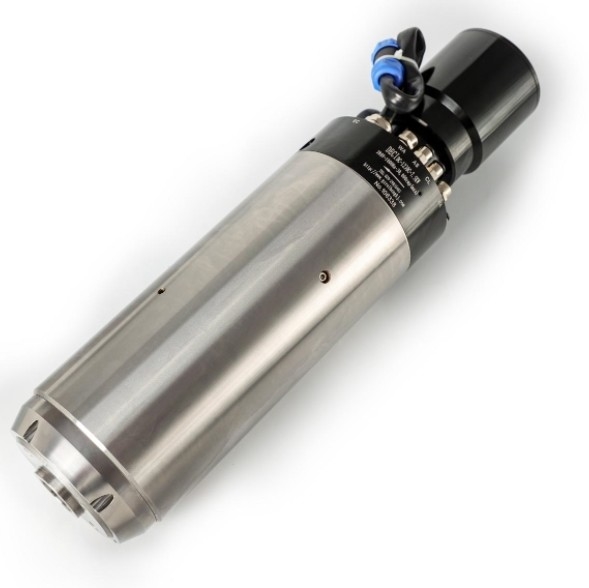

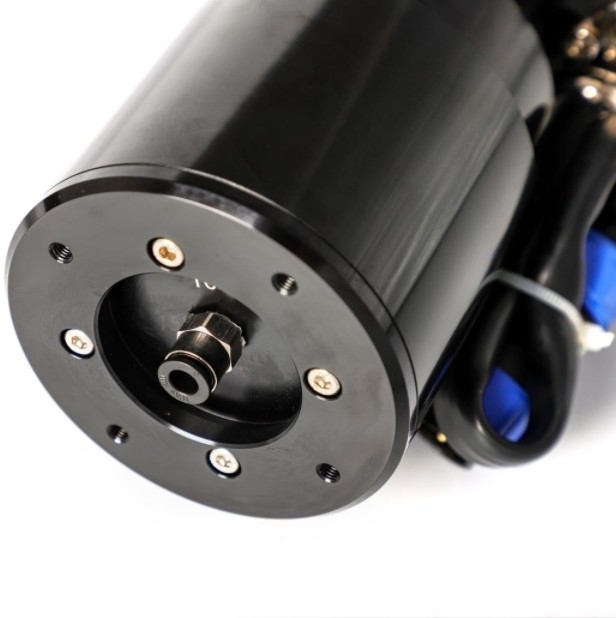

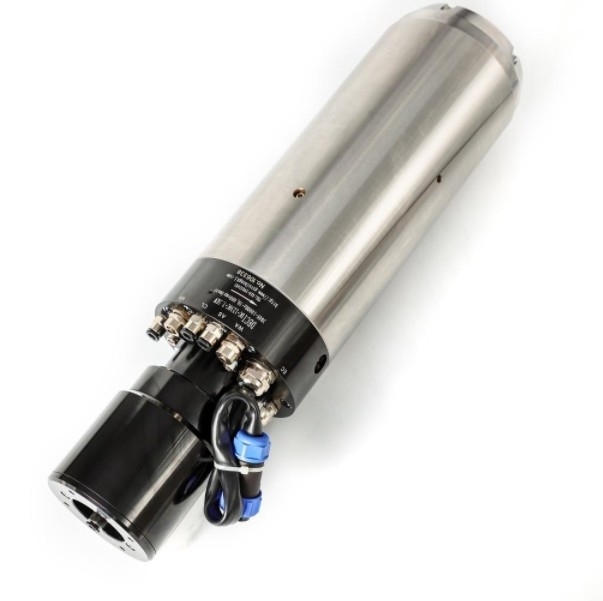

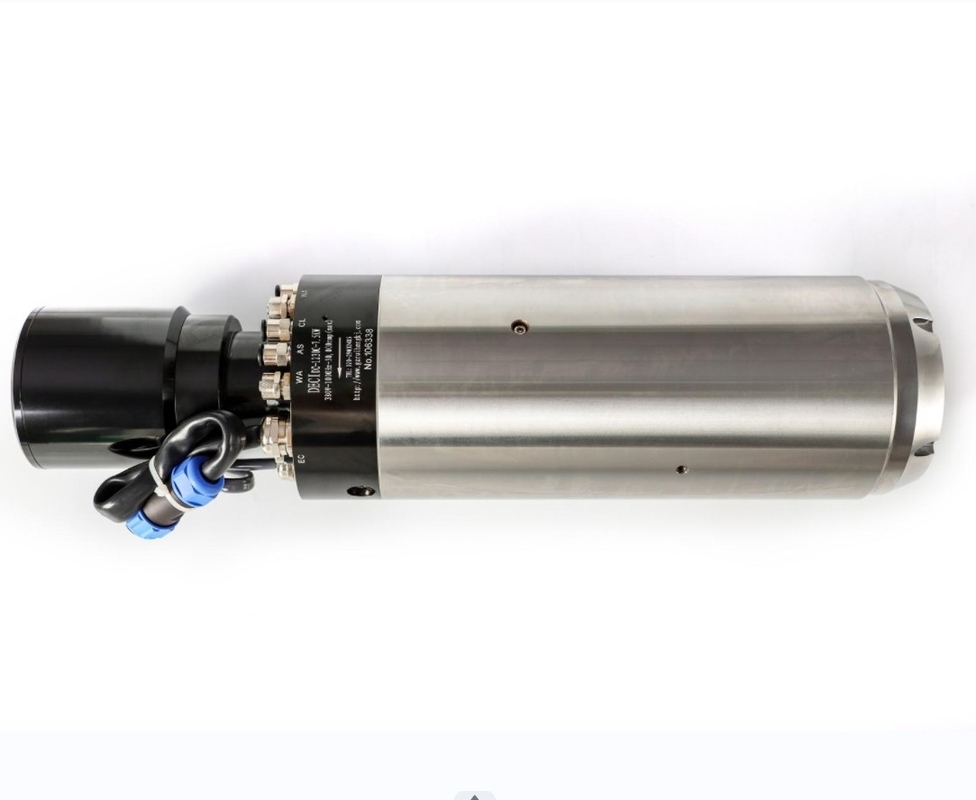

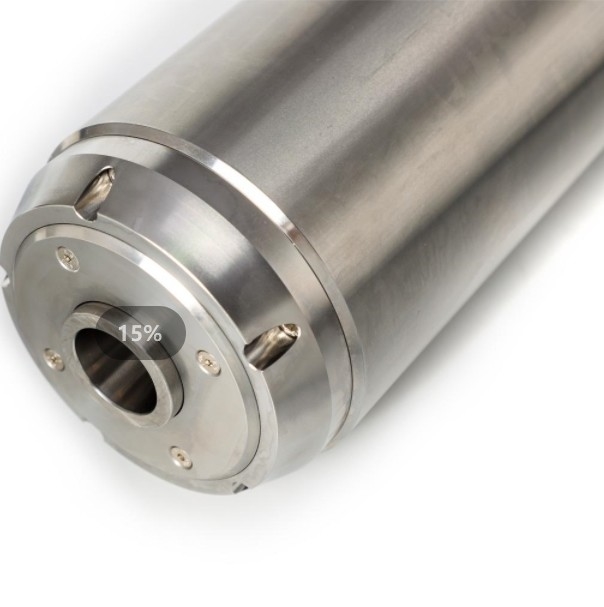

DECI 5.5KW 7.5KW 30000rpm Cnc Router Water Cooling Spindle Motor BT30 Flange Atc Spindle For Steel Metal Milling

Condition

New
Applicable Industries

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
Weight (KG)

28
Showroom Location

None
Video Outgoing-inspection

Not Available
Machinery Test Report

Provided
Marketing Type

New Product 2020
Application

Runing, Milling, Drilling, Boring, For CNC Machine To Truning
Maximum Torque

5.73N.M
Drive

Motor
Operating Speed

30000rpm
Warranty

1 Year
Core Components

Bearing, Motor
Product Name

BT30 Spindle
Power

7.5/5.5kw
Voltage

380/220(3~)
Frequency

1000HZ
Current

14.5/10.5A
Weight

26kg
Cooling Method

Water Cooling
Tooling Exchange Method

ATC
Installation Method

Clamp/Flange
Diameter

120mm
Place of Origin

Guangzhou,china
Brand Name

DECI
Price

$2,080.00/sets 1-9 sets
Supply Ability

500 Set/Sets per Month

DECI 5.5KW 7.5KW 30000rpm Cnc Router Water Cooling Spindle Motor BT30 Flange Atc Spindle For Steel Metal Milling

Name: DECI 5.5KW 7.5KW 30000rpm Cnc Router Water Cooling Spindle Motor BT30 Flange Atc Spindle For Steel Metal Milling
Brand: DECI
SKU: DECI
Price: 2 USD
Availability: InStock
Rating: 4.8 (190 reviews)

button button

Get Price Contact Now

Product Description

atc with bt30 7.5/5.5KW 60000Rmp 380/220 water cooling for cnc machine spindle

This product is a metal cutting high speed motor spindle with a maximum speed of 36000 rpm and a rated power of 7.5 kW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.

DECI spindle Motor Feature

1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

DECI DC-1230C
Parameters
Motor Power:	7.5/5.5KW	Rated voltage:	380/220V(3~)
Max rotate speed :	30000Rpm/min	Max currency:	14.5/10.5A
Max Frequency:	1000Hz	Torque:	5.73/4.78N.M
Specification
Shaft-end Cone Run-out:	≤0.001mm	Tooling Releasing Air Pressure:	5.6-6.0 Kgf/cm²
Tooling Exchange Method:	ATC	Air curtain pressure at front end:	2.5~3.0 Kgf/cm²
Tooling Pulling Force:	≥2900	Tooling Back Air Pressure:	5.6-6.0 Kgf/cm²
Tooling Connection:	BT30 Shank	Cooling:	water cooling
Encoder:	Square wave TTL (optional)	Coolant Pressure:	≥2.5 Kgf/cm²
Approach Switch:	PNP ON	Bearing Lubrication Method:	Grease
Balance Level :	G1	Tooling Instalation Method:	Mechanical clip
Vibration Value:	≤0.8	Weight:	26kg

Packing&Shipping

Packed in export standard carton or plywood case, with PP bag, thick foam.
DECI Spindle / cnc in Machining.
diy atc spindle motor

atc spindle belt drivenatc spindle belt driven

Related Products

Applicable industry

Why Choose Us

Company Profile

DECI Brand

Guangzhou Ruiheng Technology Co., Ltd is located in the Eastern Development Zone of Guangzhou. (Foshan Nanhai Xingtuo Precision Machinery Co., Ltd. is our subsidiary.) The company was established in 2009. We are a national high-tech enterprise integrating R&D, production, sales and maintenance of high-speed electric spindle. With the concerted efforts of all employees, a number of self-developed patented products, and the rapid development of the industry, the product quality and accuracy requirements are getting higher and higher. For this reason, the company has introduced advanced high-precision production of Swiss, German, British, Korean and other technologies for the electric spindle. Equipment and testing and calibration equipment, with the goal of "doing fine, coming stronger and bigger", more than 60% of our products are exported to the United States, Europe, India, Brazil, Dubai and other countries to help customers continuously update with quality service. Work hand in hand with customers, develop together, use morality as a product, and create a first-class product with magnetic "DECI" to help China create!

Certifications

FAQ

Q1:Are you a trading company or a manufacturer?
A1: We are the manufacturer of DECI electric spindles.

Q2:Do you have the products in stock?
A2:Our products are manufactured according to your order required except normal products.

Q3:Can I get some samples first?
A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..

Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?
A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.

Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
