DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor

DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor

Products - Metal Engraving Spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    7
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Polishing
  • Maximum Torque
    2.5N.M
  • Drive
    Motor
  • Operating Speed
    9000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    Polishing Spindle
  • Diameter
    128mm
  • Power
    1.6kw
  • Voltage
    380(3~)
  • Frequency
    300HZ
  • Current
    3A
  • Weight
    7kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    MTC
  • Installation Method
    Flange
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $606.28/pieces 1-9 pieces
  • Supply Ability
    500 Set/Sets per Month

DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor

  • DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor
  • DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor
  • DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor
  • DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor
  • DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor
  • DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor
Get Price Contact Now
Product Description

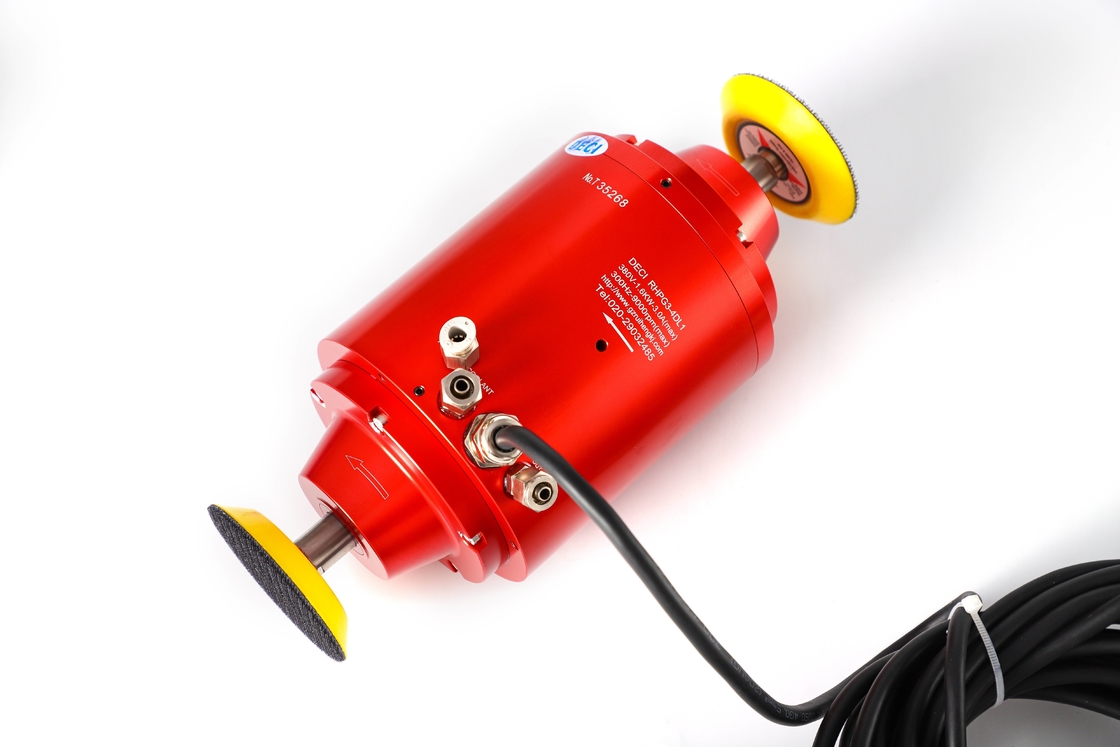

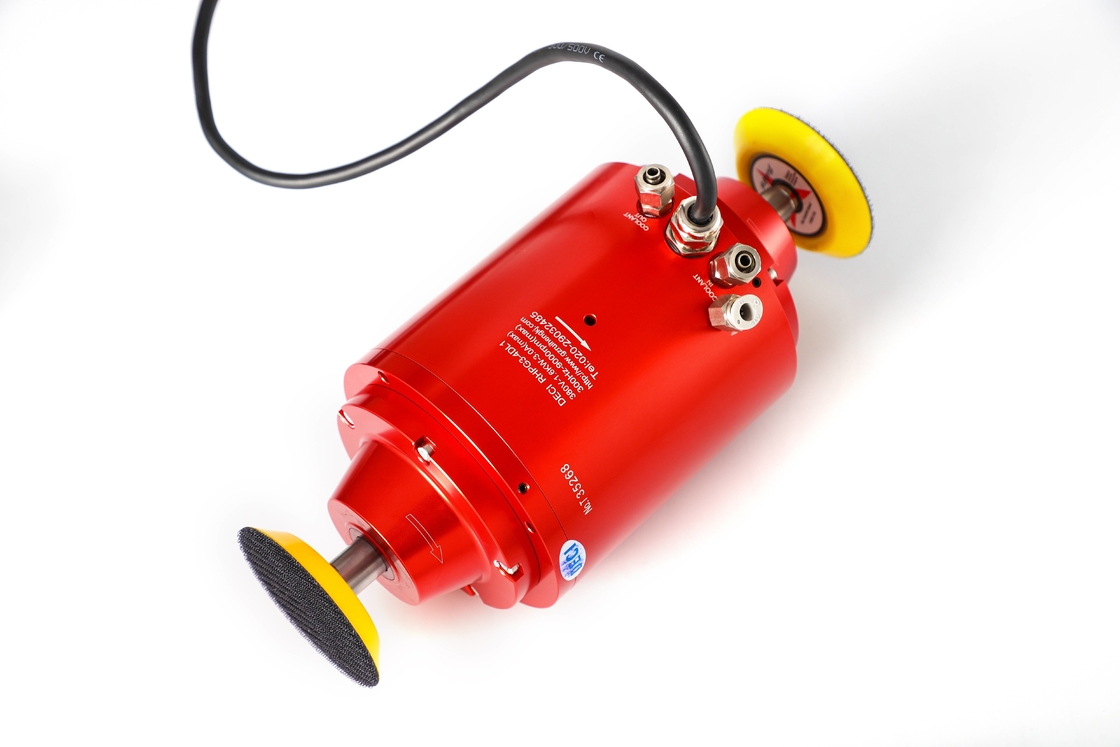

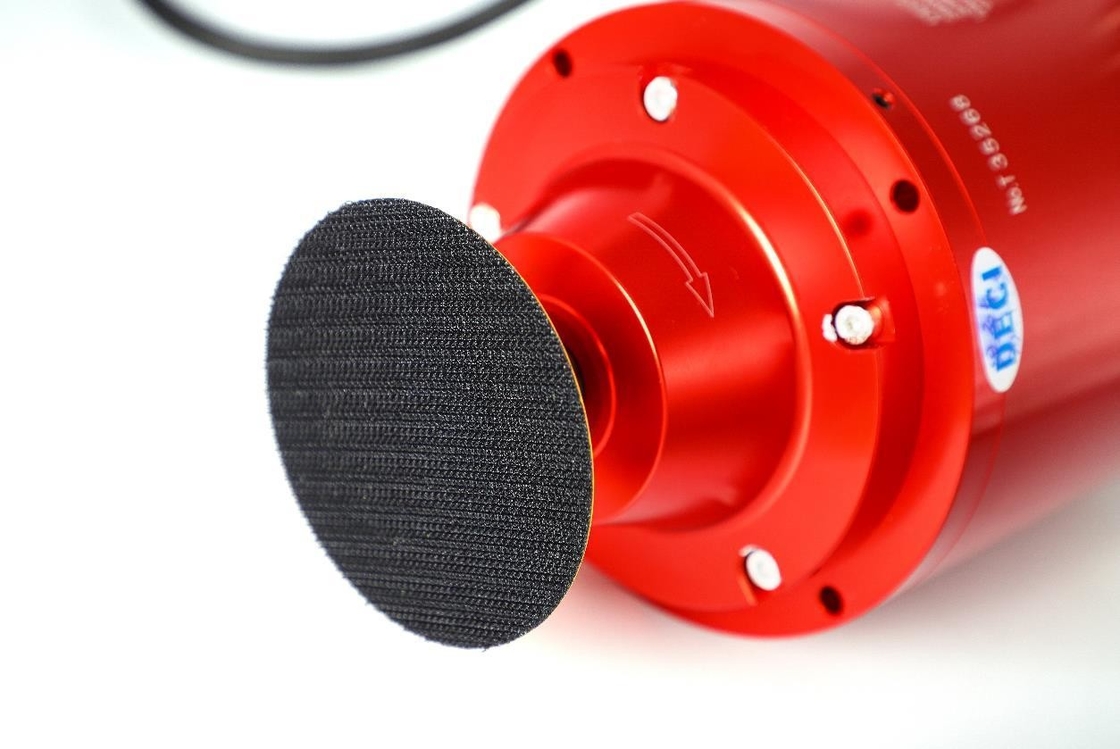

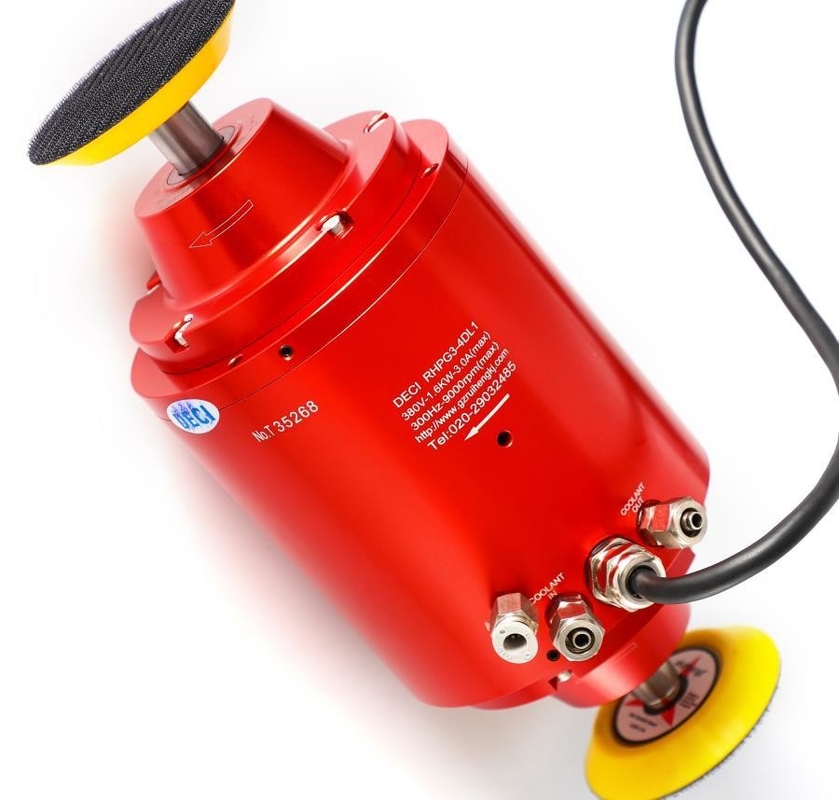

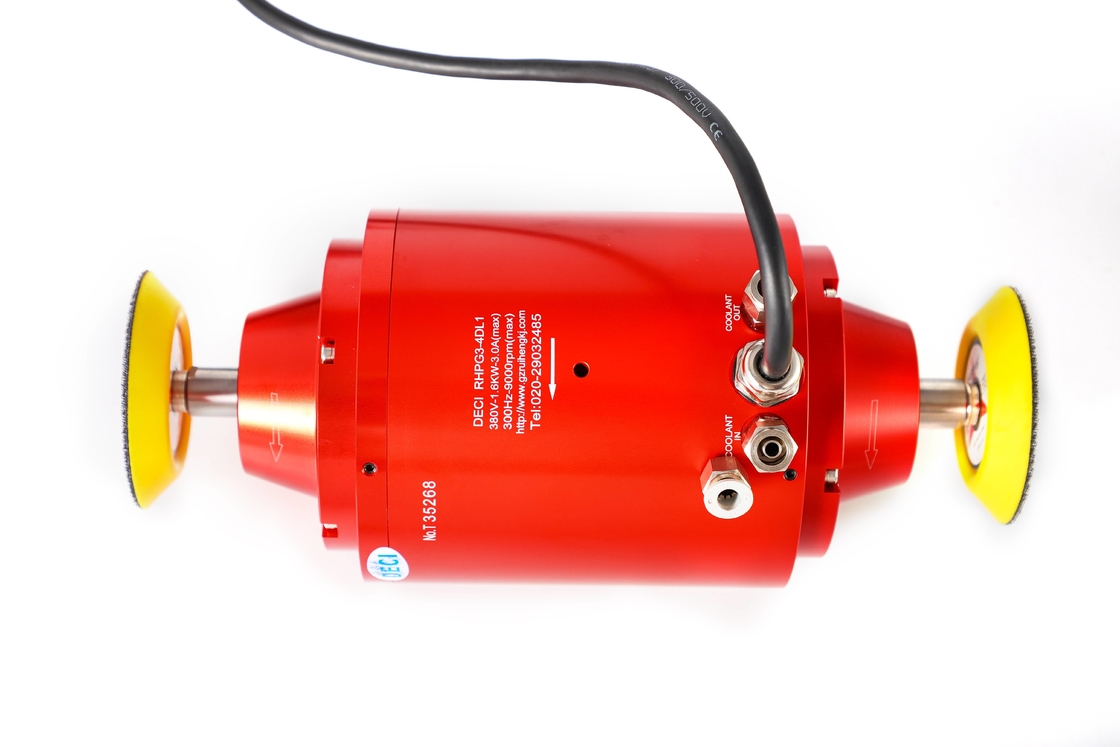

DECI 1.6kw 9000rpm water cooled Polishing spindle motor
This product is a metal polishing high speed electric spindle with a maximum speed of 9000 rpm and a rated power of 1.6 KW. It is suitable for high speed, high precision Metal, non-metal surface polishing.

DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor 0
DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor 1
DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor 2
DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor 3
DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor 4
DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor 5
DECI  RHPG3
Parameters
Motor Power:
1.6KW
Rated voltage:
380V(3~)
Max rotate speed :
9000Rpm/min
Max currency:
3A
Max Frequency:
300Hz
Torque:
2.5N.M
Specification
Shaft-end Cone Run-out:
≤0.002mm
Tooling Releasing Air Pressure:
─
Tooling Exchange Method:
MTC
Air curtain pressure at front end:
≥5.0 Kgf/cm²
Tooling Pulling Force:
-
Tooling Back Air Pressure:
─
Tooling Connection:
plate for 3-inch/ 5-inch
Cooling:
water cooling
Encoder:
─
Coolant Pressure:
≥2.5 Kgf/cm²
Approach Switch:
─
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
Flange
Vibration Value:
≤1.5
Weight:
6.3kg
DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor 6
DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor 7
Packing&Shipping
Packed in export standard carton or plywood case with PP bag, thick foam.
DECI Spindle / cnc in Machining.
atc spindle motor
spindle motor and drive
DECI 1.6kw 380V 9000rpm MTC water cooled metal and non-metal surface polishing spindle motor 8
