DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines

DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines

Products - Metal Engraving Spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.28N.M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    Spindle
  • Power
    1.8/1.5/1.2kw
  • Voltage
    200(3~)
  • Frequency
    1000HZ
  • Current
    6.5/5.0/4.3A
  • Weight
    1.35kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    Manual
  • Installation Method
    Mechanical Clip
  • Keywords
    Atc Spindle Manufacturer
  • After Warranty Service
    Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
  • Local Service Location
    None
  • After-sales Service Provided
    Free Spare Parts, Online Support, Video Technical Support, Field Maintenance And Repair Service
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Model Number
    DC-60D2
  • Price
    $596.60/pieces 1-9 pieces
  • Supply Ability
    500 Set/Sets per Month

DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines

  • DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines
  • DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines
  • DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines
  • DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines
  • DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines
  • DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines
Get Price Contact Now
Product Description

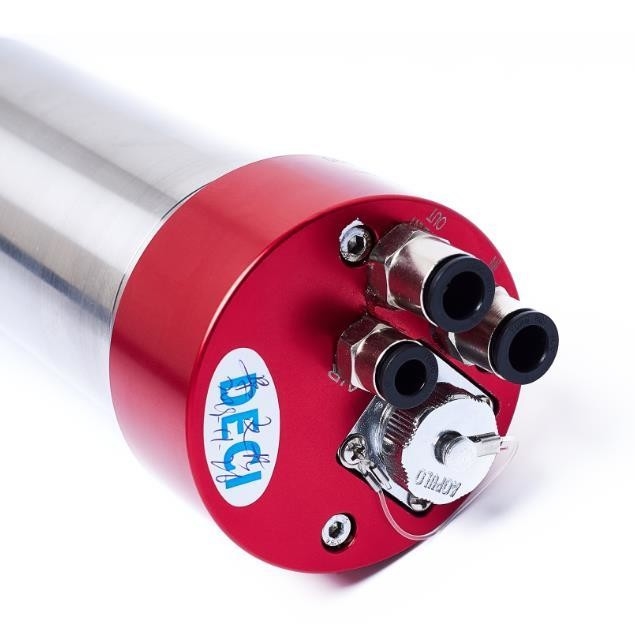

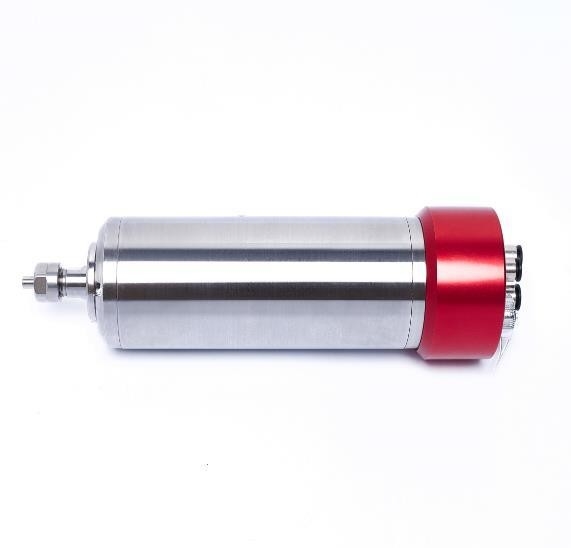

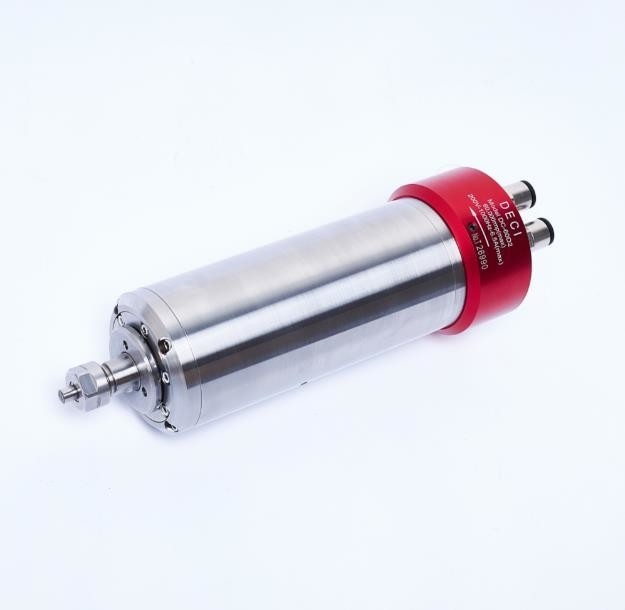

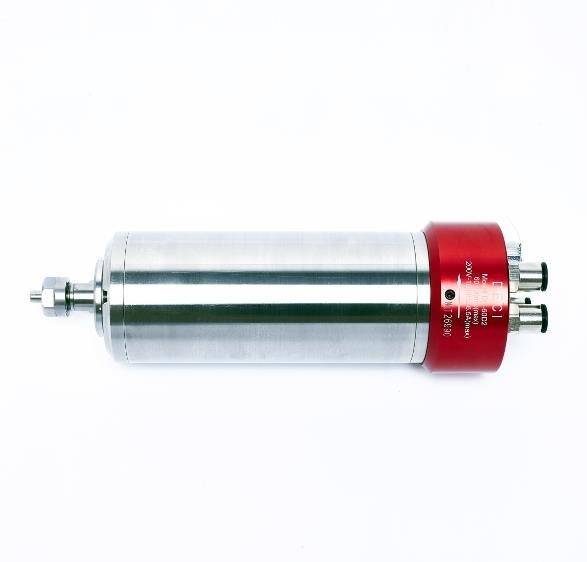

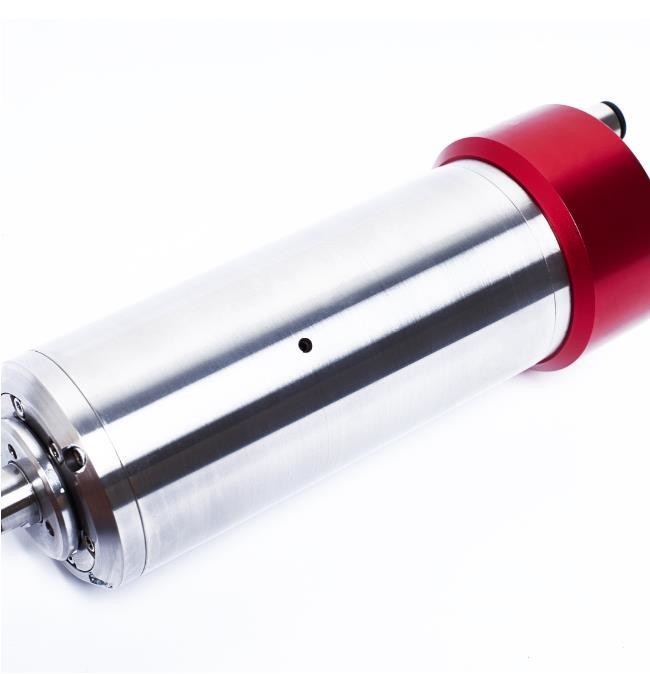

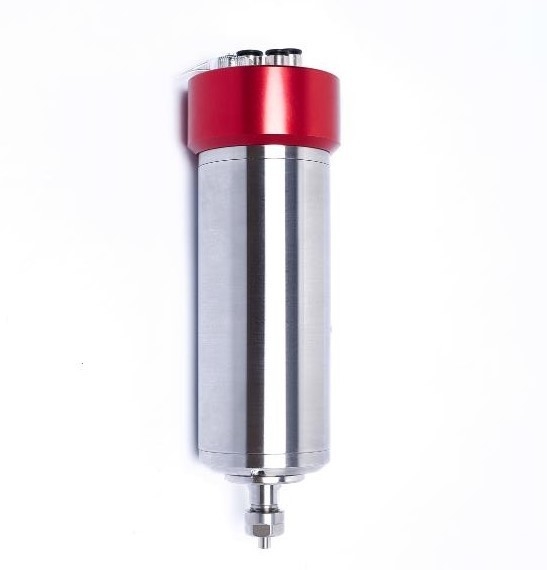

DECI 60000Rmp 200V 1.8/1.5/1.2KW water cooling atc with ER11 spindle motor with collet
This product is a metal cutting high speed electric spindle with a maximum speed of 36000 rpm and a rated power of 1.8 kW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.

DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines 0
DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines 1
DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines 2
DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines 3
DECI   DC-60D2
Parameters
Motor Power:
1.8/1.5/1.2KW
Rated voltage:
200V(3~)
Max rotate speed :
60000Rpm/min
Max currency:
6.5/5.0/4.3A
Max Frequency:
1000Hz
Torque:
0.28/0.24/0.19N.M
Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
N/M
Tooling Exchange Method:
HTC
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²
Tooling Pulling Force:
─
Tooling Back Air Pressure:
N/M
Tooling Connection:
ER11
Cooling:
water cooling
Encoder:
N/M
Coolant Pressure:
≥2.5 Kgf/cm²
Approach Switch:
N/M
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
Mechanical clip
Vibration Value:
≤0.8
Weight:
3.0kg
DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines 4
DECI water cooled high speed cnc router lathe machine tool spindle motor for metal cutting machines 5
Packing&Shipping
Packed in export standard carton or plywood case, with PP bag, thick foam.
