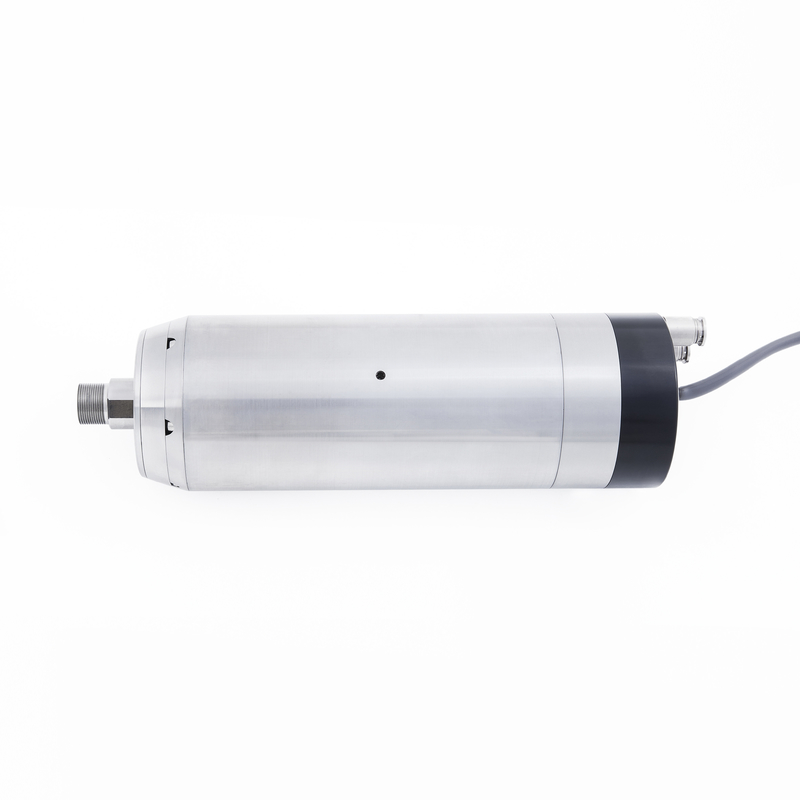

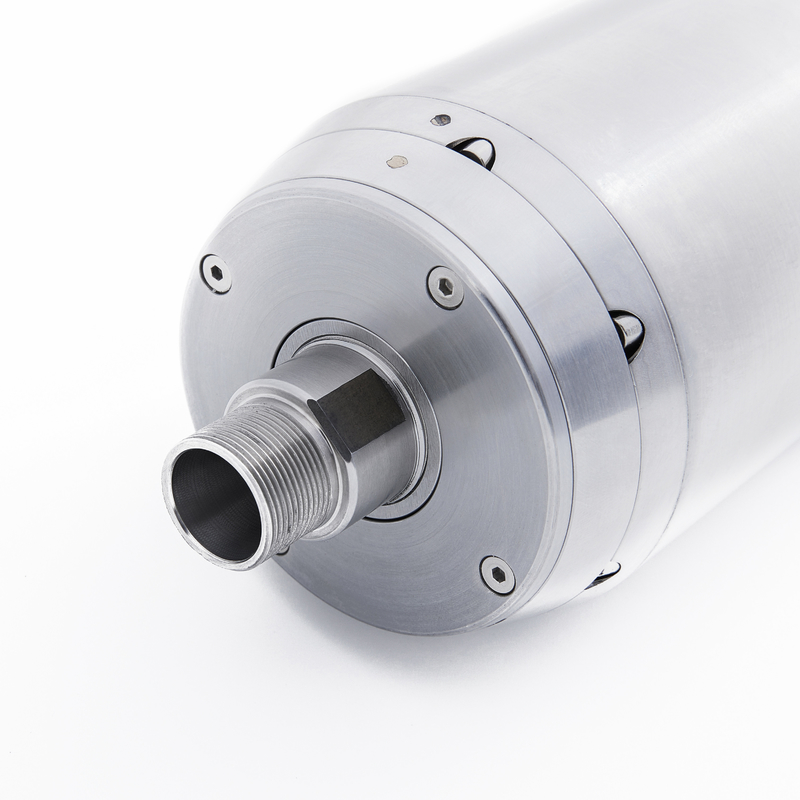

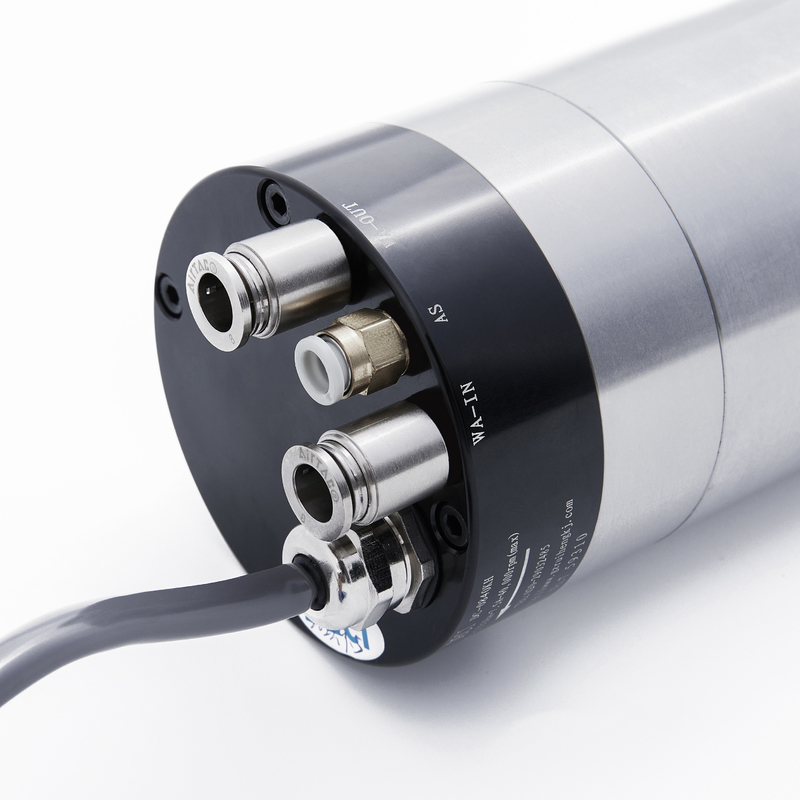

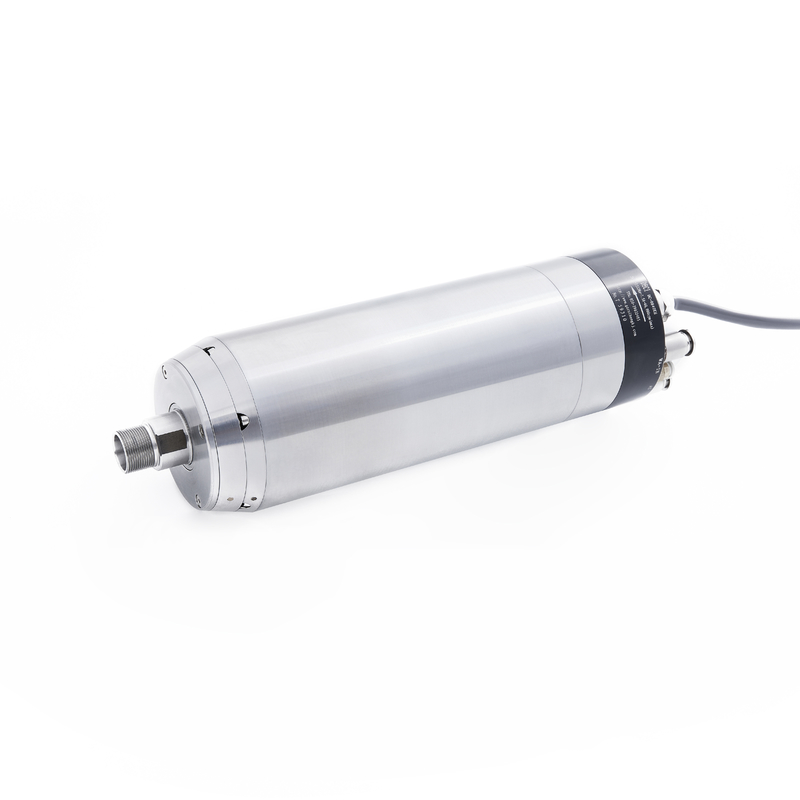

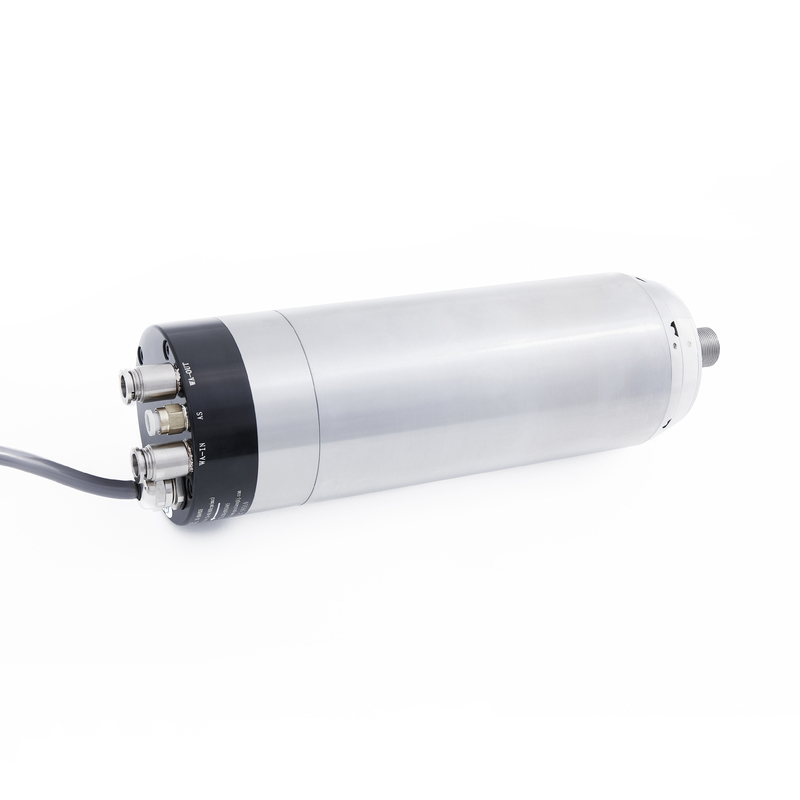

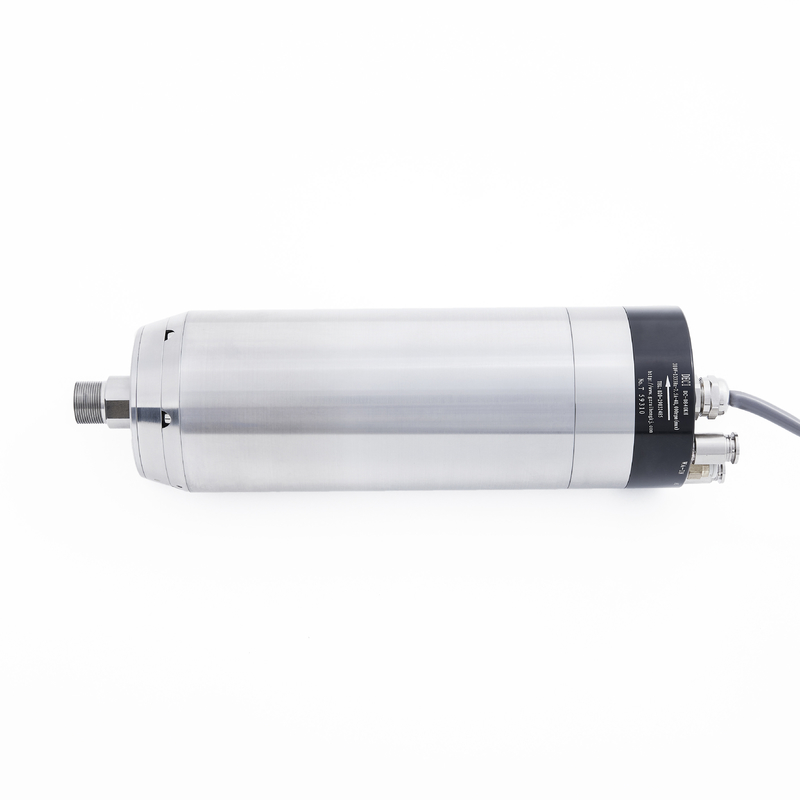

Motor Drive DECI Spindle ER16 Collet Chuck 40000rpm 3.7KW 1333Hz Elastic Tool Holder

Products - Engraving and milling spindle

Condition

New
Applicable Industries

Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining
Weight (KG)

7.65
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Provided
Marketing Type

New Product 2024
Application

Drilling,Milling
Maximum Torque

1.27N.M
Drive

Motor
Operating Speed

40000RPM
Warranty

1 Year
Core Components

Engine, Bearing, Gearbox, Motor, Gear
Power

4KW
Voltage

380(3~)
Frequency

1333HZ
Weight

7.65KG
Current

7.5A
Tools Connector

ER16
Cooling Method

Water Cooling
Speed

40000rpm
Usage

Aluminium Drill Milling
Lubrication

Grease
Place of Origin

Guangdong,China
Brand Name

DECI
Price

$864.00/units 1-9 units

Motor Drive DECI Spindle ER16 Collet Chuck 40000rpm 3.7KW 1333Hz Elastic Tool Holder

Name: Motor Drive DECI Spindle ER16 Collet Chuck 40000rpm 3.7KW 1333Hz Elastic Tool Holder
Brand: DECI
SKU: DECI
Price: 864.00 USD
Availability: InStock
Rating: 4.7 (105 reviews)

button button

Get Price Contact Now

DC-0840KH
Parameters
Moter Power(KW)	4.0/3.7/2.5	Rated voltage (V/AC)	220
Maximum speed(Rpm)	40000	Maximum current (A)	7.5/7.1/4.8
Maximum frequency (Hz)	1333	Torque (N·M)	1.27/0.88/0.6
Technical parameters
Shaft Rotation Accuracy (mm)	≤ 0.001	Tooling Releasing pressure (Kgf/cm²)	—
Tooling Exchange Method	Manual	Front curtain pressure (Kgf/cm²)	2.5-3.0
Tooling Pulling Force(≥N)	—	Tool return pressure(Kgf/cm²)	—
Tooling Connection	ER16 Collet chuck	Cooling method	Water cooling
Encoder (Optional)	—	Coolant Pressure (Kgf/cm²)	≥ 2.5
Proximity switch	—	Bearing lubrication mode	Grease
Balance Level	G1	Tooling Installation Method	Clamp
Vibration value (mm/s)	≤ 0.8	Weigh (Kg)	8

Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
