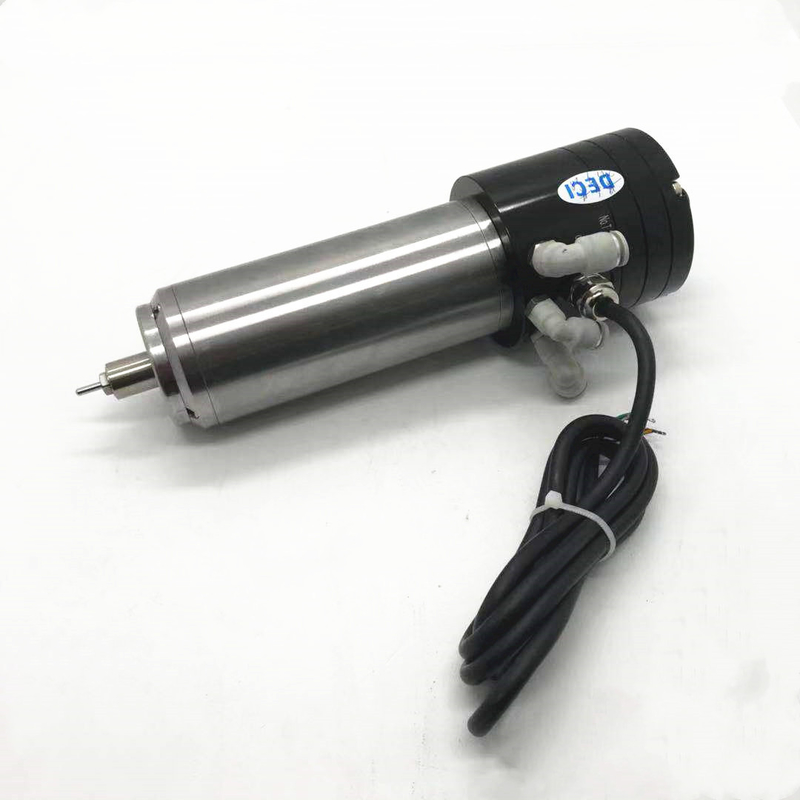

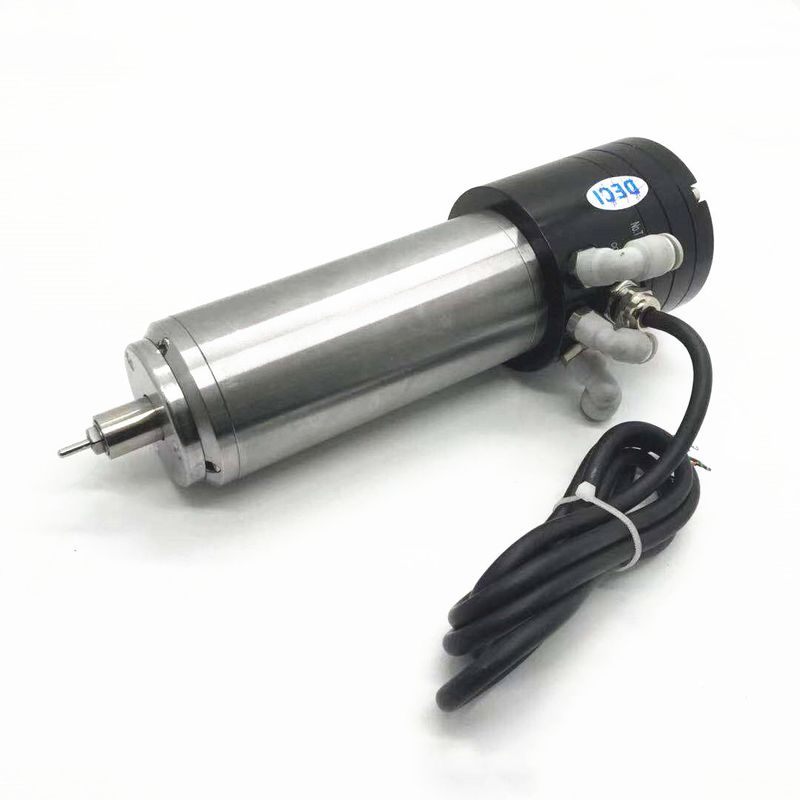

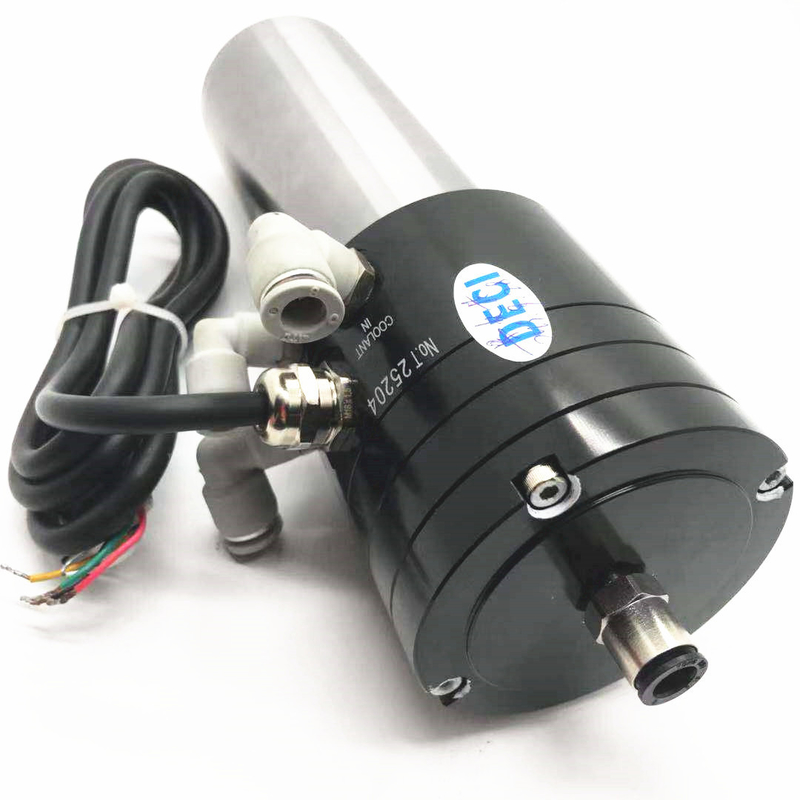

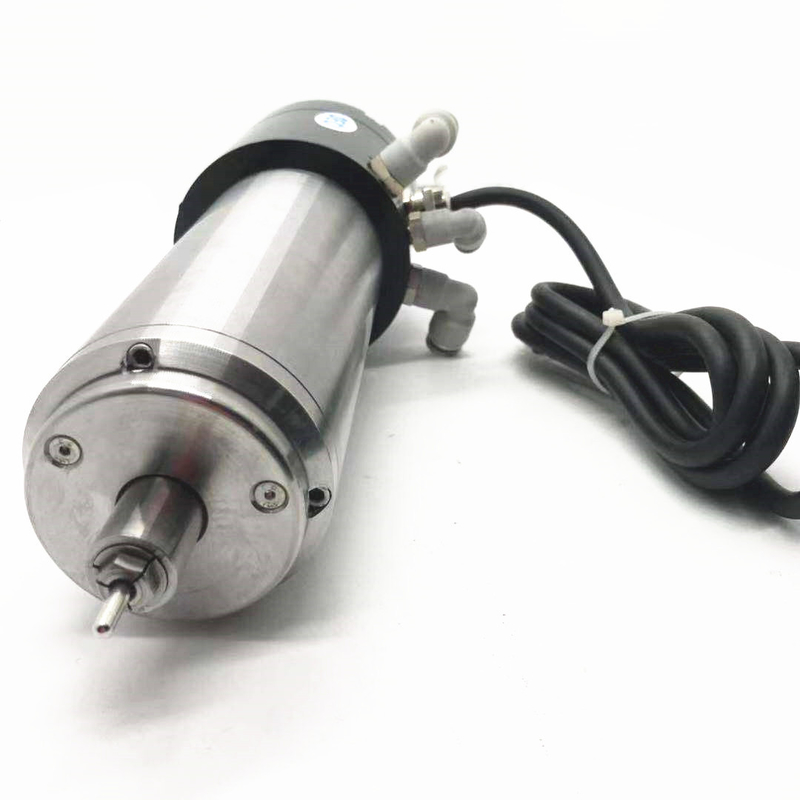

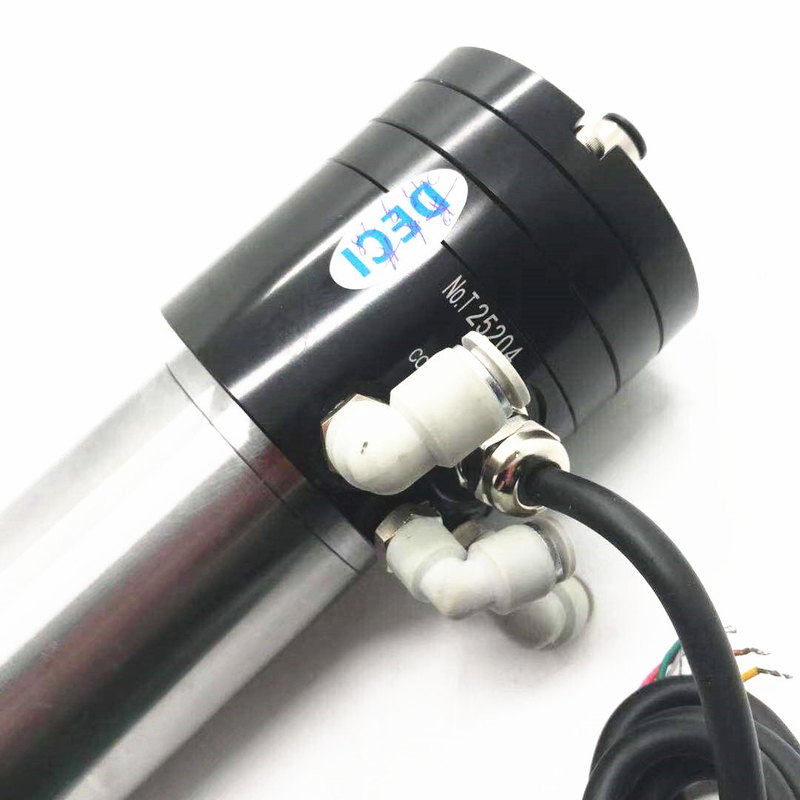

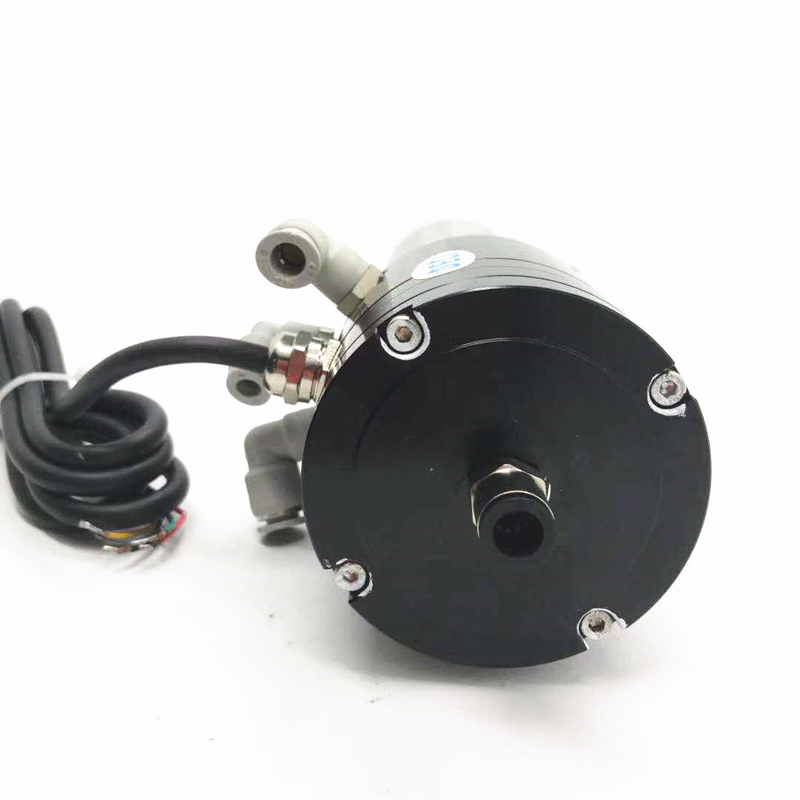

DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V

DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V

Products - Engraving and milling spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    3.97
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.19N.M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Diameter
    62mm
  • Voltage
    220(3~)
  • Frequency
    1000HZ
  • Current
    4.3A
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    Clamp
  • Balance Grade
    G1
  • Lubrication
    Grease
  • Vibration Value
    Within 0.8mm/s
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $1,300.00/sets 1-9 sets

DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V

  • DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V
  • DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V
  • DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V
  • DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V
  • DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V
  • DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V
Get Price Contact Now
DC-62B3
Parameters
Moter Power(KW)
2.2/1.8/1.5/1.2
Rated voltage (V/AC)
220(3~)
Maximum speed(Rpm)
60000
Maximum current (A)
7.2/6.5/5.0/4.3
Maximum frequency (Hz)
1000
Torque (N·M)
0.35/0.28/0.24/0.19
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
1200
Tool return pressure(Kgf/cm²)
—
Tooling Connection
φ3-6 collet chuck
Cooling method
Water cooling
Encoder (Optional)
—
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
—
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Clamp
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
3.97
DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V 0
DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V 1
DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V 2
DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V 3
DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V 4
DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V 5
DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V 6
DECI 60000Rpm 1.2KW Spindle Motor Denture Milling Machine 3mm collet chuck automatic tool change small spindle 220V 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
