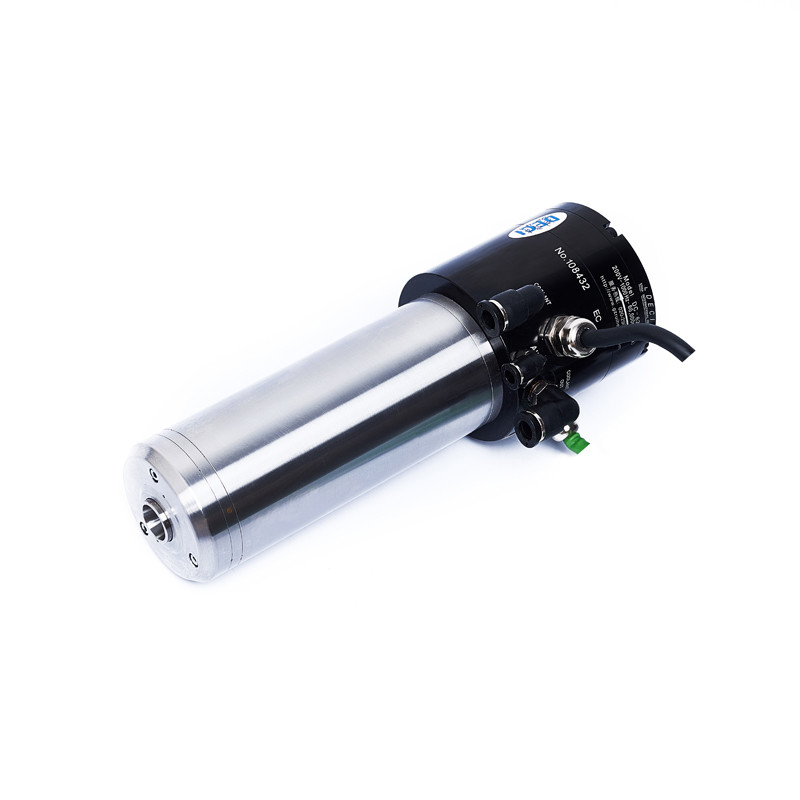

DECI ISO10 ATC Electric Spindles Motors 2.2KW 6000RPM 1000HZ 220V Automatic high precision drilling milling tapping CNC

DECI ISO10 ATC Electric Spindles Motors 2.2KW 6000RPM 1000HZ 220V Automatic high precision drilling milling tapping CNC

  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
  • Weight (KG)
    3.97
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Milling
  • Maximum Torque
    0.35NM
  • Drive
    Motor
  • Operating Speed
    60000RPM
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Voltage
    200V(3~)
  • Power
    2.2KW
  • Outer Diameter
    61.9mm
  • Current
    7.2A
  • Cooling Method
    Water Cooling
  • Weight
    3.97kg
  • Shaft Cone End Runout
    Less Than 1 μm
  • Vibration Value
    Less Than 0.8mm/s
  • Installation Method
    Clamp
  • Broach Force
    Over 1200N
  • Place of Origin
    guangzhou,china
  • Brand Name
    DECI
  • Price
    $1,512.00/sets 1-9 sets

DECI ISO10 ATC Electric Spindles Motors 2.2KW 6000RPM 1000HZ 220V Automatic high precision drilling milling tapping CNC

Applicable industry
Spindle Motor ATC (Automatic Tool Changer) complete range of CNC spindle Motor is known for providing Higher precision and Proficient Performance in machining processes.

ATC Spindle Motors provide higher accuracy and the performances are aligned with higher stability and compactness, thus making them suitable for applications where automatic tool changing with multiple tools changing a frequency is very high.

Our complete portfolio of ATC Spindle Motors, spindles ranges from 12000 rpm and 60000 rpm with high precision spindle bearings such as ceramic bearings and steel bearings. ATC Spindle Motor can use different tools automatically without human intervention.

With a wider portfolio of applications being implemented into such as PCB Drilling Machine, Die Mold Machine, Jewellary Making Machine, Wood Carving Machine, Stone Carving Machine, CNC Machining Centers, and Denture Making Machine.

Known for better service and a diversified team of experienced Team Individuals, we do Look forward to creating a unique experience in Motorized Spindle Motor.

DECI ISO10 ATC Electric Spindles Motors 2.2KW 6000RPM 1000HZ 220V Automatic high precision drilling milling tapping CNCDECI ISO10 ATC Electric Spindles Motors 2.2KW 6000RPM 1000HZ 220V Automatic high precision drilling milling tapping CNC
Packaging & Shipping

DECI ISO10 ATC Electric Spindles Motors 2.2KW 6000RPM 1000HZ 220V Automatic high precision drilling milling tapping CNC

Why choose us



DECI ISO10 ATC Electric Spindles Motors 2.2KW 6000RPM 1000HZ 220V Automatic high precision drilling milling tapping CNC







Company Information

DECI ISO10 ATC Electric Spindles Motors 2.2KW 6000RPM 1000HZ 220V Automatic high precision drilling milling tapping CNC

Certifications

DECI ISO10 ATC Electric Spindles Motors 2.2KW 6000RPM 1000HZ 220V Automatic high precision drilling milling tapping CNC

FAQ

Q: Are you trading company or manufacturer ?
A: We are the manufacturer of DECI electric spindles.



Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?

A:we have all the packages. We can get the engineer to program you.


Q:
What's your delivery time?
A: It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.


Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.

Q:
Which payment method and Express can you accept?

   1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.

   2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.


Q: How do you make our business long-term and good relationship?
A: 1. DECI keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
