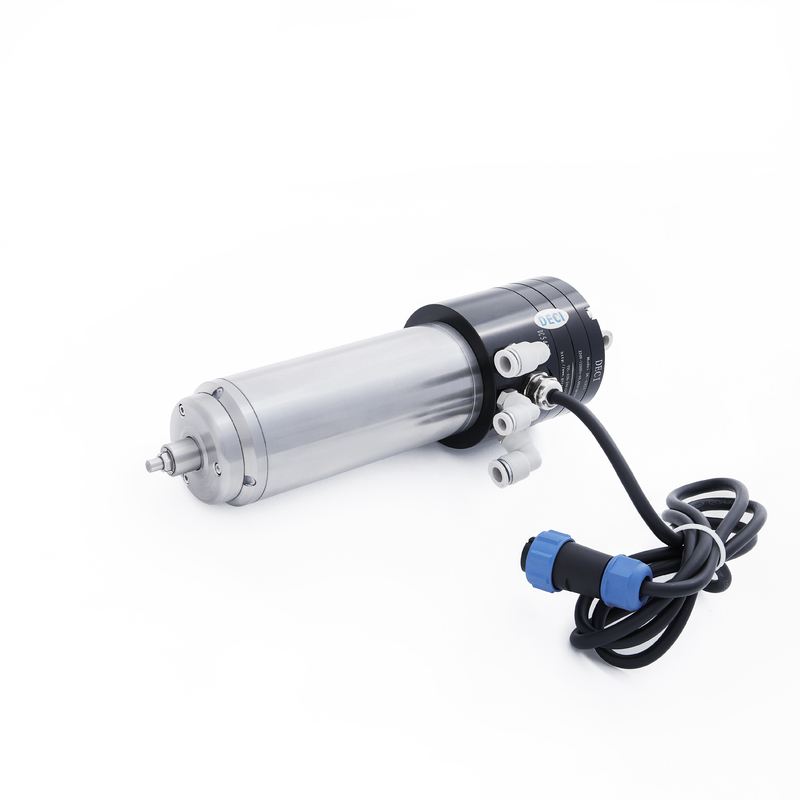

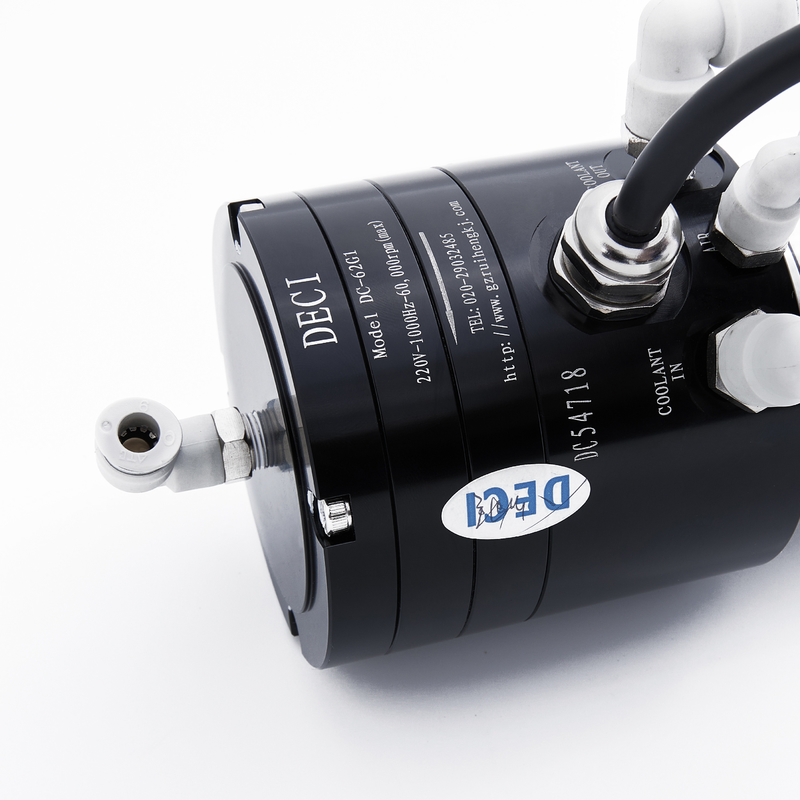

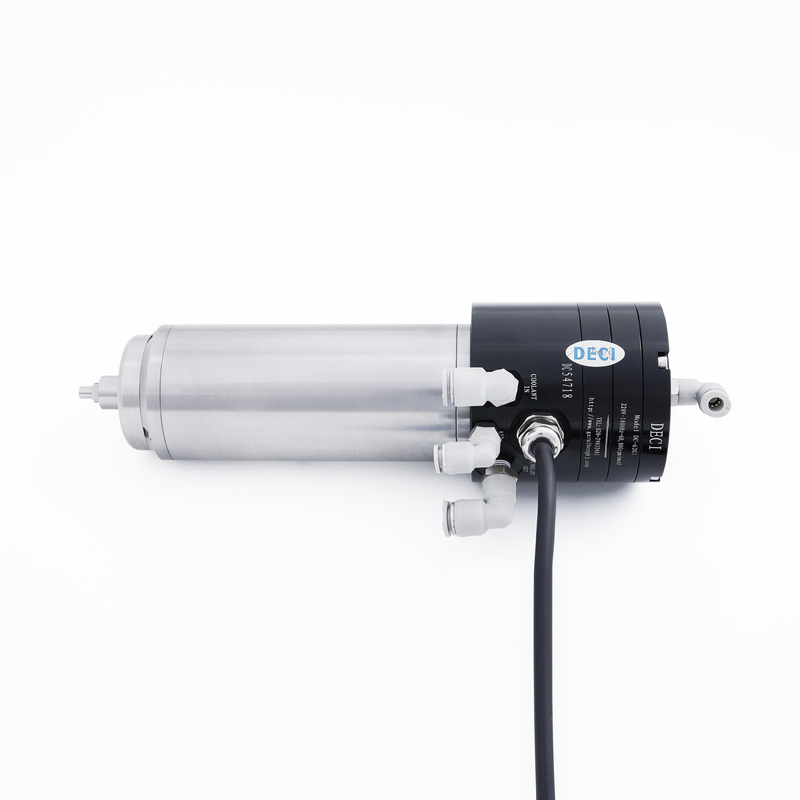

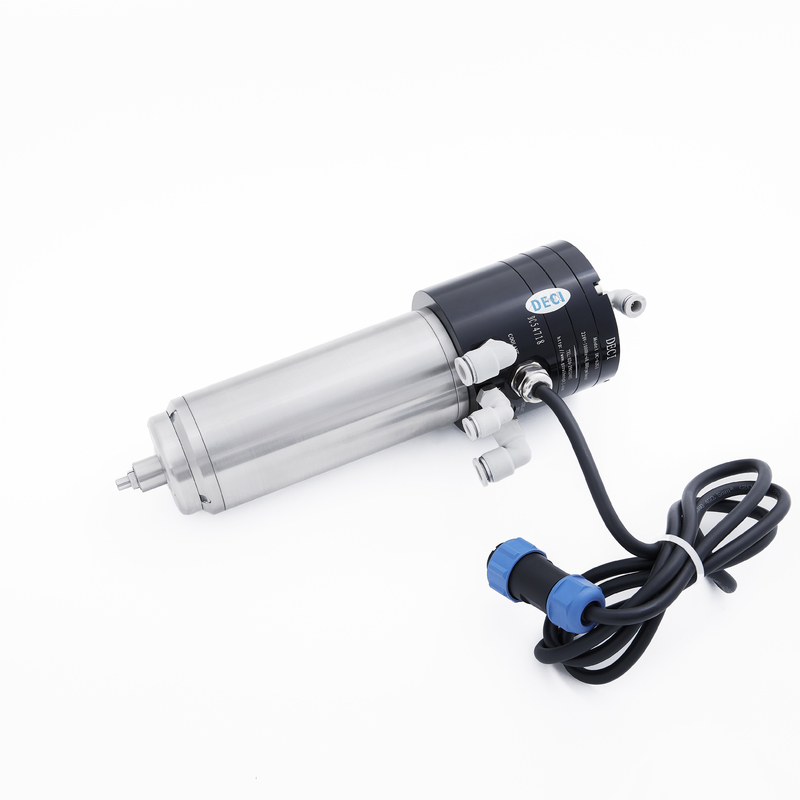

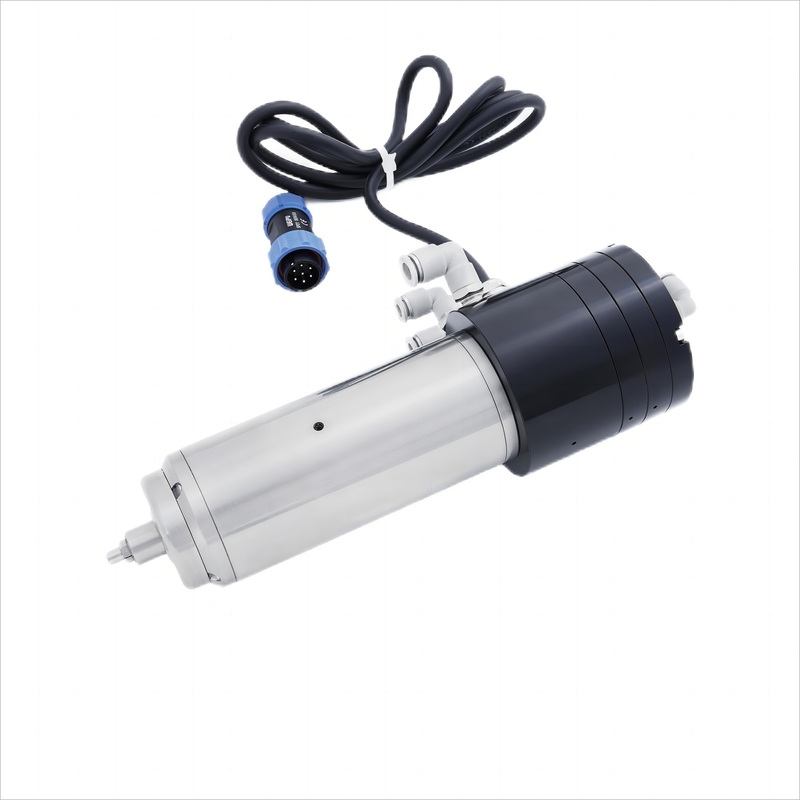

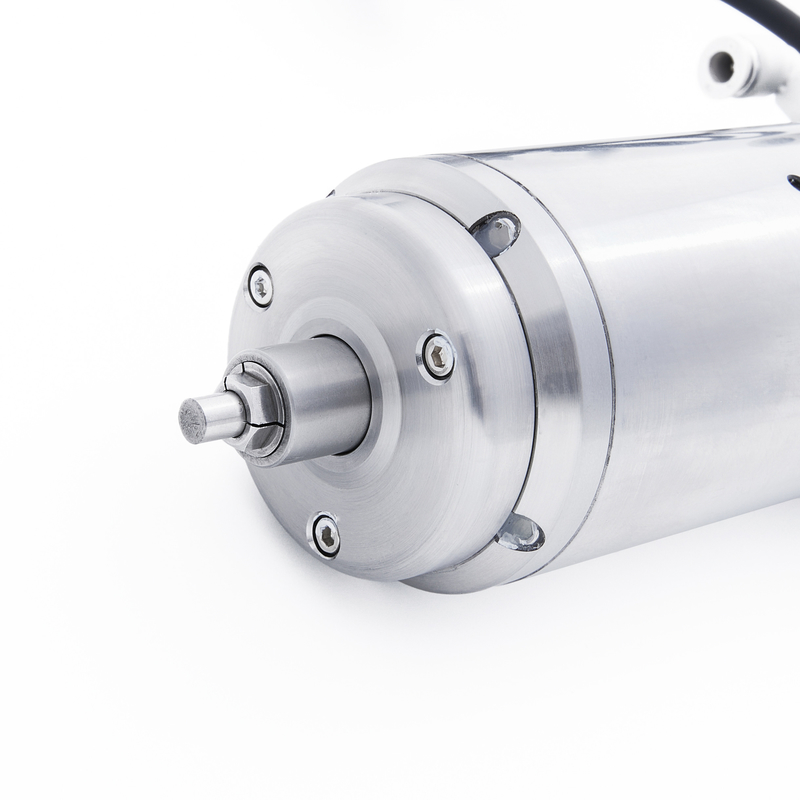

DECI 1.8KW Water Cooling Spindle Aluminium Drill Milling with 60000RPM Speed CNC Motor

DECI 1.8KW Water Cooling Spindle Aluminium Drill Milling with 60000RPM Speed CNC Motor

Products - Engraving and milling spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
  • Weight (KG)
    3.97
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    DRILLING
  • Maximum Torque
    0.28N.M
  • Drive
    Motor
  • Operating Speed
    60000RPM
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor, Gear
  • Voltage
    200V(3~)
  • Power
    1.8KW
  • Frequency
    1000HZ
  • Current
    6.5A
  • Cooling Method
    Water Cooling
  • Speed
    60000 Rpm
  • Collet
    3mm/3.175mm/4mm/6mm
  • Name
    2.2 Kw Spindle Motor
  • Usage
    Aluminium Drill Milling
  • Material
    Steel Alloy
  • Place of Origin
    guangzhou,china
  • Brand Name
    DECI
  • Price
    $711.00/sets 1-9 sets

DECI 1.8KW Water Cooling Spindle Aluminium Drill Milling with 60000RPM Speed CNC Motor

  • DECI 1.8KW Water Cooling Spindle Aluminium Drill Milling with 60000RPM Speed CNC Motor
  • DECI 1.8KW Water Cooling Spindle Aluminium Drill Milling with 60000RPM Speed CNC Motor
  • DECI 1.8KW Water Cooling Spindle Aluminium Drill Milling with 60000RPM Speed CNC Motor
  • DECI 1.8KW Water Cooling Spindle Aluminium Drill Milling with 60000RPM Speed CNC Motor
  • DECI 1.8KW Water Cooling Spindle Aluminium Drill Milling with 60000RPM Speed CNC Motor
  • DECI 1.8KW Water Cooling Spindle Aluminium Drill Milling with 60000RPM Speed CNC Motor
Get Price Contact Now
DC-62G1
Parameters
Moter Power(KW)
2.2/1.8/1.5/1.2
Rated voltage (V/AC)
220
Maximum speed(Rpm)
60000
Maximum current (A)
7.2/6.5/5.0/4.3
Maximum frequency (Hz)
1000
Torque (N·M)
0.35/0.28/0.24/0.19
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
1200
Tool return pressure(Kgf/cm²)
—
Tooling Connection
3mm-6mm collet chuck
Cooling method
Water cooling
Encoder (Optional)
—
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
—
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Clamp
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
3.9
