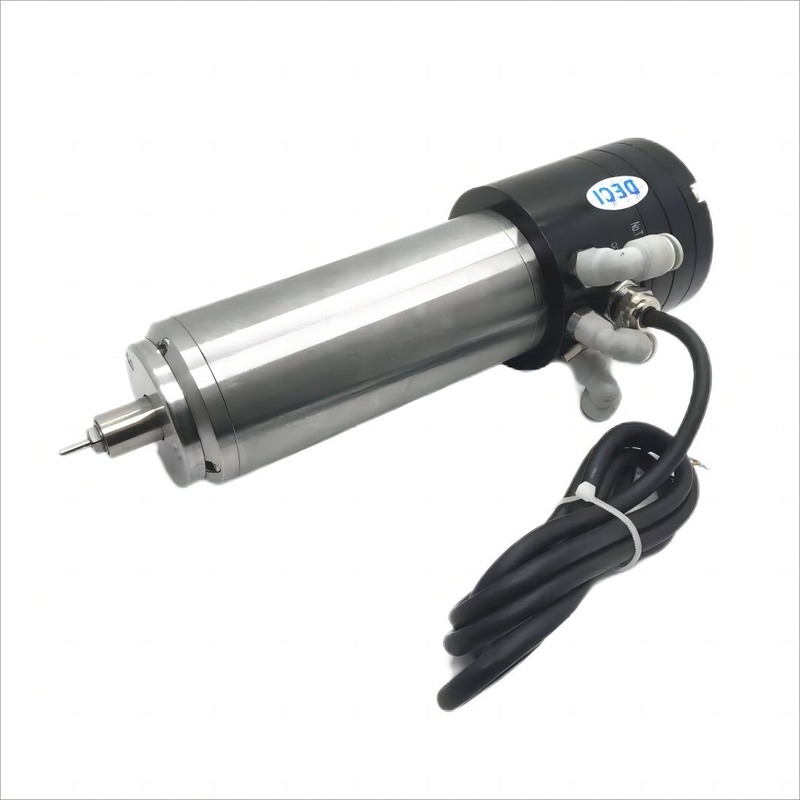

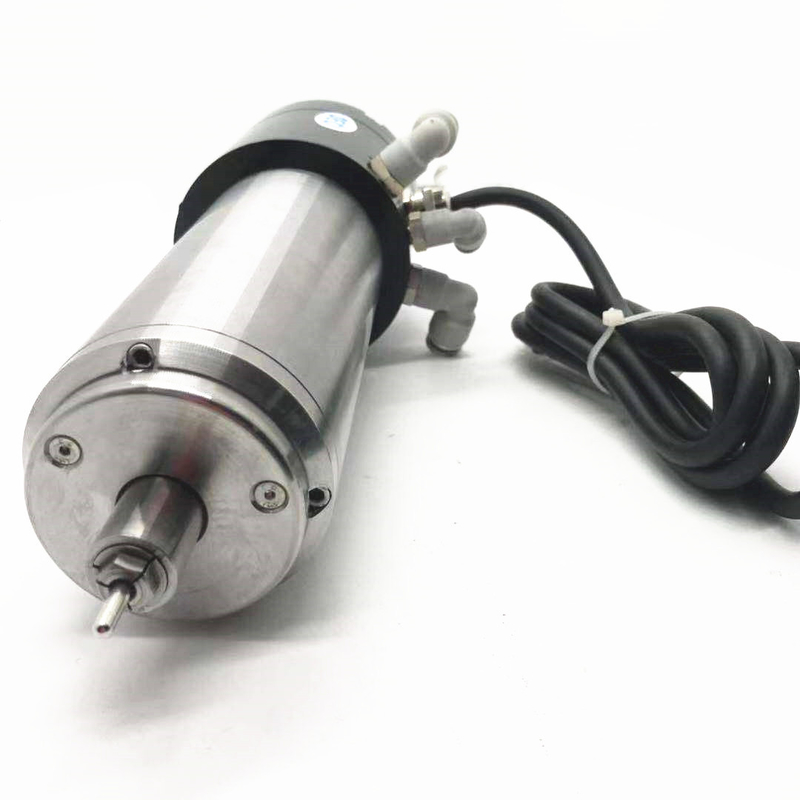

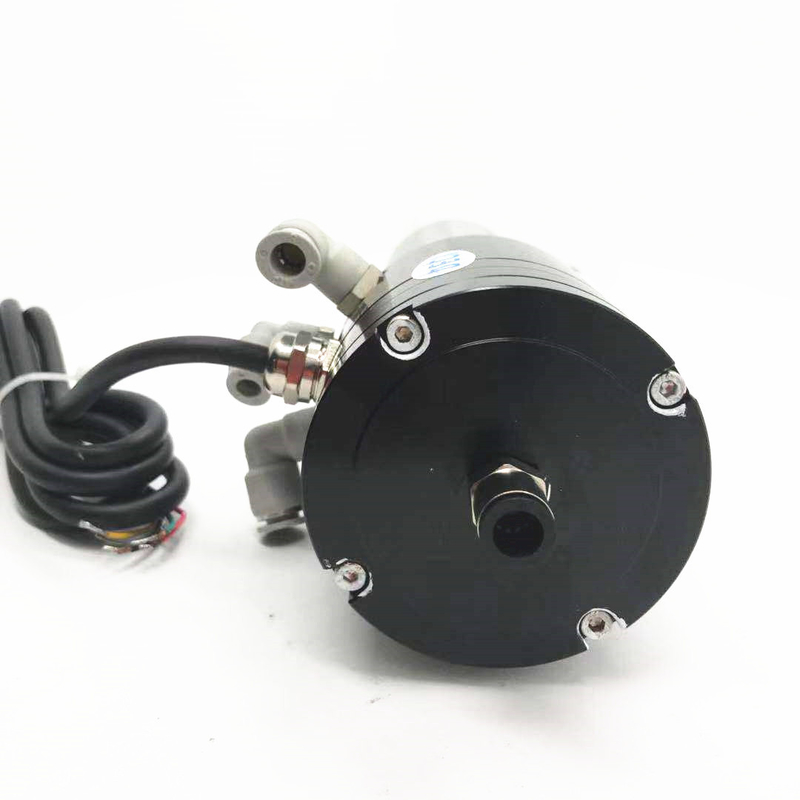

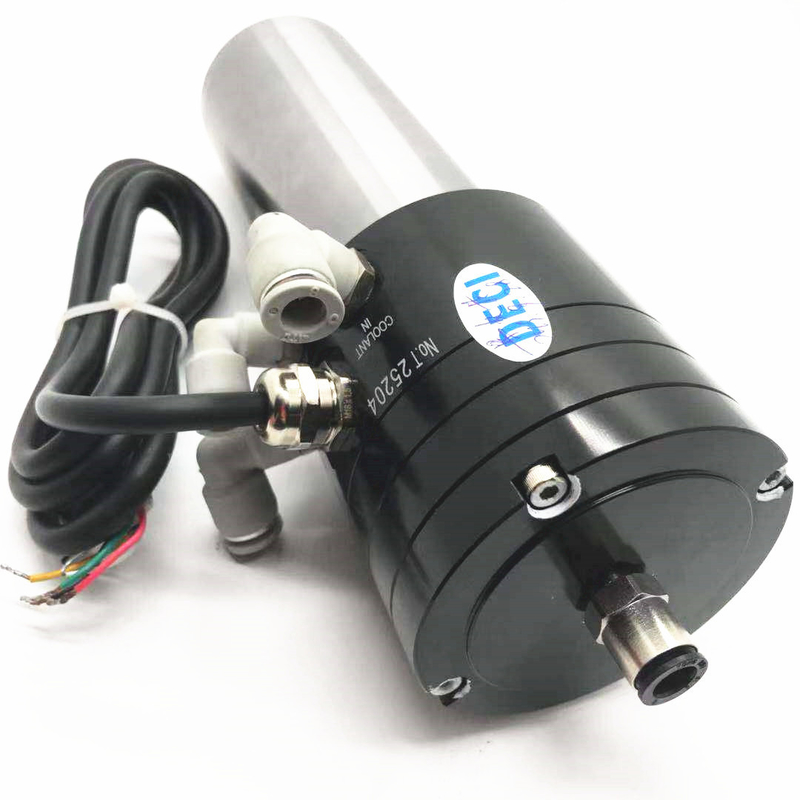

DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle

DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle

Products - Engraving and milling spindle
  • Condition
    New
  • Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
  • Weight (KG)
    3.97
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    DRILLING
  • Maximum Torque
    0.35N.M
  • Drive
    Motor
  • Operating Speed
    60000RPM
  • Warranty
    1 Year
  • Core Components
    Bearing
  • Voltage
    200V(3~)
  • Power
    2.2 KW
  • Frequency
    1000 HZ
  • Current
    7.2A
  • Cooling Method
    Water Cooling
  • Collet
    3mm-6mm
  • Bearing
    2pcs
  • Product Name
    DECI
  • Diameter
    62mm
  • Speed
    60000 Rpm
  • Place of Origin
    guangzhou,china
  • Brand Name
    DECI
  • Price
    $711.00/sets 1-9 sets

DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle

  • DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle
  • DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle
  • DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle
  • DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle
  • DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle
  • DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle
Get Price Contact Now
DC-62B3
Parameters
Moter Power(KW)
2.2/1.8/1.5/1.2
Rated voltage (V/AC)
220
Maximum speed(Rpm)
60000
Maximum current (A)
7.2/6.5/5.0/4.3
Maximum frequency (Hz)
1000
Torque (N·M)
0.35/0.28/0.24/0.19
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
1200
Tool return pressure(Kgf/cm²)
—
Tooling Connection
3mm-6mm collet chuck
Cooling method
Water cooling
Encoder (Optional)
—
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
—
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Clamp
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
3.97
DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle 0
DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle 1
DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle 2
DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle 3
DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle 4
DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle 5
DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle 6
DECI ATC Water cooling motor 60000RPM High-speed CNC Router spindle 3mm 6mm collet 220v 1000Hz light weight factory spindle 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
