DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor

DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor

Products - Engraving and milling spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    3.9
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.35N.M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Product Name
    Milling Spindle
  • Power
    2.2/1.8/1.5/1.2KW
  • Voltage
    200(3~)V
  • Frequency
    1000HZ
  • Current
    7.2/6.5/5.0/4.3A
  • Weight
    3.97kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    Mechanical Clip
  • Diameter
    62mm
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $1,005.00/pieces 1-9 pieces
  • Supply Ability
    500 Set/Sets per Month

DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor

  • DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor
  • DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor
  • DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor
  • DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor
  • DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor
  • DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor
Get Price Contact Now
DC-62V2
Parameters
Moter Power(KW)
2.2/1.8/1.5/1.2
Rated voltage (V/AC)
220



Maximum speed(Rpm)
60000
Maximum current (A)
7.2/6.5/5.0/4.3



Maximum frequency (Hz)
1000
Torque (N·M)
0.35/0.28/0.24/0.19



Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0



Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0



Tooling Pulling Force(≥N)
800
Tool return pressure(Kgf/cm²)
5.6-6.0



Tooling Connection
ISO10-ER11
Cooling method
Water cooling



Encoder (Optional)
Square wave / Sine wave
Coolant Pressure (Kgf/cm²)
≥ 2.5



Proximity switch
PNP
Bearing lubrication mode
Grease



Balance Level
G1
Tooling Installation Method
Clamp



Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
3.9

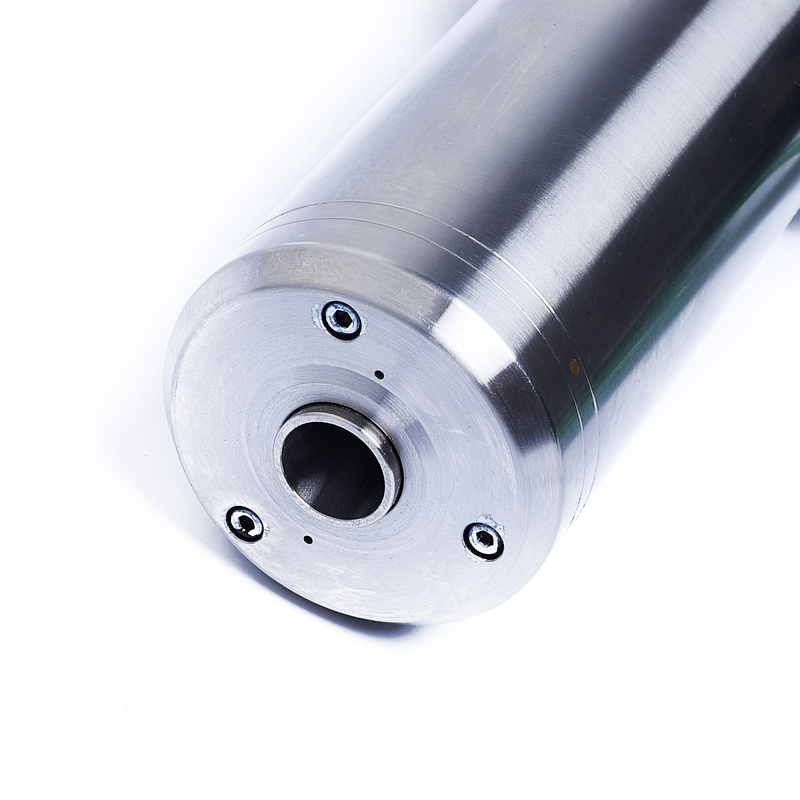

DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor 0

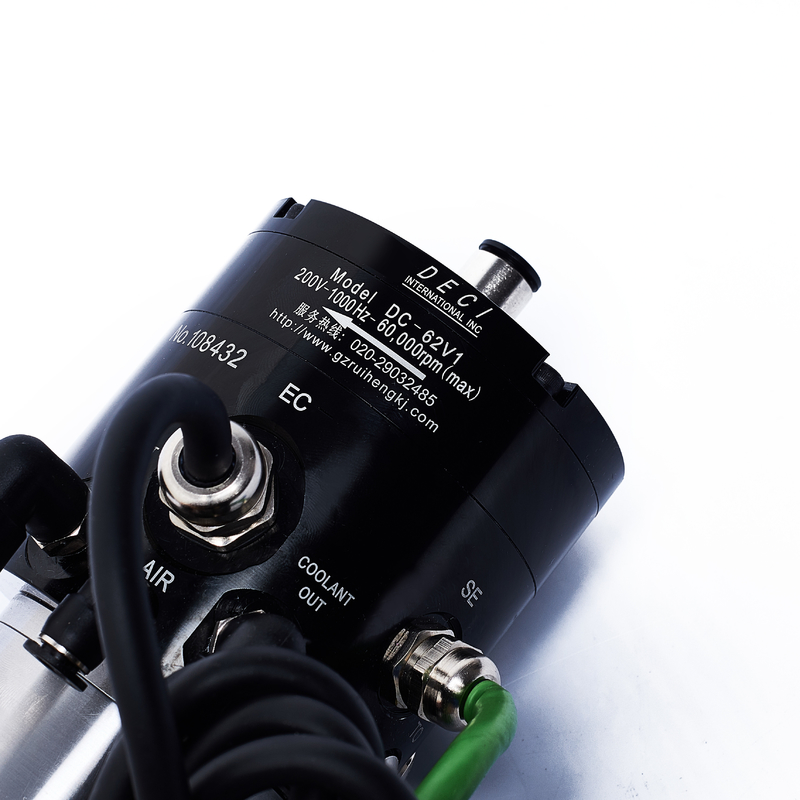

DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor 1

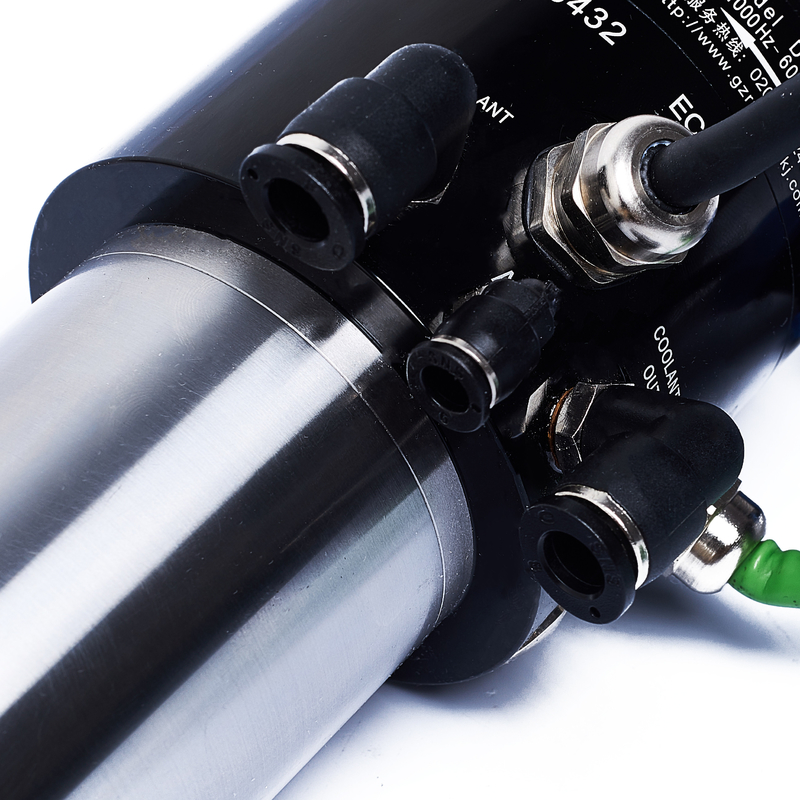

DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor 2

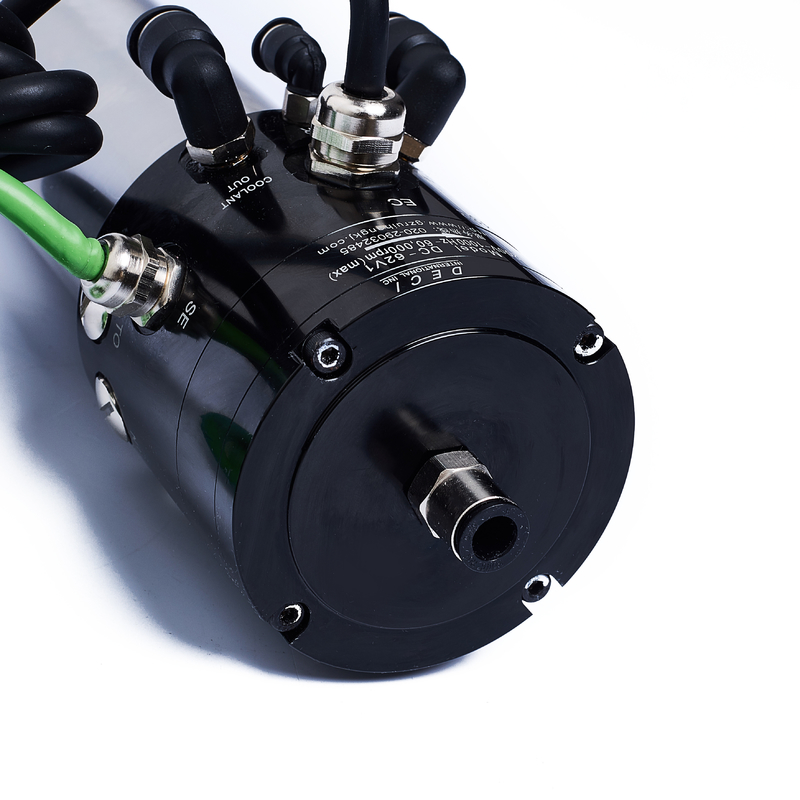

DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor 3

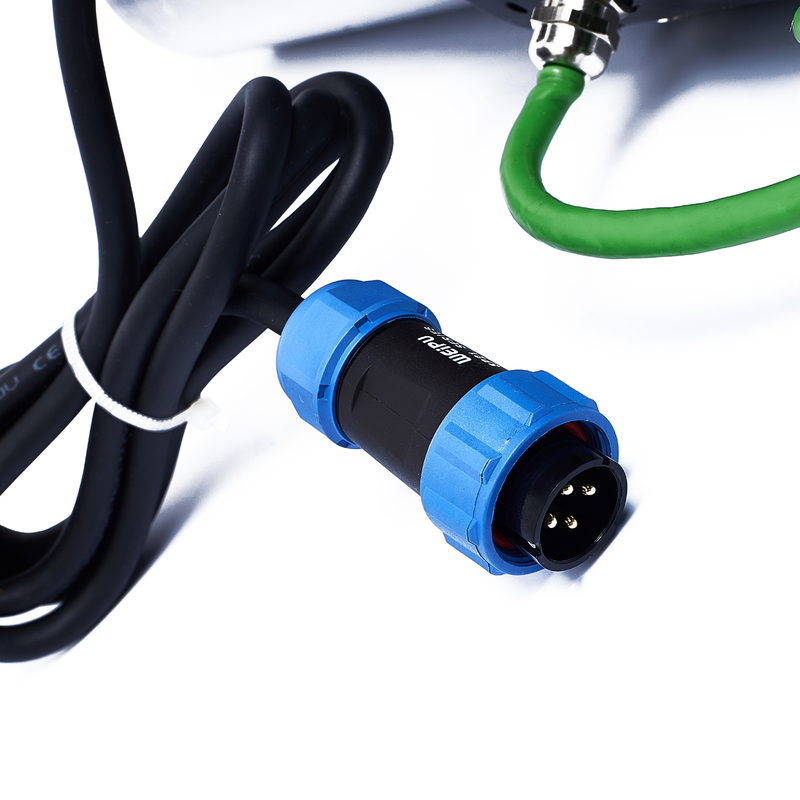

DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor 4

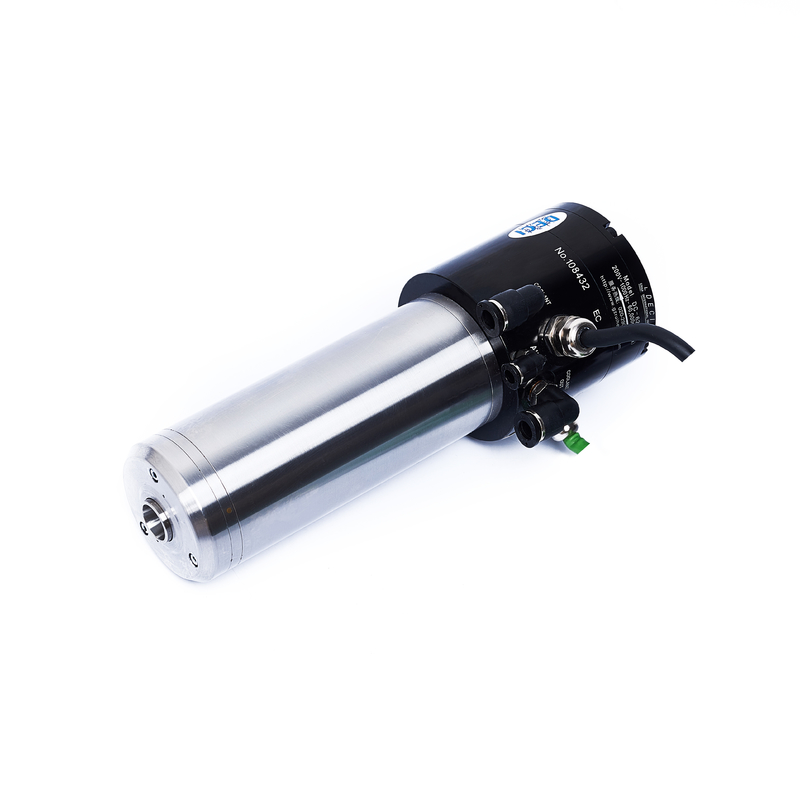

DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor 5
DECI ATC water cooled 60000rpm ISO10 motor 220V 2.2KW milling machine 0.35 torque high accuracy engraving spindle motor 6
