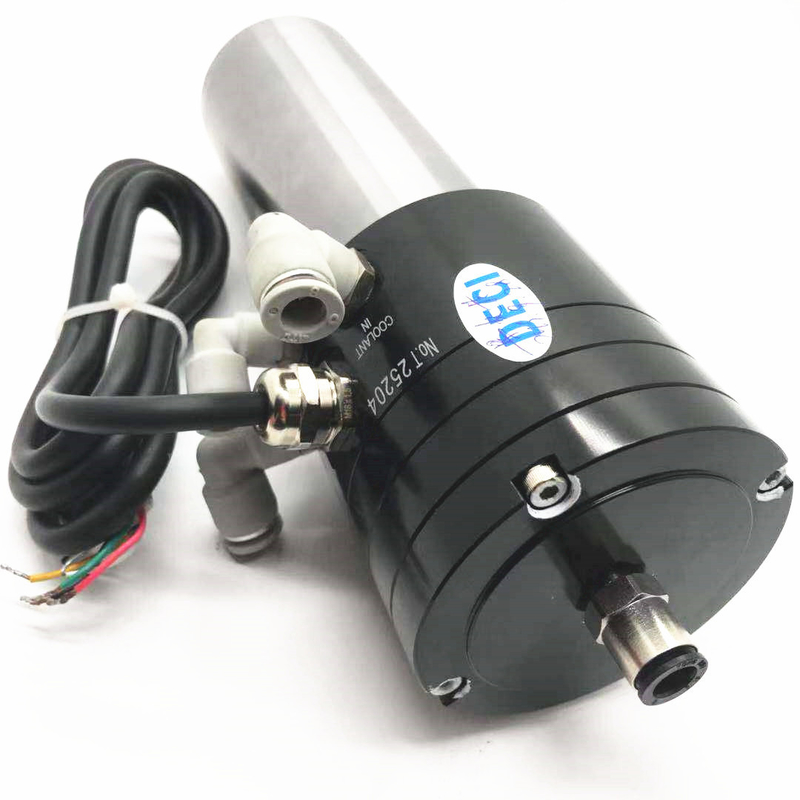

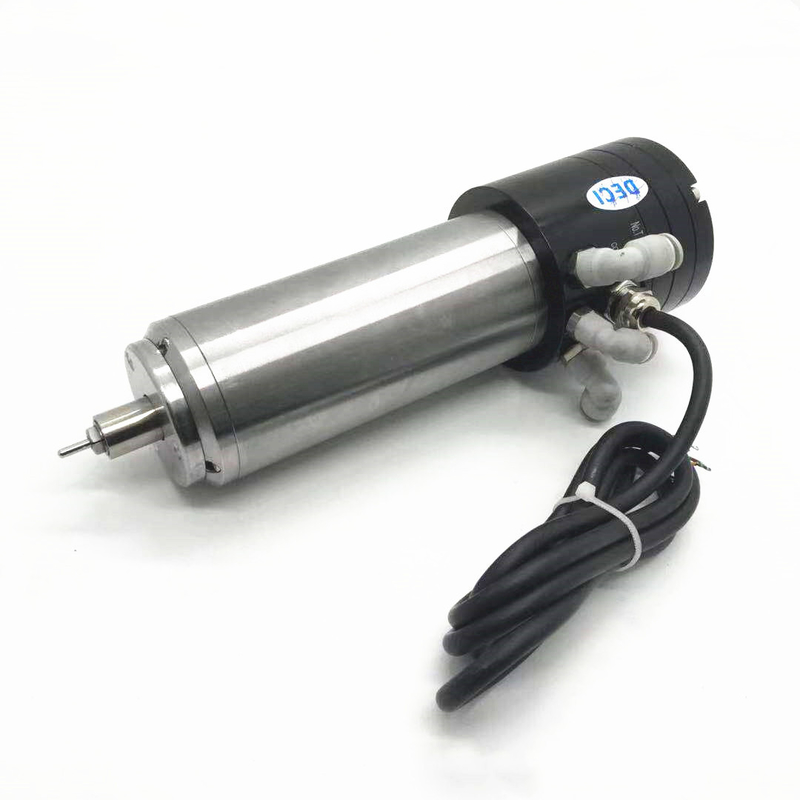

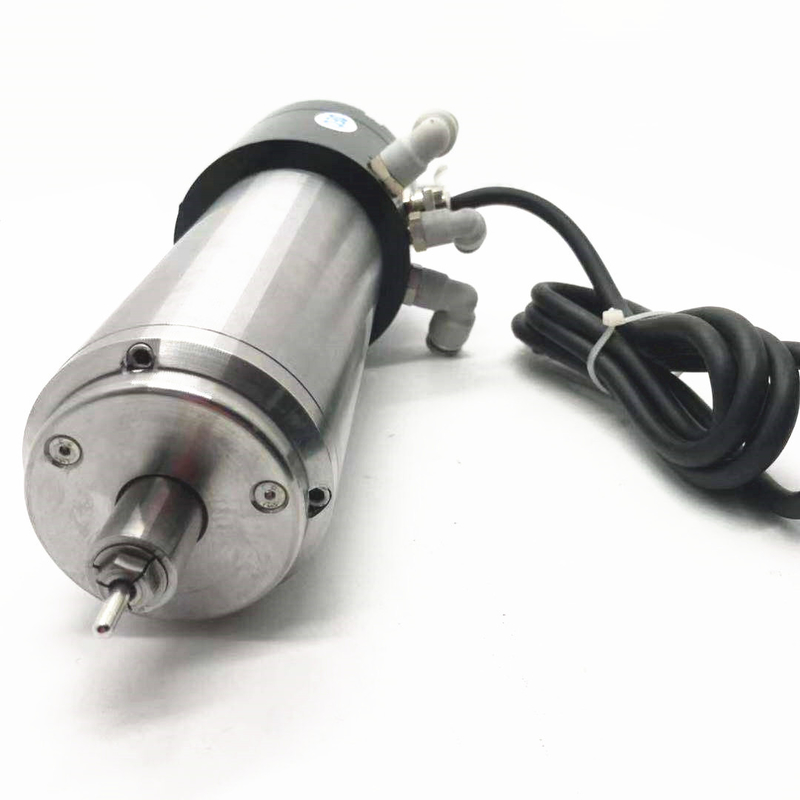

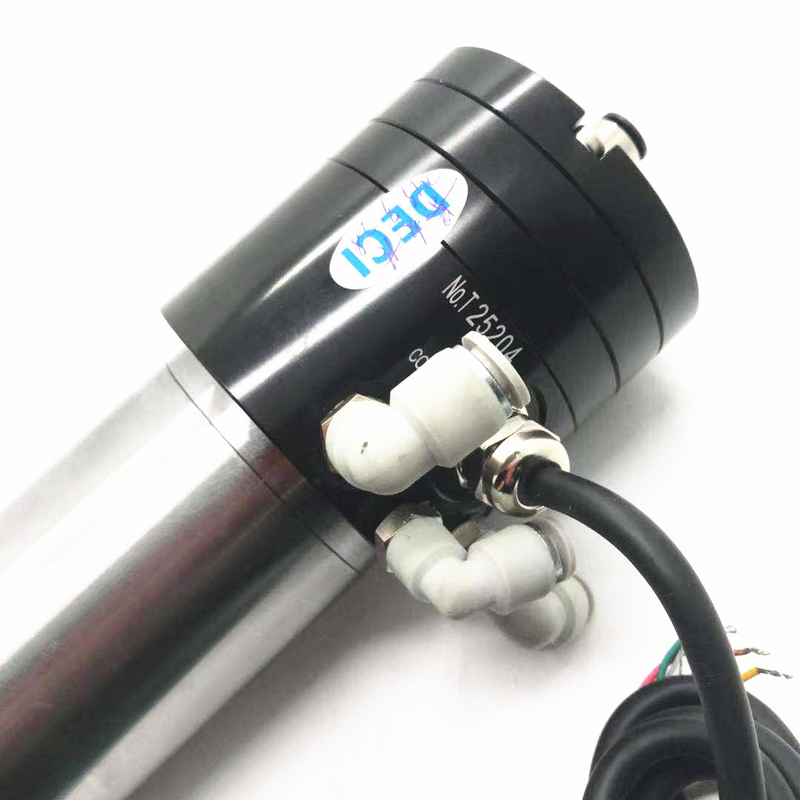

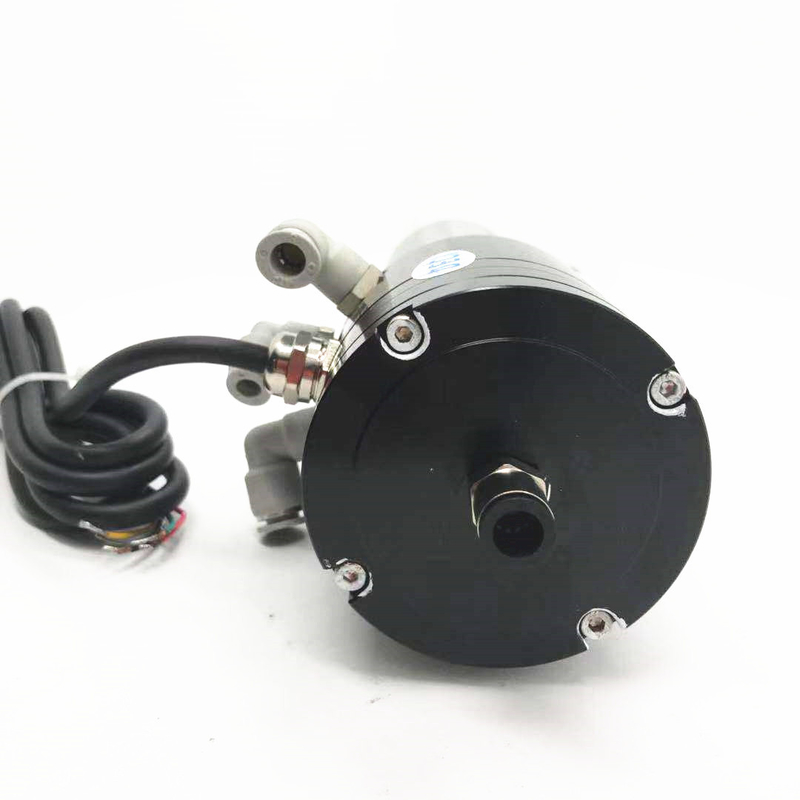

DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle

DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle

Products - Engraving and milling spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    3.97
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.35N.M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Product Name
    Glass Spindle Motor
  • Diameter
    62mm
  • Power
    1.8/1.5/1.2kw
  • Voltage
    200(3~)
  • Frequency
    1000HZ
  • Current
    6.5/5.0/4.3A
  • Weight
    3.97kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    Clamp
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $683.00/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle

  • DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle
  • DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle
  • DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle
  • DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle
  • DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle
Get Price Contact Now
DC-62B3
Parameters
Moter Power(KW)
2.2/1.8/1.5/1.2
Rated voltage (V/AC)
220(3~)
Maximum speed(Rpm)
60000
Maximum current (A)
7.2/6.5/5.0/4.3
Maximum frequency (Hz)
1000
Torque (N·M)
0.35/0.28/0.24/0.19
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
1200
Tool return pressure(Kgf/cm²)
—
Tooling Connection
φ3-6 collet chuck
Cooling method
Water cooling
Encoder (Optional)
—
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
—
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Clamp
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
3.97
DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle 0
DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle 1
DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle 2
DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle 3
DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle 4
DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle 5
DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle 6
DECI 60000Rpm 220V 1.8/1.5/1.2KW water cooling spindle cnc milling moter 3mm collet chuck spindle automatic tool change spindle 7
