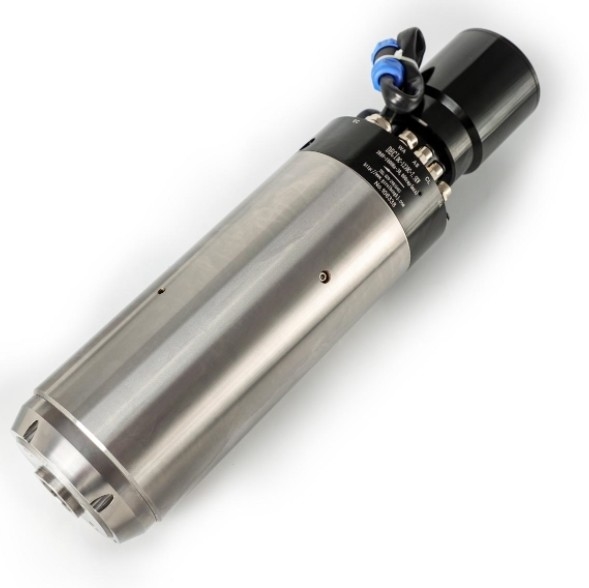

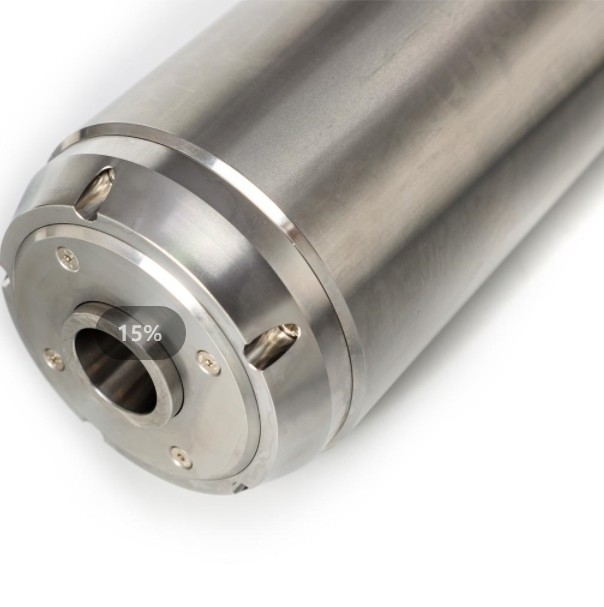

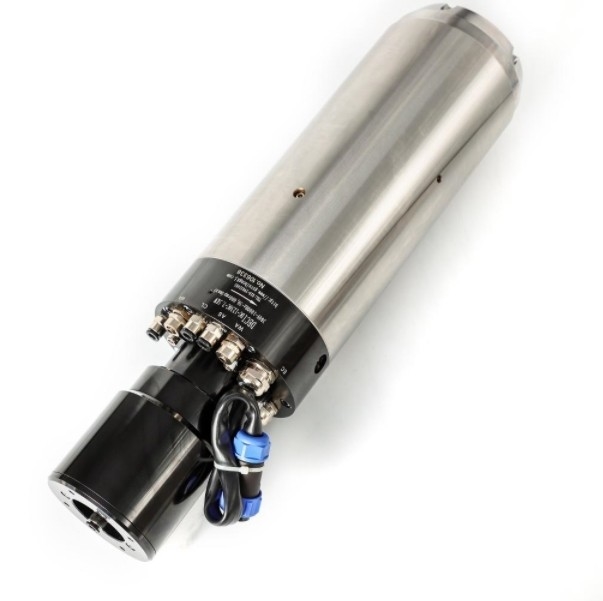

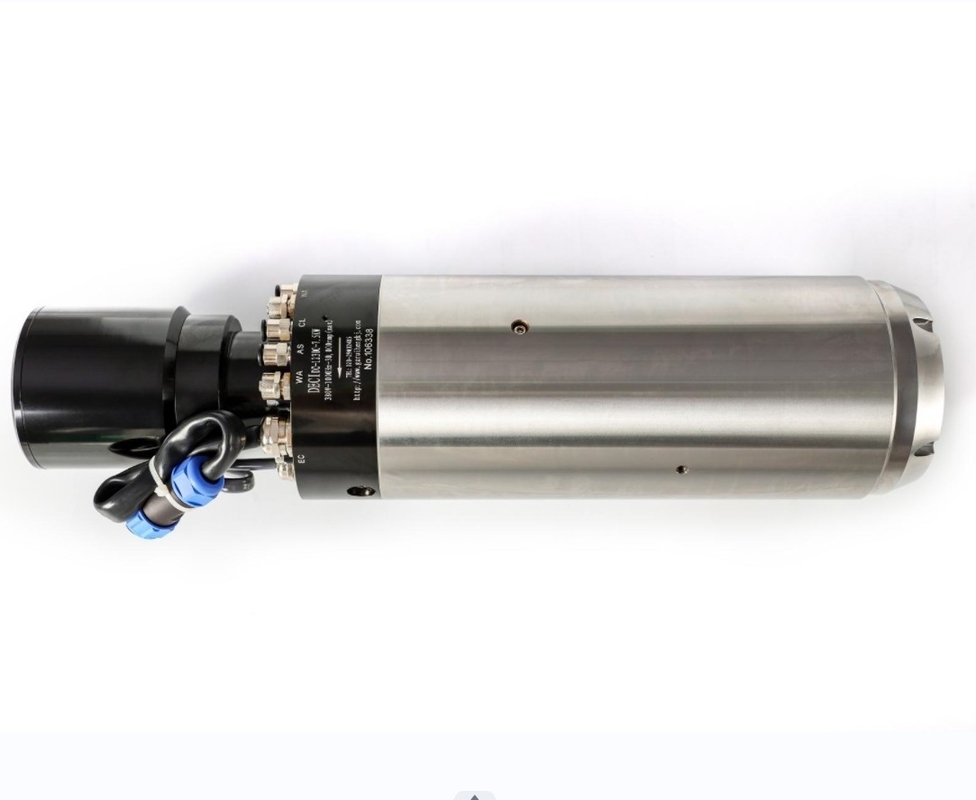

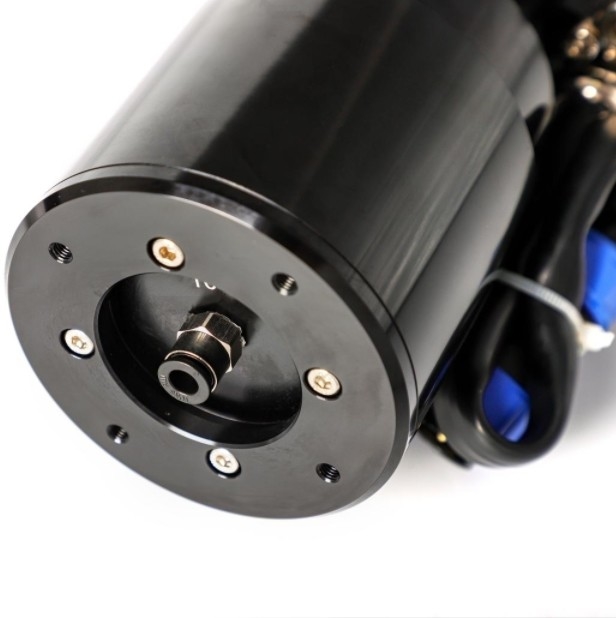

DECI BT30 Tool Holder Water Cooling Machine 40000rpm 25A Current for Speed Machining

Products - Metal cut spindle motor

Condition

New
Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
Weight (KG)

26
Showroom Location

None
Video Outgoing-inspection

Provided
Machinery Test Report

Provided
Marketing Type

New Product 2024
Application

Runing, Milling, Drilling, Boring, For CNC Machine To Truning
Maximum Torque

5.73N.M
Drive

Motor
Operating Speed

30000rpm
Warranty

1 Year
Core Components

Bearing, Motor, Gear
Power

7.5kw
Voltage

380v(3~)
Frequency

1000HZ
Current

25A
Cooling Method

Water Cooling
Tooling Exchange Method

ATC
Cooling Type

Water Cooling
Lubrication

Grease
Rated Power

7.5 KW
Speed

40000rpm
Place of Origin

Guangzhou,china
Brand Name

DCEI
Price

$1,726.00/sets 1-9 sets

DECI BT30 Tool Holder Water Cooling Machine 40000rpm 25A Current for Speed Machining

button button

Get Price Contact Now

DC-1230B
Parameters
Moter Power(KW)	7.5/5.5	Rated voltage (V/AC)	380 / 220
Maximum speed(Rpm)	30000	Maximum current (A)	14.5/10.5
Maximum frequency (Hz)	1000	Torque (N·M)	5.73/4.78
Technical parameters
Shaft Rotation Accuracy (mm)	≤ 0.001	Tooling Releasing pressure (Kgf/cm²)	5.0-6.0
Tooling Exchange Method	ATC	Front curtain pressure (Kgf/cm²)	2.5-3.0
Tooling Pulling Force(≥N)	2900	Tool return pressure(Kgf/cm²)	5.6-6.0
Tooling Connection	BT30	Cooling method	Water cooling
Encoder (Optional)	Square wave / Sine wave	Coolant Pressure (Kgf/cm²)	≥ 2.5
Proximity switch	PNP	Bearing lubrication mode	Grease
Balance Level	G1	Tooling Installation Method	Flange / Clamp
Vibration value (mm/s)	≤ 0.8	Weigh (Kg)	26

Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
