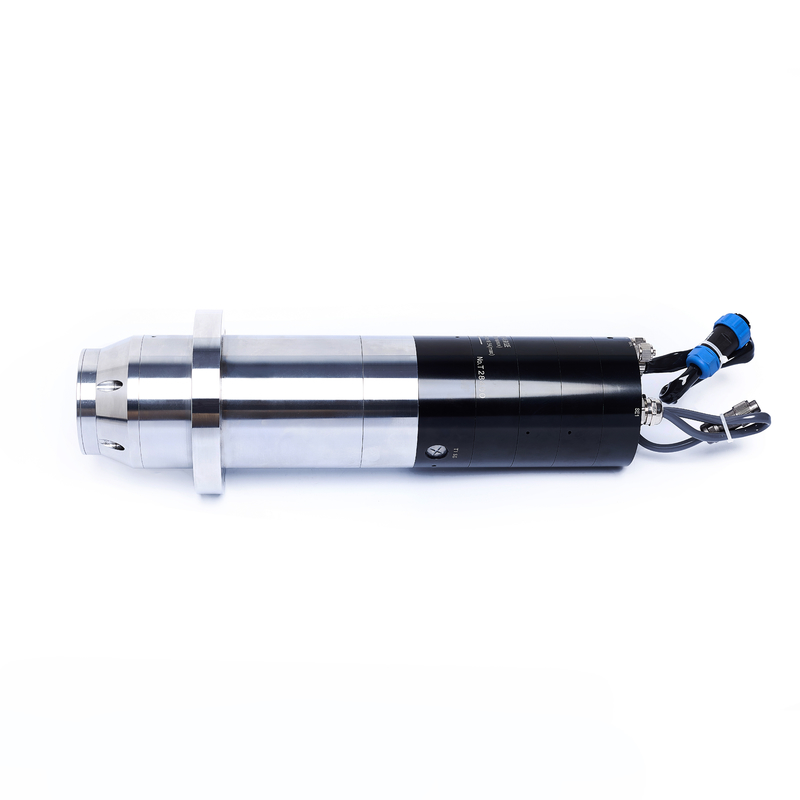

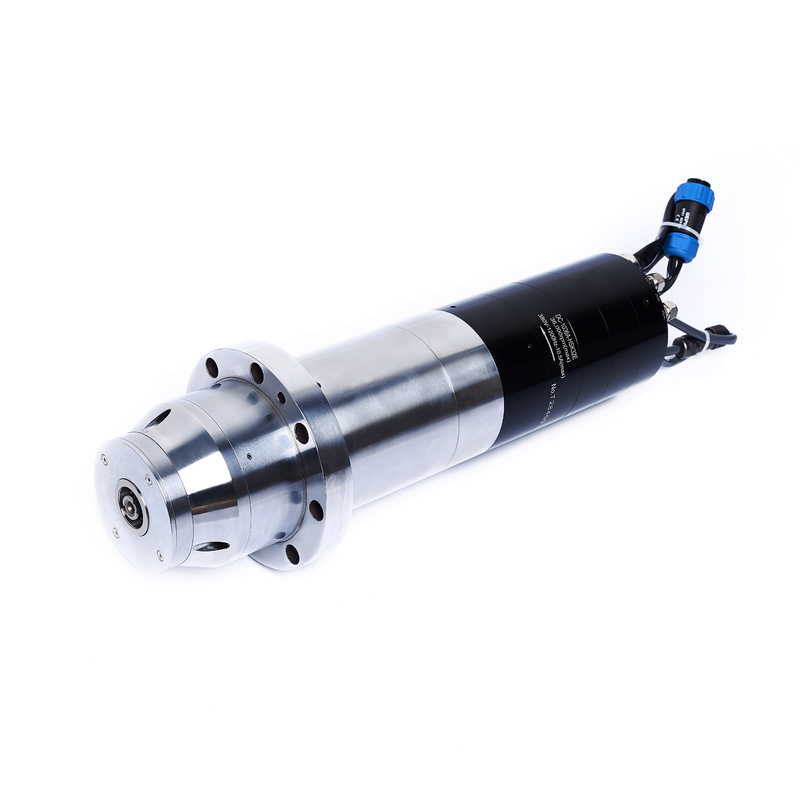

DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle

DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle

Products - Metal cut spindle motor
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
  • Weight (KG)
    15
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Milling
  • Maximum Torque
    2.9N.M
  • Drive
    Motor
  • Operating Speed
    36000RPM
  • Warranty
    1 Year
  • Core Components
    Bearing
  • Power
    6kw
  • Voltage
    380V(3~)
  • Frequency
    1200HZ
  • Current
    11.5A
  • Weight
    15KG
  • Cooling Method
    Water Cooling
  • Tools Connector
    ISO25-ER20
  • Diameter
    100mm
  • Joint Of Nose
    ER25
  • Cooling Type
    Water Cooled
  • Place of Origin
    Guangdong.China
  • Brand Name
    DECI
  • Price
    $1,671.00/units 1-9 units

DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle

  • DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle
  • DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle
  • DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle
  • DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle
  • DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle
  • DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle
Get Price Contact Now
DC-1036E1
Parameters
Moter Power(KW)
6.0/3.5
Rated voltage (V/AC)
380 / 220
Maximum speed(Rpm)
36000
Maximum current (A)
11.5/6.6
Maximum frequency (Hz)
1200
Torque (N·M)
2.9/1.9
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
2000
Tool return pressure(Kgf/cm²)
5.6-6.0
Tooling Connection
ISO25
Cooling method
Water cooling
Encoder (Optional)
Square wave TTL
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
PNP
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Flange
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
15
DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle 0
DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle 1
DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle 2
DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle 3
DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle 4
DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle 5
DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle 6
DECI Spindle ATC 6KW 36000Rmp machine tool 1200Hz high torque motor cnc spindle for metal cutting flange install 380V spindle 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
