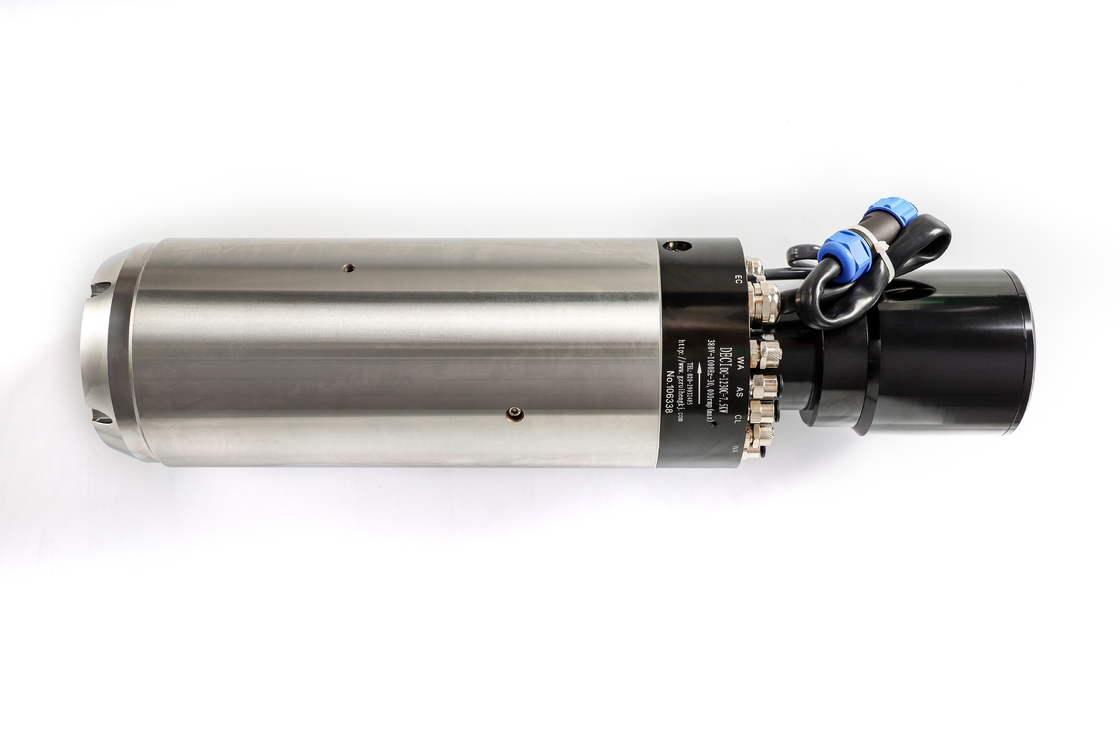

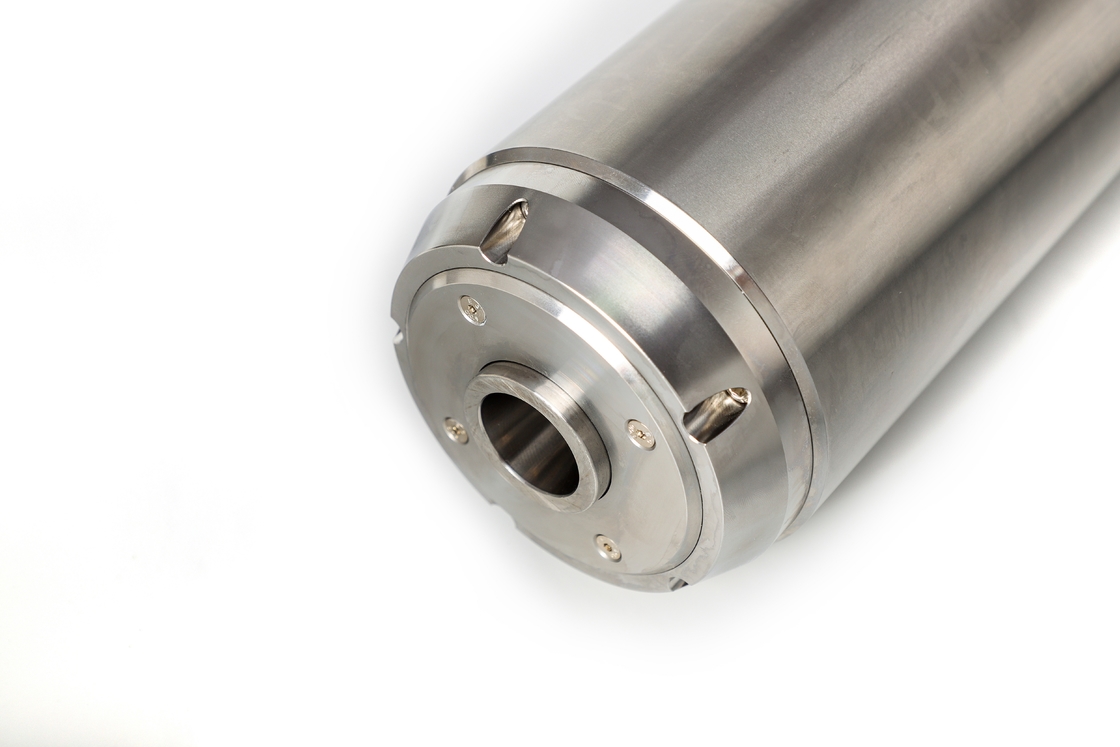

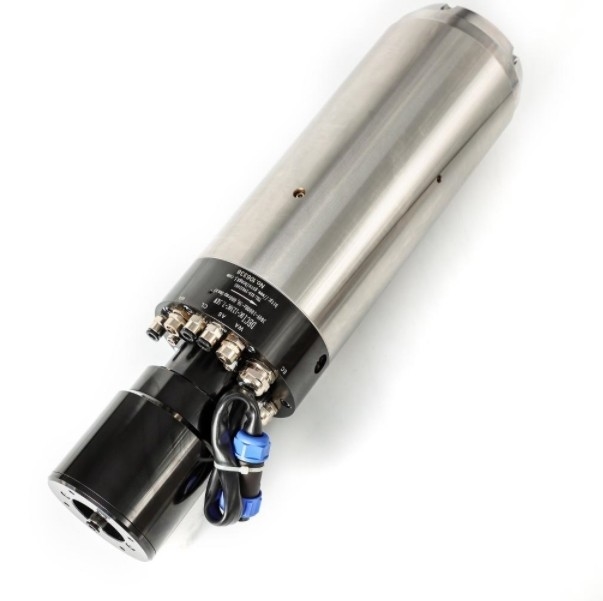

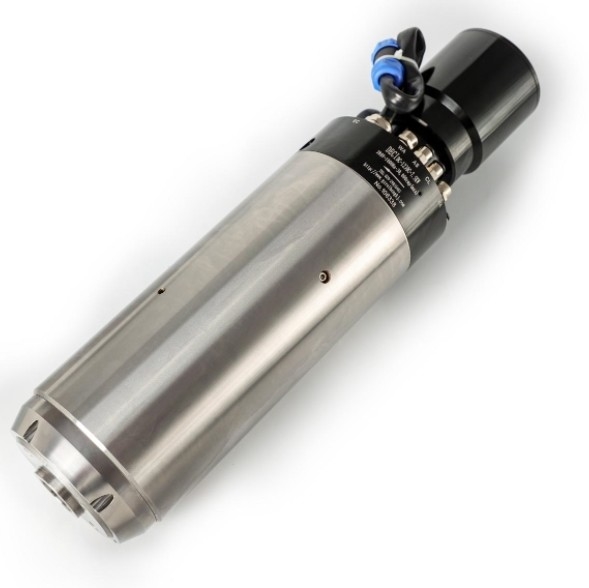

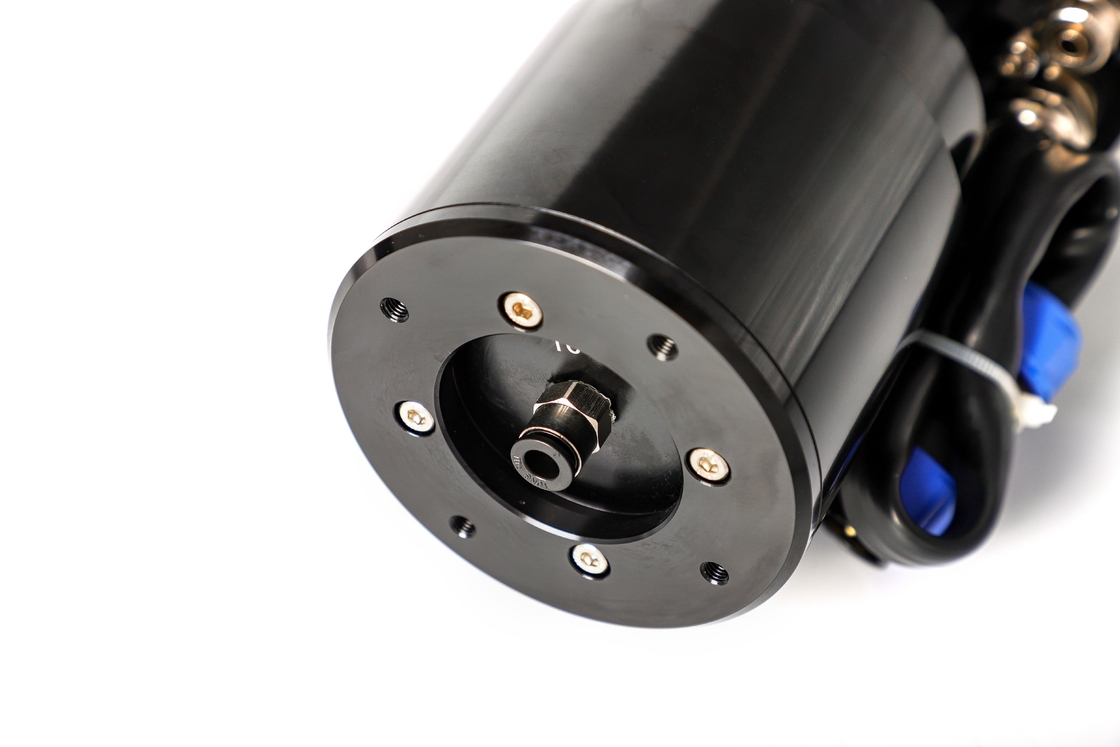

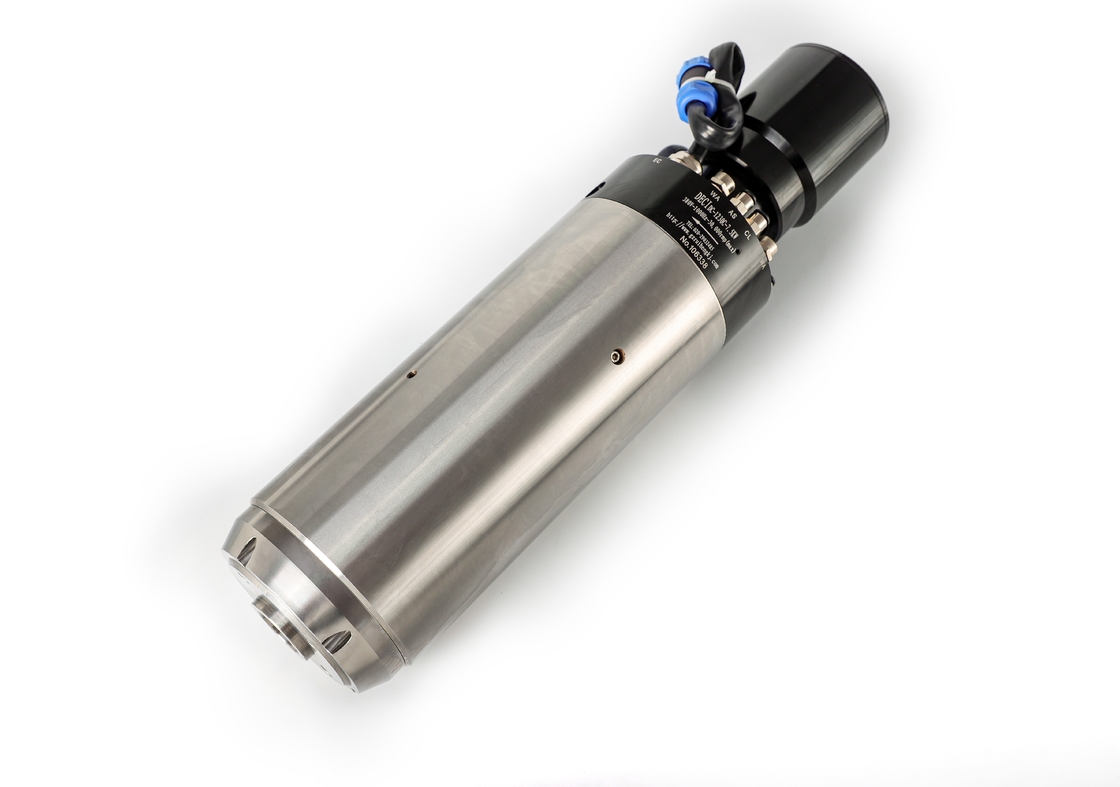

DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle

DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle

Products - Metal cut spindle motor
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    26
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    5.73N.M
  • Drive
    Motor
  • Operating Speed
    30000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Power
    7.5kw
  • Voltage
    380V
  • Frequency
    1000HZ
  • Current
    25A
  • Weight
    26kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Product Name
    CNC Milling Router Machine
  • Diameter
    120mm
  • Installment Method
    Clamp/Flange
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $1,545.00/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle

  • DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle
  • DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle
  • DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle
  • DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle
  • DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle
  • DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle
Get Price Contact Now
DC-1230C
Parameters
Moter Power(KW)
5.5/7.5
Rated voltage (V/AC)
380 / 220(3~)
Maximum speed(Rpm)
30000
Maximum current (A)
10.5/14.5
Maximum frequency (Hz)
1000
Torque (N·M)
5.73/4.78
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
2900
Tool return pressure(Kgf/cm²)
5.6-6.0
Tooling Connection
BT30
Cooling method
Water cooling
Encoder (Optional)
Square wave/Sine wave
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
PNP
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Flange / Clamp
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
26
DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle 0
DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle 1
DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle 2
DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle 3
DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle 4
DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle 5
DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle 6
DECI CNC 7.5KW Water Cooling spindle kit 30000rpm High Accuracy 220v/380v ATC Optional 5.73 torque motor BT30 shank spindle 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
