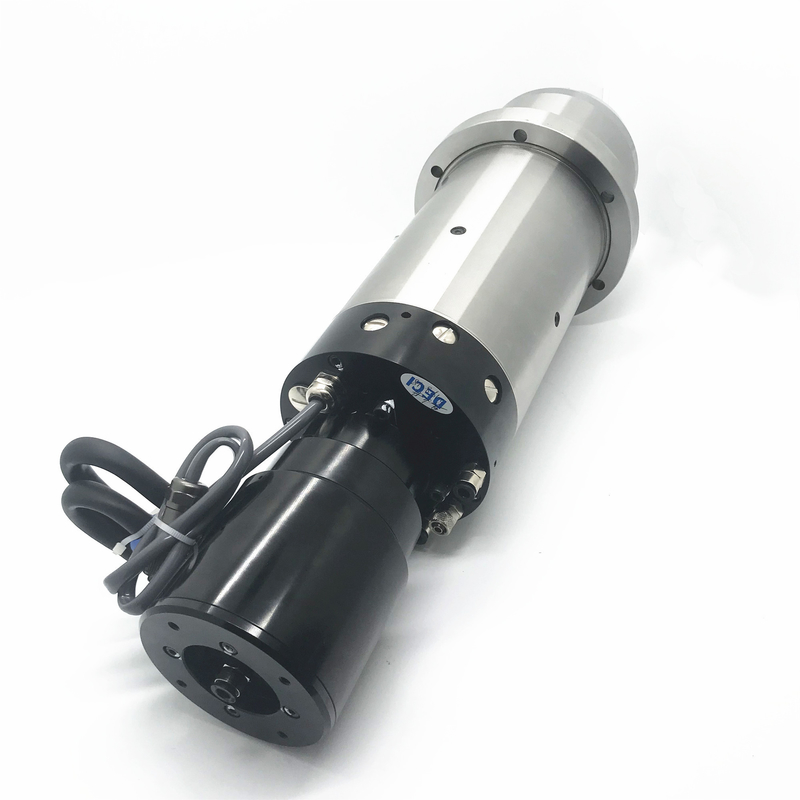

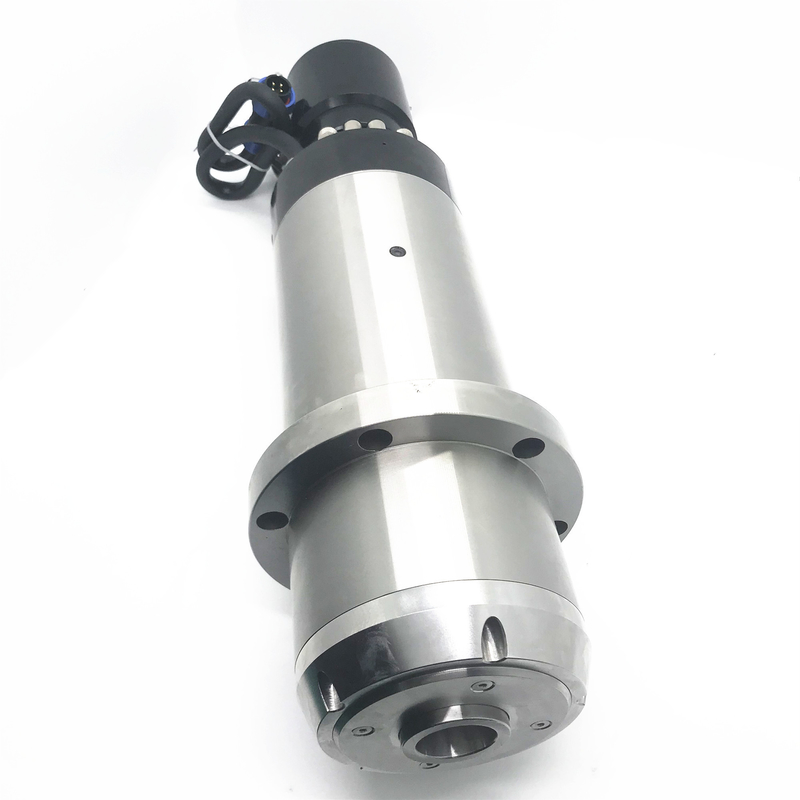

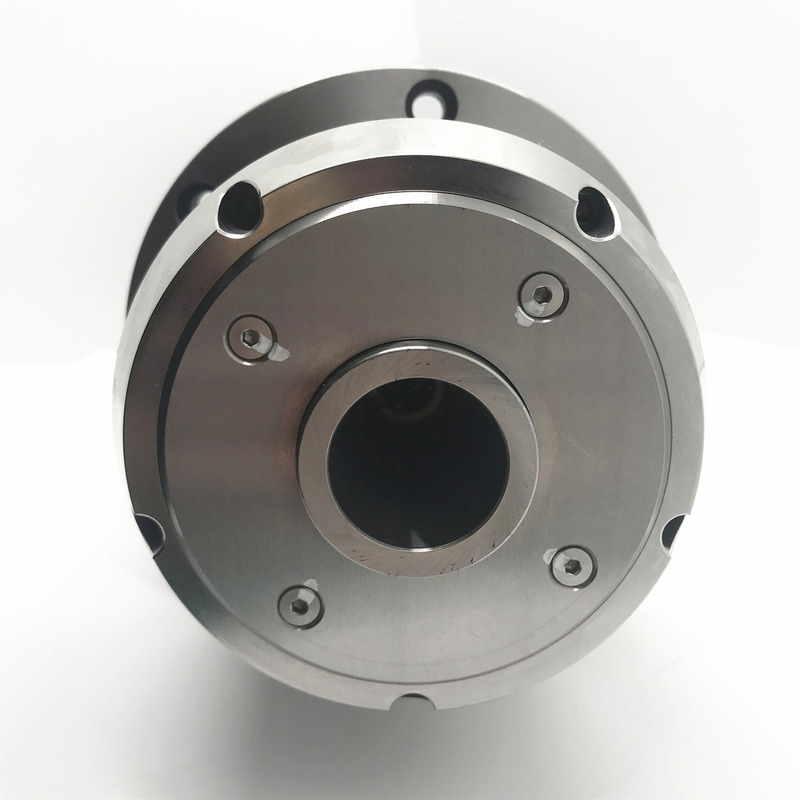

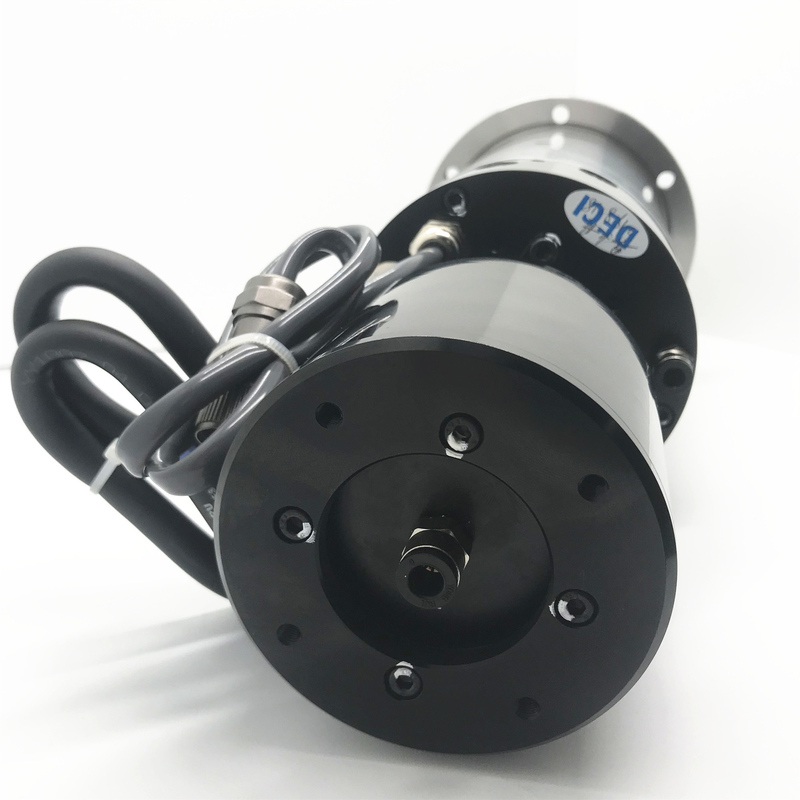

DC-1230A BT30 ATC 7.5KW 30000Rmp spindle motor water cooling for metal machine machinery, the serious products of the motor spindles has been developed and tested for over ten years.
The key design of the structure, electrical circuit, internal sealing, lubrication, motor and collets has been authorized with patents in China.
DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
More Spindle is also available with best price, if needed, welcome contact us.
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw
Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.
| DC-1230AParameters Motor Power:7.5KW Rated voltage: 380v(3~) Max rotate speed :30000Rpm/min Max currency:25A Max Frequency:1000Hz Torque:5.73N.MSpecification Cone surface spring at shaft end: ≤0.001mmTooling Releasing Air curtain: 5.6-6.0 Kgf/cm² Tooling Exchange Method: ATCAir curtain pressure at front end: 2.5-3.0 Kgf/cm² Tooling Pulling Force: 2900Tooling Back Air Pressure: 5.6-6.0 Kgf/cm² Tooling Connection:BT30Cooling:water Encoder:Sine-Cosine 1VPP(Optional)Coolant Pressure:2.5Kgf/cm² Approach Switch: PNP OnBearing Lubrication Method: GreaseBalance Level : G1Tooling Instalation Method:FLANGEVibration Value: ≤0.8Weight:26kg |
Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A:we have all the packages. We can get the engineer to program you.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship?
A: 1. DECI keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
