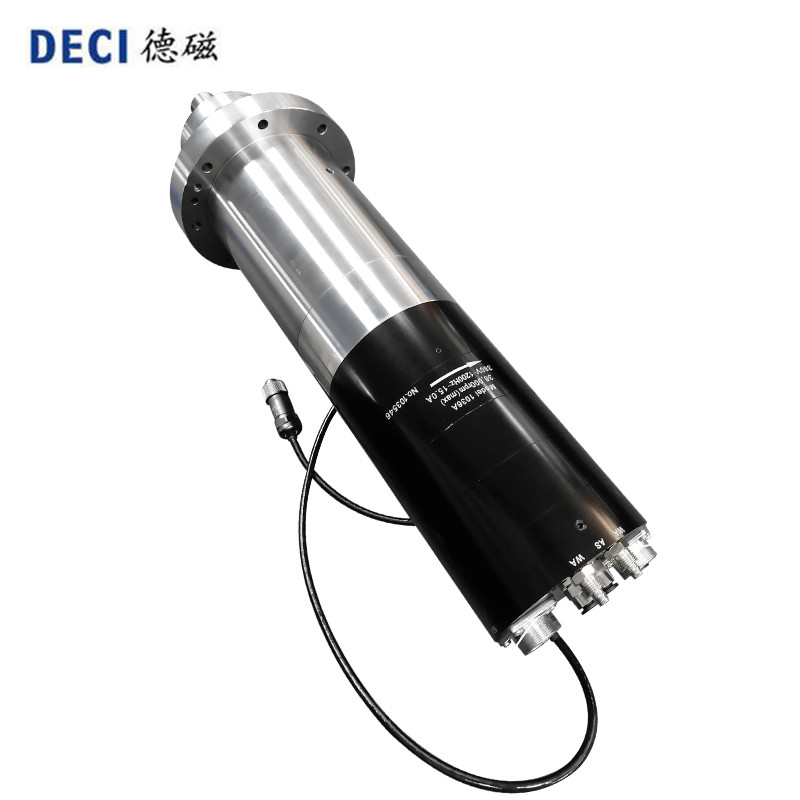

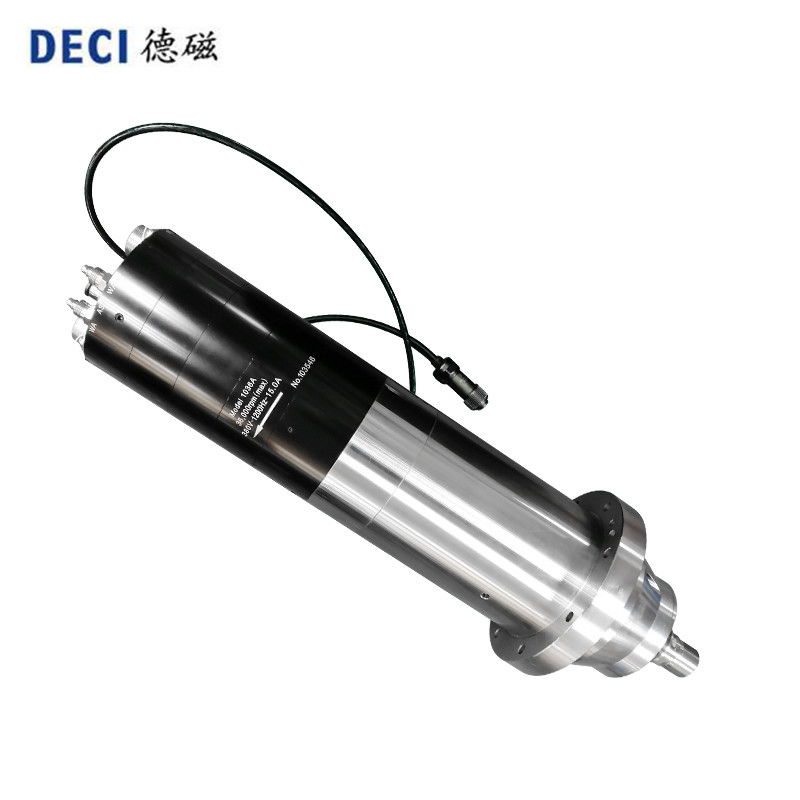

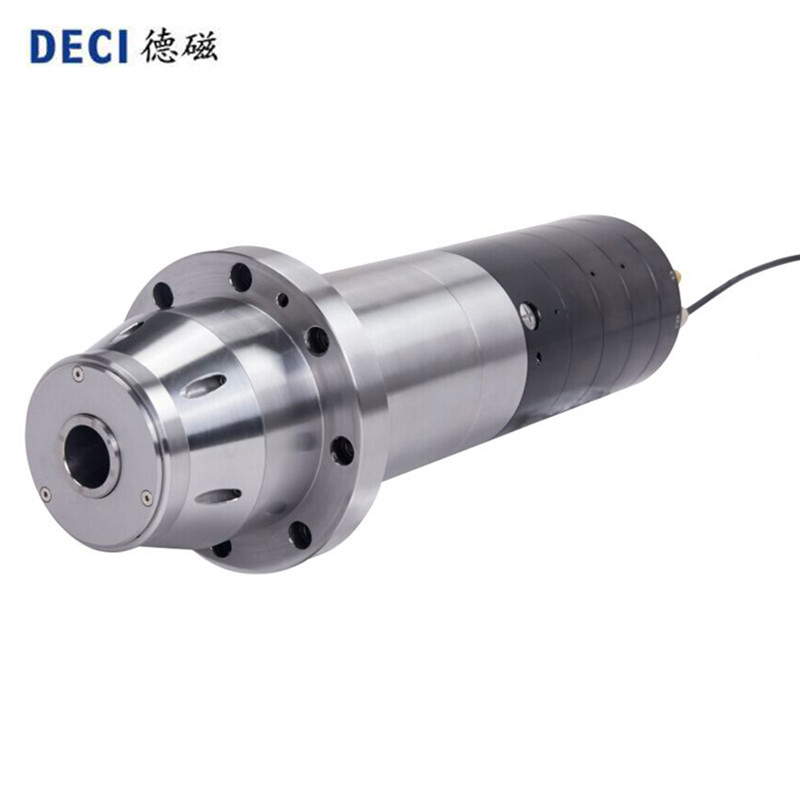

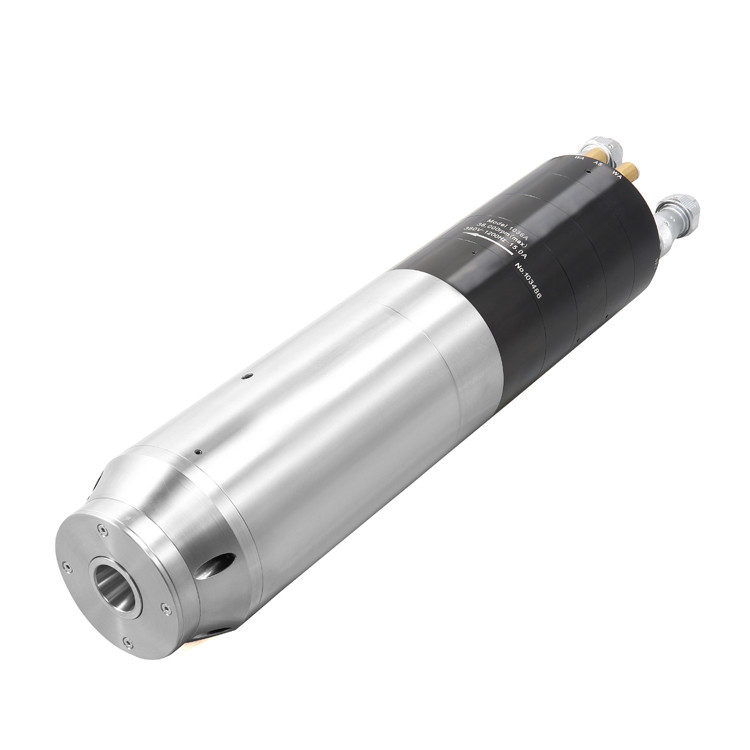

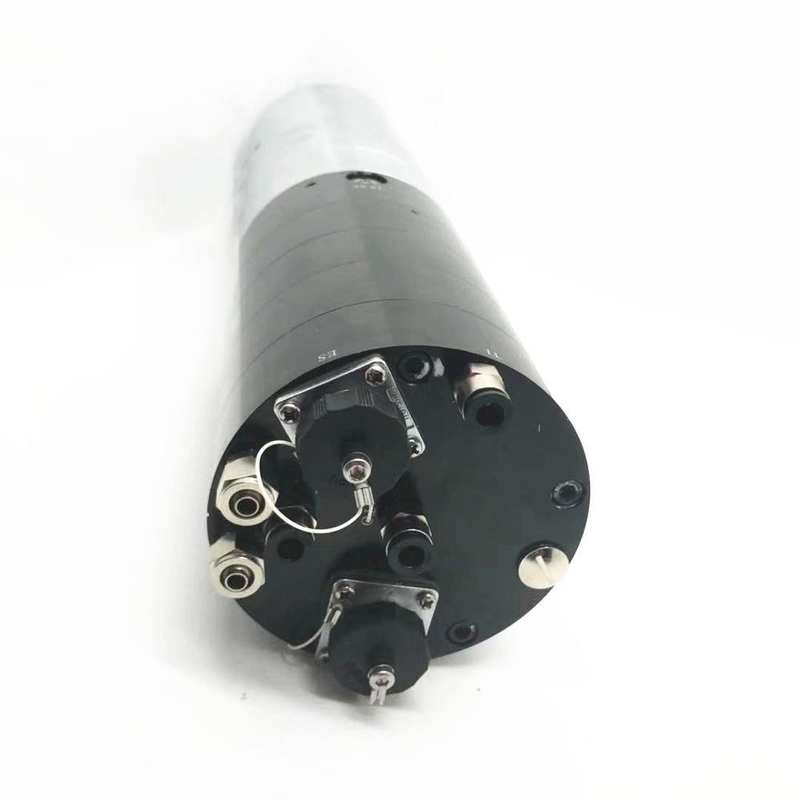

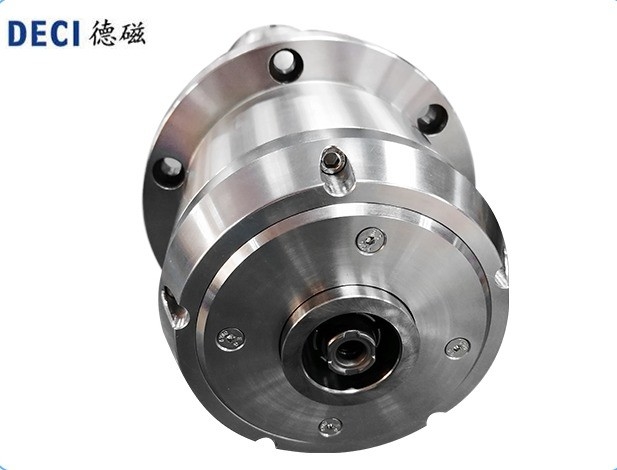

DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor

DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor

Products - Engraving and milling spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    5.73N.M
  • Drive
    Motor
  • Operating Speed
    36000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    Spindle Motor Er20
  • Diameter
    100mm
  • Power
    5.5kw
  • Voltage
    380V(3~)
  • Frequency
    1200HZ
  • Current
    25A
  • Weight
    15kg
  • Cooling Method
    Water Air Cooling Optional
  • Tooling Exchange Method
    ATC
  • Installation Method
    Mechanical Clip/ FLANGE
  • After Warranty Service
    Video Technical Support, Online Support
  • Local Service Location
    None
  • After-sales Service Provided
    Free Spare Parts, Online Support, Video Technical Support, Field Maintenance And Repair Service
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Model Number
    DC-1036A-HSK32E
  • Price
    $2,621.30/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor

  • DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor
  • DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor
  • DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor
  • DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor
  • DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor
  • DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor
Get Price Contact Now
Product Description
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor
This product is a high speed electric spindle with a maximum speed of 36000 rpm and a rated power of 5.5 kW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.

DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 0
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 1
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 2
DECI   DC-1360A-HSK32E
Parameters
Motor Power:
5.5KW
Rated voltage:
380V(3~)
Max rotate speed :
36000Rpm/min
Max currency:
25A
Max Frequency:
1200Hz
Torque:
5.73N.M
Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
5.6-6.0 Kgf/cm²
Tooling Exchange Method:
ATC
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²
Tooling Pulling Force:
2900
Tooling Back Air Pressure:
─
Tooling Connection:
HSK32E
Cooling:
water air cooling optional
Encoder:
Sine-Cosine 1VPP(Optional)
Coolant Pressure:
2.5 Kgf/cm²
Approach Switch:
PNP On
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
FLANGE/
Mechanical clip
Vibration Value:
≤0.8
Weight:
26kg
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 3
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 4
Packing&Shipping
Packed in export standard carton or plywood case with PP bag, thick foam.
DECI Spindle / cnc in Machining.
atc cnc 4 axis
atc spindle cnc router
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 5
Related Products
Applicable industry
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 6
Why Choose Us
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 7
Company Profile
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 8
DECI Brand
Guangzhou Ruiheng Technology Co., Ltd is located in the Eastern Development Zone of Guangzhou. The company was established in 2009. We are a national high-tech enterprise integrating R&D, production, sales and maintenance of high-speed electric spindle. With the concerted efforts of all employees, a number of self-developed patented products, and the rapid development of the industry, the product quality and accuracy requirements are getting higher and higher. For this reason, the company has introduced advanced high-precision production of Swiss, German, British, Korean and other technologies for the electric spindle. Equipment and testing and calibration equipment, with the goal of "doing fine, coming stronger and bigger", more than 60% of our products are exported to the United States, Europe, India, Brazil, Dubai and other countries to help customers continuously update with quality service. Work hand in hand with customers, develop together, use morality as a product, and create a first-class product with magnetic "DECI" to help China create!
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 9
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 10
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 11
Certifications
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 12
FAQ
Q1:Are you a trading company or a manufacturer?
A1: We are the manufacturer of DECI electric spindles.

Q2:Do you have the products in stock?
A2:Our products are manufactured according to your order required except normal products.

Q3:Can I get some samples first?
A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..

Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?
A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.

Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
DECI 5.5KW 220V 36000Rpm Water Cooling ER20 atc spindle motor 13
