DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle

DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle

Products - Woodworking spindle
  • Condition
    New
  • Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company, De
  • Weight (KG)
    24.5
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Milling
  • Maximum Torque
    12N.M, 9.55N/m
  • Drive
    Motor
  • Operating Speed
    24000RPM
  • Warranty
    1 Year
  • Core Components
    Engine, Bearing, Motor, Gear
  • Power
    12kw
  • Frequency
    800Hz
  • Weight
    24.3kg
  • Current
    23A
  • Tool Exchange Method
    ATC
  • Max Speed
    24000rpm
  • Joint Of Nose
    ISO 30
  • Cooling
    Air Coolded
  • Product Name
    DECI SPINDLE
  • Place of Origin
    Guangzhou,China
  • Brand Name
    DECI
  • Price
    $1,460.00/sets 1-9 sets

DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle

  • DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle
  • DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle
  • DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle
  • DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle
  • DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle
  • DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle
Get Price Contact Now
DC-WP-145A
Parameters
Moter Power(KW)
12
Rated voltage (V/AC)
380 / 220
Maximum speed(Rpm)
24000
Maximum current (A)
23
Maximum frequency (Hz)
800
Torque (N·M)
9.55
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
2900
Tool return pressure(Kgf/cm²)
——
Tooling Connection
ISO 30
Cooling method
Gas cooling / Air cooling
Encoder (Optional)
Square wave/ Sine wave / Sin or Cos
Coolant Pressure (Kgf/cm²)
2.5-3.0
Proximity switch
PNP
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
T-shape groove
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
24.5

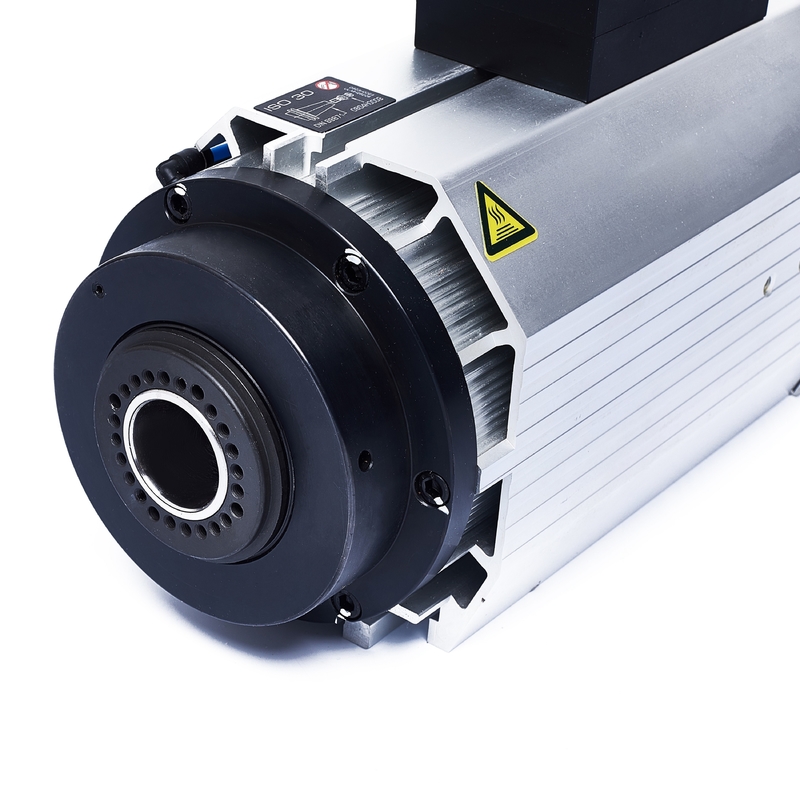

DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle 0

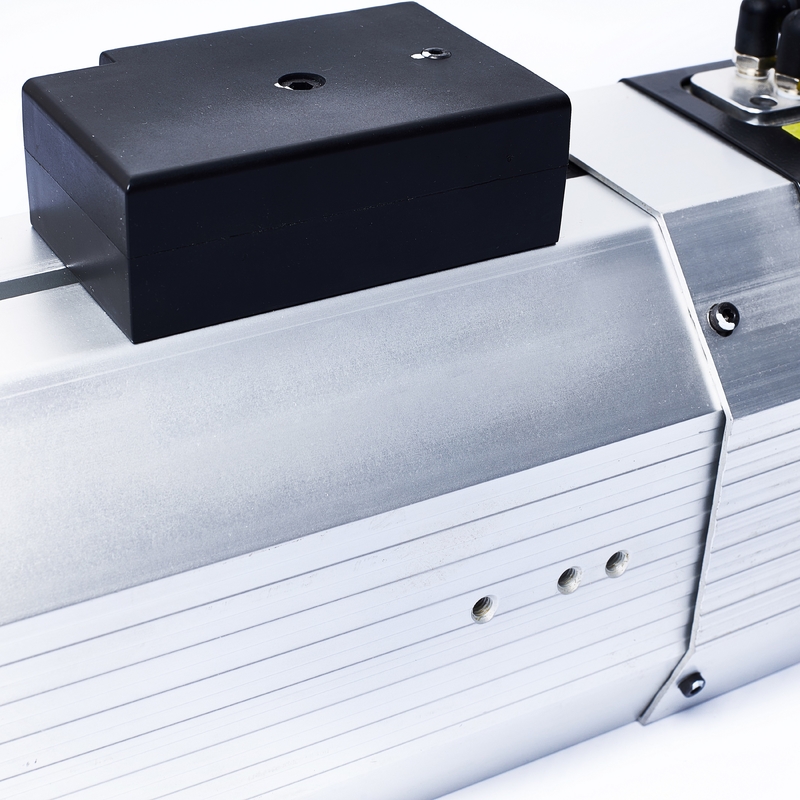

DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle 1

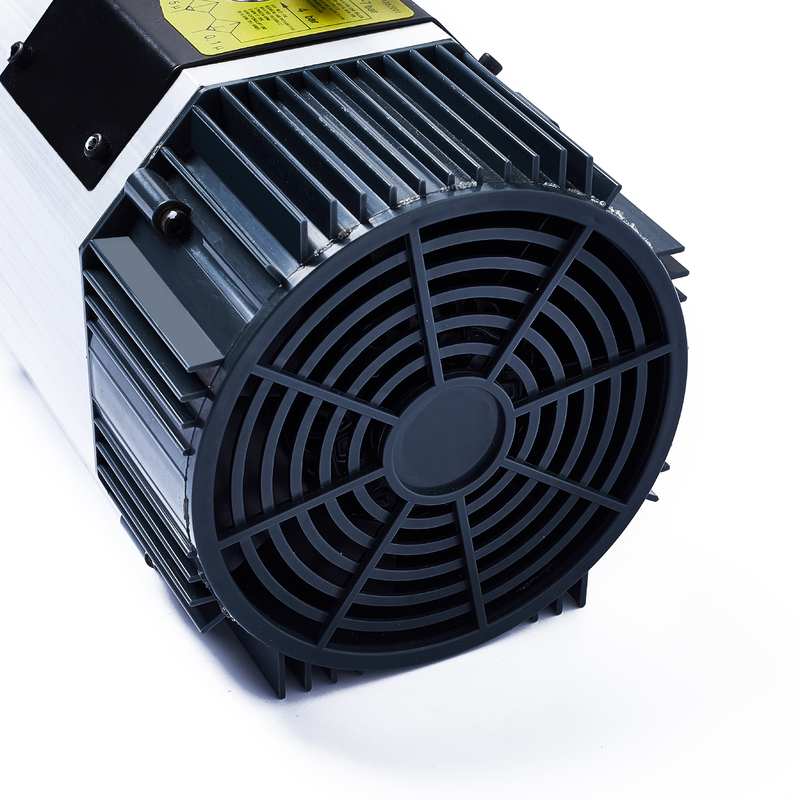

DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle 2

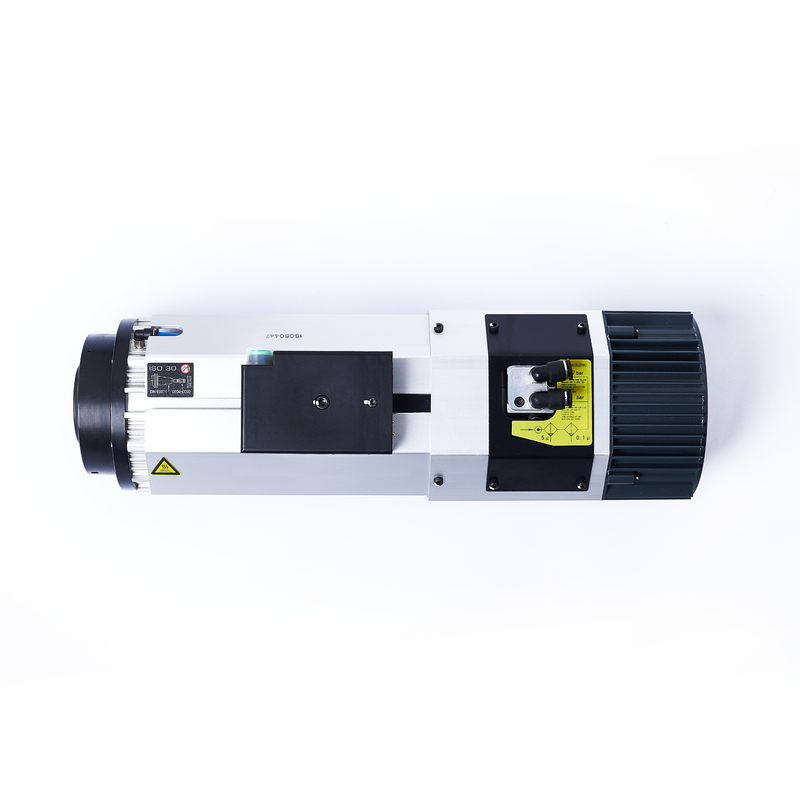

DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle 3

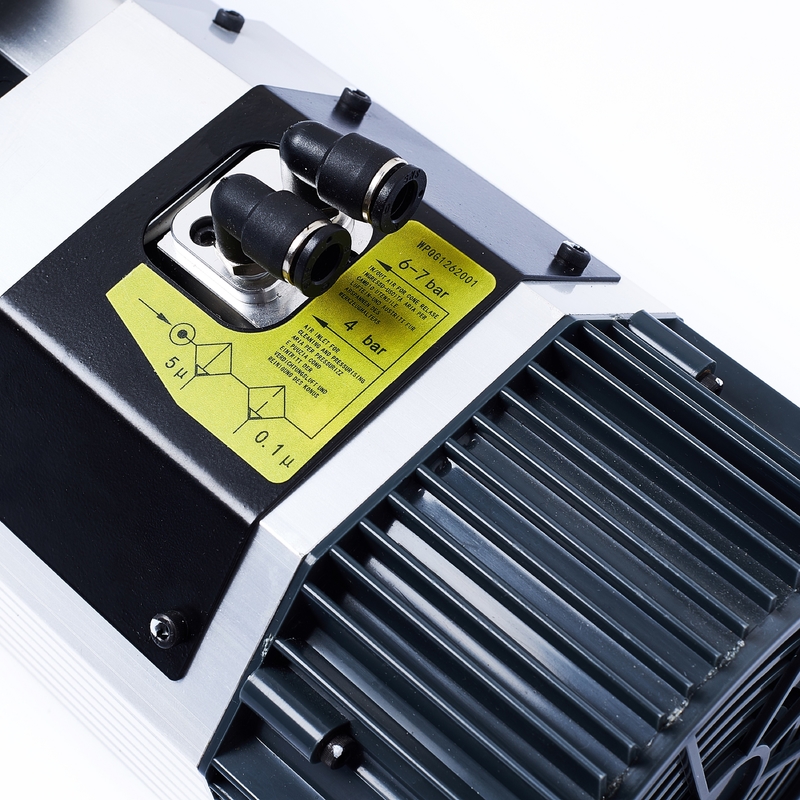

DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle 4
DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle 5
DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle 6
DECI ISO30 shank 24000Rpm motor 380V 800 Hz square machine tool spindle drilling milling cnc wood accessory automatic spindle 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
