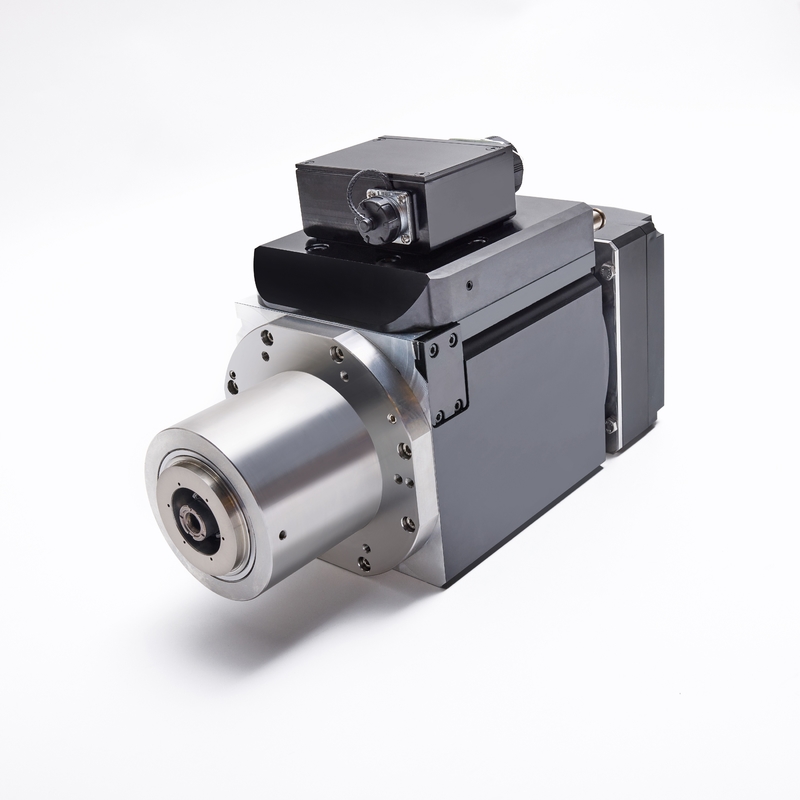

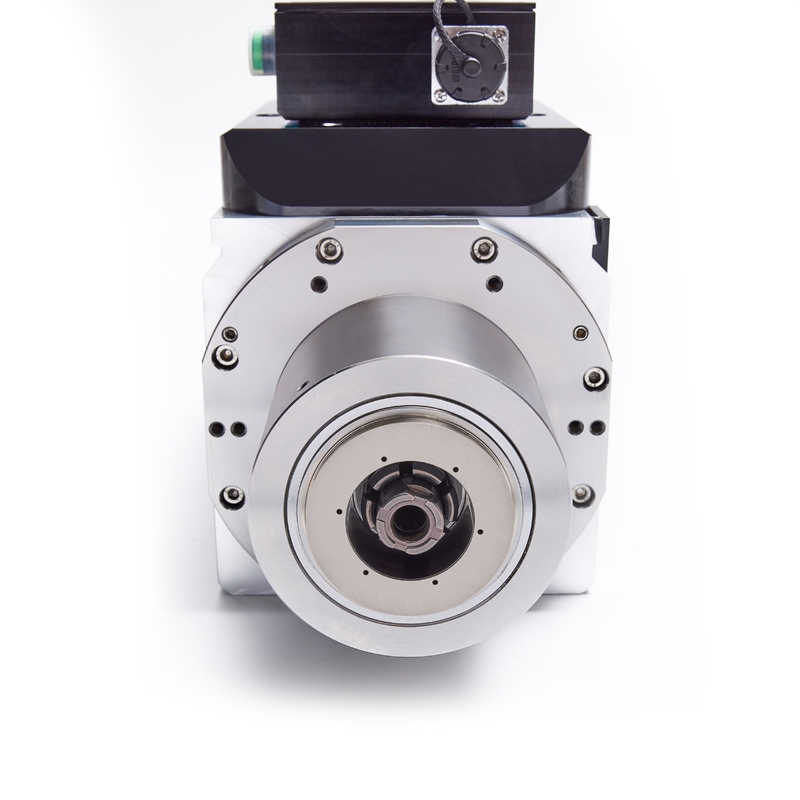

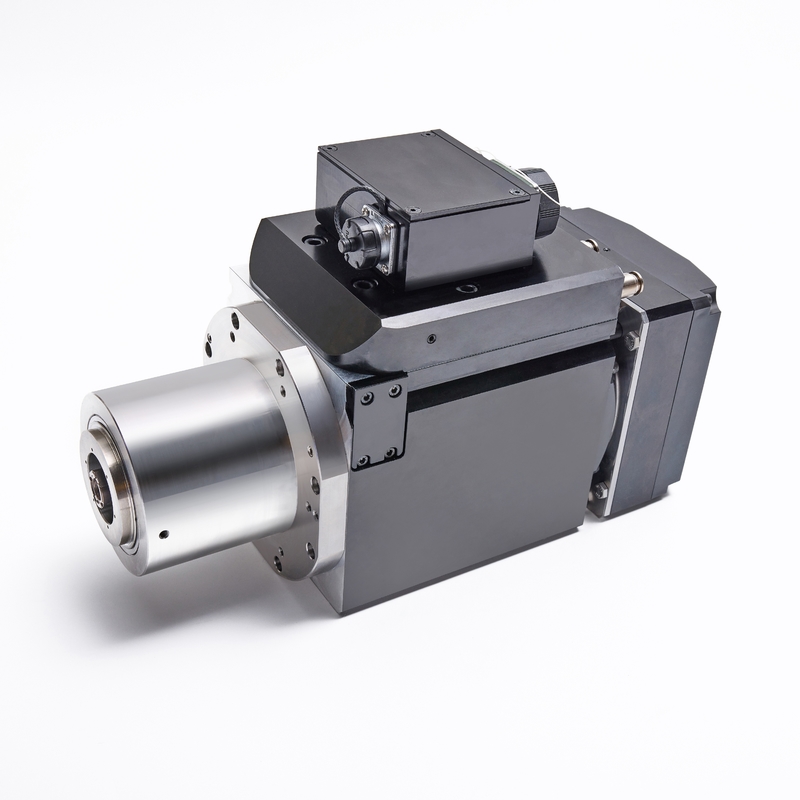

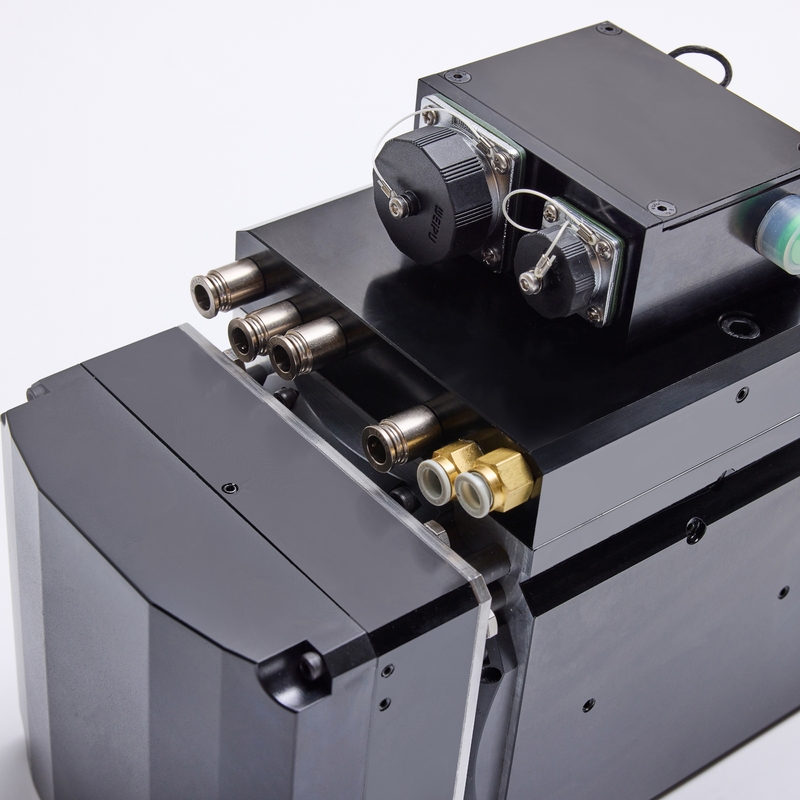

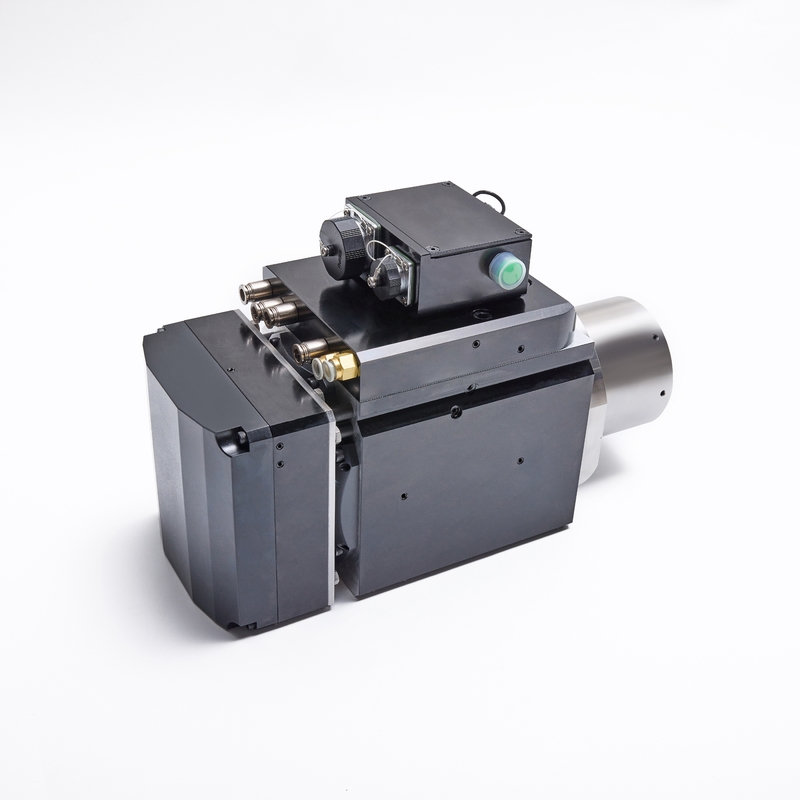

DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 15kw  380V 240000RPM milling atc spindle motor

DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 15kw 380V 240000RPM milling atc spindle motor

  • Condition
    New
  • Range Of Spindle Speed(r.p.m)
    0 - 24000 R.p.m
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2023
  • Warranty Of Core Components
    1 Year
  • Core Components
    Engine, Bearing, Gearbox, Motor, Gear
  • Dimension(L*W*H)
    373.9*150*150
  • Weight (KG)
    28
  • Repeatability (X/Y/Z) (mm)
    0.001
  • Positioning Accuracy (mm)
    0.01 Mm
  • Spindle Power (kW)
    15
  • Warranty
    1 Year
  • Key Selling Points
    High Productivity
  • Application
    Other Applications, Hard Materials, 3C Accessories, Medical Industry, Metal Working Mould Processing
  • Showroom Location
    None
  • Type
    Milling Machine
  • Material
    Wood
  • Keyword
    Automatic Machine
  • Product Name
    Mold Making
  • Usage
    Solid Wood
  • Function
    Milling Engraving
  • Precision
    High Precision
  • Model No
    HSK63F
  • Machine Name
    DECI
  • Place of Origin
    Guangdong, China
  • Brand Name
    DECI
  • Price
    $4,107.00/units 1-49 units
  • Packaging Details
    We can ship according to our customers.

DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 15kw 380V 240000RPM milling atc spindle motor

Specification
DC-WZ-150AC-HSK63F(WZ)
Parameters
Motor Power: 15KW  Rated voltage:  380v(3~)
 Max rotate speed : 24000Rpm/min  Max currency:  42/57 A
 Max Frequency: 800Hz  Torque: 12.2 N.M
Specification
Cone surface spring at shaft end:  ≤0.001mm Tooling Releasing  Air curtain:  5.6-6.0 Kgf/cm²
 Tooling Exchange Method:  ATC Air curtain pressure at front end:  2.5-3.0 Kgf/cm²
 Tooling Pulling Force:  ≥ 11000 Tooling Back Air Pressure:  spring-loaded return cutter
 Tooling Connection: HSK63F Cooling:  Water cooling optional
 Encoder: Sine-Cosine 1VPP(Optional) Coolant Pressure:  ≥ 2.5Kgf/cm²
 Approach Switch:  PNP On Bearing Lubrication Method:  Grease
Balance Level :  G1 Tooling Instalation Method: BASE FLANGE
Vibration Value:  ≤0.8 Weight:  28kg
