DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle

DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle

Products - Woodworking spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
  • Weight (KG)
    30
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Milling
  • Maximum Torque
    7.16/9.55N.M
  • Drive
    Motor
  • Operating Speed
    24000RPM
  • Warranty
    6 Months
  • Core Components
    Bearing
  • Current
    17/23A
  • Power
    12/9KW
  • Voltage
    380(3~)
  • Frequency
    800Hz
  • Weight
    29.6KG
  • Cooling Method
    Water Air Cooling Optional
  • Tools Connector
    HSK63F
  • Place of Origin
    Guangdong,china
  • Brand Name
    DECI
  • Price
    $1,330.00/sets 1-19 sets
  • Packaging Details
    DECI Spindle,We can ship according to our customers.
  • Supply Ability
    500 Set/Sets per Month

DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle

  • DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle
  • DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle
  • DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle
  • DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle
  • DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle
  • DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle
Get Price Contact Now
DC-WP145B
Parameters
Moter Power(KW)
12/9/3.7
Rated voltage (V/AC)
380 / 220
Maximum speed(Rpm)
24000
Maximum current (A)
23/17/7
Maximum frequency (Hz)
800
Torque (N·M)
9.55/7.16/7.1
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
≥2900
Tool return pressure(Kgf/cm²)
-
Tooling Connection
ISO30
Cooling method
gas cooling / Air cooling
Encoder (Optional)
Square wave / Sine wave
Coolant Pressure (Kgf/cm²)
2.5-3.0
Proximity switch
PNP
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
T-groove
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
29.6

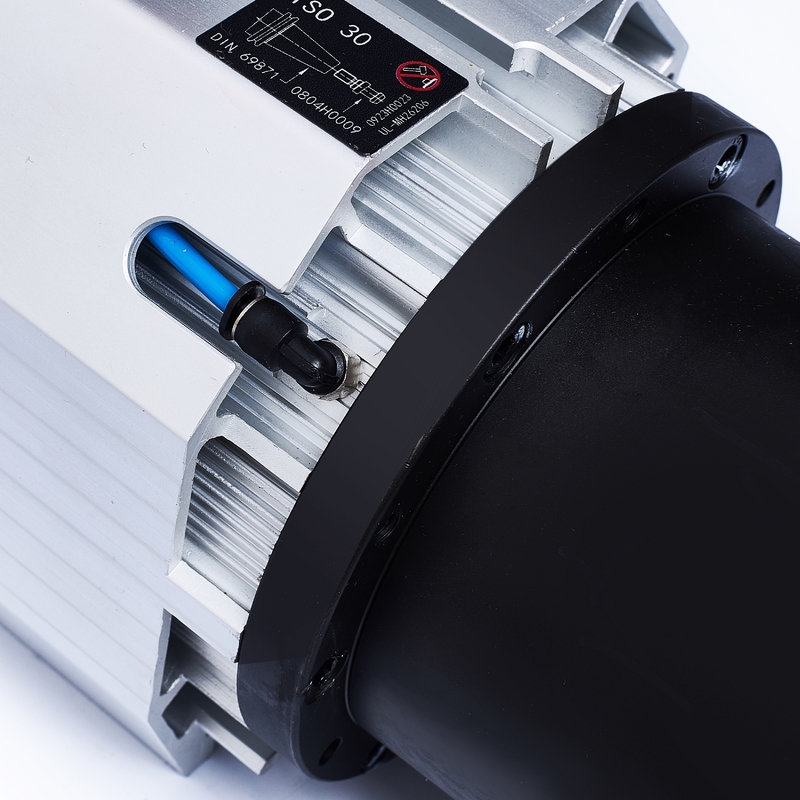

DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle 0

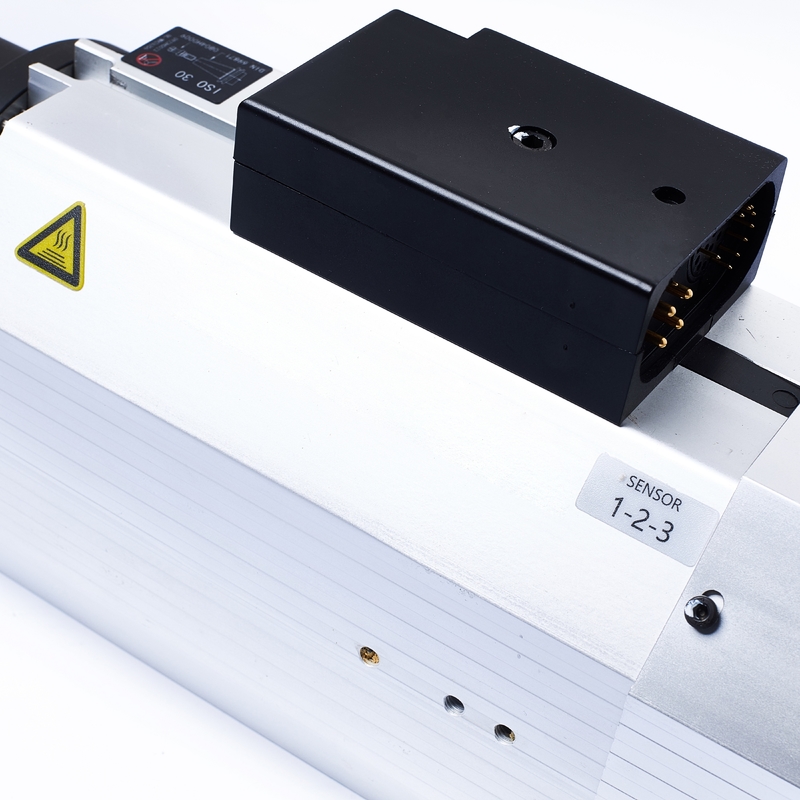

DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle 1

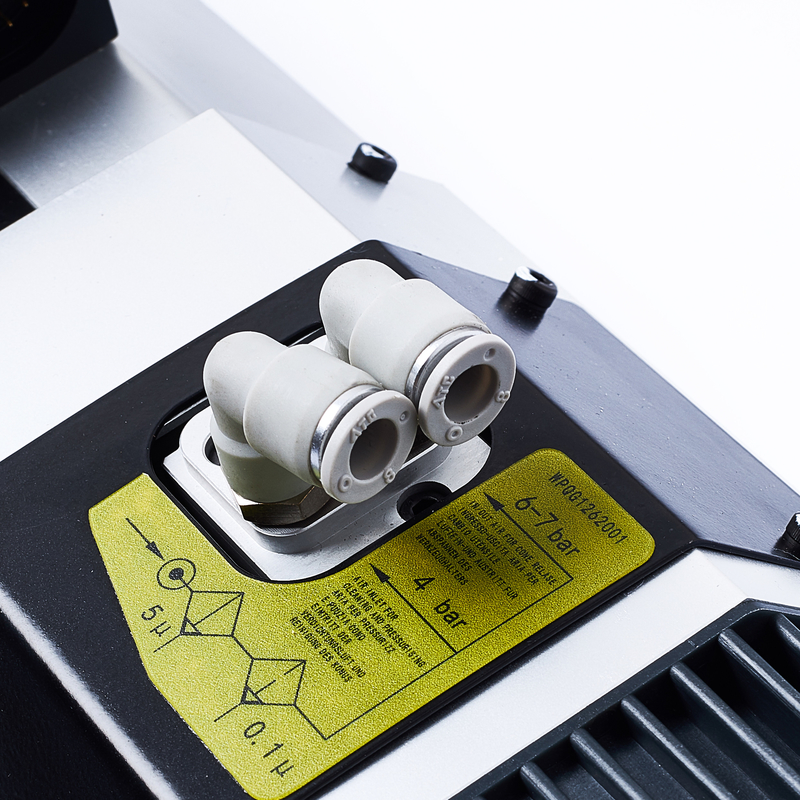

DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle 2

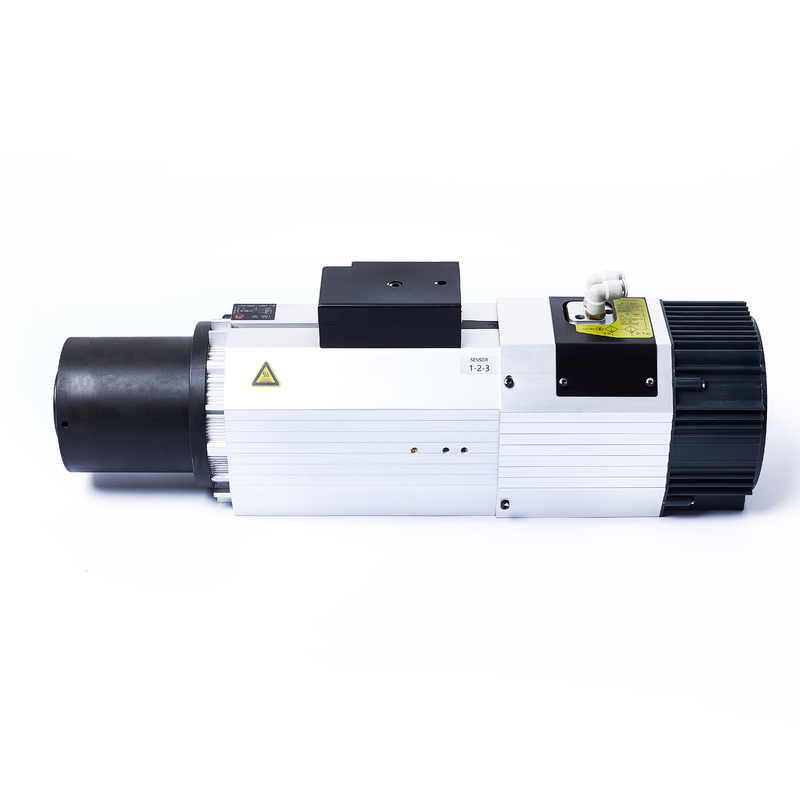

DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle 3

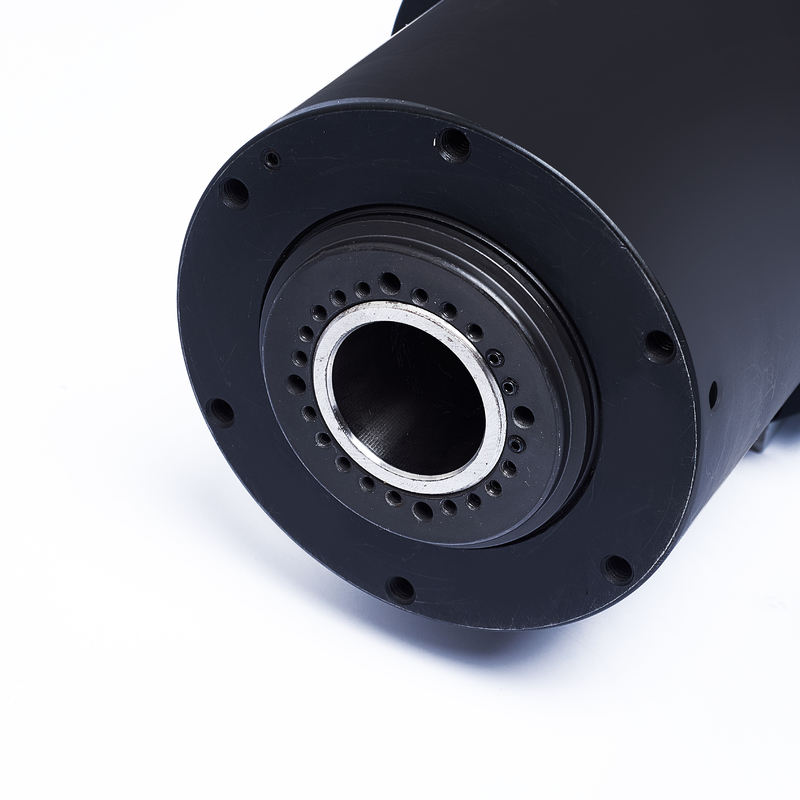

DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle 4

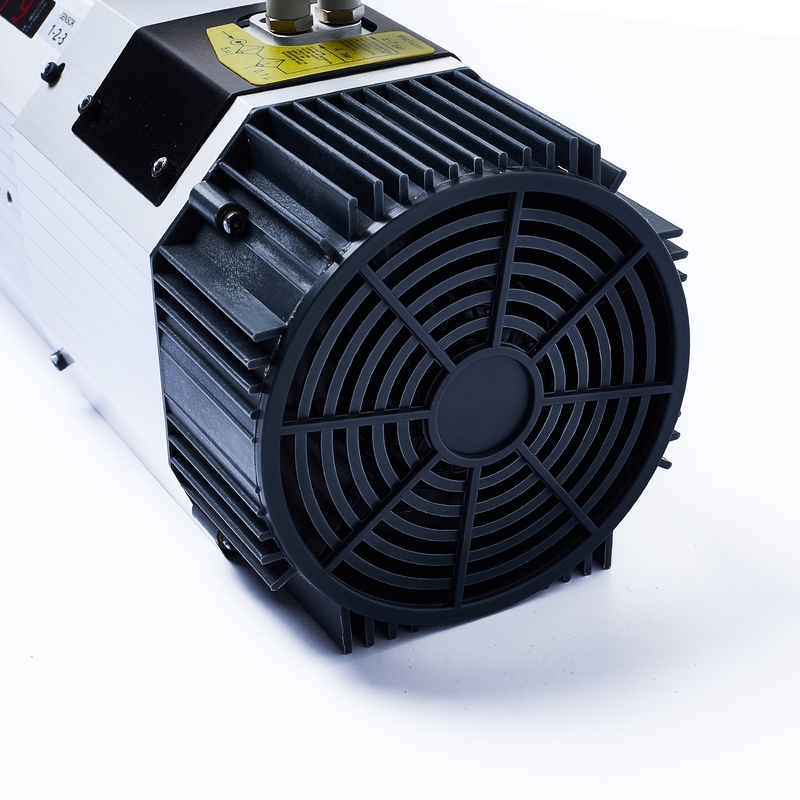

DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle 5
DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle 6
DECI ATC ISO30 wood working engraving spindle 12KW 9KW cnc 24000Rpm air cooled spindle motor high accuracy milling spindle 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
