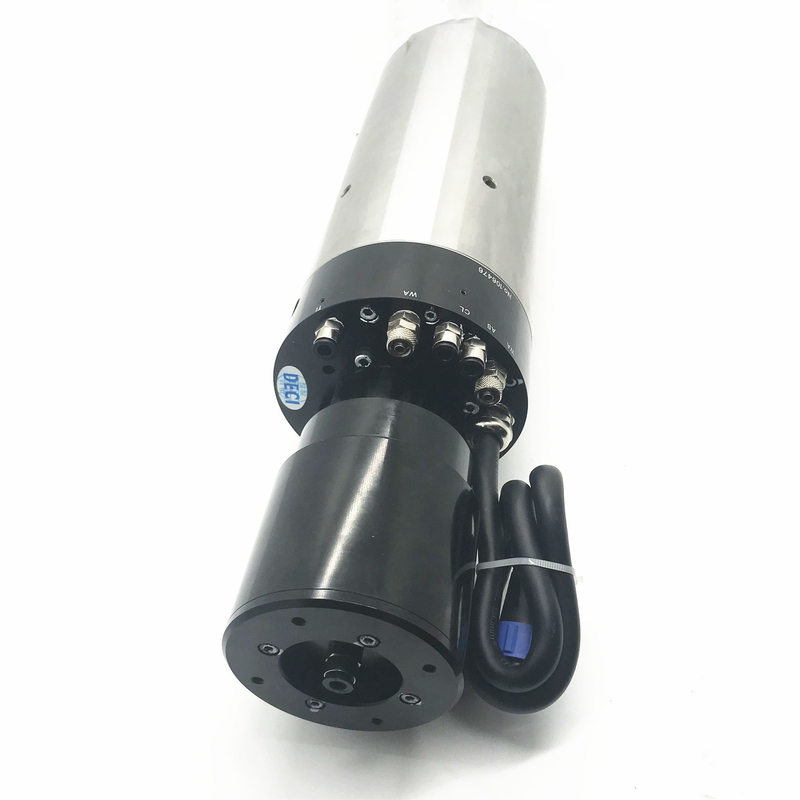

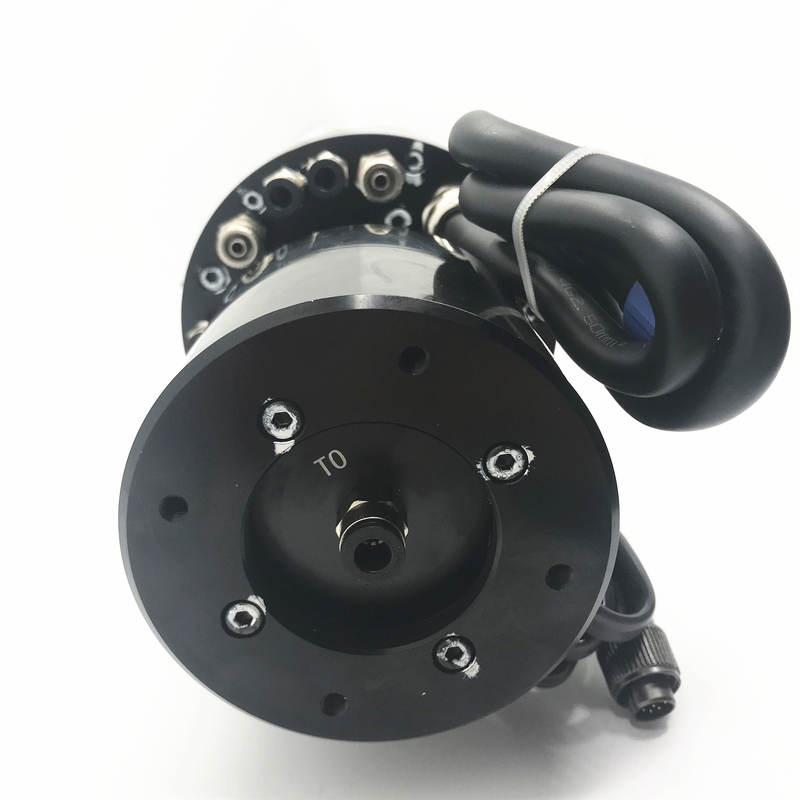

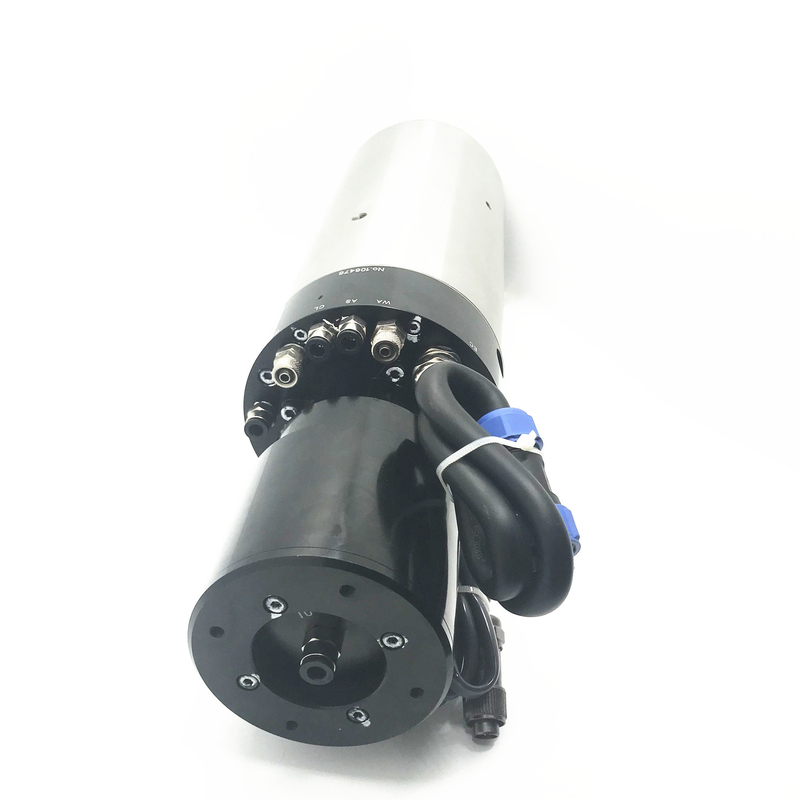

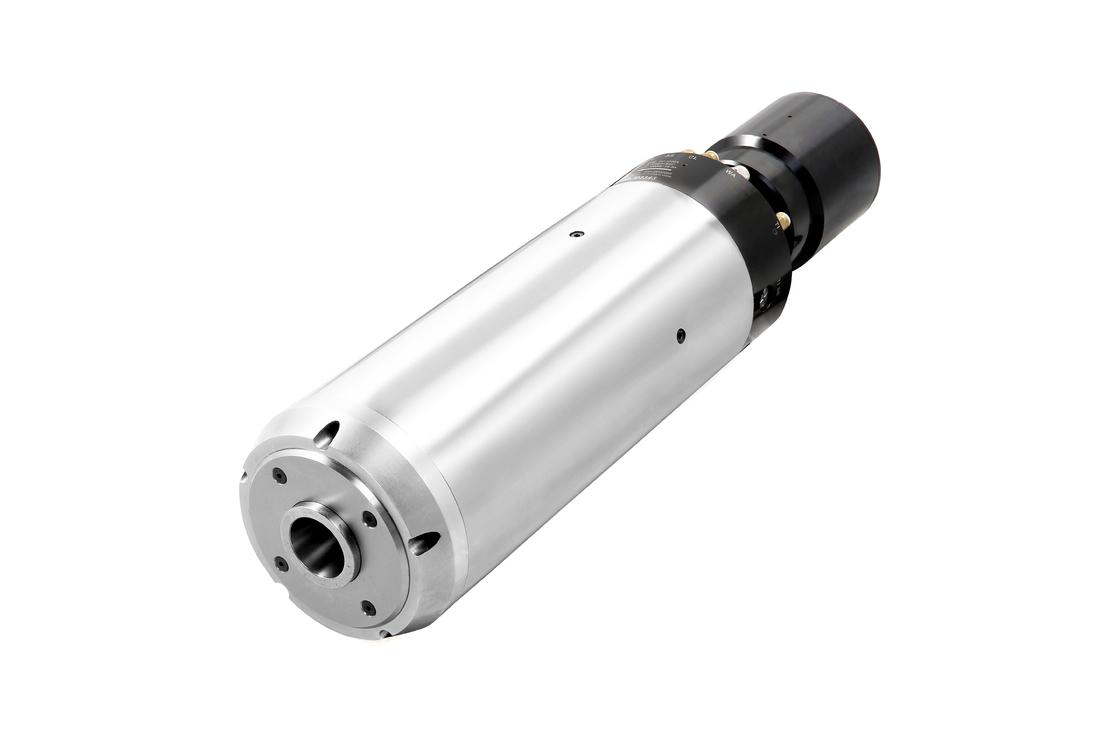

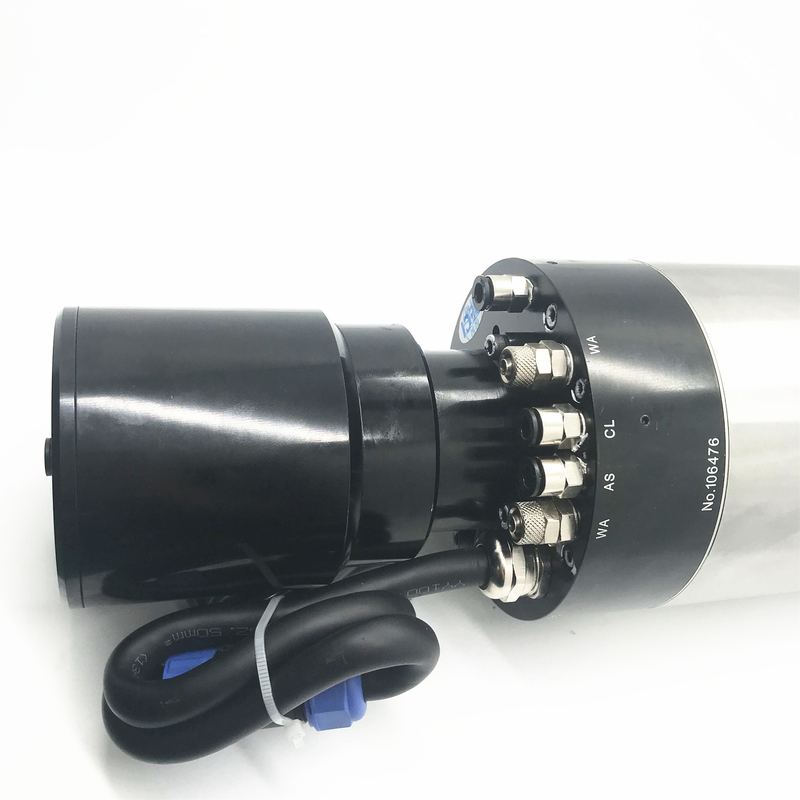

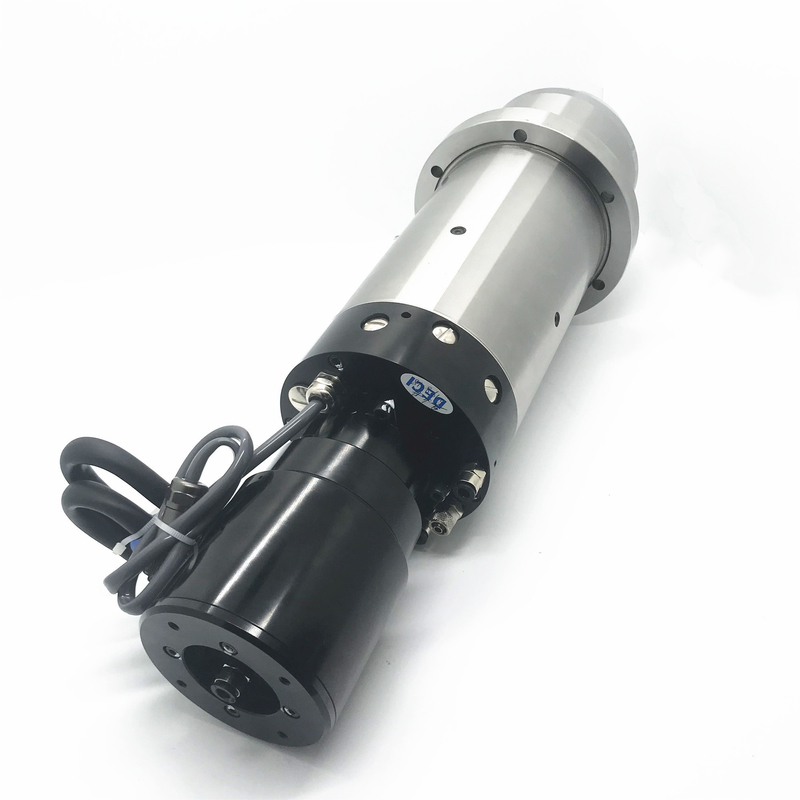

DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle

DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle

  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    5.73N.M
  • Drive
    Motor
  • Operating Speed
    30000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Power
    7.5kw
  • Voltage
    380V
  • Frequency
    1000HZ
  • Current
    25A
  • Weight
    26kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Product Name
    CNC Milling Router Machine
  • Diameter
    120mm
  • Installment Method
    Clamp/Flange
  • After Warranty Service
    Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
  • Local Service Location
    None
  • After-sales Service Provided
    Free Spare Parts, Online Support, Video Technical Support, Field Maintenance And Repair Service
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Model Number
    DC-1230C
  • Price
    $2,082.08/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle

Product Description

This product is a metal cutting high speed electric spindle with a maximum speed of 36000 rpm and a rated power of 7.5 kW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.



DECI spindle Motor Feature

1) Imported bearings with good quality, long working life.

2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.

3) There are water cooling spindle  , air cooling spindle and self cooling spindle for your choose.

4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.





Specificiations



DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindleDECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle

DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindleDECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle

DECI DC-1230C
Parameters
Motor Power: 7.5KW  Rated voltage:  380v(3~)
 Max rotate speed : 30000Rpm/min  Max currency: 25A
 Max Frequency: 1000Hz  Torque: 5.73N.M
Specification
Shaft-end Cone Run-out:  ≤0.001mm Tooling Releasing  Air Pressure:  5.6-6.0 Kgf/cm²
 Tooling Exchange Method:  ATC Air curtain pressure at front end:  2.5-3.0 Kgf/cm²
 Tooling Pulling Force:  2900 Tooling Back Air Pressure: ~
 Tooling Connection: BT30 Handle Cooling: water air cooling optional
 Encoder: Sine-Cosine 1VPP(Optional) Coolant Pressure: 2.5Kgf/cm²
 Approach Switch: PNP On Bearing Lubrication Method: Grease
Balance Level :  G1 Tooling Instalation Method: FLANGE
Vibration Value:  ≤0.8 Weight: 26kg
DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindleDECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle
Applicable industry

DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle

Packaging & Shipping

 DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle

Why choose us

DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle



Company Profile

DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle

Certifications

DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle

FAQ

Q:Are you trading company or manufacturer ?
A: We are the manufacturer of DECI electric spindles.



Q:Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?

A:we have all the packages. We can get the engineer to program you.


Q:
What's your delivery time?
A:It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.


Q:Do you provide samples ? is it free or extra ?
A:Sorry, we don't offer samples.

Q:
Which payment method and Express can you accept?

   1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.

   2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.


Q:How do you make our business long-term and good relationship?
A:1. DECI keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
