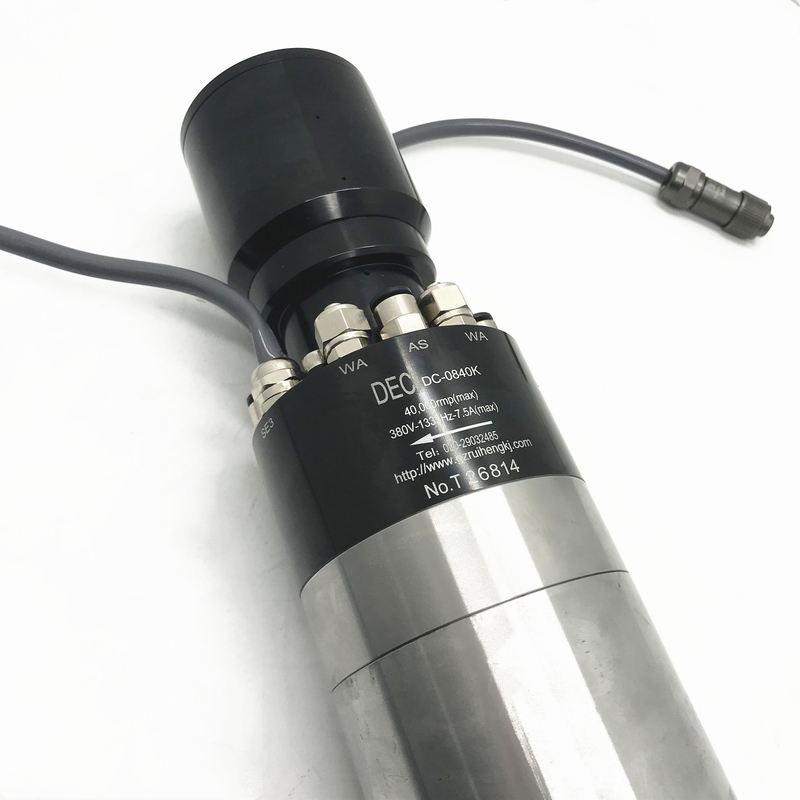

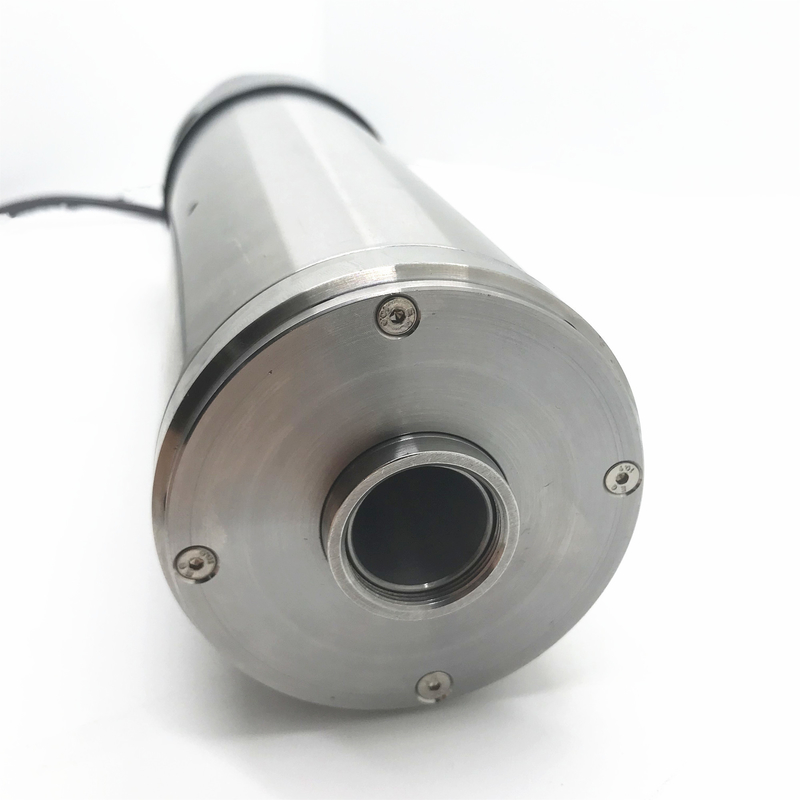

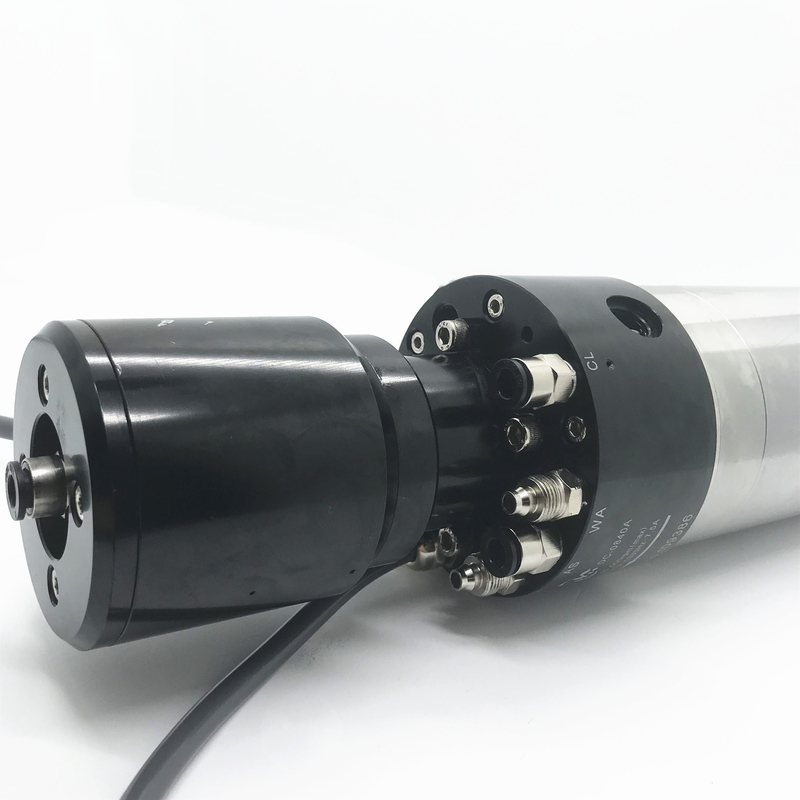

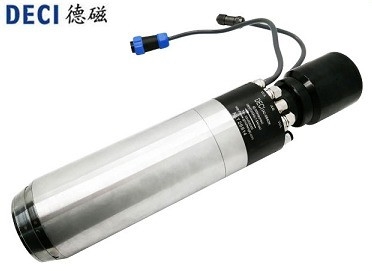

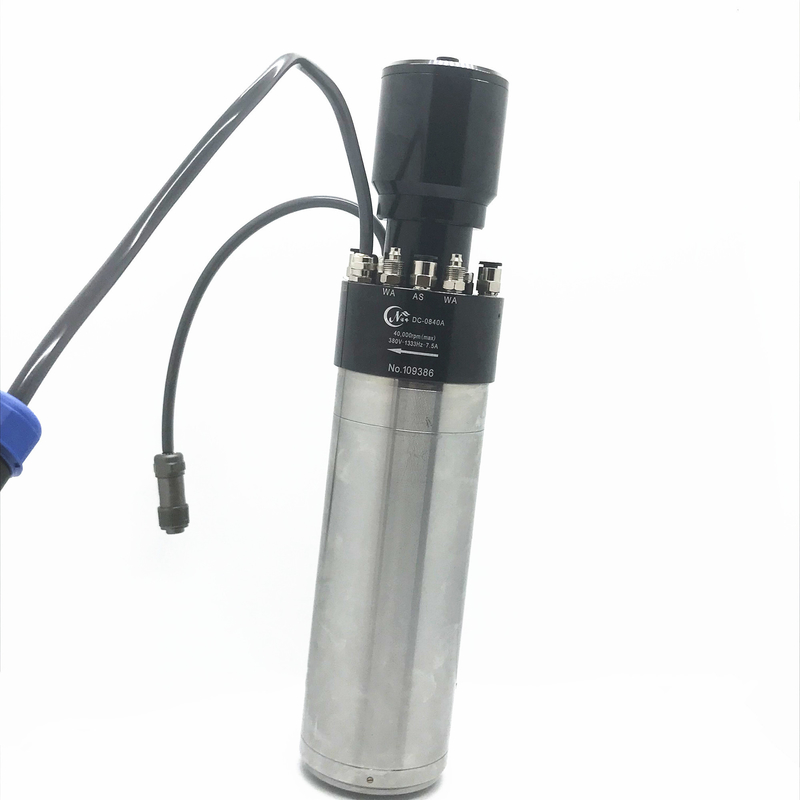

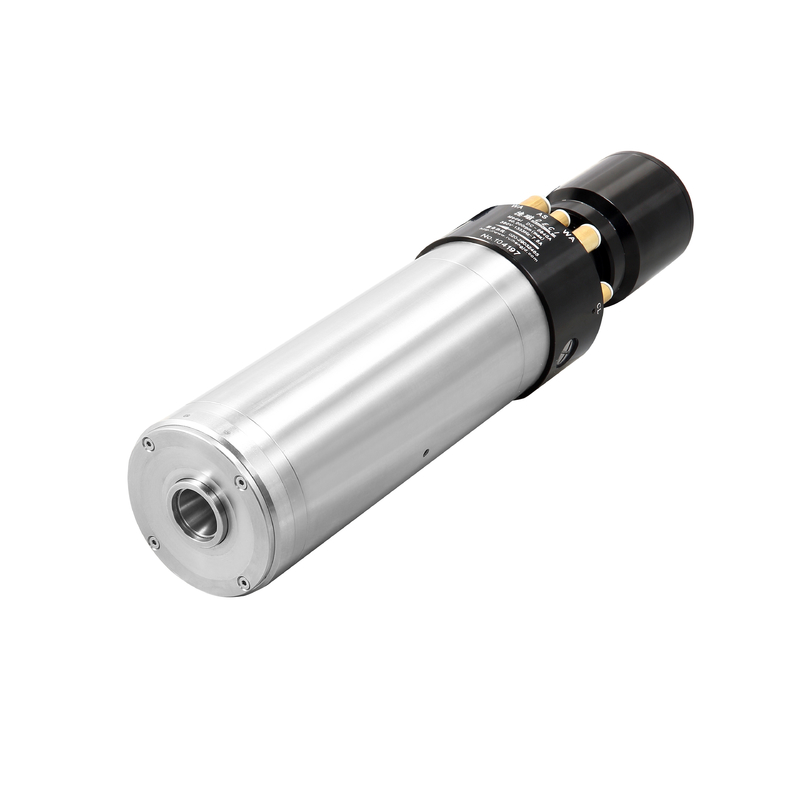

Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20

Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20

  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Not Available
  • Marketing Type
    New Product 2020
  • Application
    Milling
  • Maximum Torque
    1.27N.M
  • Drive
    Motor
  • Operating Speed
    40000RPM
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    2.5kw Spindle
  • Power
    4kw, 3.7kw, 2.5kw
  • Voltage
    380/220V(3~)
  • Frequency
    1333HZ
  • Weight
    7.65kgs
  • Current
    7.5/7.1/4.8A
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Collet
    ISO20-ER16
  • Installment Method
    Clamp
  • After Warranty Service
    Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
  • Local Service Location
    None
  • After-sales Service Provided
    Free Spare Parts, Online Support, Video Technical Support, Field Maintenance And Repair Service
  • Place of Origin
    guangdong,china
  • Brand Name
    DCEI
  • Model Number
    DC-0840K
  • Price
    $1,827.99/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20

Product Description

spindle motor bearings

This product is a metal cutting high speed electric spindle with a maximum speed of 40000 rpm and a rated power of 4/3.7/2.5 kW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.



spindle Motor Feature

1) Imported bearings with good quality, long working life.

2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.

3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.

4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.

Specificiations

Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20



Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20









DC-0840K
Parameters
Motor Power: 4/3.7/2.5KW  Rated voltage:  380/200V(3~)
 Max rotate speed : 40000Rpm/min  Max currency: 7.5/7.1/4.8A
 Max Frequency: 1333Hz  Torque: 1.27/0.88/0.6N.M
Specification
Shaft-end Cone Run-out:  ≤0.001mm Tooling Releasing  Air Pressure:  5.6-6.0Kgf/cm²
 Tooling Exchange Method: ATC Air curtain pressure at front end: 2.5~3.0 Kgf/cm²
 Tooling Pulling Force: ≥1100 Tooling Back Air Pressure: 5.6-6.0 Kgf/cm²
 Tooling Connection: ISO20 Shank-ER16 Cooling: water cooling
 Encoder: Square wave TTL
(optional)
Coolant Pressure: ≥2.5 Kgf/cm²
 Approach Switch: PNP ON Bearing Lubrication Method:  Grease
Balance Level :  G1 Tooling Instalation Method: Mechanical holding
Vibration Value:  ≤0.8 Weight: 7.65kg
Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20
Applicable industry

 Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20

Packaging & Shipping

Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20 5

Why choose us

Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20

Company Information

 Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20

Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20 8

Certifications

Big Power spindle motor 2.5KW 380V 220V automatic tool change spindle Engraving Machine CNC Router atc spindle iso20

FAQ

Q1:Are you a trading company or a manufacturer ?
A1: We are the manufacturer of DECI electric spindles.



Q2:Do you have the products in stock?

A2:Our products are manufactured according to your order required except normal products.


Q3:Can I get some samples first?

A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..


Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?

A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.


Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
      2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

.
