DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines

DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines

Products - Engraving and milling spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
  • Weight (KG)
    4.3
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Drilling.Milling
  • Maximum Torque
    0.28N.M
  • Drive
    Motor
  • Operating Speed
    20000RMP
  • Warranty
    6 Months
  • Core Components
    Bearing
  • Power
    0.7KW
  • Frequency
    1000HZ
  • Weight
    3.97kg
  • Current
    2.0A
  • Certificate
    ISO9001:2008
  • Tooling Exchange Method
    ATC SPINDLE
  • Voltage
    200V
  • Cooling Method
    Water Cooling
  • Place of Origin
    China
  • Brand Name
    DECI
  • Price
    $928.00/sets 1-9 sets
  • Supply Ability
    1000 Set/Sets per Month

DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines

  • DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines
  • DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines
  • DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines
  • DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines
  • DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines
  • DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines
Get Price Contact Now
Product Description

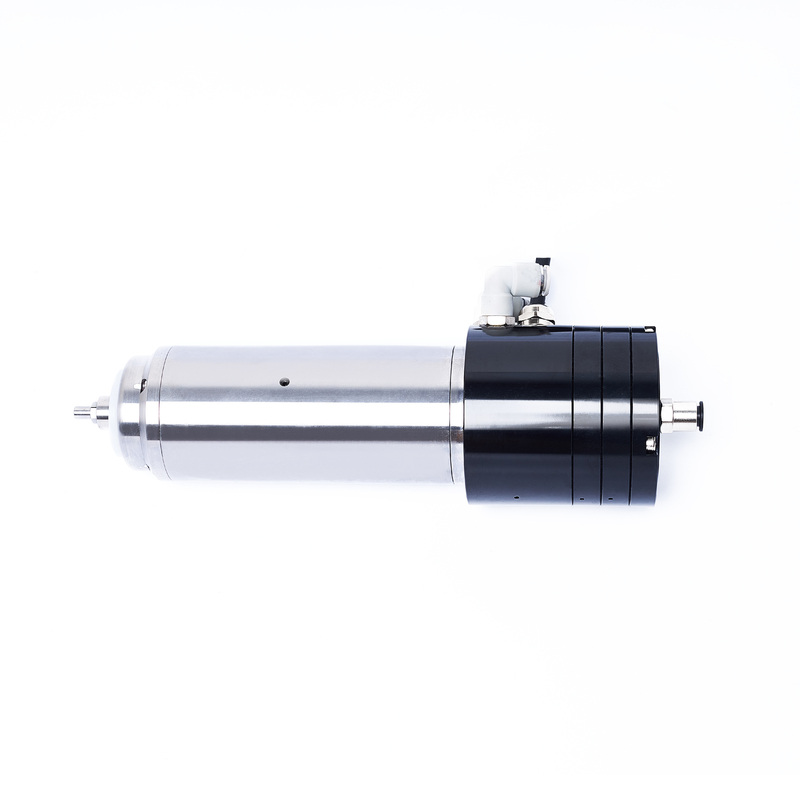

This product is a high-speed electric spindle with a maximum speed of 20000rpm and a rated power of 0.7kW. It is widely used in the processing of composite materials such as denture machine, zirconia, ceramics and titanium alloy with high precision drilling, milling and grinding.



DECI spindle Motor Feature

1) Imported bearings with good quality, long working life.

2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.

3) There are water cooling spindle  , air cooling spindle and self cooling spindle for your choose.

4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.



DECI More Spindle is also available with best price, if needed, welcome contact us.

1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw

2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw

3.cooled by self: 400w

4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw

   cooled by air: 8kw,9kw (same HSD)

5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw

Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.



Specificiations
DECI DC-60CX2
Technical Parameters standard Chuck torque(N·cm) ≥254(Φ6Shank)
Maximum speed(rpm) 20000 Shaft end static yaw(μm) ≤2.0
Maximum current(A) 2 Shaft end dynamic yaw(μm) ≤8.0
Maximum frequency(Hz) 1000 Vibration value(mm/s) ≤0.8
Upper limit frequency(Hz) 333 Assembly surface diameter(mm) Φ61.902~61.91
Highest voltage(V) 200 Cooling system coolant flow(L/min) water:≥1.6;oil:≥3.0
Power(KW) 0.7 Cooling system coolant pressure(kg f/cm2) water:≥2.5;oil:≥4.0
Cone Run-out(μm) 1.27(max) Motor winding insulation resistance(MΩ) ≥500(H Level)
Cylinder working pressure(kg f/cm2) 5.6-6.0 Motor winding withstand voltage test(V/M) 1500V/1Minute withstand voltage test
Tool change form ATC Noise value(dBA) ≤72
Chuck torque(N·cm) ≥254(Φ6 shank) Spindle blowing pressure(kg f/cm2) 2.5~3.0
weight 3.9kg Spindle blow dust flow(L/min) ≥60

DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machinesDECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machinesDECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machinesDECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machinesDECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines

Applicable industry

DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines

Packaging & Shipping

 DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machinesDECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines

Why choose us



DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines



Company Information

DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines

Certifications

DECI 0.7kw 20000rpm high speed CNC router water or air cooled machine tool spindle motor with drive for milling lathe machines

FAQ

Q: Are you trading company or manufacturer ?
A: We are the manufacturer of DECI electric spindles.



Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?

A:we have all the packages. We can get the engineer to program you


Q: What's your delivery time?
A: It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.


Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?

   1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.

   2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.


Q: How do you make our business long-term and good relationship?
A: 1. DECI keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
