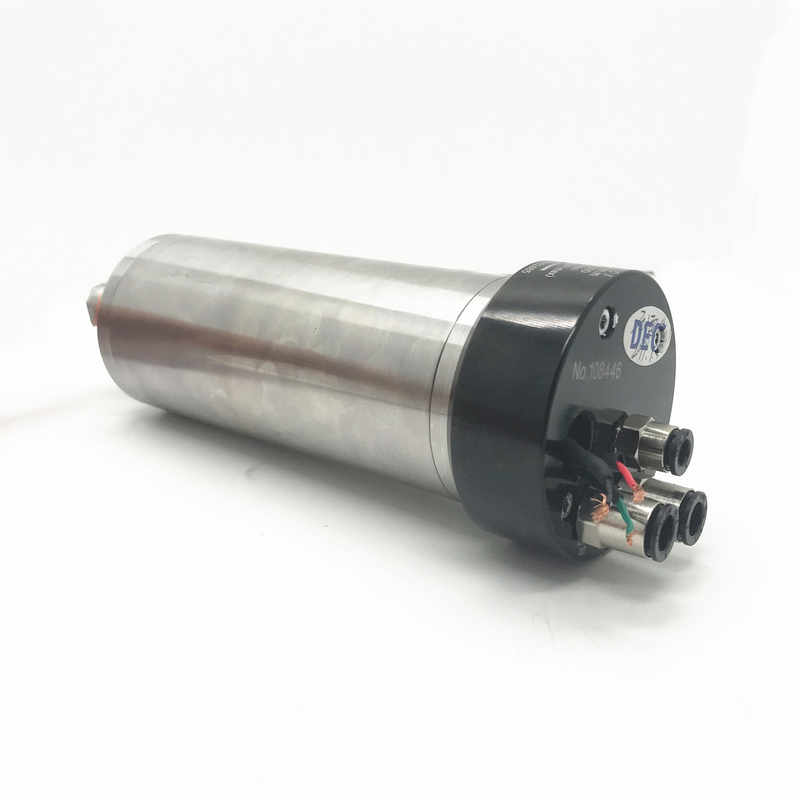

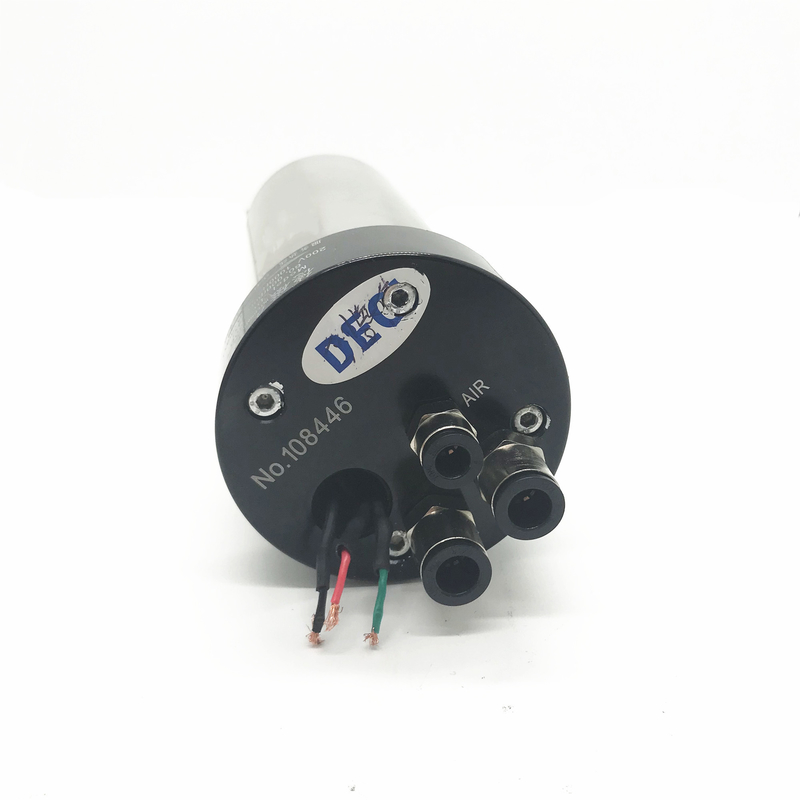

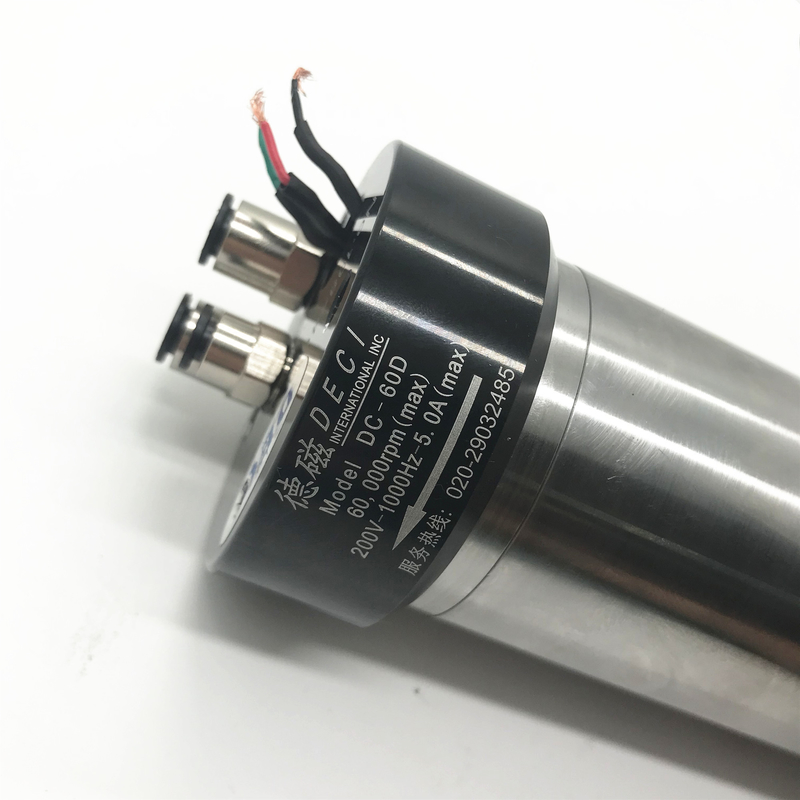

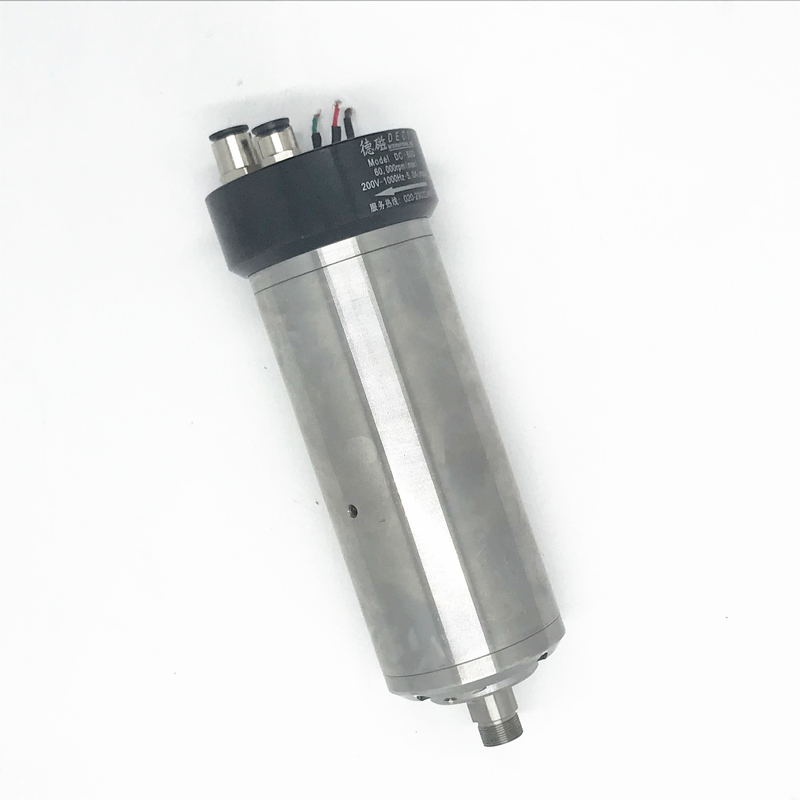

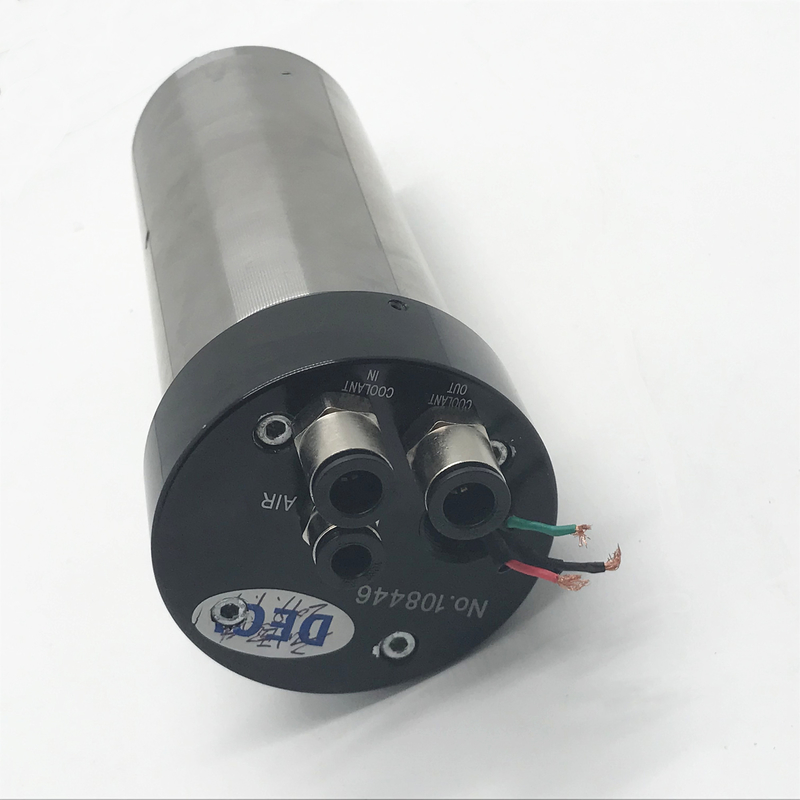

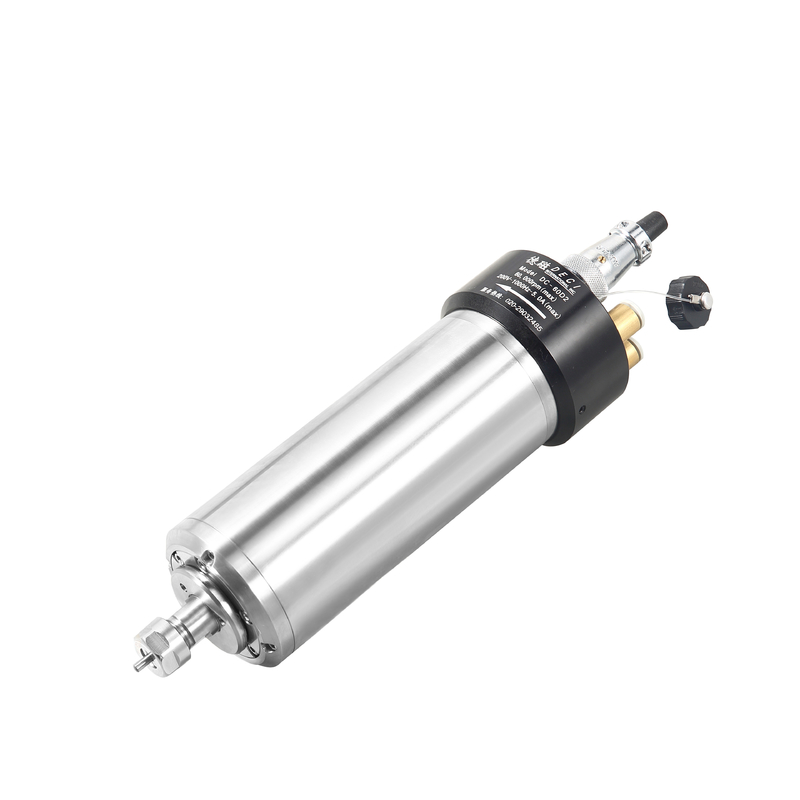

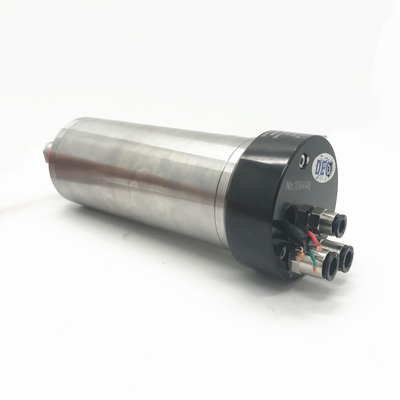

DECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motor

DECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motor

  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    DRILLING
  • Maximum Torque
    0.28N.M
  • Drive
    Motor
  • Operating Speed
    60000RPM
  • Warranty
    1 Year
  • Core Components
    Bearing
  • Power
    1.5kw
  • Voltage
    220V(3~)
  • Frequency
    1000HZ
  • Weight
    3.0kg
  • Current
    6.5A
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    MTC
  • Collet
    ER11
  • After Warranty Service
    Online Support
  • Local Service Location
    None
  • After-sales Service Provided
    Online Support
  • Place of Origin
    guangdong,china
  • Brand Name
    DCEI
  • Model Number
    DC-60D2
  • Price
    $569.05/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

DECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motor

Product Description

 This product is a metal cutting high speed electric spindle with a maximum speed of 36000 rpm and a rated power of 7.5 kW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.



spindle Motor Feature

1) Imported bearings with good quality, long working life.

2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.

3) There are water cooling spindle  , air cooling spindle and self cooling spindle for your choose.

4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.

Specificiations

DECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motorDECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motorDECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motorDECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motor



DC-60D2
Parameters
Motor Power: 1.5KW/1.8KW  Rated voltage:  200v(3~)
 Max rotate speed : 60000Rpm/min  Max currency: 10A
 Max Frequency: 1000Hz  Torque: 0.28N.M
Specification
Cone surface spring at shaft end:  ≤0.001mm Tooling Releasing  Air curtain:  5.6-6.0Kgf/cm²
 Tooling Exchange Method:  HTC Air curtain pressure at front end:  2.5-3.0 Kgf/cm²
 Tooling Pulling Force:  1200 Tooling Back Air Pressure: ~
 Tooling Connection: ER11 Cooling: water air cooling optional
 Encoder: NO Coolant Pressure: 2.5Kgf/cm²
 Approach Switch: NO Bearing Lubrication Method:  Grease
Balance Level :  G1 Tooling Instalation Method: Mechanical holding
Vibration Value:  ≤0.8 Weight: 3kg
DECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motor
Applicable industry

 DECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motor

Packaging & Shipping

DECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motor

Why choose us



DECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motor







Company Information

 DECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motor

Certifications

DECI 1.5KW ER11 Collet water cooling Long Working Life engraving and milling motorized machine CNC router spindle motor

FAQ

Q: Are you trading company or manufacturer ?
A: We are the manufacturer of DECI electric spindles.



Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?

A:we have all the packages. We can get the engineer to program you.


Q:
What's your delivery time?
A: It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.


Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.

Q:
Which payment method and Express can you accept?

   1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.

   2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.


Q: How do you make our business long-term and good relationship?
A: 1. DECI keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
