DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking

DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking

Products - Woodworking spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    9.55N.M
  • Drive
    Motor
  • Operating Speed
    24000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    Woodworking Spindle Motor
  • Diameter
    145mm
  • Power
    12.0/9.0KW
  • Voltage
    380(3~)
  • Frequency
    800HZ
  • Current
    23/17A
  • Key Word
    Cnc In Wood Router
  • Cooling Method
    Water Cooling/ Air Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    T Slot
  • After Warranty Service
    Video Technical Support, Online Support
  • Local Service Location
    None
  • After-sales Service Provided
    Free Spare Parts, Field Installation, Commissioning And Training, Online Support, Video Technical Support, Field Maintenance And Repair Service
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Model Number
    DC-WP145B-HSK63F
  • Price
    $2,988.00/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking

  • DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking
  • DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking
  • DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking
  • DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking
  • DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking
  • DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking
Get Price Contact Now
Precision atc cnc wood carving machine 12KW 24000rpm 380V Air cooling spindle motor Woodworking
DC-WP145B-HSK63F is a 24000rmp spindle motor with shank # HSK63F and water cooling air cooling optional. It is suitable for drilling, milling and tapping processing of aluminum profiles, wood, acrylic, fiberboard, etc.Suitable for drilling, milling and tapping processing of aluminum profiles, wood, acrylic, fiberboard, etc.

DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

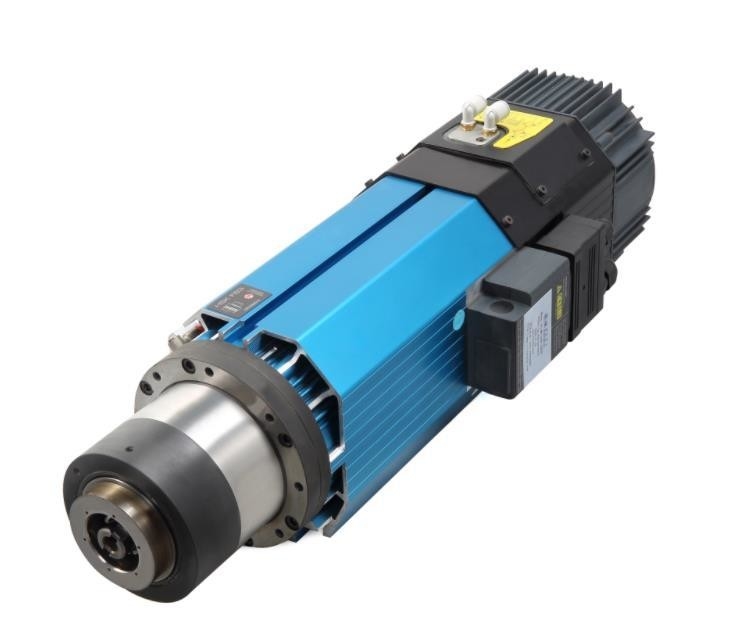

DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 0

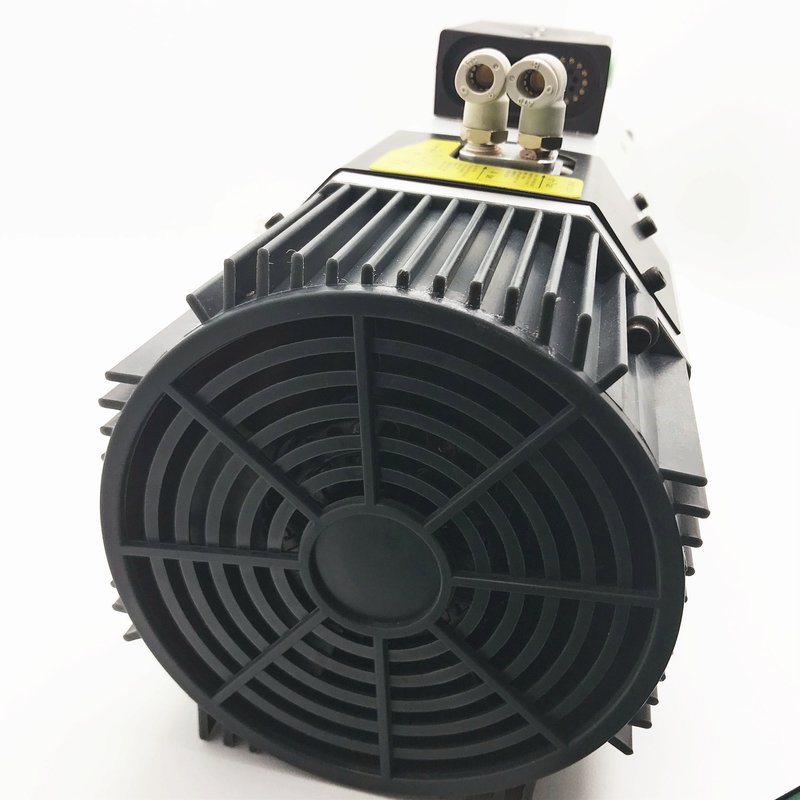

DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 1

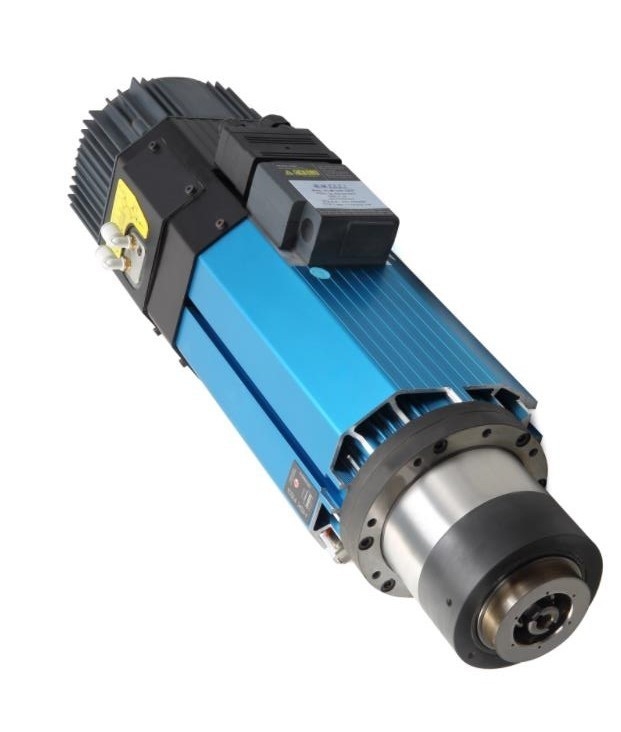

DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 2
DECI   DC-WP145B-HSK63F
Parameters
Motor Power:
12.0/9.0KW
Rated voltage:
380V(3~)
Max rotate speed :
24000Rpm/min
Max currency:
23/17A
Max Frequency:
800Hz
Torque:
9.55/7.16N.M
Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
5.6-6.0 Kgf/cm²
Tooling Exchange Method:
ATC
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²
Tooling Pulling Force:
≥11000
Tooling Back Air Pressure:
─
Tooling Connection:
HSK63F
Cooling:
Air cooling
Encoder:
Square wave TTL (optional)
Coolant Pressure:
2.5-3.0 Kgf/cm²
Approach Switch:
PNP On
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
T slot
Vibration Value:
≤0.8
Weight:
28.2kg
DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 3
DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 4
Packing&Shipping
Packed in export standard carton or plywood case with PP bag, thick foam.
DECI Spindle / cnc in Machining.
spindle motor parts in Machining
atc cnc wood carving machine
DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 5
Related Products
Applicable industry
DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 6
Why Choose Us
DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 7
Company Profile
DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 8
DECI Brand
Guangzhou Ruiheng Technology Co., Ltd is located in the Eastern Development Zone of Guangzhou. The company was established in 2009. We are a national high-tech enterprise integrating R&D, production, sales and maintenance of high-speed electric spindle. With the concerted efforts of all employees, a number of self-developed patented products, and the rapid development of the industry, the product quality and accuracy requirements are getting higher and higher. For this reason, the company has introduced advanced high-precision production of Swiss, German, British, Korean and other technologies for the electric spindle. Equipment and testing and calibration equipment, with the goal of "doing fine, coming stronger and bigger", more than 60% of our products are exported to the United States, Europe, India, Brazil, Dubai and other countries to help customers continuously update with quality service. Work hand in hand with customers, develop together, use morality as a product, and create a first-class product with magnetic "DECI" to help China create!
DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 9
DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 10
DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 11
Certifications
DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 12
FAQ
Q1:Are you a trading company or a manufacturer?
A1: We are the manufacturer of DECI electric spindles.

Q2:Do you have the products in stock?
A2:Our products are manufactured according to your order required except normal products.

Q3:Can I get some samples first?
A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..

Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?
A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.

Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
DECI Precision atc 12kw 24000rpm 380V air cooling cnc wood carving machine tool spindle motor for woodworking 13
