300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine

300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine

Products - CNC Lathe Spindle Motor
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    8
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Polishing
  • Maximum Torque
    2.5N.M
  • Drive
    Motor
  • Operating Speed
    9000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    Polishing Spindle
  • Diameter
    116mm
  • Power
    1.6kw
  • Voltage
    380(3~)
  • Frequency
    300HZ
  • Current
    3A
  • Weight
    3.9kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    MTC
  • After Warranty Service
    Field Maintenance And Repair Service
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $680.00/pieces 1-9 pieces
  • Supply Ability
    500 Set/Sets per Month

300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine

  • 300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine
  • 300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine
  • 300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine
  • 300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine
  • 300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine
  • 300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine
Get Price Contact Now
Product Description

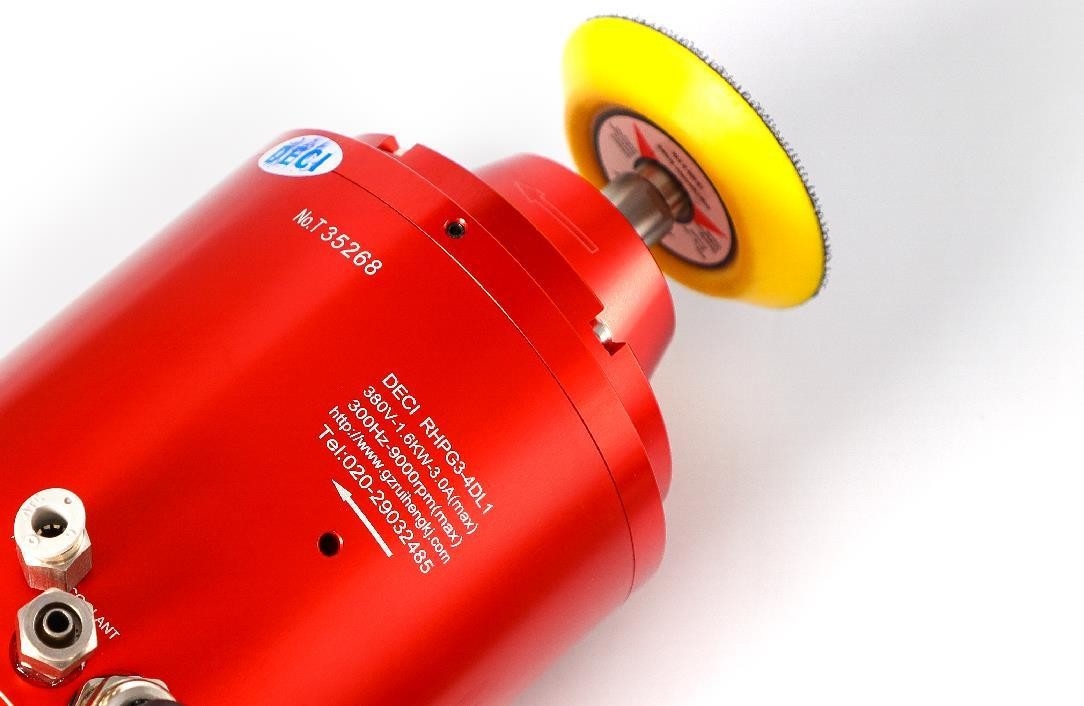

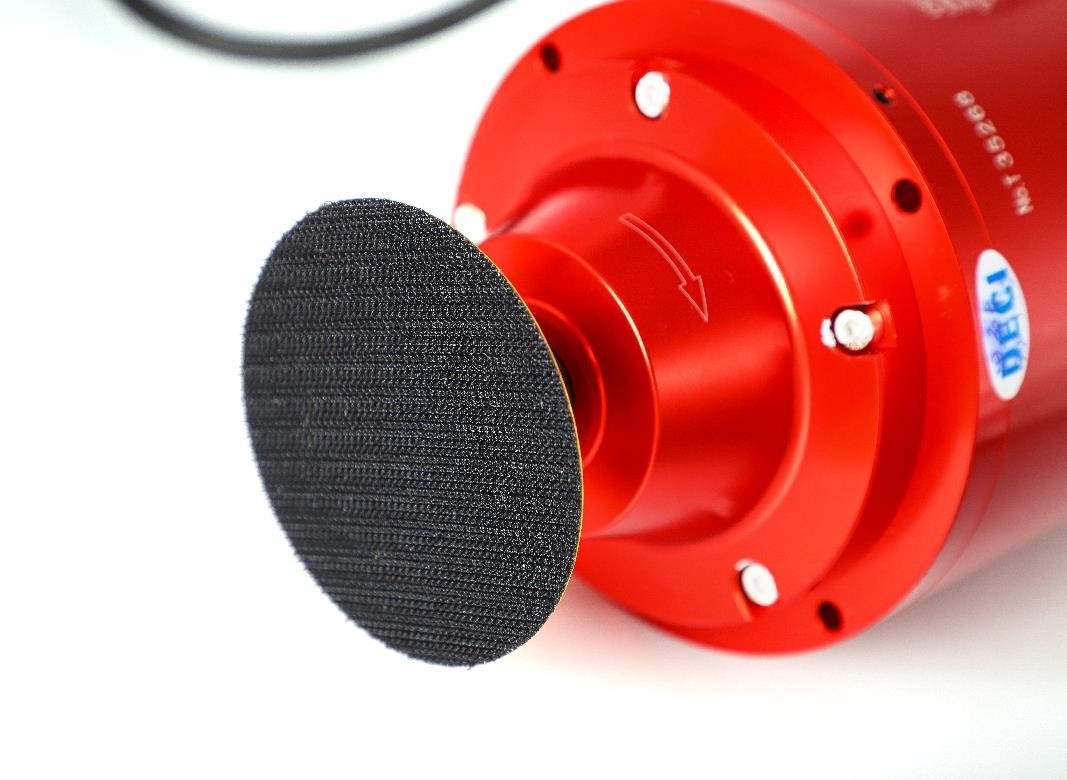

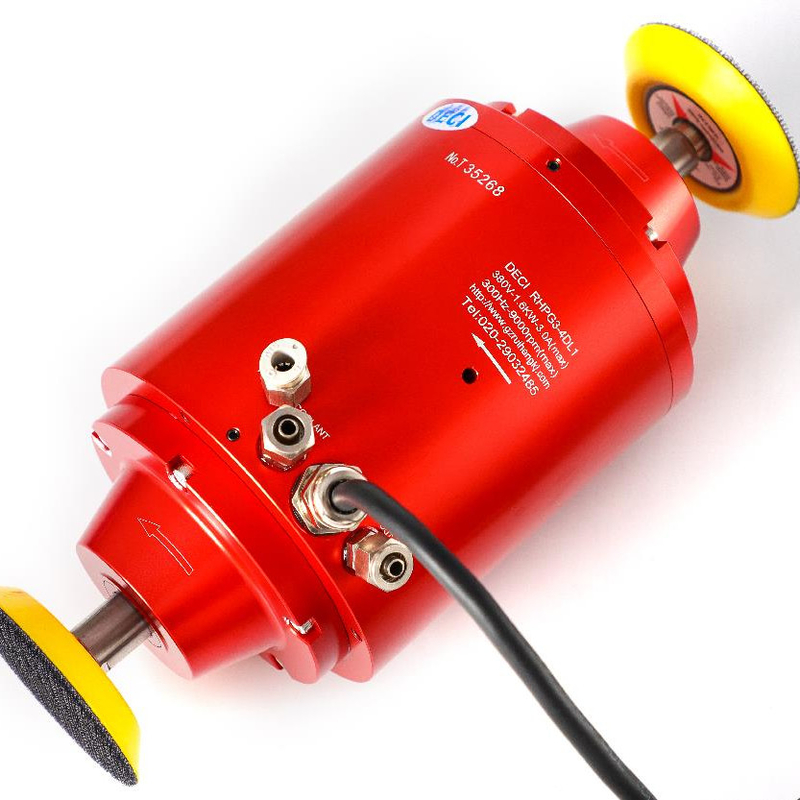

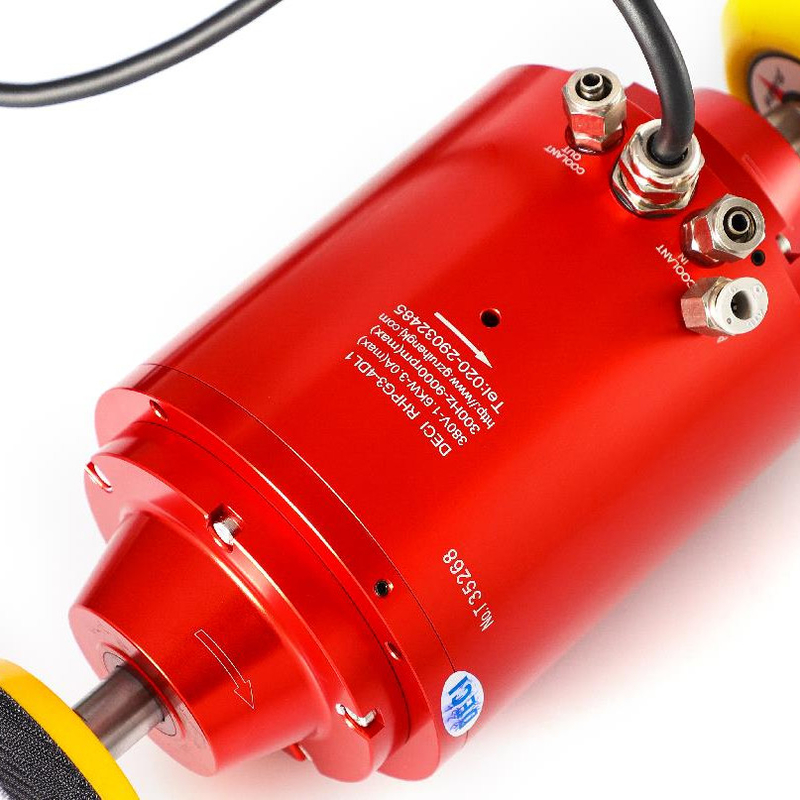

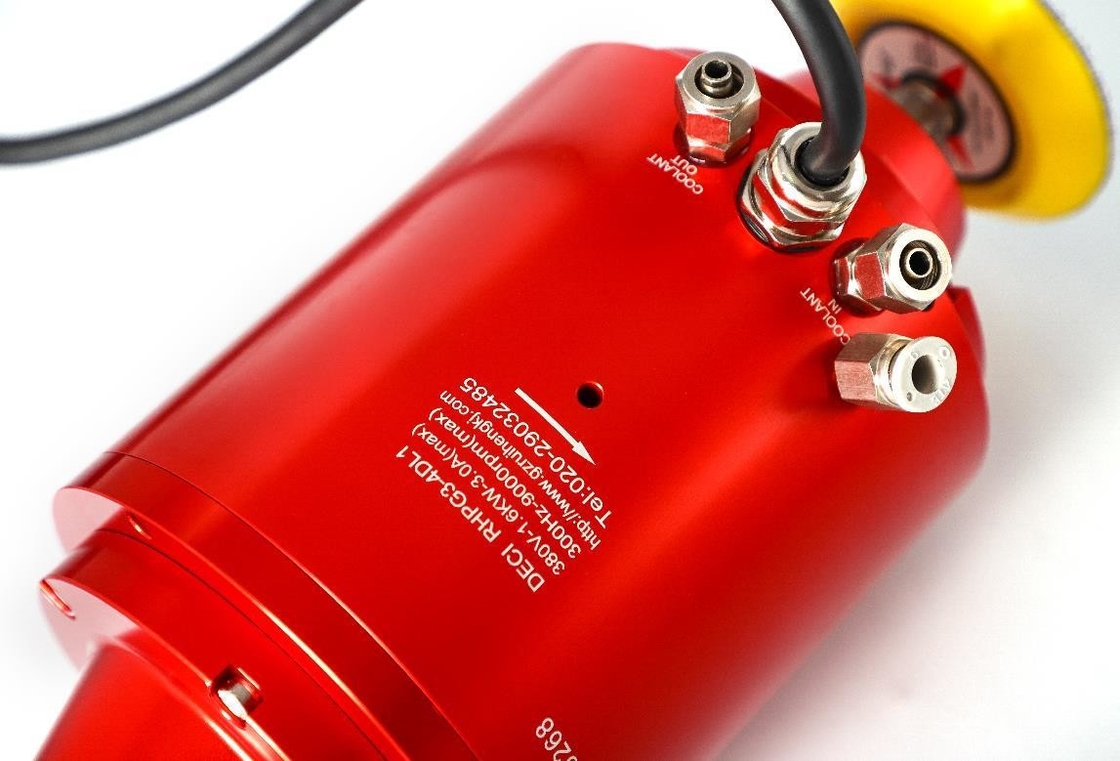

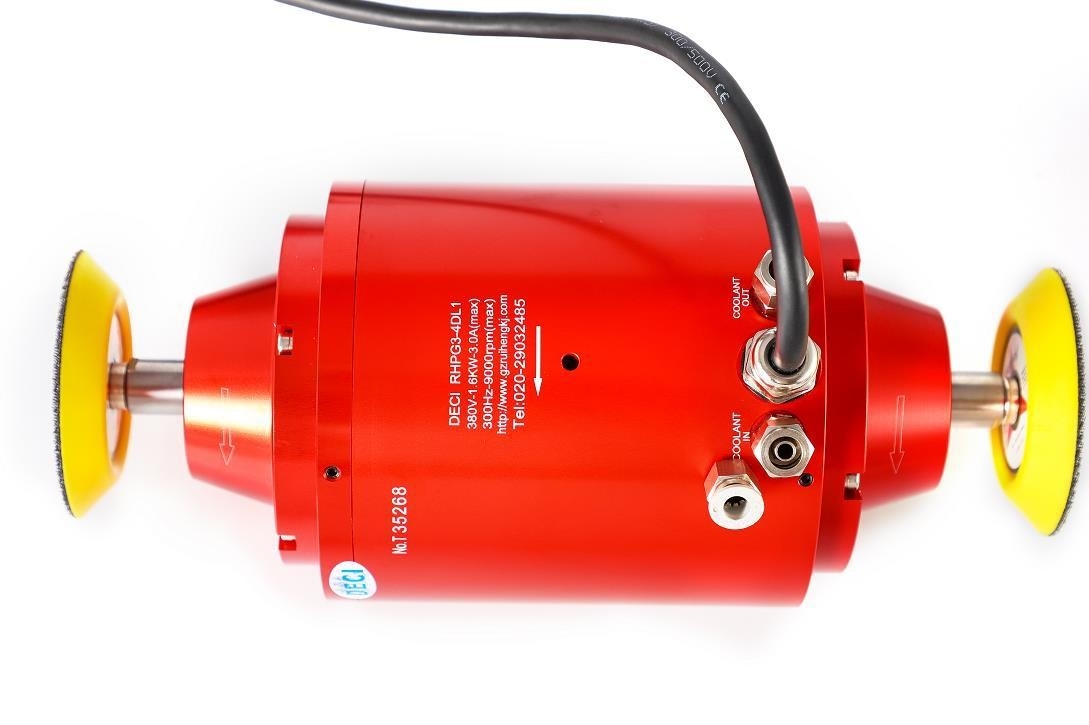

DECI 1.6kw 9000rpm water cooled Polishing spindle motor
This product is a metal polishing high speed electric spindle with a maximum speed of 9000 rpm and a rated power of 1.6 KW. It is suitable for high speed, high precision Metal, non-metal surface polishing.

DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 0
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 1
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 2
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 3
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 4
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 5
DECI  RHPG3
Parameters
Motor Power:
1.6KW
Rated voltage:
380V(3~)
Max rotate speed :
9000Rpm/min
Max currency:
3A
Max Frequency:
300Hz
Torque:
2.5N.M
Specification
Shaft-end Cone Run-out:
≤0.002mm
Tooling Releasing Air Pressure:
─
Tooling Exchange Method:
MTC
Air curtain pressure at front end:
≥5.0 Kgf/cm²
Tooling Pulling Force:
off-centre
Tooling Back Air Pressure:
─
Tooling Connection:
plate for 3-inch/ 5-inch
Cooling:
water cooling
Encoder:
─
Coolant Pressure:
≥2.5 Kgf/cm²
Approach Switch:
─
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
Flange
Vibration Value:
≤1.5
Weight:
6.3kg
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 6
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 7
Packing&Shipping
Packed in export standard carton or plywood case with PP bag, thick foam.
DECI Spindle / cnc in Machining.
atc spindle motor
spindle motor and drive
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 8
Related Products
Applicable industry
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 9
Why Choose Us
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 10
Company Profile
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 11
DECI Brand
Guangzhou Ruiheng Technology Co., Ltd is located in the Eastern Development Zone of Guangzhou. The company was established in 2009. We are a national high-tech enterprise integrating R&D, production, sales and maintenance of high-speed electric spindle. With the concerted efforts of all employees, a number of self-developed patented products, and the rapid development of the industry, the product quality and accuracy requirements are getting higher and higher. For this reason, the company has introduced advanced high-precision production of Swiss, German, British, Korean and other technologies for the electric spindle. Equipment and testing and calibration equipment, with the goal of "doing fine, coming stronger and bigger", more than 60% of our products are exported to the United States, Europe, India, Brazil, Dubai and other countries to help customers continuously update with quality service. Work hand in hand with customers, develop together, use morality as a product, and create a first-class product with magnetic "DECI" to help China create!
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 12
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 13
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 14
Certifications
300HZ Frequency Water Cooled Polishing Spindle Motor 1.6kw 9000rpm for CNC Machine 15
FAQ
Q1:Are you a trading company or a manufacturer?
A1: We are the manufacturer of DECI electric spindles.

Q2:Do you have the products in stock?
A2:Our products are manufactured according to your order required except normal products.

Q3:Can I get some samples first?
A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..

Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?
A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.

Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
