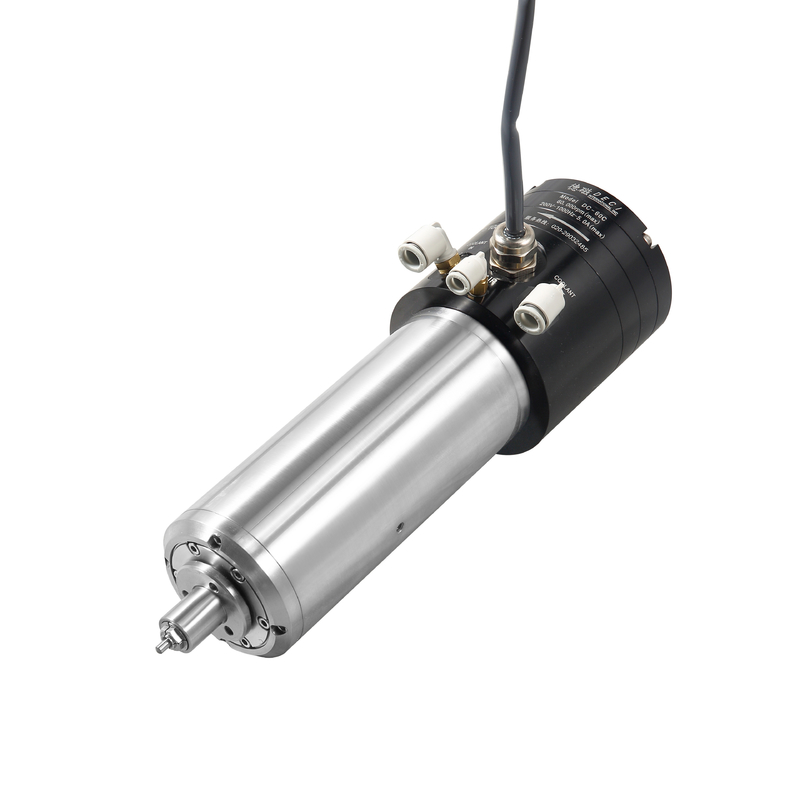

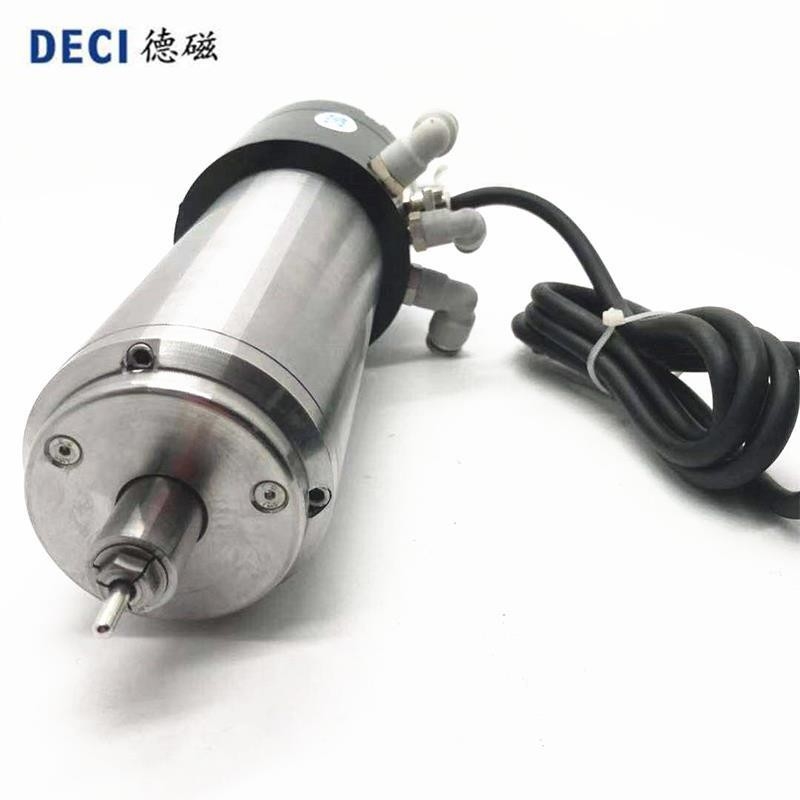

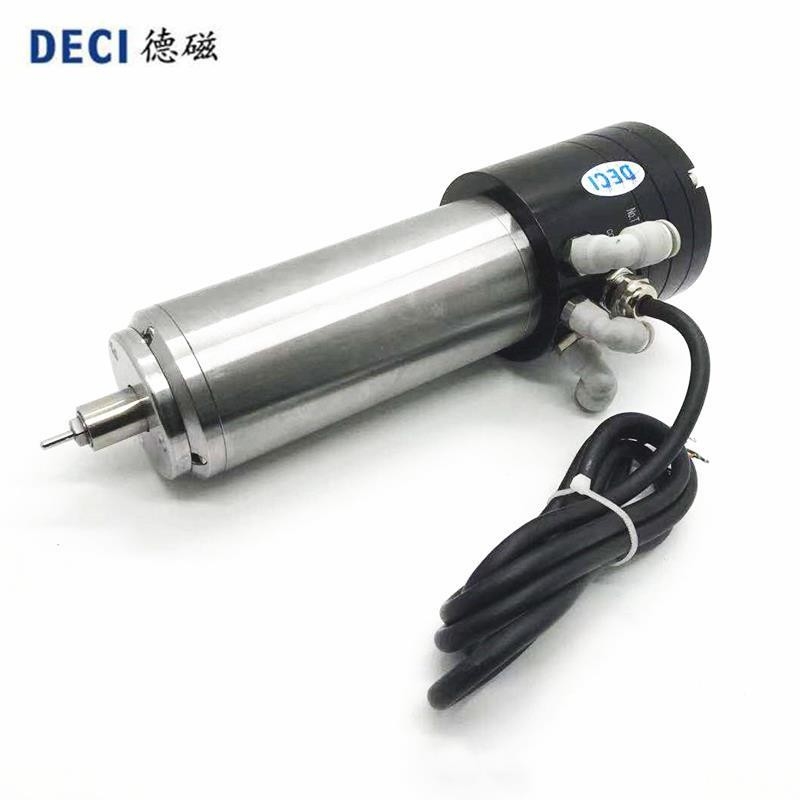

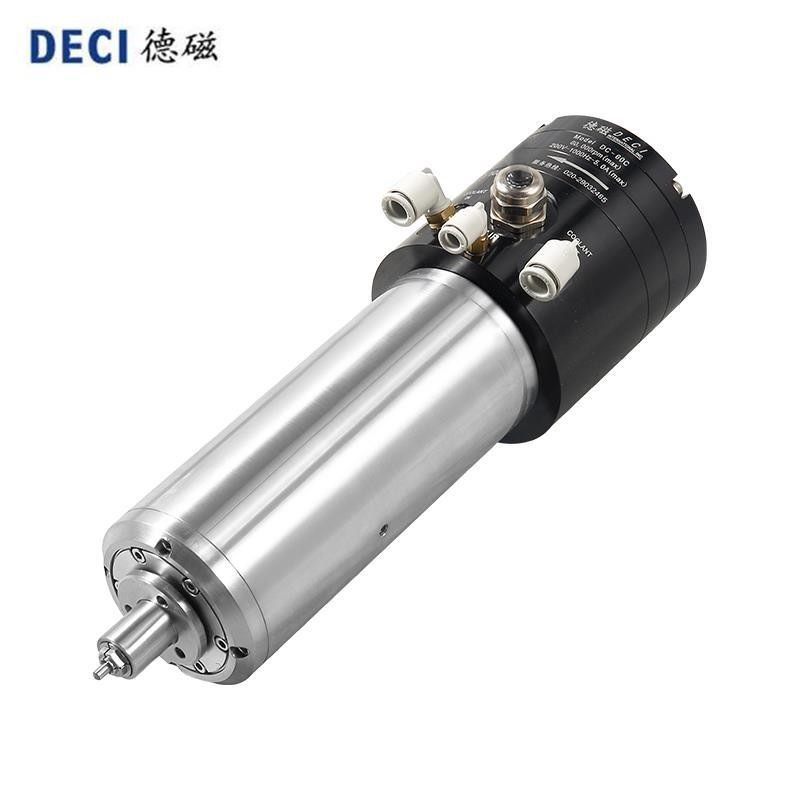

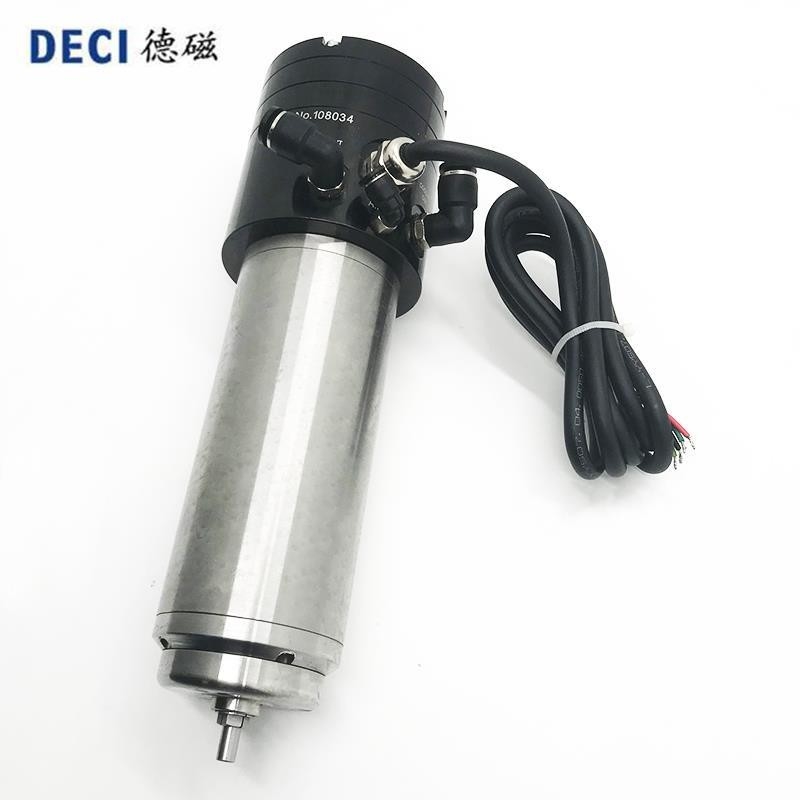

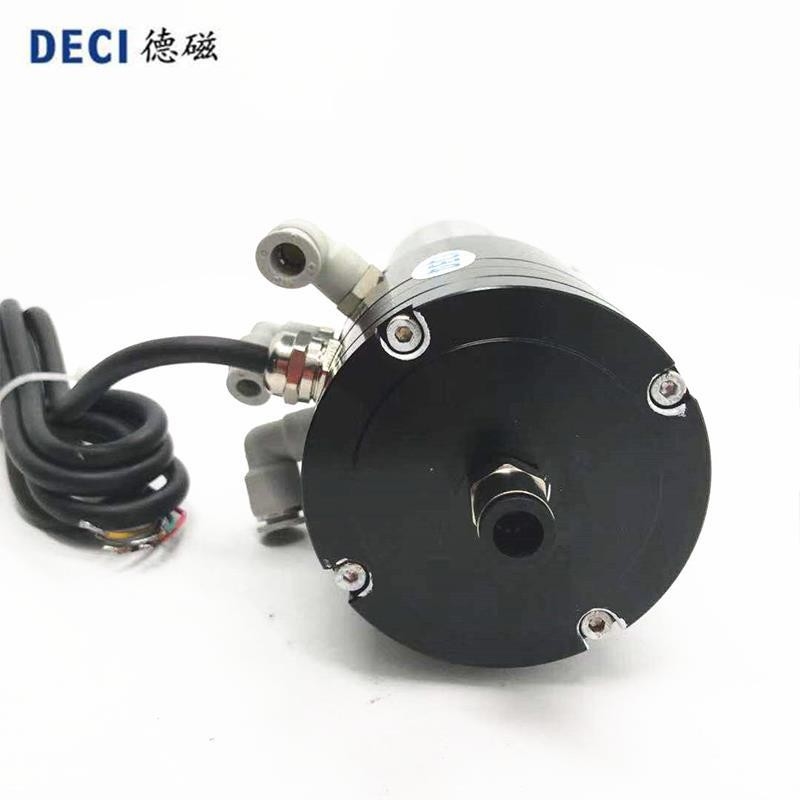

DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool

DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool

Products - CNC Lathe Spindle Motor
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.28N.M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    Glass Spindle Motor
  • Diameter
    62mm
  • Power
    1.8/1.5/1.2kw
  • Voltage
    200(3~)
  • Frequency
    1000HZ
  • Current
    6.5/5.0/4.3A
  • Weight
    3.97kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    Clamp
  • After Warranty Service
    Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
  • Local Service Location
    None
  • After-sales Service Provided
    Free Spare Parts, Online Support, Video Technical Support, Field Maintenance And Repair Service
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Model Number
    DC-62B2
  • Price
    $1,026.00/sets 1-9 sets
  • Supply Ability
    500 Set/Sets per Month

DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool

  • DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool
  • DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool
  • DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool
  • DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool
  • DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool
  • DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool
Get Price Contact Now
Product Description
spindle motor for cnc
This product is a metal polishing high speed electric spindle with a maximum speed of 60000 rpm and a rated power of 1.8/1.5/1.2 KW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.

DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.

DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool 0
DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool 1
DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool 2
DECI  DC-62B2
Parameters
Motor Power:
1.8/1.5/1.2KW
Rated voltage:
200V(3~)



Max rotate speed :
60000Rpm/min
Max currency:
6.5/5.0/4.3A



Max Frequency:
1000Hz
Torque:
0.28/0.24/0.19N.M



Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
5.6-6.0 Kgf/cm²



Tooling Exchange Method:
ATC
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²



Tooling Pulling Force:
≥1200
Tooling Back Air Pressure:
─



Tooling Connection:
Φ3-Φ6 Collet
Cooling:
water cooling



Encoder:
─
Coolant Pressure:
≥2.5 Kgf/cm²



Approach Switch:
─
Bearing Lubrication Method:
Grease



Balance Level :
G1
Tooling Instalation Method:
Mechanical clip



Vibration Value:
≤0.8
Weight:
3.97kg



DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool 3
DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool 4
Packing&Shipping
Packed in export standard carton or plywood case with PP bag, thick foam.
DECI Spindle / cnc in Machining.
pcb spindle
spindle atc
DECI 40000Rpm 200V 1.8/1.5/1.2KW Water Cooling CNC Milling Spindle Motor for Polishing Tool 5
