This product is a polished high-speed electric spindle with a maximum speed of 9000 rpm and a rated power of 1.6 kw. The high-precision motor for glass grinding can be customized to a standard glass with a thickness of 0.07 mm. It is mainly used in engraving and milling machines, glass machines and small machining centers. It is specially designed for high-precision milling of various metals and non-metals.
spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
More Spindle is also available with best price, if needed, welcome contact us.
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw
Water-cooled spindle and air-cooled spindle differences:
1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.

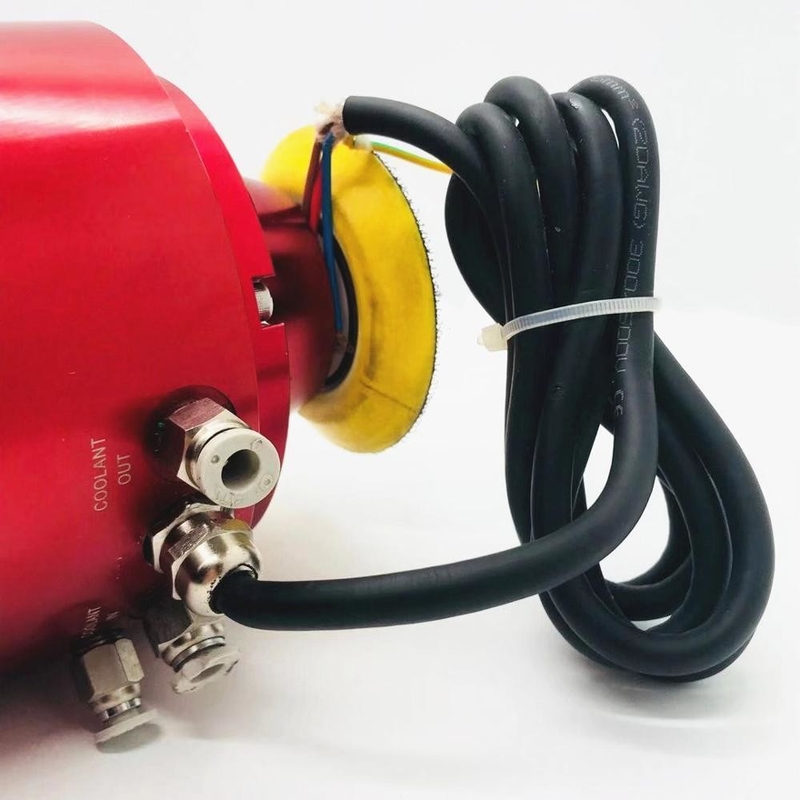

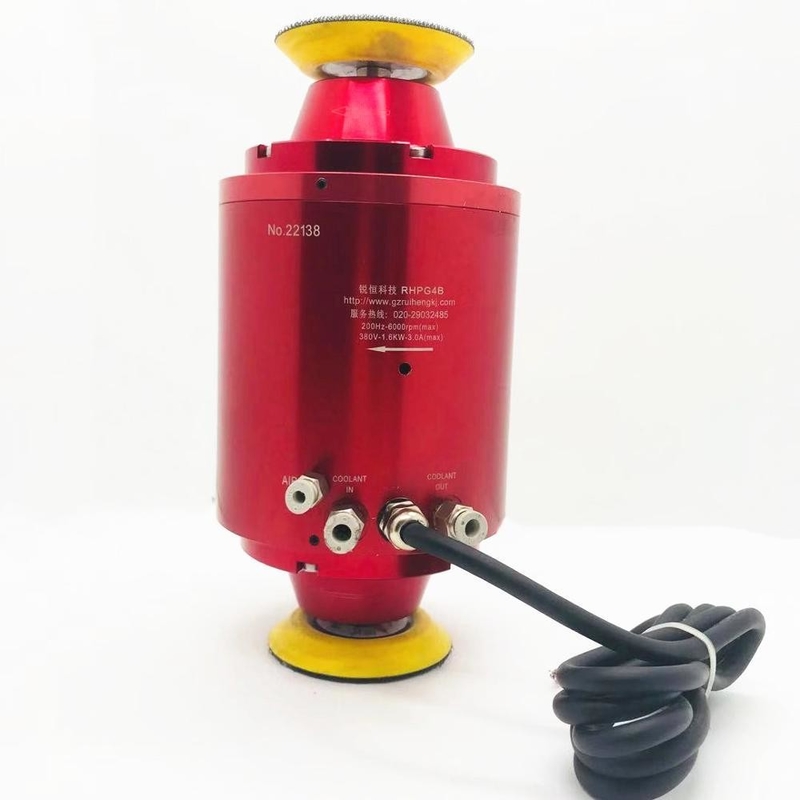

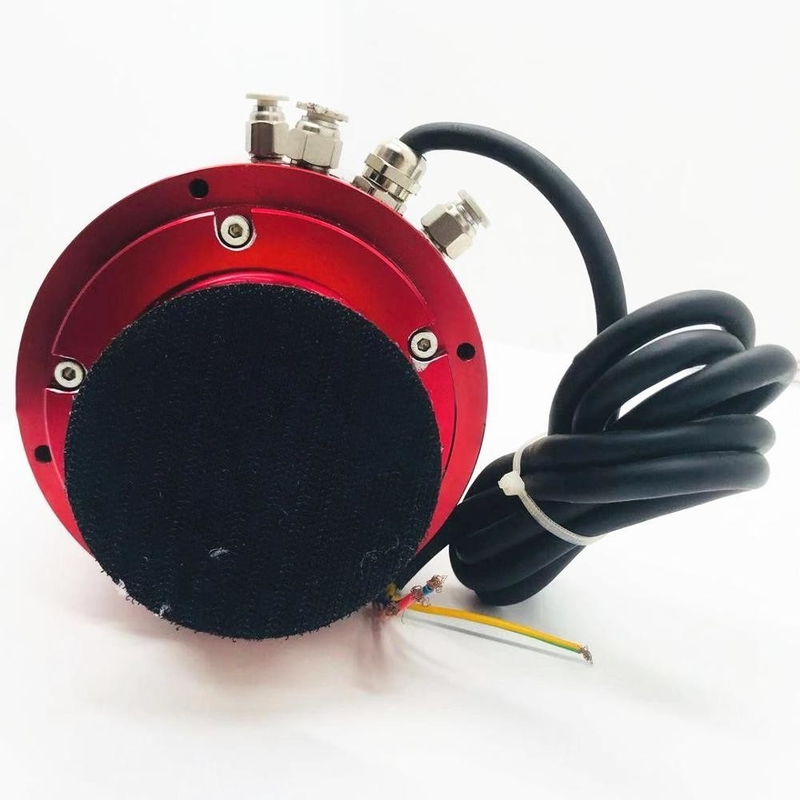

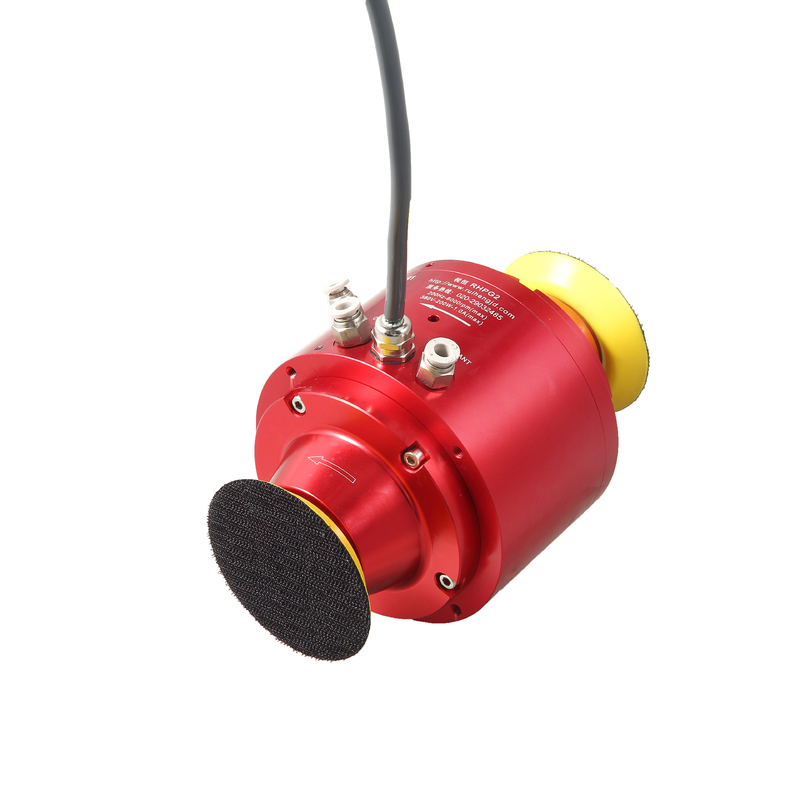

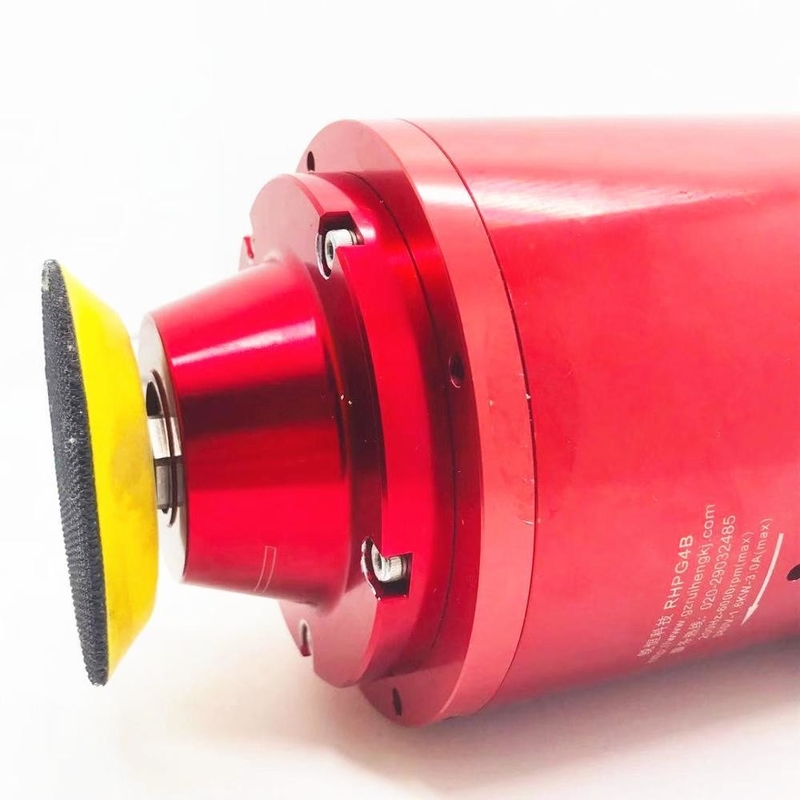

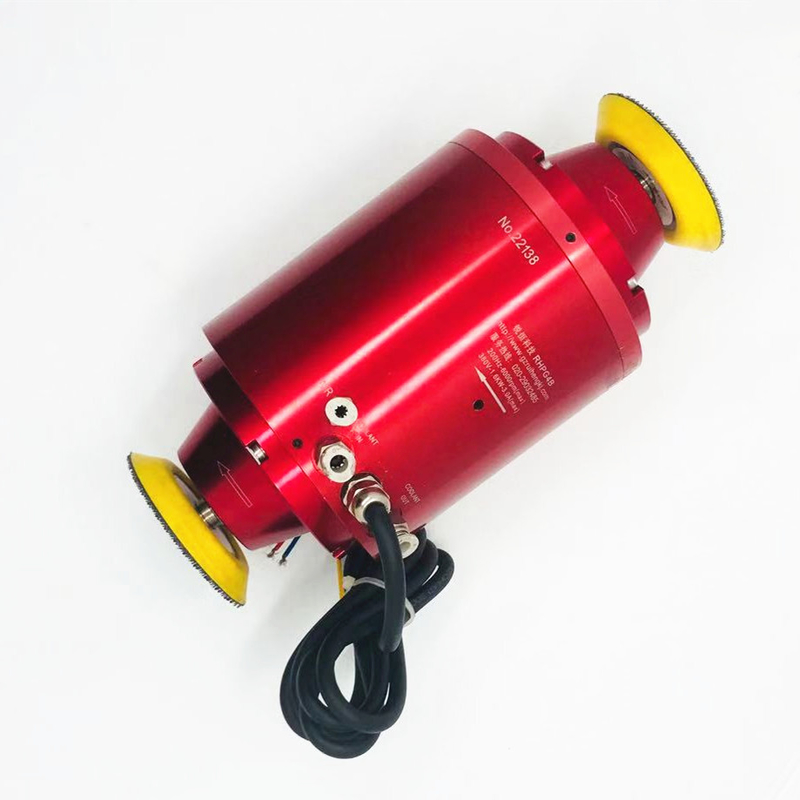

RHPG4B 1.6KW 9000RMP CNC router double head polishing spindle motor
| Serial number | technical parameter | standard |
| 1 | Maximum speed(rpm) | 20000 |
| 2 | Maximum current(A) | 2 |
| 3 | Maximum frequency(Hz) | 1000 |
| 4 | Upper limit frequency(Hz) | 333 |
| 5 | Highest voltage(V) | 200 |
| 6 | power(KW) | 0.7 |
| 7 | tapered surface Run-out(μm) | 1.27(max) |
| 8 | Cylinder working pressure(kg f/cm2) | 5.6-6.0 |
| 9 | Tool change form | ATC |
| 10 | Chuck torque(N·cm) | ≥254(Φ6 Shank) |
| 11 | Shaft end static yaw(μm) | ≤2.0 |
| 12 | Shaft end dynamic yaw(μm) | ≤8.0 |
| 13 | Vibration value(mm/s) | ≤0.8 |
| 14 | Assembly surface diameter(mm) | Φ61.902~61.91 |
| 15 | Cooling system coolant flow(L/min) | water:≥1.6;oil:≥3.0 |
| 16 | Cooling system coolant pressure(kg f/cm2) | water:≥2.5;oil:≥4.0 |
| 17 | Motor winding insulation resistance(MΩ) | ≥500(H level) |
| 18 | Motor winding withstand voltage test(V/M) | 1500V/1 minute withstand voltage test |
| 19 | Noise value(dBA) | ≤72 |
| 20 | Spindle blowing pressure(kg f/cm2) | 2.5~3.0 |
| 21 | Spindle blow dust flow(L/min) | ≥60 |
