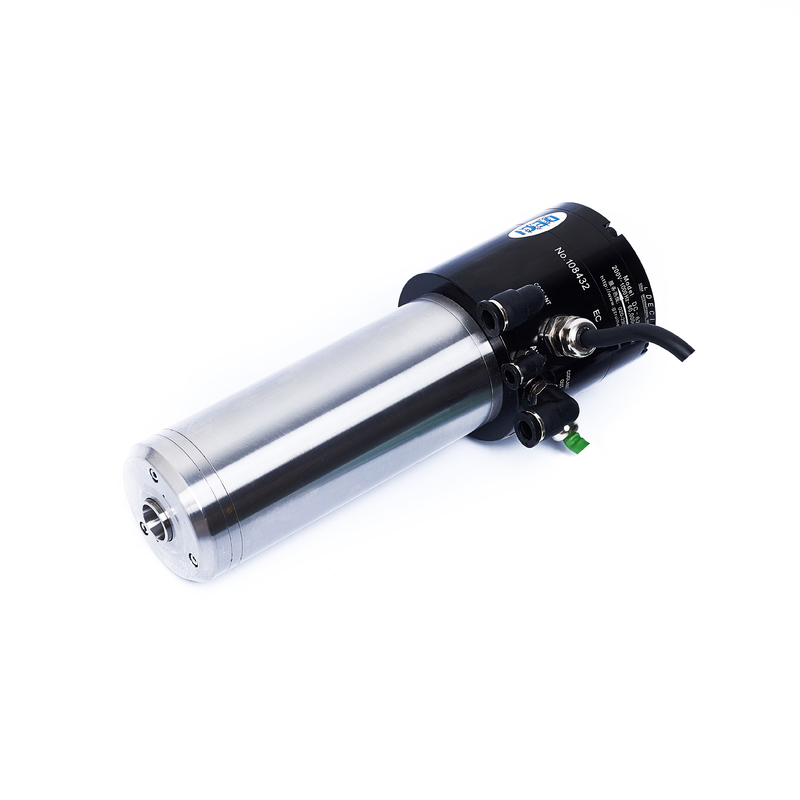

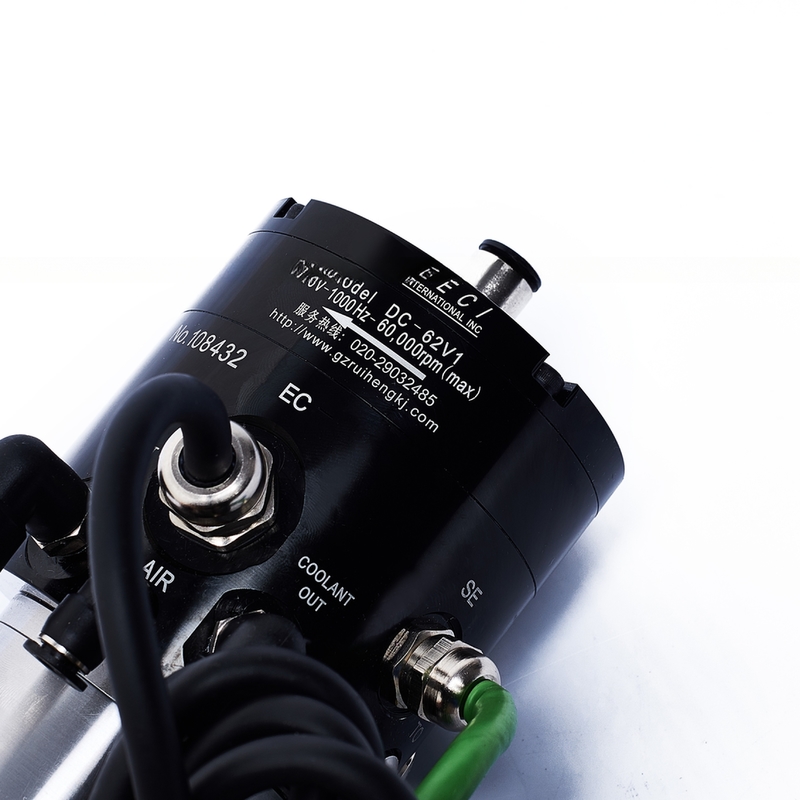

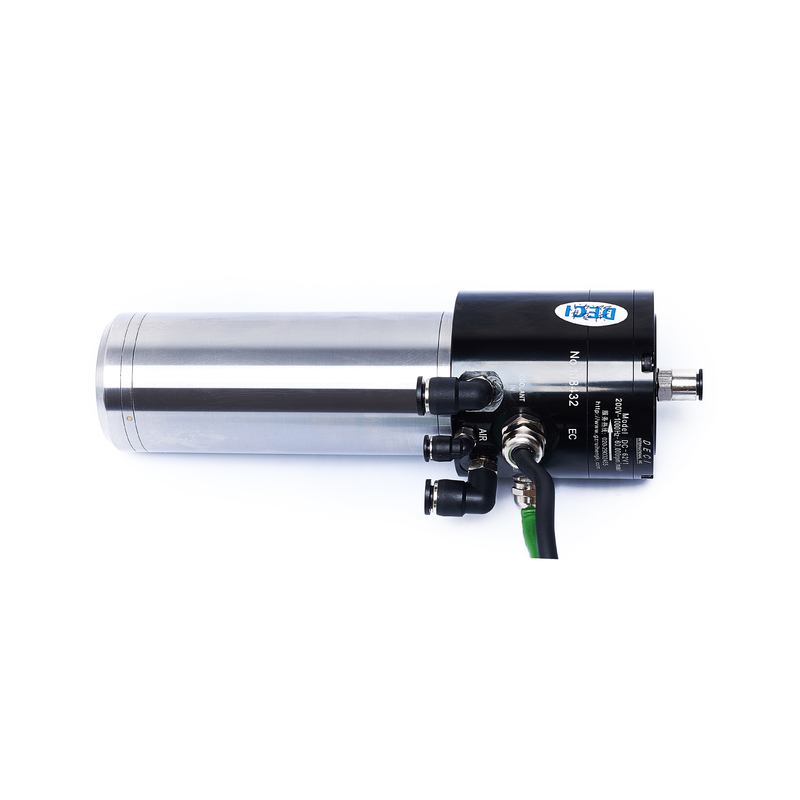

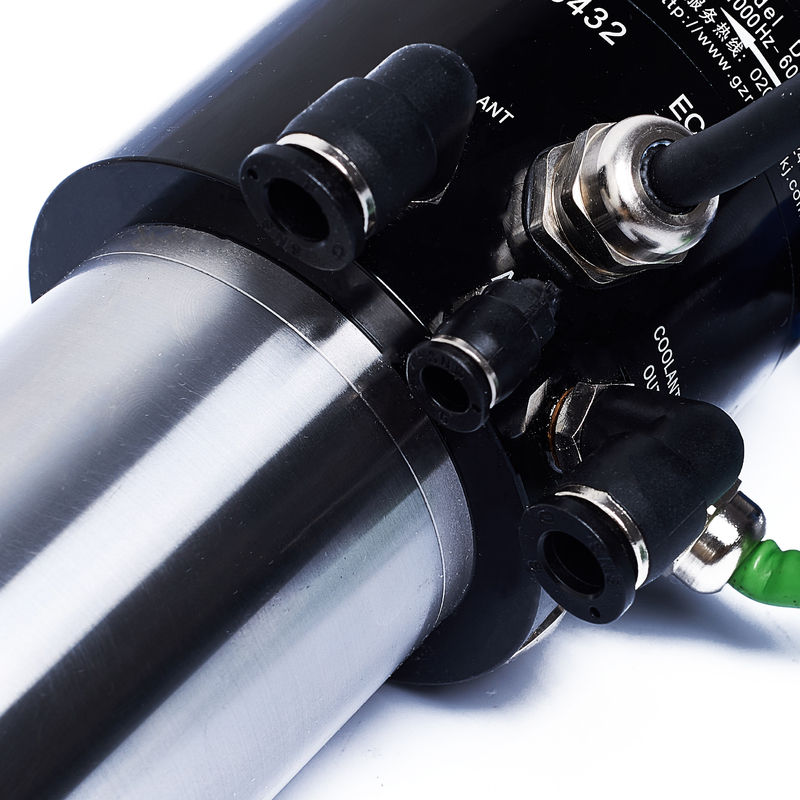

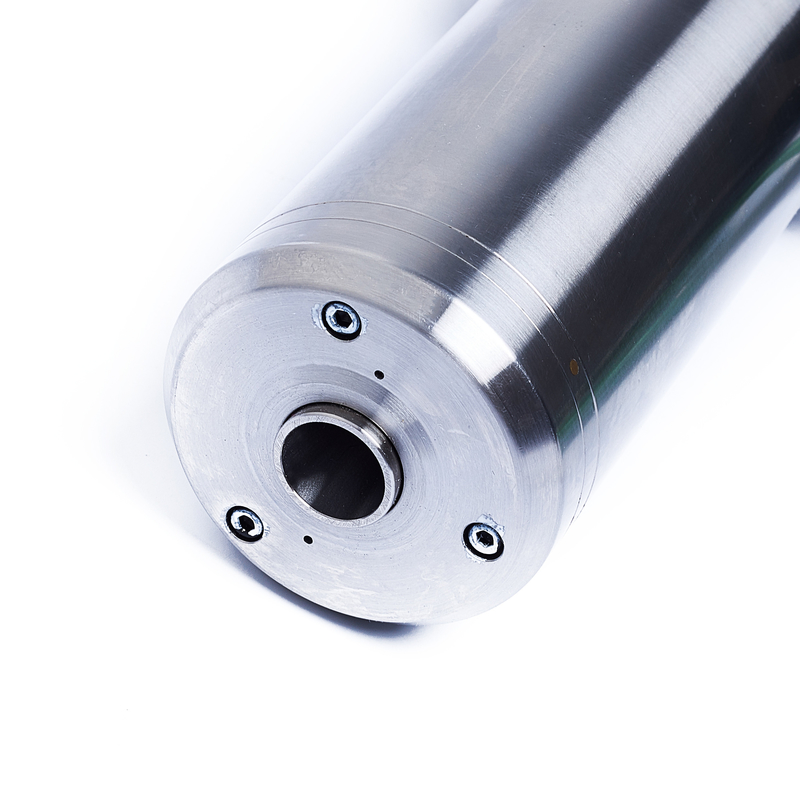

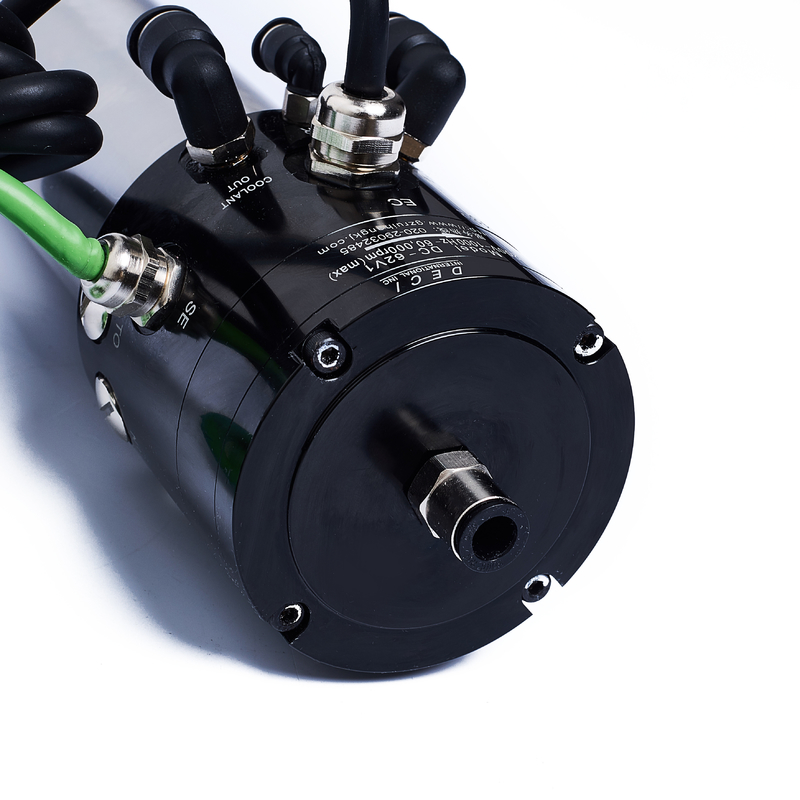

DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor

DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor

Products - Dental spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    3.97
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.35 N/M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    1 Year
  • Core Components
    Engine, Bearing, Motor, Gear
  • Product Name
    ER11 Spindle
  • Power
    2.2/1.8/1.5/1.2KW
  • Voltage
    220(3~)V
  • Frequency
    1000HZ
  • Current
    7.2/6.5/5.0/4.3 A
  • Weight
    3.97kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Diameter
    62mm
  • Lubrication
    Grease
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $1,095.00/pieces 1-9 pieces

DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor

  • DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor
  • DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor
  • DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor
  • DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor
  • DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor
  • DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor
Get Price Contact Now
DC-62T11V2
Parameters
Moter Power(KW)
2.2/1.8/1.5/1.2
Rated voltage (V/AC)
220
Maximum speed(Rpm)
60000
Maximum current (A)
7.2/6.5/5.0/4.3
Maximum frequency (Hz)
1000
Torque (N·M)
0.35/0.28/0.24
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
800
Tool return pressure(Kgf/cm²)
5.6-6.0
Tooling Connection
T11 Tool holder
Cooling method
Water cooling
Encoder (Optional)
Square/Sine Wave
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
PNP
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Clamp
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
3.9
DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor 0
DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor 1
DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor 2
DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor 3
DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor 4
DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor 5
DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor 6
DECI Spindle ER11 T11 Tool Holder Spindle Water Cooling 60000rpm 220V 2.2KW Motor Machine Tool Milling Factory Spindle Motor 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
