High Speed Low Torque Micro Accuracy Spindle Motor 33mm Mini small machine dental milling denture 250W 72V 80000rpm precision

High Speed Low Torque Micro Accuracy Spindle Motor 33mm Mini small machine dental milling denture 250W 72V 80000rpm precision

  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Other
  • Weight (KG)
    2
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Milling
  • Maximum Torque
    0.04
  • Drive
    Motor
  • Operating Speed
    60000RPM
  • Warranty
    1 Year
  • Core Components
    Bearing
  • Power
    250W
  • Voltage
    72V(DC)
  • Frequency
    1000HZ
  • Current
    5.5A
  • Weight
    1.1KG
  • Cooling Method
    Air Cooling
  • Wattanty Period
    1 Year
  • Balance Grade
    G1
  • Shaft Cone End Runout
    Within 1μm
  • Max Speed
    80000rpm
  • Place of Origin
    guangdong,china
  • Brand Name
    DECI
  • Price
    $2,344.56/sets 1-9 sets

High Speed Low Torque Micro Accuracy Spindle Motor 33mm Mini small machine dental milling denture 250W 72V 80000rpm precision

Product Description

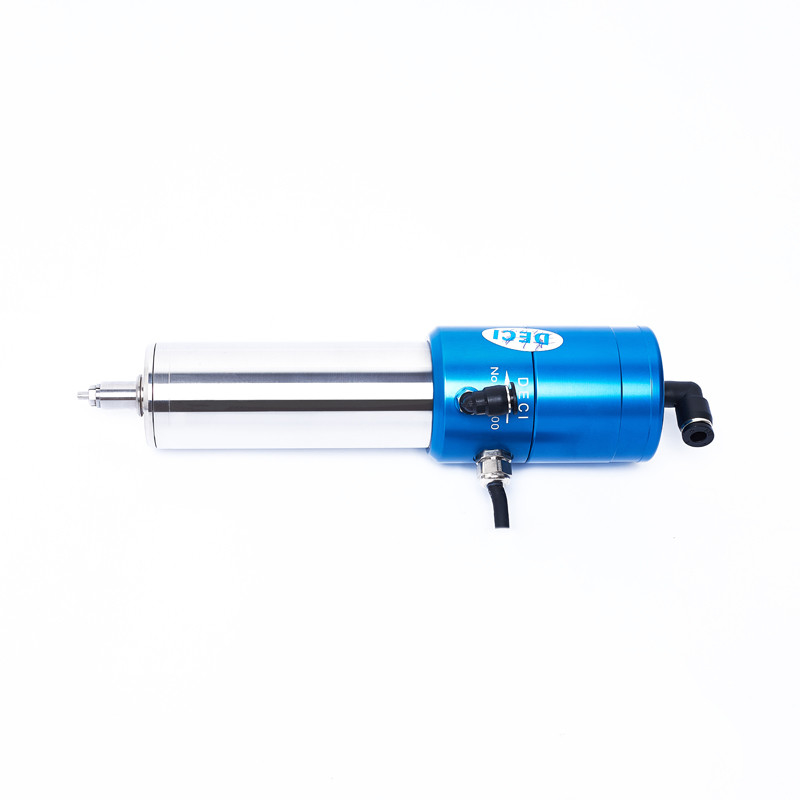

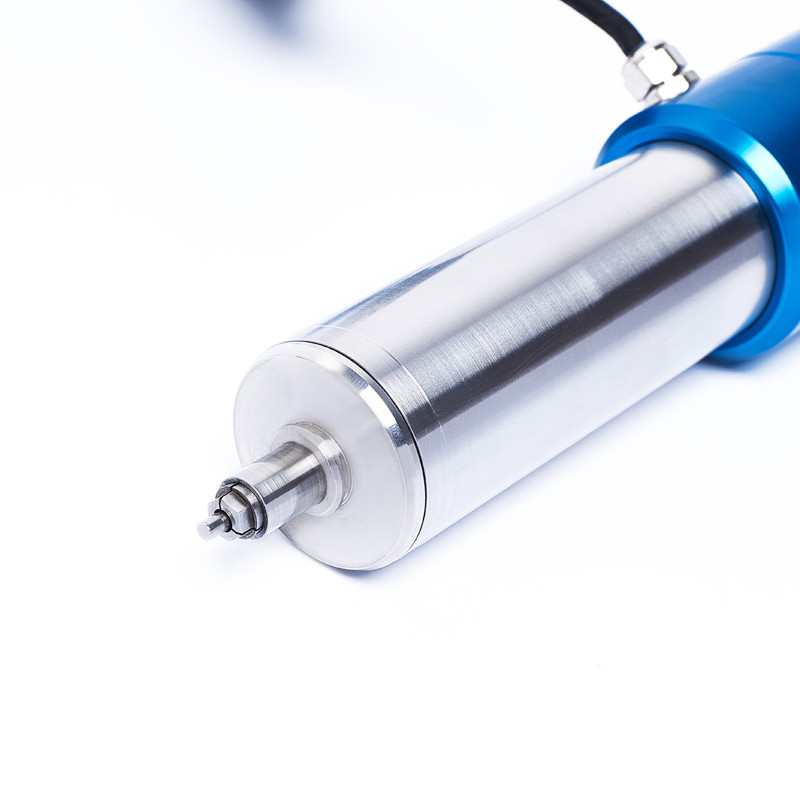

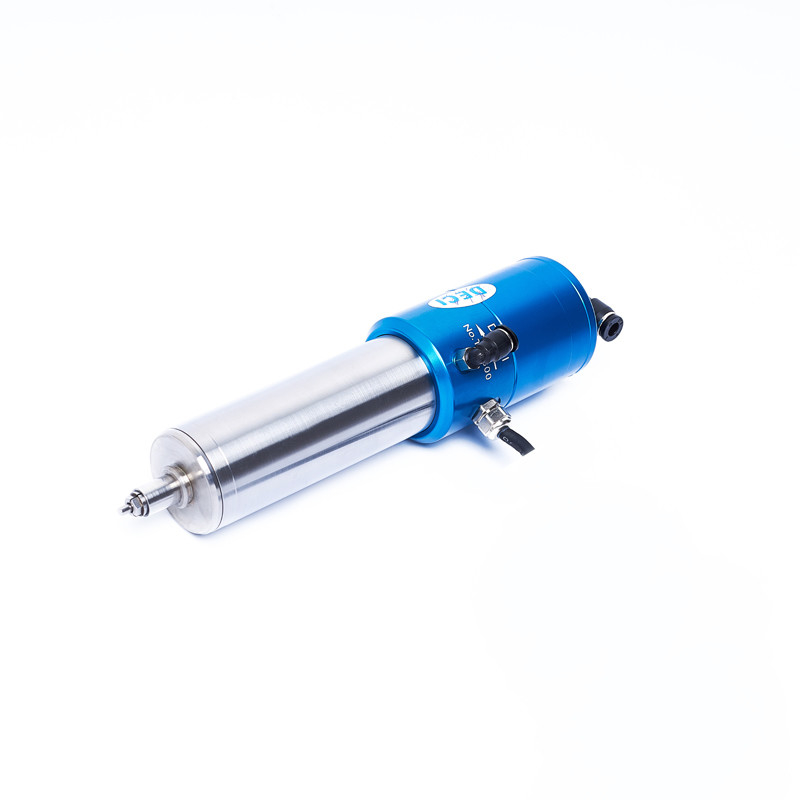

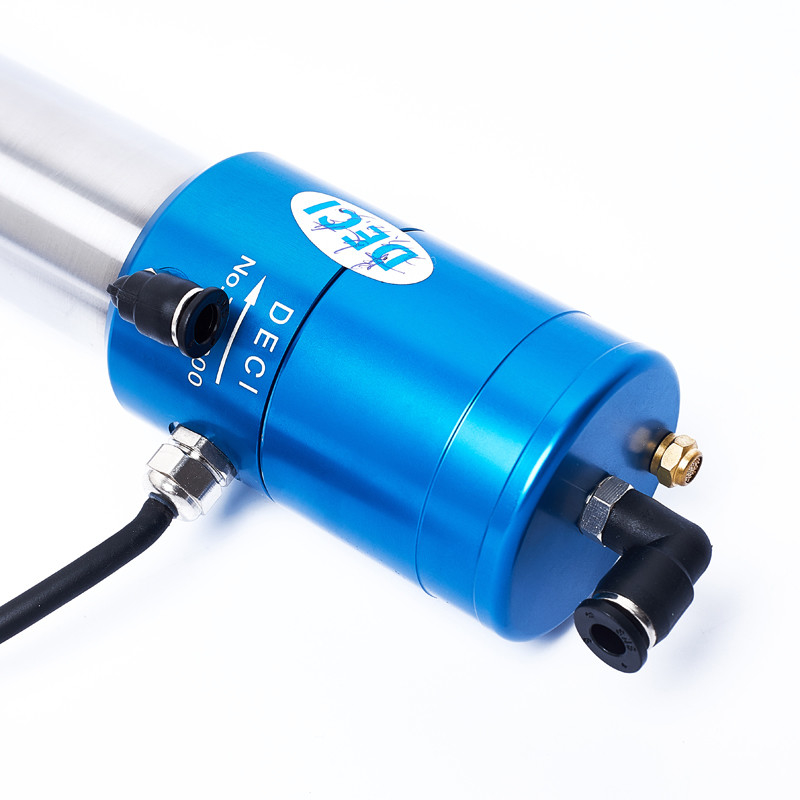

This product is a milling high speed electric spindle with a maximum speed of 60,000 rpm and a rated power of 0.25 kw.It is suitable for denture zirconia, ceramic grinding.

DECI spindle Motor Feature

1) Imported bearings with good quality, long working life.

2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.

3) There are water cooling spindle  , air cooling spindle and self cooling spindle for your choose.

4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.



DECI More Spindle is also available with best price, if needed, welcome contact us.

1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw

2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw

3.cooled by self: 400w

4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw

cooled by air: 8kw,9kw (same HSD)

Specificiations
DC-33
Parameters
Motor Power: 0.25KW  Rated voltage:  72V(DC)
 Max rotate speed : 60000Rpm/min  Max currency: 5.5A
 Max Frequency: 1000Hz  Torque: 0.04N.M
Specification
Cone surface spring at shaft end:  ≤0.001mm Tooling Releasing  Air curtain:  5.6-6.0 Kgf/cm²
 Tooling Exchange Method:  ATC Air curtain pressure at front end:  -
 Tooling Pulling Force:  1000 Tooling Back Air Pressure: ~
 Tooling Connection: Φ4 Collet Cooling: air cooling
 Encoder: - Coolant Pressure: 2.5~3.0Kgf/cm²
 Approach Switch: - Bearing Lubrication Method:  Grease
Balance Level :  G1 Tooling Instalation Method: Clip
Vibration Value:  ≤0.8 Weight: 1.1kg

High Speed Low Torque Micro Accuracy Spindle Motor 33mm Mini small machine dental milling denture 250W 72V 80000rpm precisionHigh Speed Low Torque Micro Accuracy Spindle Motor 33mm Mini small machine dental milling denture 250W 72V 80000rpm precision



Applicable industry

High Speed Low Torque Micro Accuracy Spindle Motor 33mm Mini small machine dental milling denture 250W 72V 80000rpm precision

Packaging & Shipping

High Speed Low Torque Micro Accuracy Spindle Motor 33mm Mini small machine dental milling denture 250W 72V 80000rpm precision

Why choose us



High Speed Low Torque Micro Accuracy Spindle Motor 33mm Mini small machine dental milling denture 250W 72V 80000rpm precision







Company Information

High Speed Low Torque Micro Accuracy Spindle Motor 33mm Mini small machine dental milling denture 250W 72V 80000rpm precision

Certifications

High Speed Low Torque Micro Accuracy Spindle Motor 33mm Mini small machine dental milling denture 250W 72V 80000rpm precision

FAQ

Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.



Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?A

A:we have all the packages. We can get the engineer to program you.


Q:
What's your delivery time?
A: It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.


Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.

Q:
Which payment method and Express can you accept?

   1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.

   2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.


Q: How do you make our business long-term and good relationship?
A: 1. DECI keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
