ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine

ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine

  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    1.9
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.12N.M
  • Drive
    Motor
  • Operating Speed
    40000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing, Motor
  • Product Name
    Denture Machine Motor Spindle
  • Diameter
    38mm
  • Power
    7.5kw
  • Voltage
    100(3~)
  • Frequency
    1000HZ
  • Current
    5.5A
  • Weight
    1.9kg
  • Cooling Method
    Air Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    Mechanical Clip
  • Application Material
    Zirconia Wax PMMA PEEK
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $2,075.25/sets 1-9 sets

ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine

Product Description

High Precision Tool Change  ATC 0.75KW 40000Rpm for denture machine motor spindle air cooled

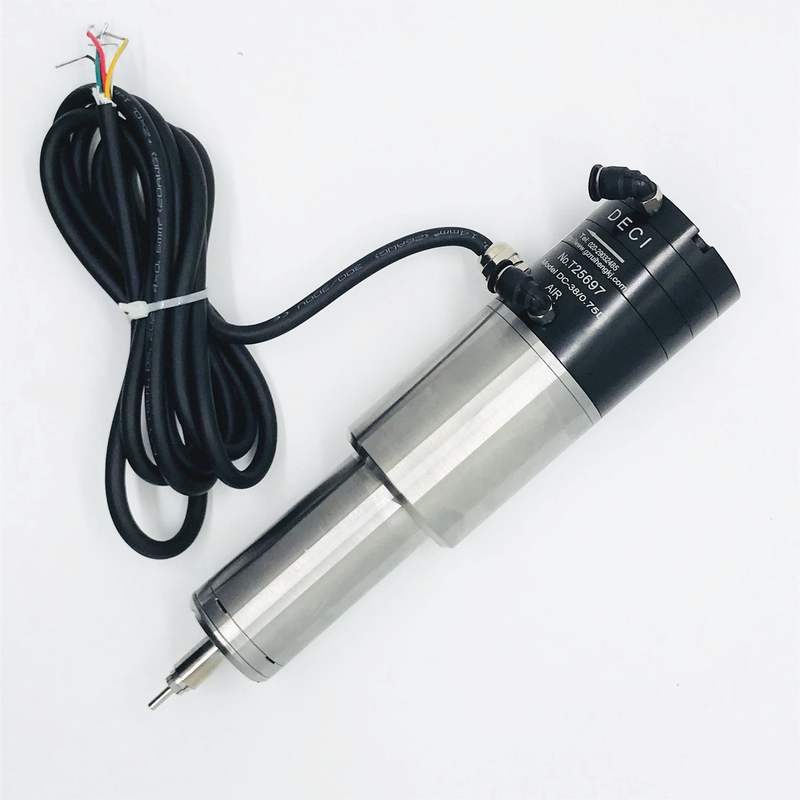

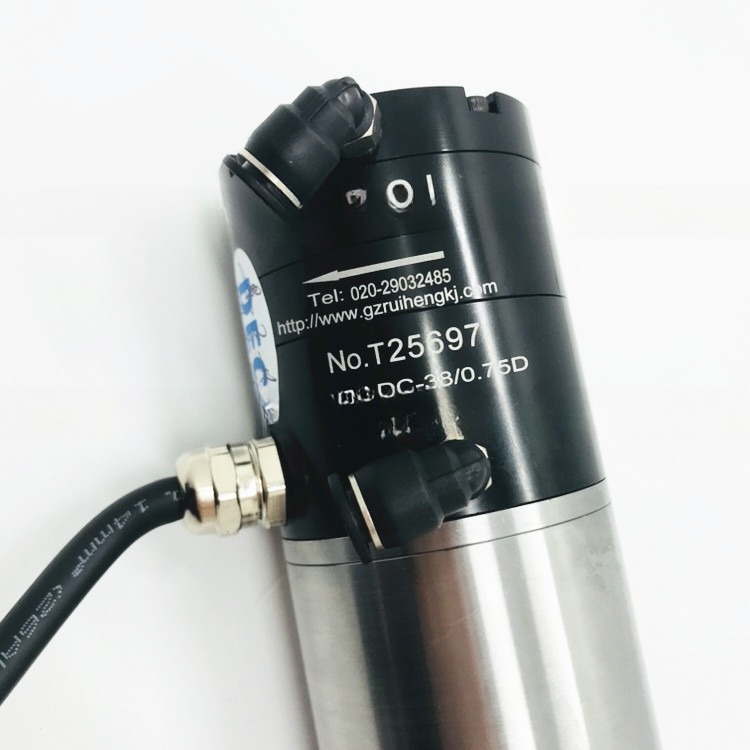

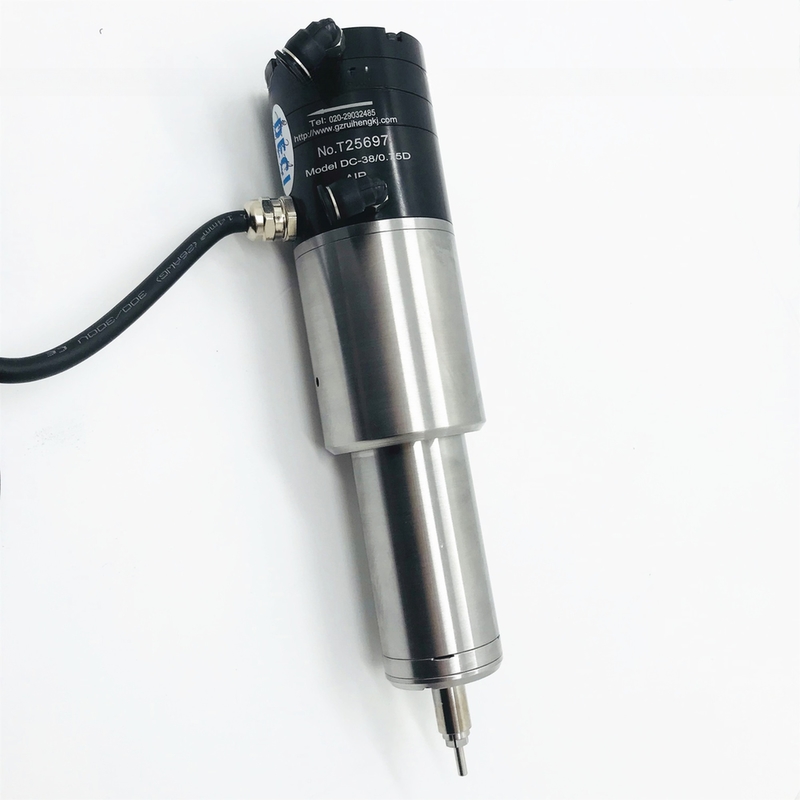

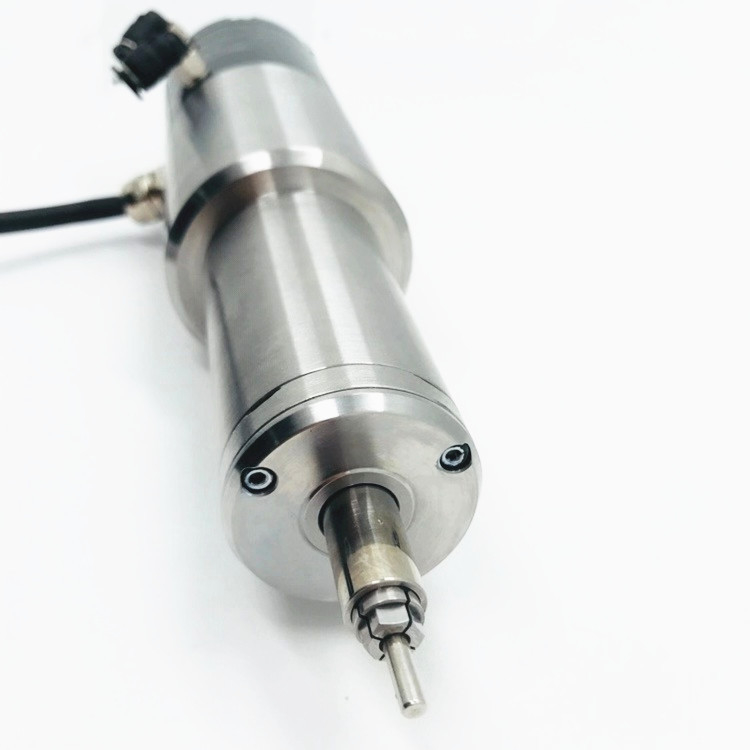

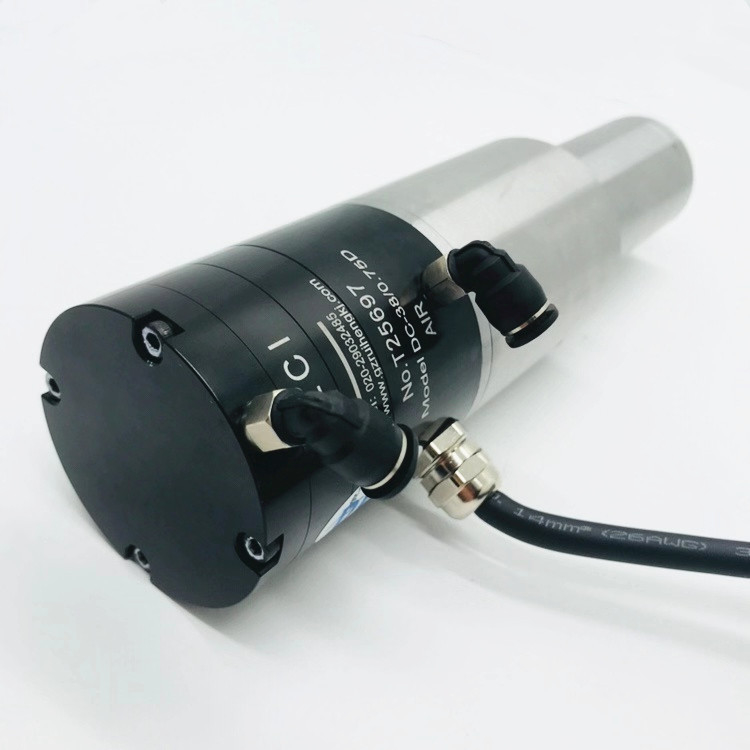

This product is a metal cutting high speed motor spindle with a maximum speed of 40000 rpm and a rated power of 750W. It is suitable for the processing of soft materials such as zirconia for denture machine and high precision cutting of PCB circuit board.



DECI spindle Motor Feature

1) Imported bearings with good quality, long working life.

2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.

3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.

4) Every spindle motor could be passed polishing process, Improve spindle concentricity to increase motor working life.







Specificiations

ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine

ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine



DECI DC-38-0.75D
Parameters
Motor Power: 0.75KW  Rated voltage:  100v(3~)
 Max rotate speed : 40000Rpm/min  Max currency: 5.5A
 Max Frequency: 1000Hz  Torque: 0.12N.M
Specification
Shaft-end Cone Run-out:  ≤0.001mm Tooling Releasing  Air Pressure:  5.0-6.0 Kgf/cm²
 Tooling Exchange Method:  ATC Air curtain pressure at front end:        __
 Tooling Pulling Force: ≥1000 N Tooling Back Air Pressure: ~
 Tooling Connection: Φ4 Collet Chuck Cooling: Static cooling
 Encoder: N/M Coolant Pressure: 2.5-3.0 Kgf/cm²
 Approach Switch: N/M Bearing Lubrication Method: Grease
Balance Level :  G1 Tooling Instalation Method: Mechanical clip
Vibration Value:  ≤0.8 Weight: 1.9kg
ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machineATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine

Applicable industry

ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine

Packaging & Shipping

ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine

Why choose us

ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine

Company Profile

ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine

Certifications

ATC 750W Spindle Motor High speed 40000rpm for denture machine motor spindle air cooled dental milling machine

FAQ

Q1:Are you a trading company or a manufacturer ?
A1: We are the manufacturer of DECI electric spindles.



Q2:Do you have the products in stock?

A2:Our products are manufactured according to your order required except normal products.


Q3:Can I get some samples first?

A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..


Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?

A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.


Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
      2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

.
