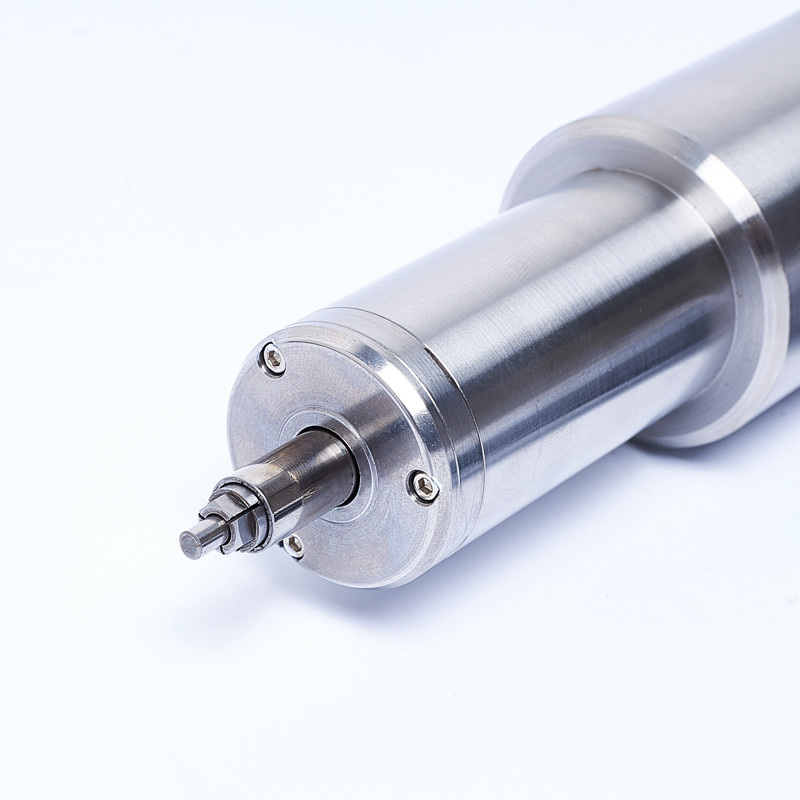

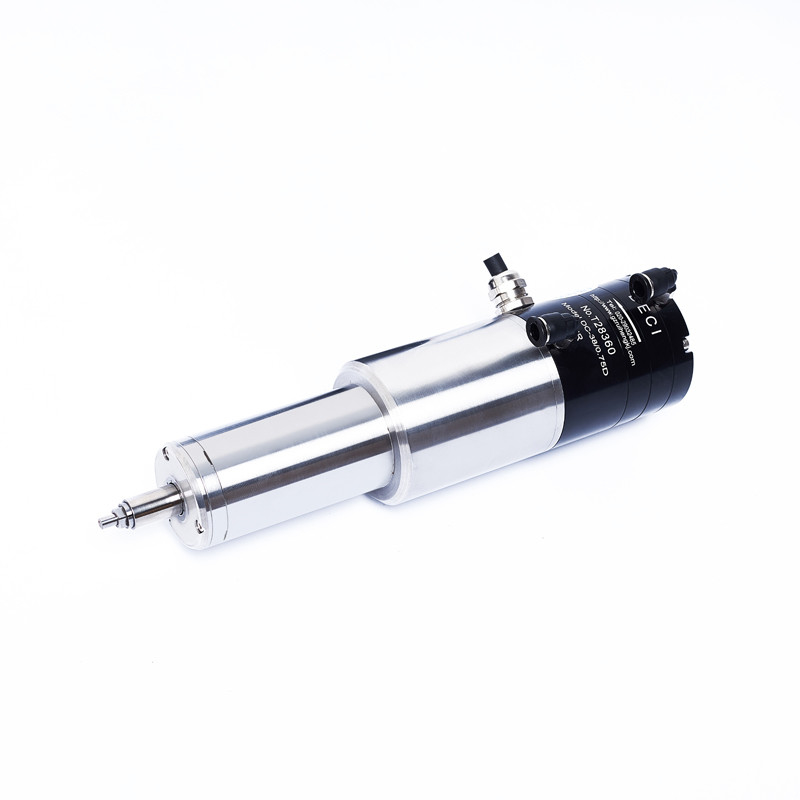

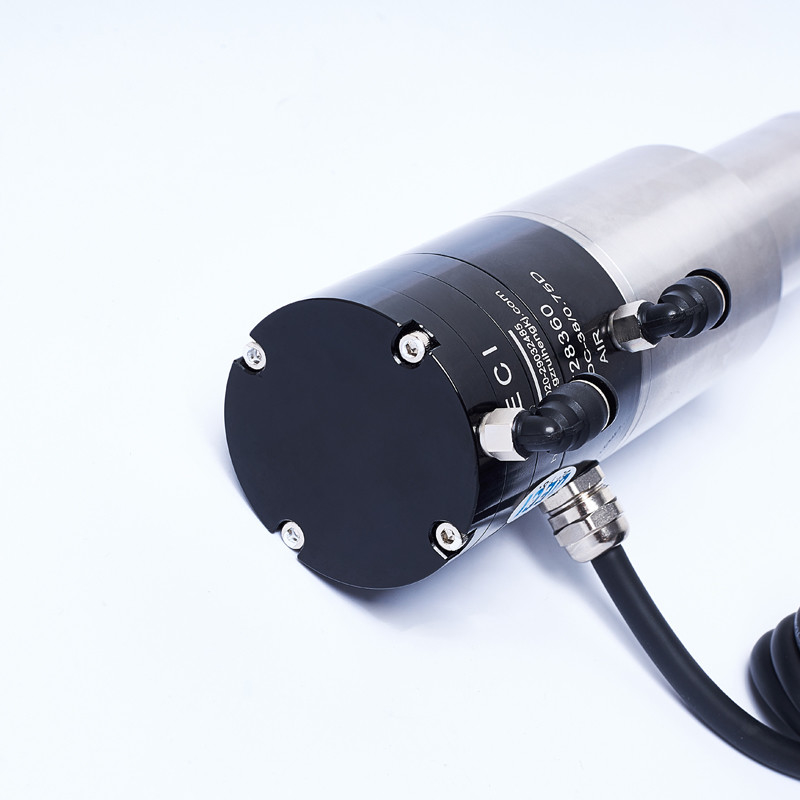

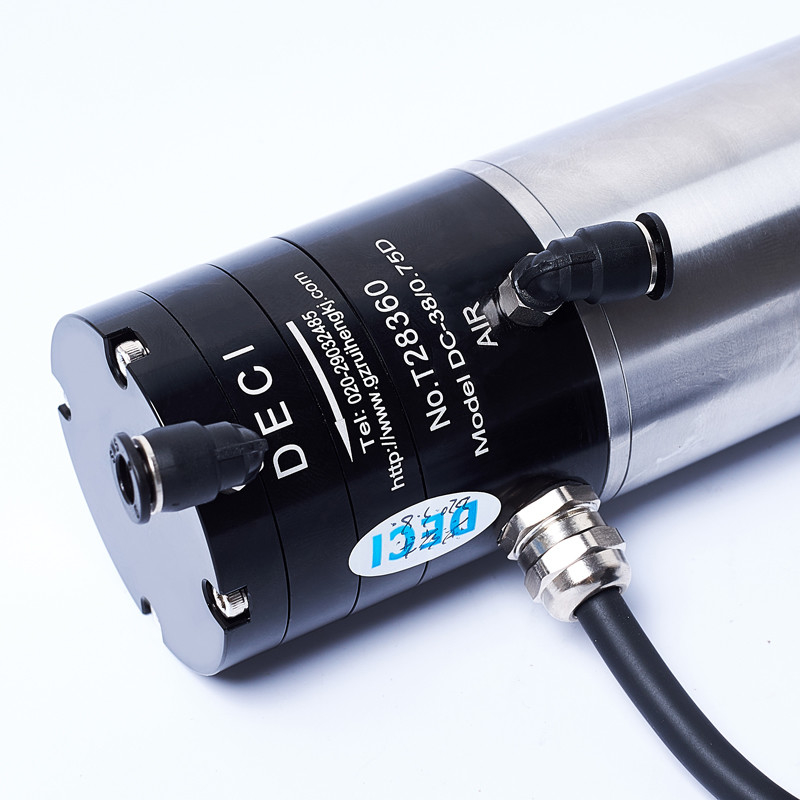

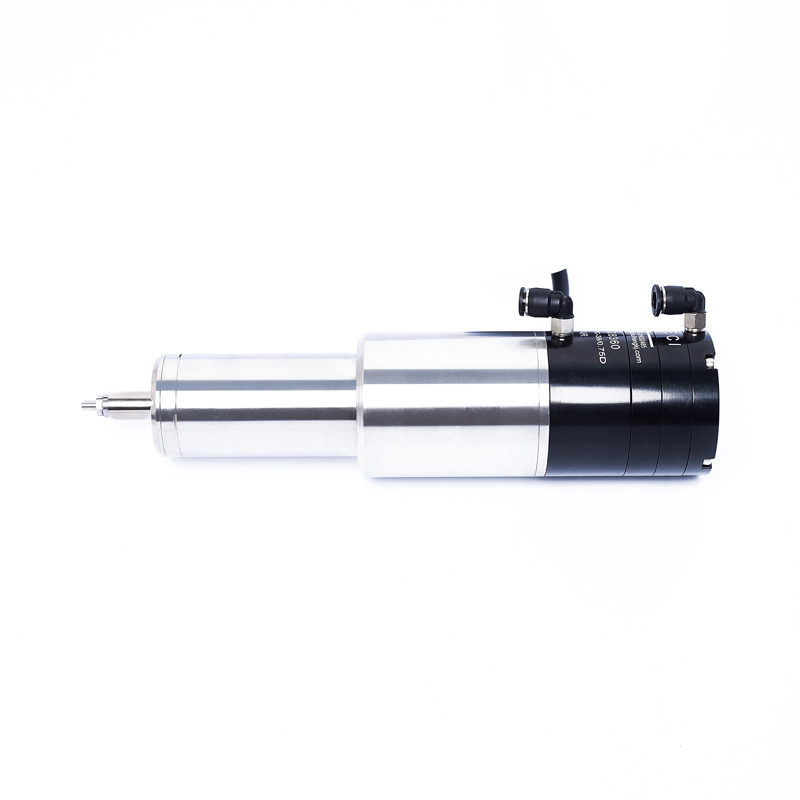

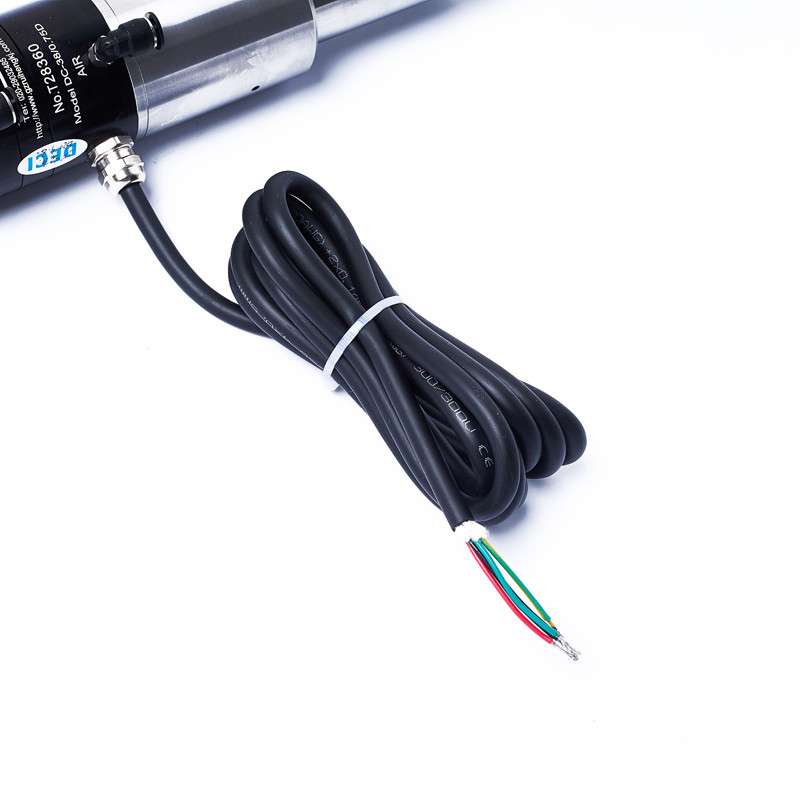

High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling

High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling

Products - Dental spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    1.9
  • Showroom Location
    None
  • Video Outgoing-inspection
    Not Available
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.056N.M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Diameter
    38mm
  • Voltage
    100(3~)
  • Frequency
    1000HZ
  • Current
    5.5A
  • Weight
    1.9kg
  • Cooling Method
    Air Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    Mechanical Clip
  • Dental Milling Machine For
    Zirconia Wax PMMA PEEK
  • Application Material
    Zirconia Wax PMMA PEEK
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $2,200.00/sets 1-9 sets

High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling

  • High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling
  • High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling
  • High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling
  • High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling
  • High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling
  • High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling
Get Price Contact Now
High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling 0

Features of Deci CNC Spindle Motors:

1. High Speed 2. High Torque 3.High Precision Dynamic deflections and Static deflections go down to micron (μm) level. 4. Low Vibration and High Stability Vibration value is within 0.8mm/s only. And Shaft cone end runout is within 1μm only.Spindle Balance class is G1. 5. High Reliability and Long working life. Average working life can be over 3 years.
High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling 1

HOW DO CNC SPINDLE MOTORS WORK?

CNC spindle motors are electric motors with a specific design for computer numerical controlled (CNC) machinery. These motors can
achieve high speeds and torque levels while still maintaining a high degree of accuracy. This performance works through precision
bearings and a specially designed rotor.
The rotor is the part of the motor that spins, and precision bearings support it at either end. The stator is the stationary part
of the motor that houses the windings. The windings create the magnetic field that interacts with the rotor to develop torque.
The interaction between the stator and rotor allows the motor to reach such high speeds while maintaining a high degree of
accuracy. They send electrical signals to the windings to control the amount of torque generated. The strength of these signals
determines the speed and torque of the motor. A CNC spindle motor can achieve high speeds because they have a higher number of
poles than other types of electric motors.
They determine the number of poles by the number of winding pairs used in the stator. The more winding pairs you see, the higher
the speed you can achieve. For example, the average car engine has four poles. CNC spindle motors usually have six or eight poles.
This allows them to achieve speeds of up to 20,000 revolutions per minute.
High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling 2
High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling 3
High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling 4
High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling 5

About DECI

We Deci starts to manufacture spindle motors since 2009. Thanks to R&D and manufacturing of over 15 years, we now own many patents and Certifications of ISO9001 and CE. With reliable quality and budget-friendly products,we already worked with many famous companies,including Fortune 500. Mainly suitable for all kinds of CNC engraving milling machine, suitable for all kinds of non-ferrous metal, non-metallic 3C electronic parts processing, can be used in medical, dental, aerospace, automotive, energy, jewelry and so on.
DECI offers a full line of spindle motor from 0.24kw to 12kw power which applied to :
* Metal Milling Spindle motor
* Wood CNC Router Spindle Motor
* PCB Drilling Spindle Motor
* Dental Milling Spindle Motor
* Motorized Spindle Motor
* Machining Center Spindle
* Rotary Table
We offer customize service for partners with fast response and reliable quality.
Sample order is welcome. For more detail catalog and other information, please feel free to contact us!!
High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling 6
High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling 7
High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling 8
High Speed Mini Electric Spindle Motor 350W 60000RPM for Dental Wax PMMA PEEK Milling 9
