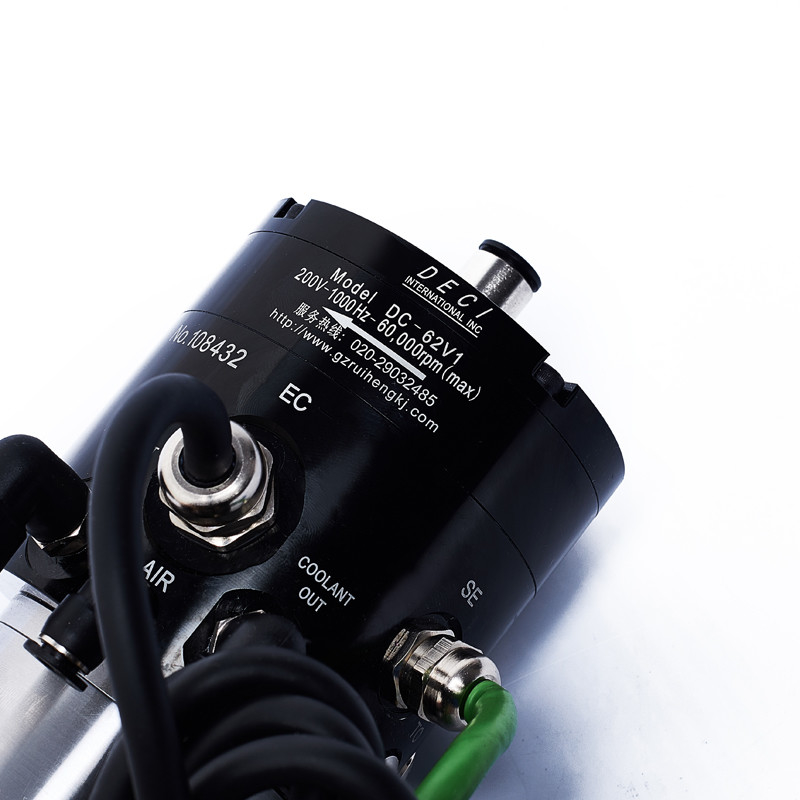

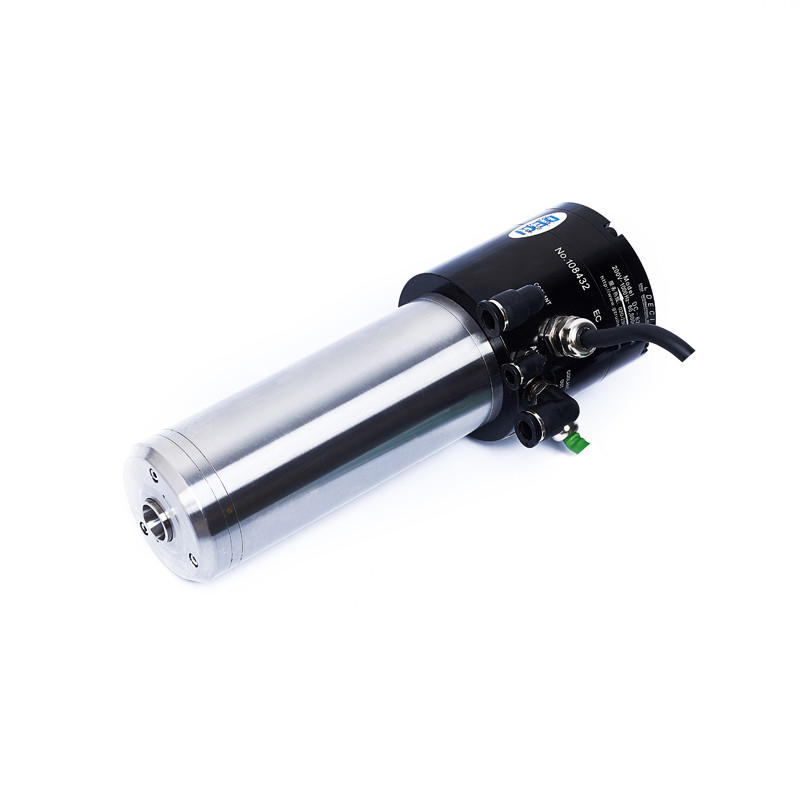

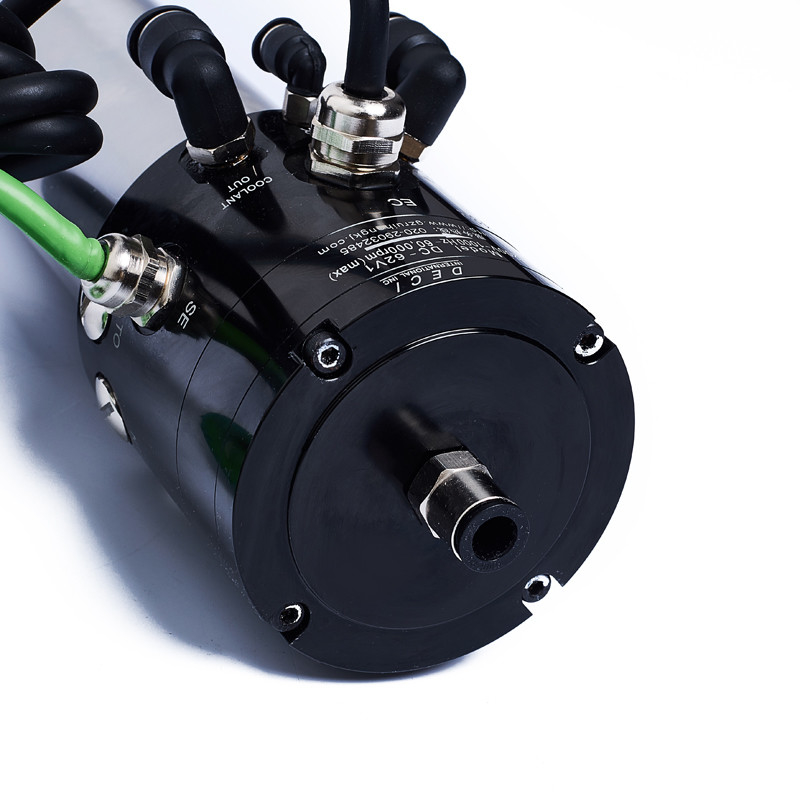

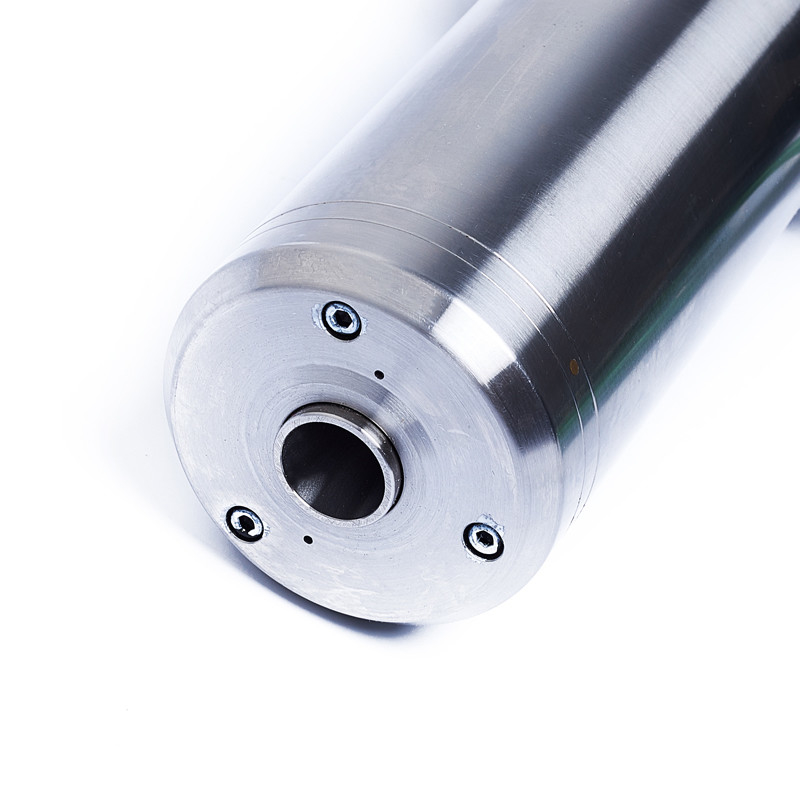

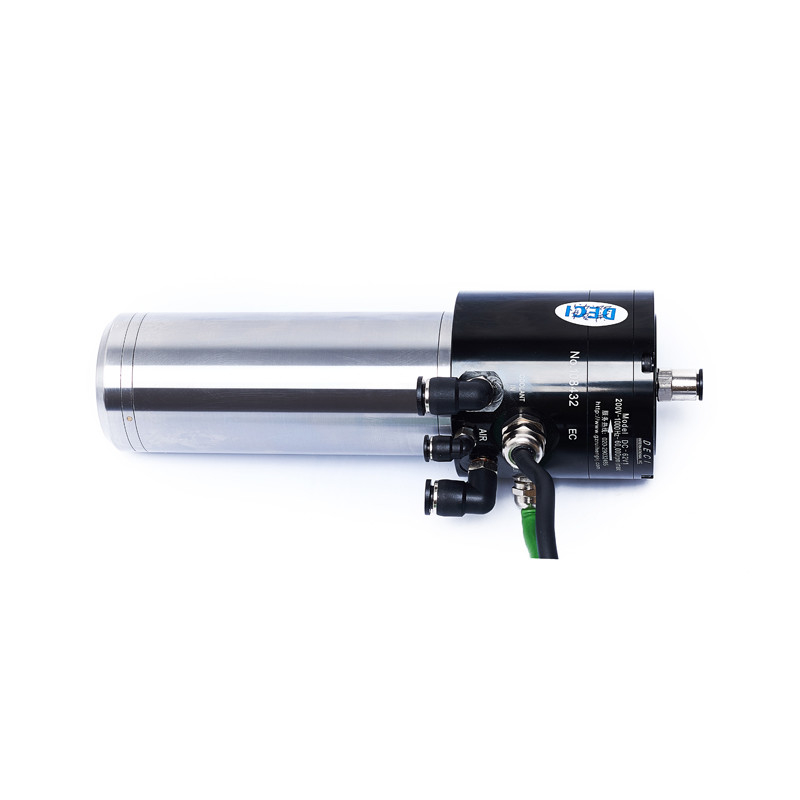

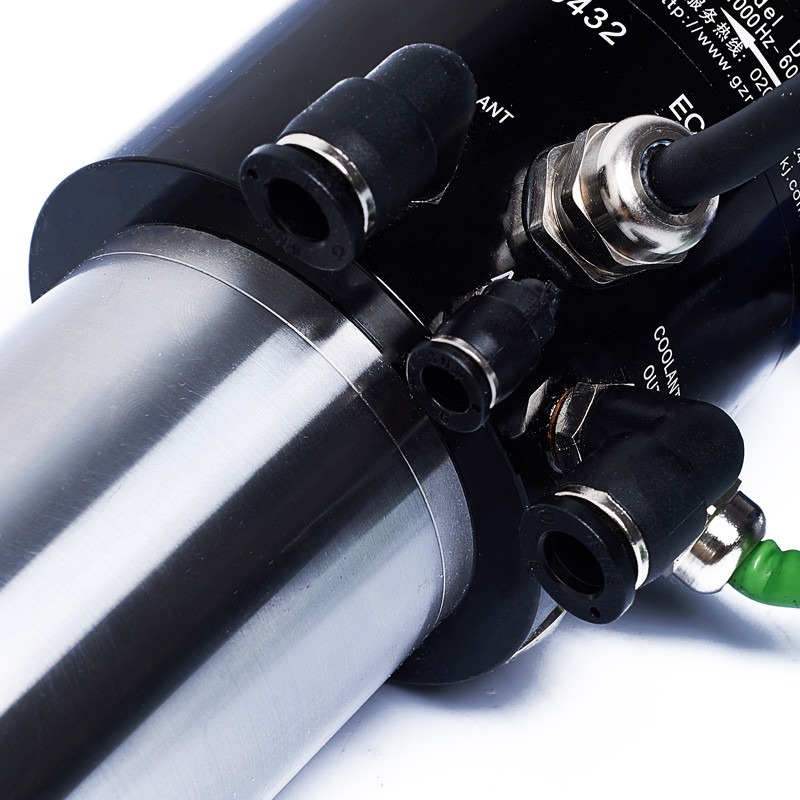

DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant

DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant

Products - Dental spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    3.9
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.19N.M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Voltage
    220(3~)V
  • Frequency
    1000HZ
  • Current
    4.3A
  • Holder Diameter
    62mm
  • Bearing Lubrication
    Grease
  • Installation Method
    Flange
  • Balance Level
    G1
  • Broach Force
    Over 800N
  • Tool Release Pressure
    5.0-6.0kgf/cm²
  • Installation Way
    Clamp Mount
  • Application Material
    Zirconia Wax PMMA PEEK
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $2,300.00/pieces 1-9 pieces

DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant

  • DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant
  • DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant
  • DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant
  • DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant
  • DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant
  • DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant
Get Price Contact Now
DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant 0

Features of Deci CNC Spindle Motors:

1. High Speed 2. High Torque 3.High Precision Dynamic deflections and Static deflections go down to micron (μm) level. 4. Low Vibration and High Stability Vibration value is within 0.8mm/s only. And Shaft cone end runout is within 1μm only.Spindle Balance class is G1. 5. High Reliability and Long working life. Average working life can be over 3 years.
DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant 1

HOW DO CNC SPINDLE MOTORS WORK?

CNC spindle motors are electric motors with a specific design for computer numerical controlled (CNC) machinery. These motors can
achieve high speeds and torque levels while still maintaining a high degree of accuracy. This performance works through precision
bearings and a specially designed rotor.
The rotor is the part of the motor that spins, and precision bearings support it at either end. The stator is the stationary part
of the motor that houses the windings. The windings create the magnetic field that interacts with the rotor to develop torque.
The interaction between the stator and rotor allows the motor to reach such high speeds while maintaining a high degree of
accuracy. They send electrical signals to the windings to control the amount of torque generated. The strength of these signals
determines the speed and torque of the motor. A CNC spindle motor can achieve high speeds because they have a higher number of
poles than other types of electric motors.
They determine the number of poles by the number of winding pairs used in the stator. The more winding pairs you see, the higher
the speed you can achieve. For example, the average car engine has four poles. CNC spindle motors usually have six or eight poles.
This allows them to achieve speeds of up to 20,000 revolutions per minute.
DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant 2
DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant 3
DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant 4
DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant 5

About DECI

We Deci starts to manufacture spindle motors since 2009. Thanks to R&D and manufacturing of over 15 years, we now own many patents and Certifications of ISO9001 and CE. With reliable quality and budget-friendly products,we already worked with many famous companies,including Fortune 500. Mainly suitable for all kinds of CNC engraving milling machine, suitable for all kinds of non-ferrous metal, non-metallic 3C electronic parts processing, can be used in medical, dental, aerospace, automotive, energy, jewelry and so on.
DECI offers a full line of spindle motor from 0.24kw to 12kw power which applied to :
* Metal Milling Spindle motor
* Wood CNC Router Spindle Motor
* PCB Drilling Spindle Motor
* Dental Milling Spindle Motor
* Motorized Spindle Motor
* Machining Center Spindle
* Rotary Table
We offer customize service for partners with fast response and reliable quality.
Sample order is welcome. For more detail catalog and other information, please feel free to contact us!!
DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant 6
DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant 7
DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant 8
DECI ATC 60000rpm ISO10 spindle motor 220V 1.2KW Dental Milling machine High speed electric motor denture water coolant 9
