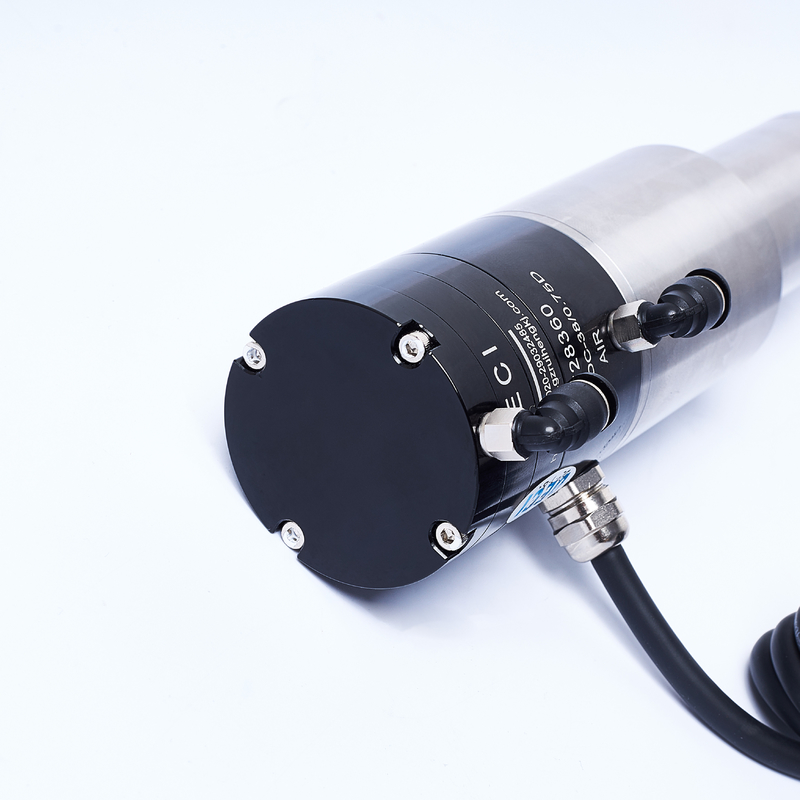

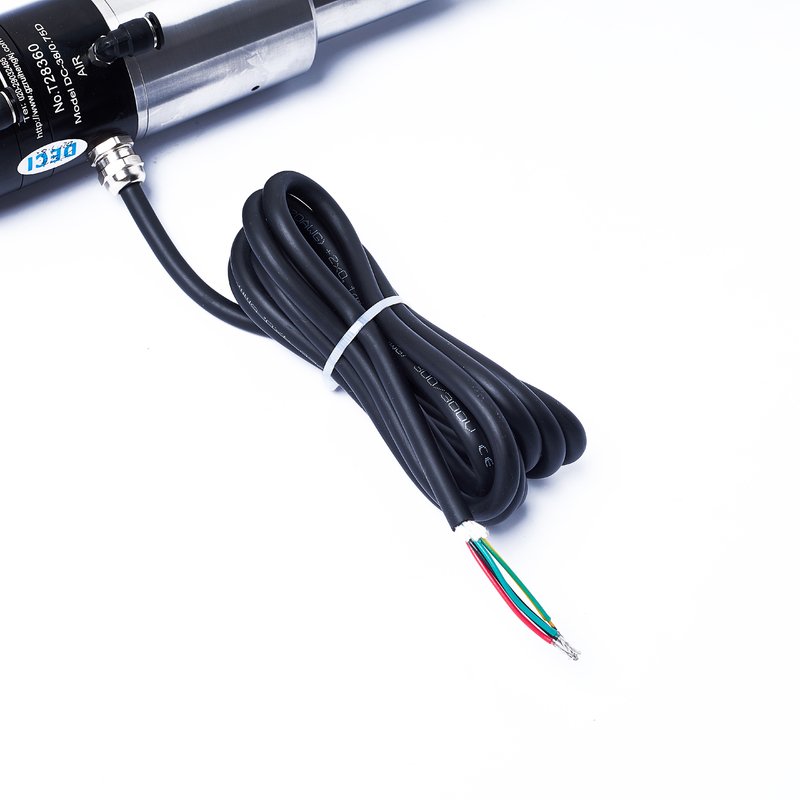

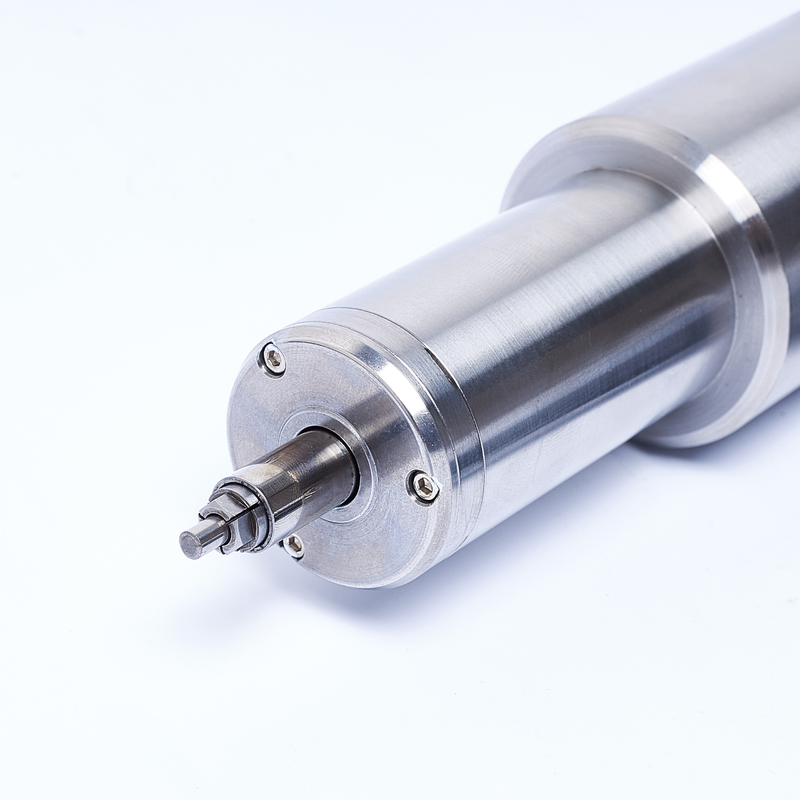

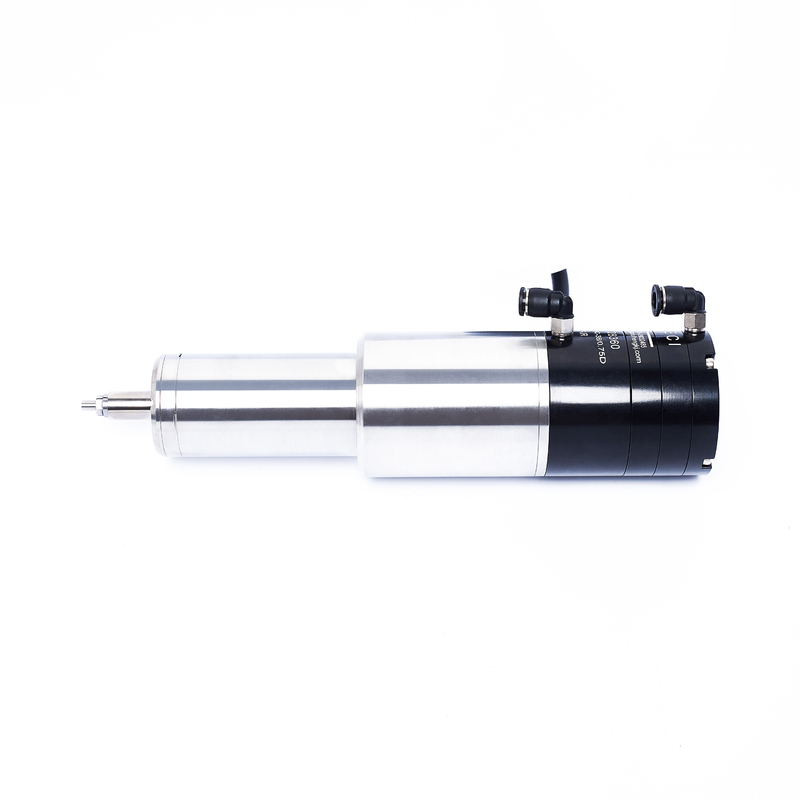

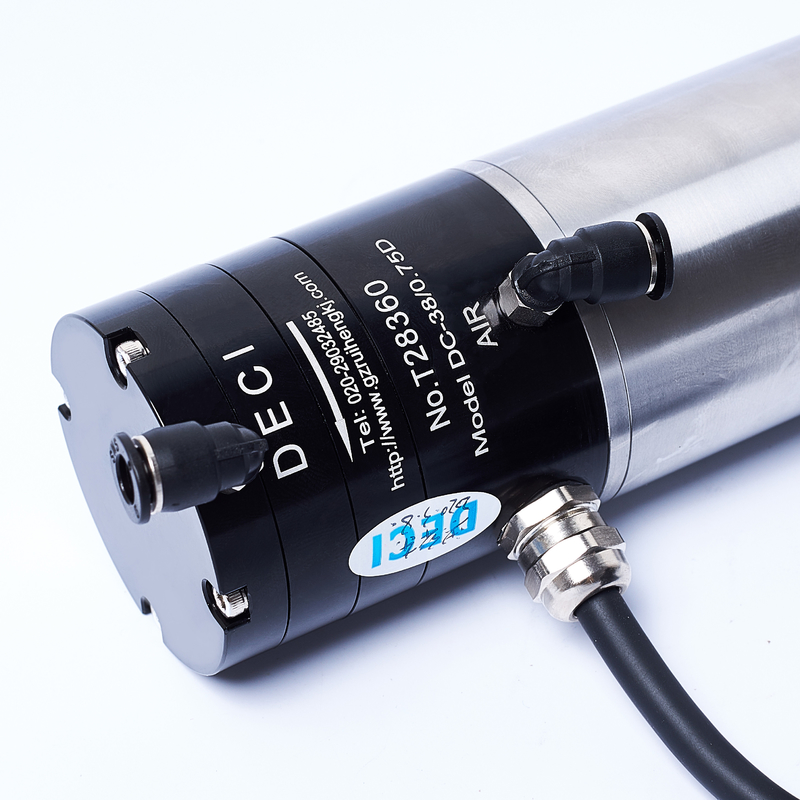

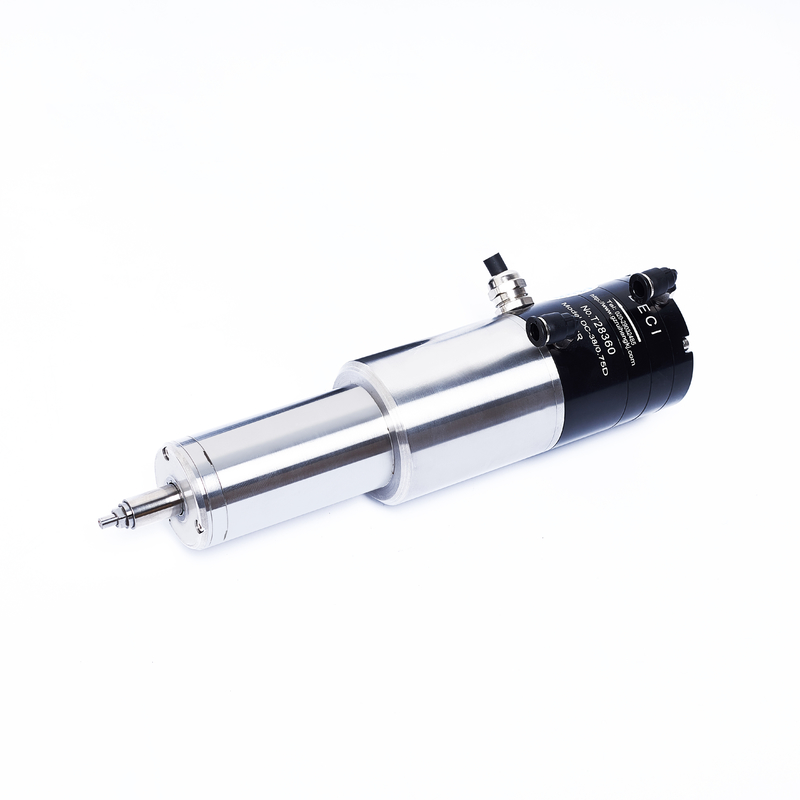

DC-38-0.75F | ||||||
Parameters | ||||||
Moter Power(KW) | 0.35 | Rated voltage (V/AC) | 380 / 220 | |||
Maximum speed(Rpm) | 60000 | Maximum current (A) | 3.5 | |||
Maximum frequency (Hz) | 1000 | Torque (N·M) | 0.056 | |||
Technical parameters | ||||||
Shaft Rotation Accuracy (mm) | ≤ 0.001 | Tooling Releasing pressure (Kgf/cm²) | 5.0-6.0 | |||
Tooling Exchange Method | ATC | Front curtain pressure (Kgf/cm²) | — | |||
Tooling Pulling Force(≥N) | 1000 | Tool return pressure(Kgf/cm²) | — | |||
Tooling Connection | φ3/3.175/4 collet | Cooling method | Air cooling | |||
Encoder (Optional) | — | Coolant Pressure (Kgf/cm²) | 1.0-1.5 | |||
Proximity switch | — | Bearing lubrication mode | Grease | |||
Balance Level | G1 | Tooling Installation Method | Clamp | |||
Vibration value (mm/s) | ≤ 0.8 | Weigh (Kg) | 1.9 | |||
