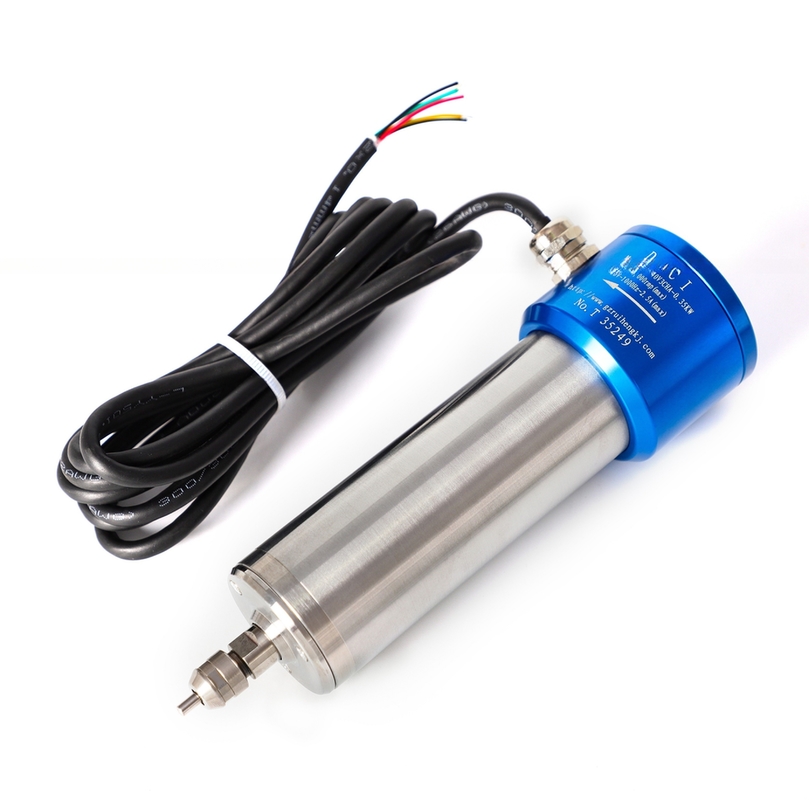

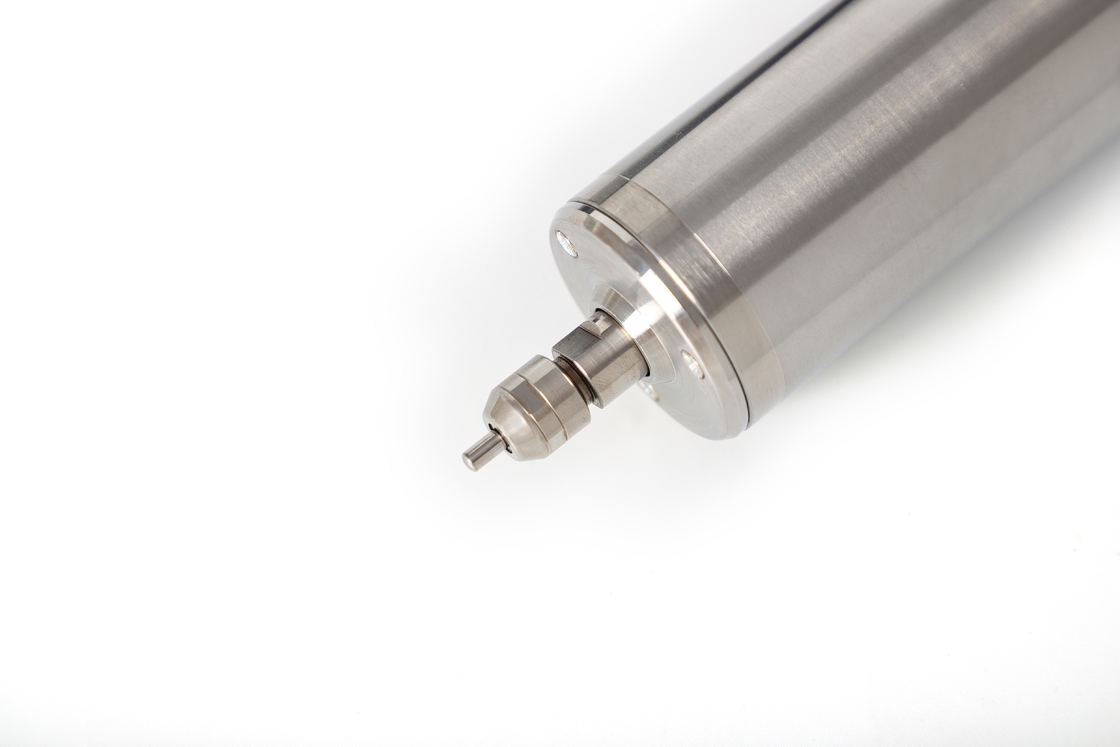

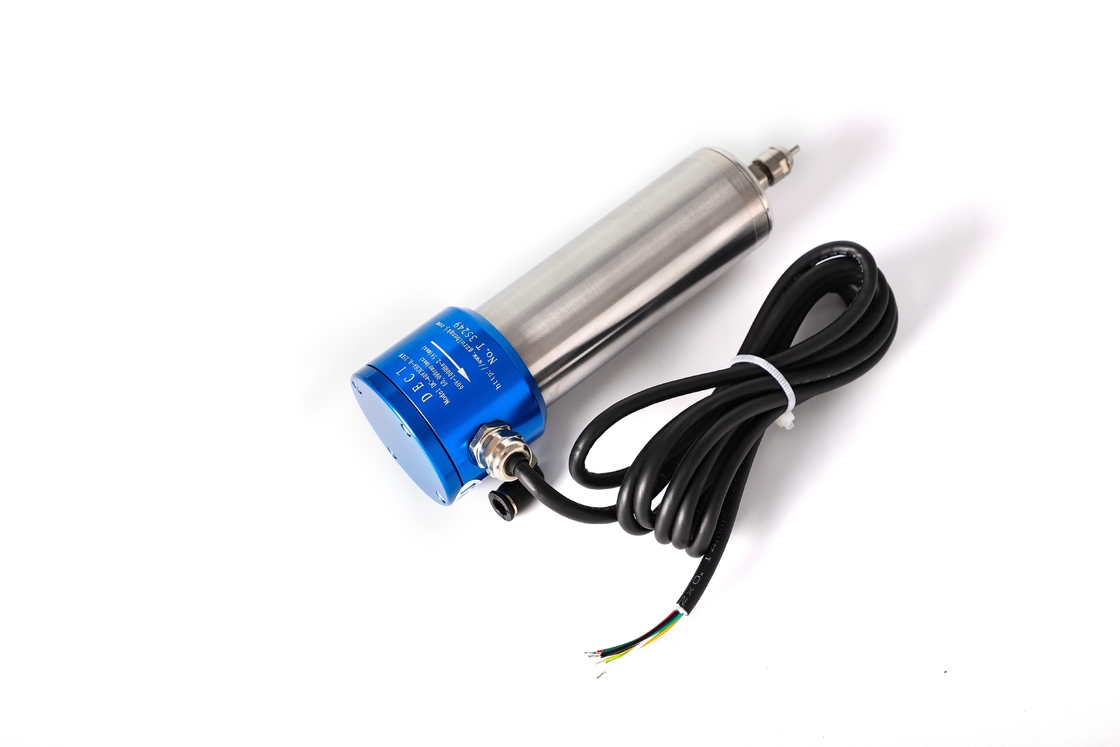

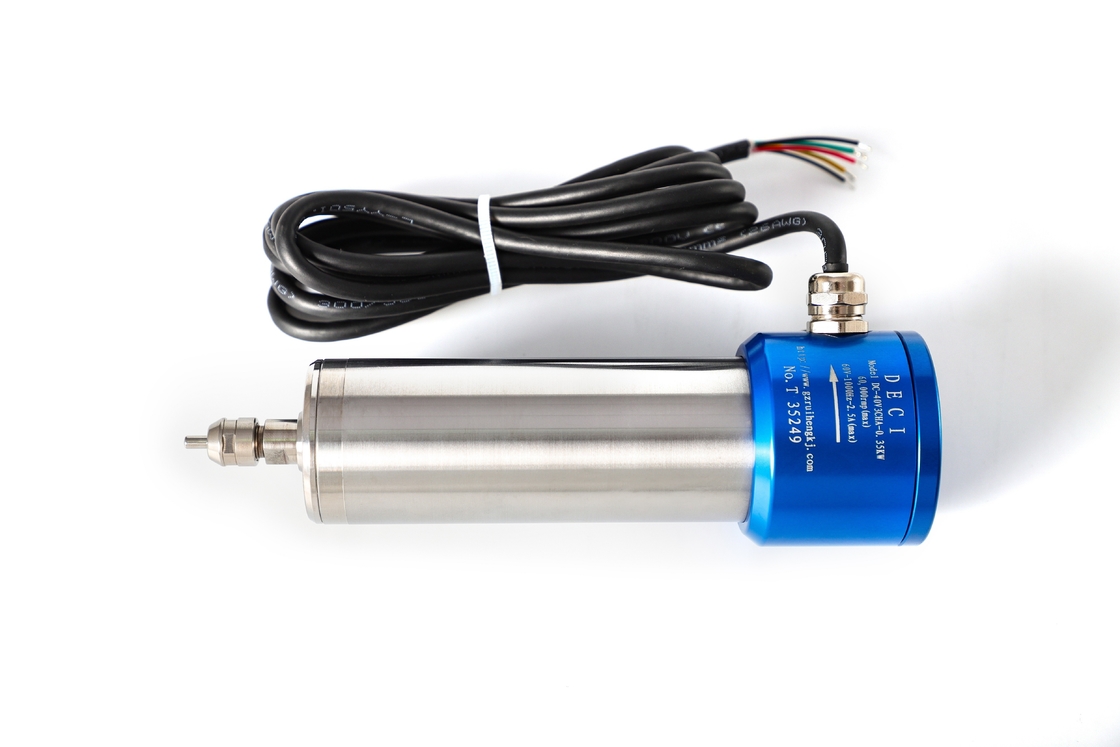

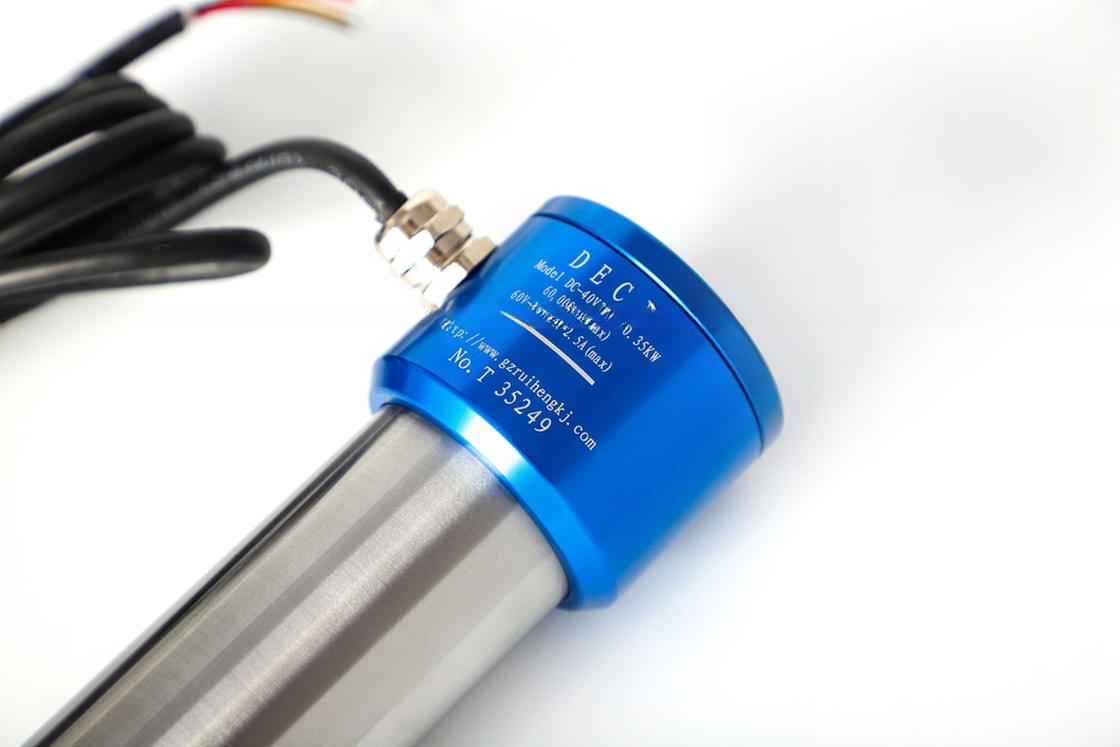

DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle

DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle

Products - Dental spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops
  • Weight (KG)
    1.35
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Milling
  • Maximum Torque
    0.056
  • Drive
    Motor
  • Operating Speed
    80000RPM
  • Warranty
    1 Year, 12 Months
  • Core Components
    Engine, Bearing, Motor, Gear
  • Power
    0.35KW
  • Voltage
    60V(3~)
  • Frequency
    1333HZ
  • Current
    3.5A
  • Weight
    1.35KG
  • Cooling Method
    Air Cooloing
  • Material
    Zirconia
  • Joint Of Nose
    Collet
  • Usage
    Dental
  • Application Material
    Zirconia Wax PMMA PEEK
  • Place of Origin
    guangdong,china
  • Brand Name
    DECI
  • Price
    $994.00/sets 1-9 sets

DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle

  • DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle
  • DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle
  • DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle
  • DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle
  • DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle
  • DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle
Get Price Contact Now
DC-40V3CHA
Parameters
Moter Power(KW)
0.35
Rated voltage (V/AC)
60
Maximum speed(Rpm)
80000
Maximum current (A)
3.5
Maximum frequency (Hz)
1333
Torque (N·M)
0.056
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
—
Tooling Exchange Method
Manual
Front curtain pressure (Kgf/cm²)
—
Tooling Pulling Force(≥N)
—
Tool return pressure(Kgf/cm²)
—
Tooling Connection
φ3.175
Cooling method
Air cooling
Encoder (Optional)
—
Coolant Pressure (Kgf/cm²)
1.0-1.5
Proximity switch
—
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Clamp
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
1.35
DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle 0
DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle 1
DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle 2
DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle 3
DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle 4
DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle 5
DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle 6
DECI 40V3CHA dental spindle motor 0.35KW 80000 Rpm collet tool for milling machine zirconia atc pcb engraving spindle 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
