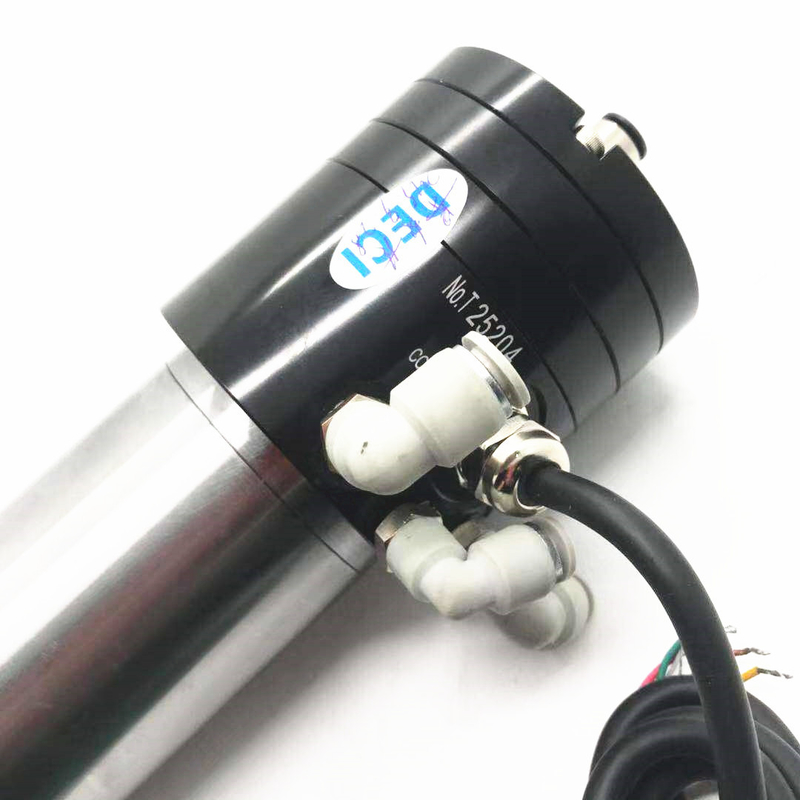

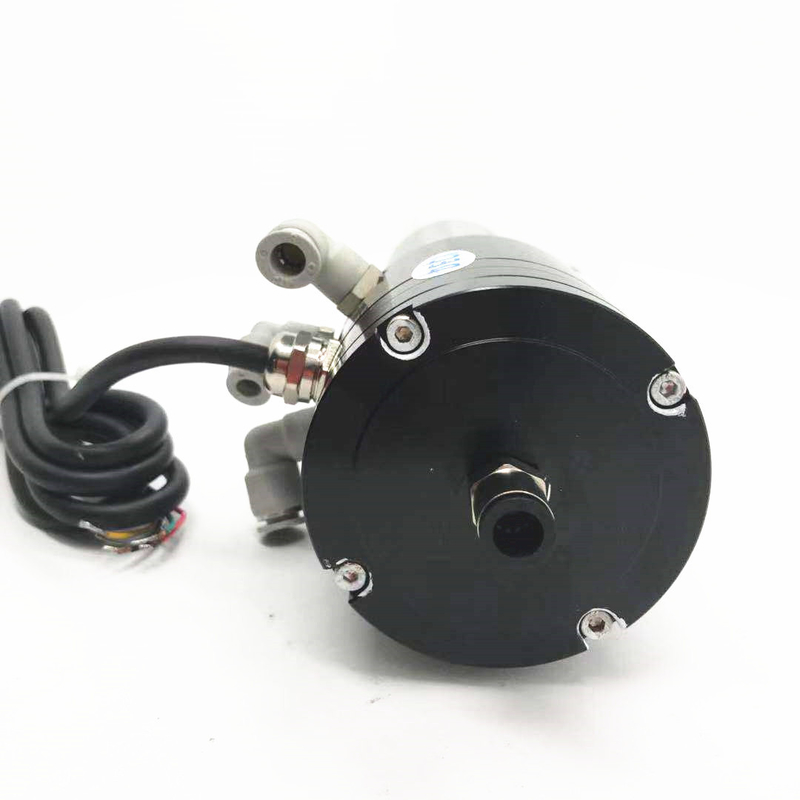

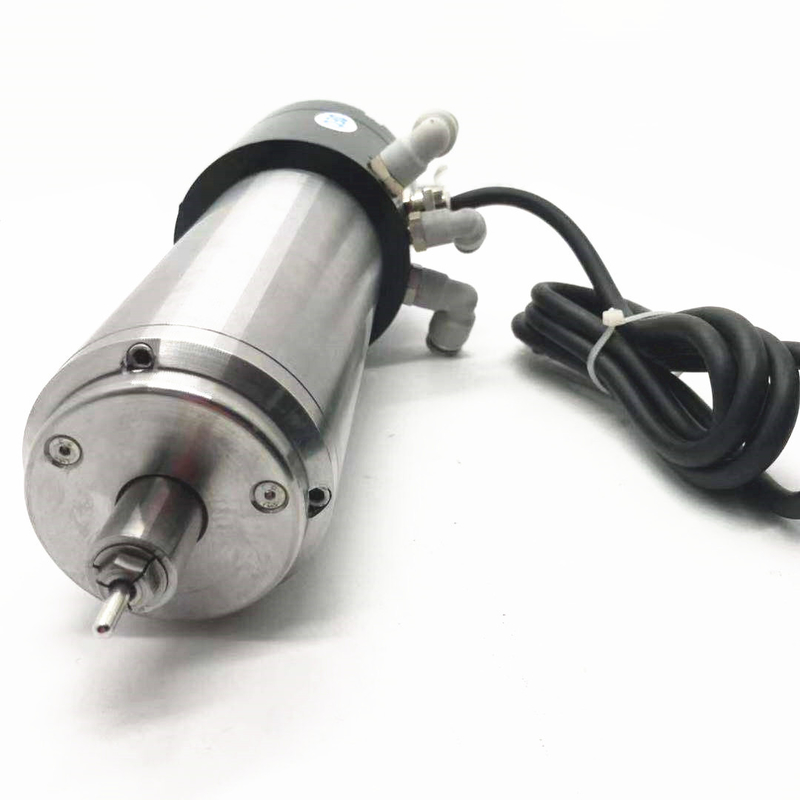

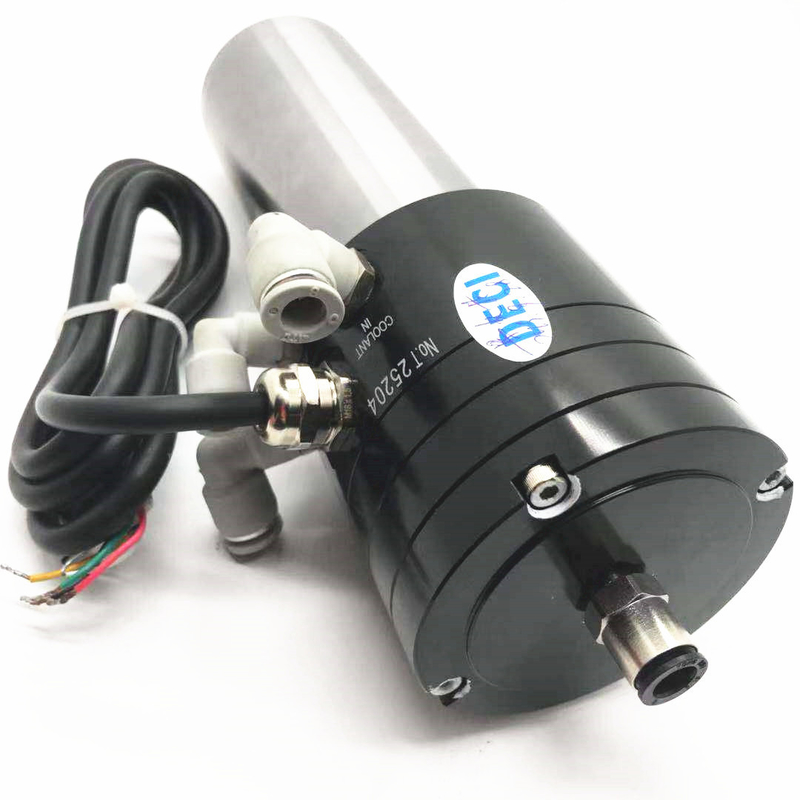

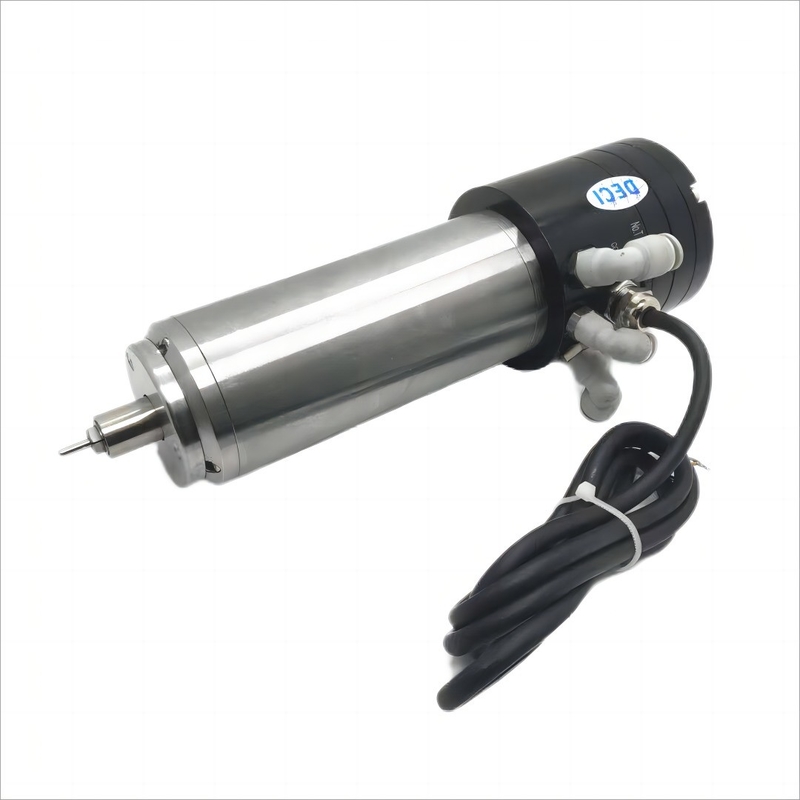

DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor

DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor

Products - Dental spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    3.97
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    0.35N.M
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor, Gear
  • Product Name
    Glass Spindle Motor
  • Diameter
    62mm
  • Power
    2.5Kw
  • Voltage
    220(3~)
  • Frequency
    1000HZ
  • Current
    7.2A
  • Weight
    3.97kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    Clamp
  • Application Material
    Zirconia Wax PMMA PEEK
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $1,013.00/sets 1-24 sets

DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor

  • DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor
  • DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor
  • DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor
  • DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor
  • DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor
  • DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor
Get Price Contact Now
DC-62B2
Parameters
Moter Power(KW)
2.5
Rated voltage (V/AC)
220
Maximum speed(Rpm)
60000
Maximum current (A)
7.2
Maximum frequency (Hz)
1000
Torque (N·M)
0.35
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
1200
Tool return pressure(Kgf/cm²)
—
Tooling Connection
φ3-φ6 collet
Cooling method
Water cooling
Encoder (Optional)
—
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
—
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Clamp
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
3.97
DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor 0
DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor 1
DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor 2
DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor 3
DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor 4
DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor 5
DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor 6
DECI 2.5KW collet high-speed motorized spindle 60000rpm 220V water cooling machine tool spindle motor 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
