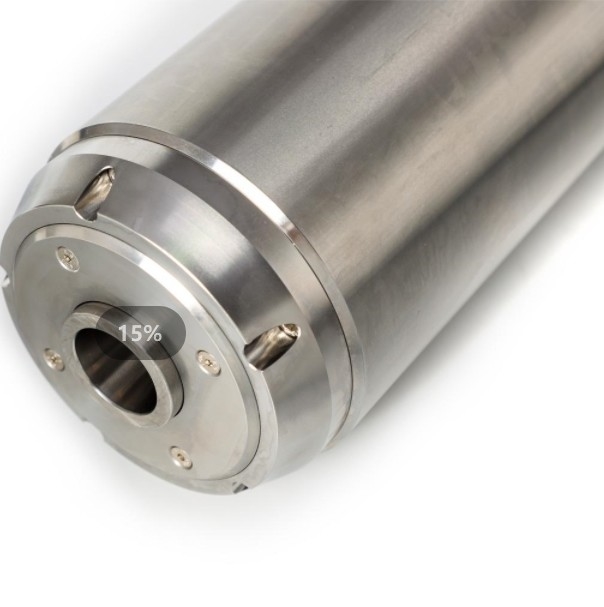

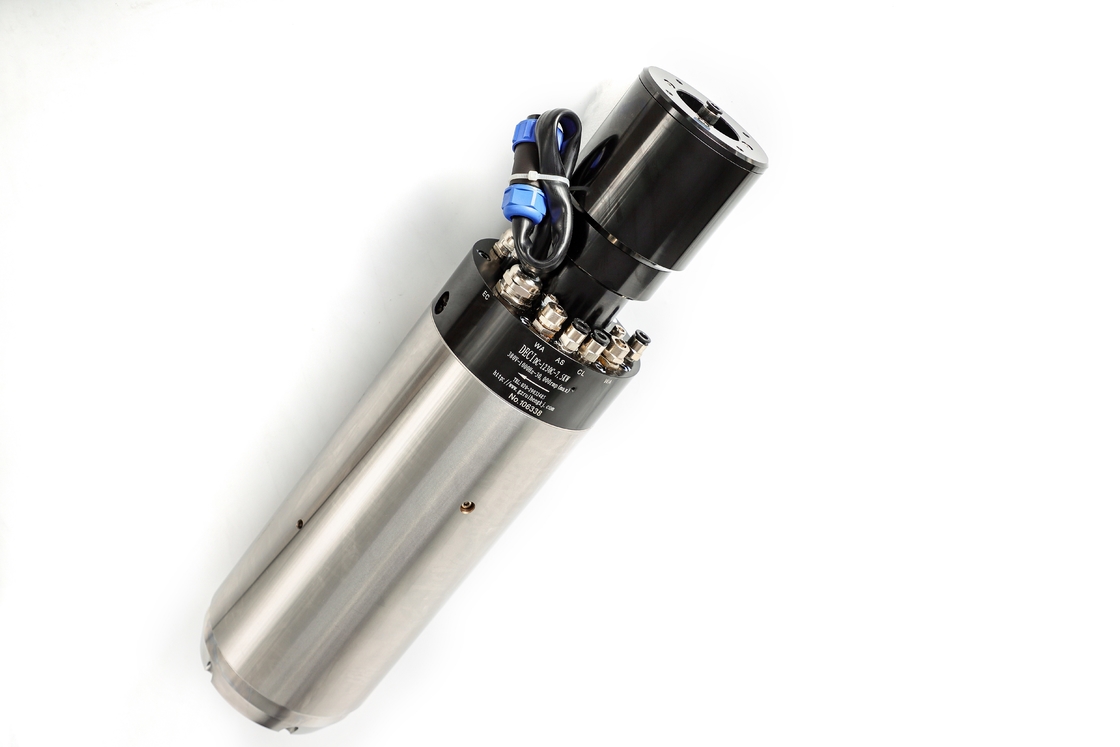

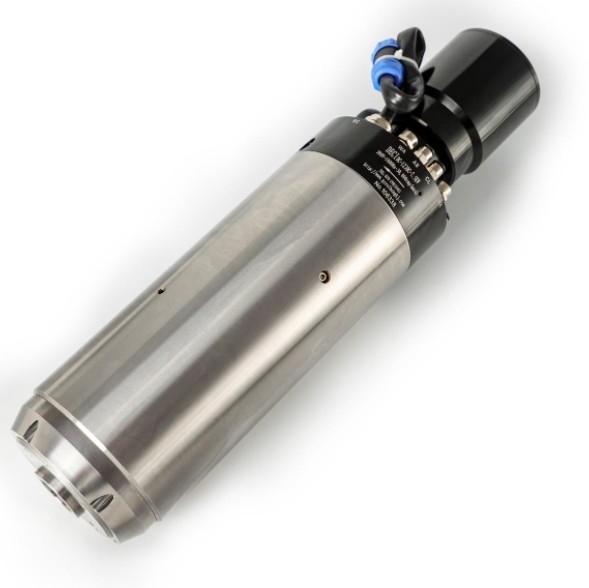

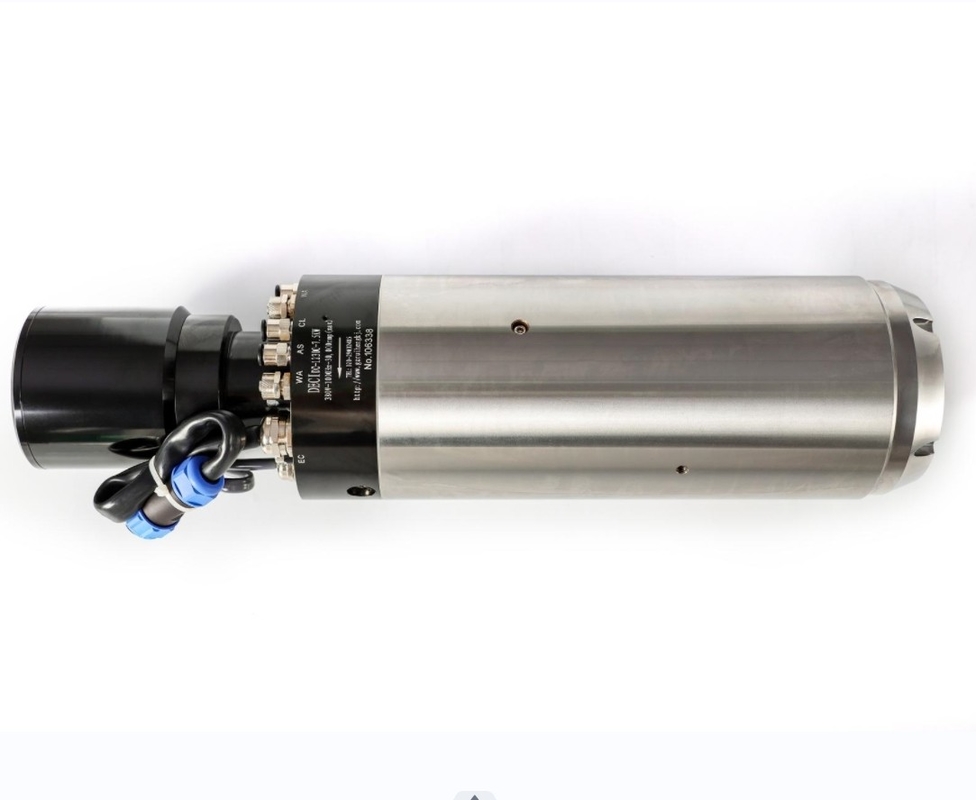

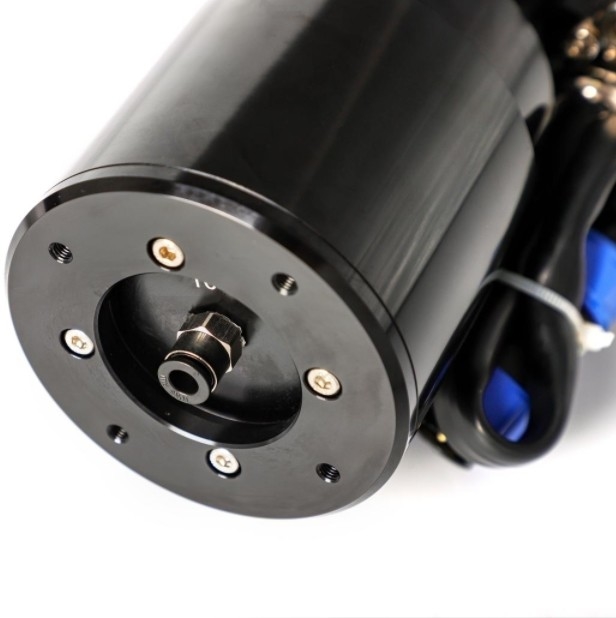

High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle

High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle

Products - Grinding CNC Machine Spindle motor
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    26
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    5.73N.M
  • Drive
    Motor
  • Operating Speed
    30000rpm
  • Warranty
    1 Year
  • Core Components
    Engine, Bearing, Gearbox, Motor, Gear
  • Product Name
    5.5kw Spindle
  • Power
    7.5/5.5kw
  • Voltage
    380/220(3~)
  • Frequency
    1000HZ
  • Current
    14.5/10.5A
  • Weight
    26kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    ATC
  • Installation Method
    Clamp/Flange
  • Joint Of Nose
    BT30
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Minimum Order Quantity
    2 sets
  • Price
    $1,686.00/sets 2-9 sets

High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle

  • High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle
  • High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle
  • High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle
  • High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle
  • High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle
  • High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle
Get Price Contact Now
DC-1230C
Parameters
Moter Power(KW)
7.5
Rated voltage (V/AC)
380 / 220
Maximum speed(Rpm)
30000
Maximum current (A)
14.5
Maximum frequency (Hz)
1000
Torque (N·M)
5.73
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0
Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
2.5-3.0
Tooling Pulling Force(≥N)
2900
Tool return pressure(Kgf/cm²)
5.6-6.0
Tooling Connection
BT30
Cooling method
Water cooling
Encoder (Optional)
Square/Sine wave
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
PNP
Bearing lubrication mode
Grease
Balance Level
G1
Tooling Installation Method
Flange / Clamp
Vibration value (mm/s)
≤ 0.8
Weigh (Kg)
26
High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle 0
High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle 1
High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle 2
High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle 3
High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle 4
High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle 5
High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle 6
High Precision Water Cooling Spindle Motor for CNC Router Machine Tool Flange Spindle 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
