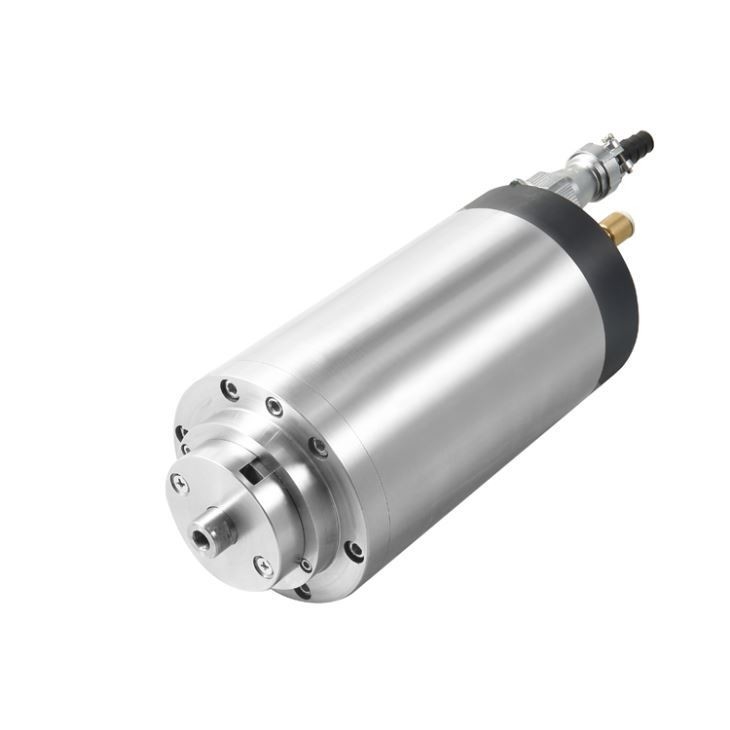

100mm grinding spindle motor is a motor with cemeric bearing . DC-100MA is a 60000rmp spindle motor with water cooling. The serious motor spindles are designed to be easily amounted onto existing CNC routers,machining centers, etc.
Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.
Advance/Features:
1.Reasonable structure desgin ,simple and compact configuration ,easy to take apart.
2.High precision.high inflexibility ,high efficiency,long operation life.
3.With high grade size .shape,.position precision,and quality of surface .
4.Enough abrasive resistance ,vibration resistance,stable size.
5.Work stable ,low noise,enough fatigue strength
| DC-100MAParameters Motor Power:2.5KW Rated voltage: 380v(3~) Max rotate speed :60000Rpm/min Max currency:25A Max Frequency:1000Hz Torque:5.73N.MSpecification Cone surface spring at shaft end: ≤0.001mmTooling Releasing Air curtain:- Tooling Exchange Method: ATCAir curtain pressure at front end: 2.5-3.0 Kgf/cm² Tooling Pulling Force: -Tooling Back Air Pressure:~ Tooling Connection:M8X1Cooling:water cooling optional Encoder:-Coolant Pressure:2.5Kgf/cm² Approach Switch:-Bearing Lubrication Method: GreaseBalance Level : G1Tooling Instalation Method:FLANGEVibration Value: ≤0.8Weight:9.3KG |

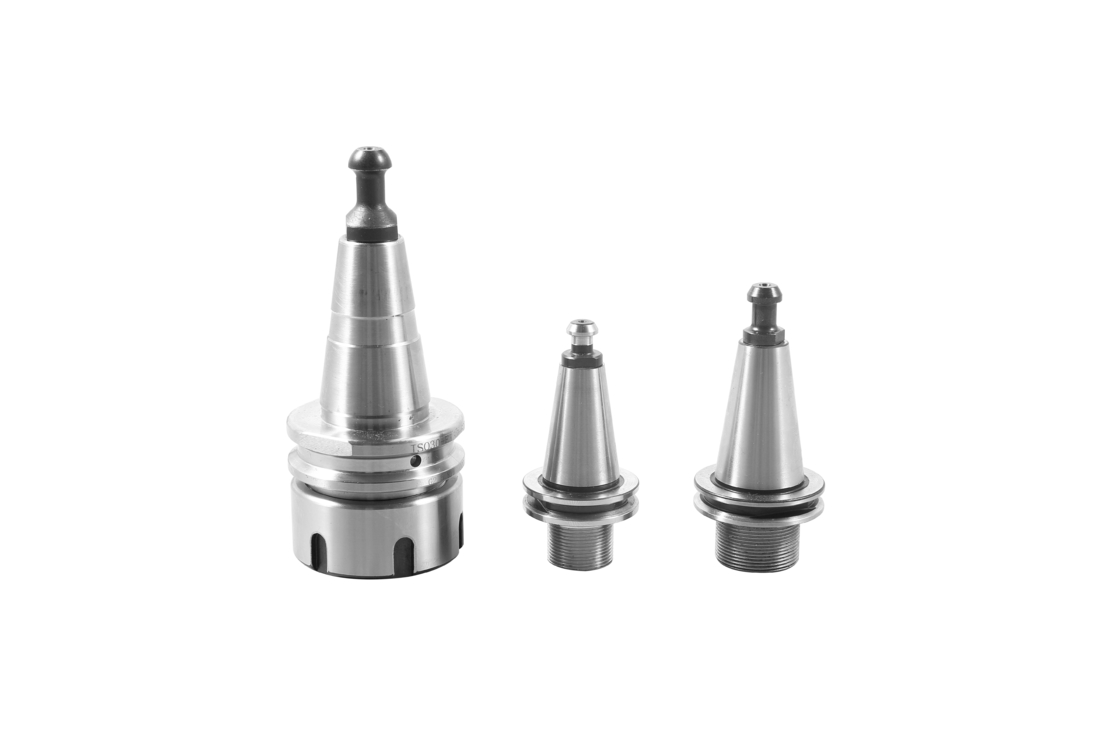

Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?A
A:we have all the packages. We can get the engineer to program you.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Learn more details
Our products are sold all over the world, you can rest assured.
