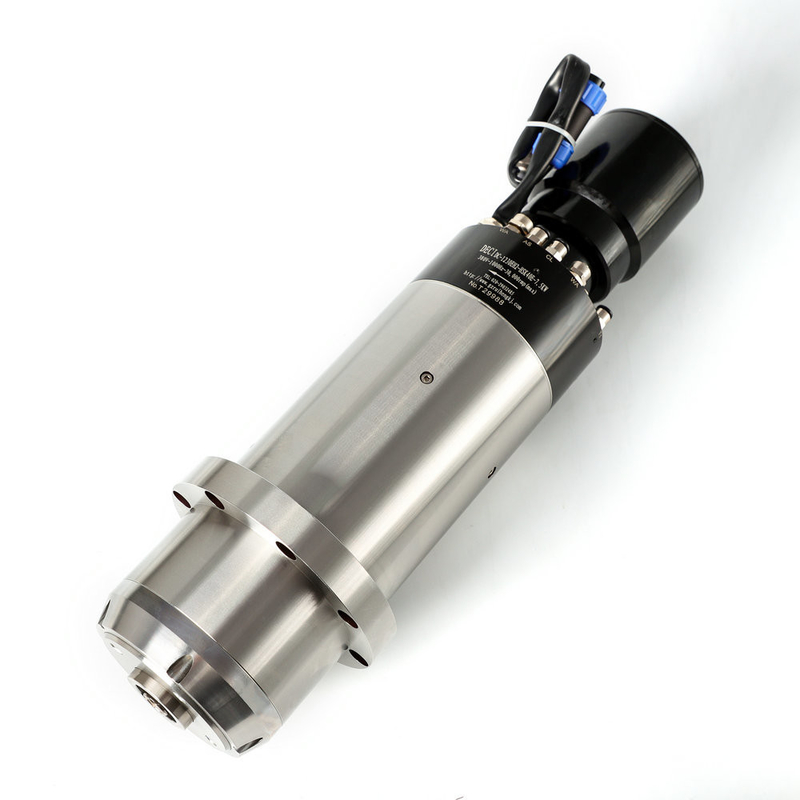

DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric

DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric

Products - HSK E25 E32 E40 A63 F63
  • Condition
    New
  • Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
  • Weight (KG)
    26
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Runing, Milling, Drilling, Boring, For CNC Machine To Truning
  • Maximum Torque
    12N.M
  • Drive
    Motor
  • Operating Speed
    30000rpm
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor
  • Product Name
    HSK40E Spindle
  • Power
    12.5KW
  • Voltage
    380(3~)
  • Frequency
    1000HZ
  • Current
    35.4A
  • Weight
    26kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    Automatic
  • Installation Method
    Mechanical Clip
  • Diameter
    120mm
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $2,500.00/sets 1-9 sets

DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric

  • DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric
  • DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric
Get Price Contact Now
Product Description
12.5KW PMSM 30000Rpm 380V Spindle Motor (Water cooling, Automatic exchange,HSK40E )
This product is a metal cutting high speed motor spindle with a maximum speed of 30000 rpm and a rated power of 12.5 KW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.

Feature
1) High Precision.High Speed,High
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) water cooling spindle, air cooling spindle or self cooling spindle are optional.
4) Each spindle motor is polished to improve spindle concentricity and extend motor life.

DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 0
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 1
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 2
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 3
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 4
DECI   DC-1230EH2YC-HSK40E
Parameters
Motor Power:
12.5KW PMSM
Rated voltage:
380V(3~)
Max rotate speed :
30000Rpm/min
Max currency:
35.4A
Max Frequency:
1000Hz
Torque:
12N.M
Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
5.6-6.0 Kgf/cm²
Tooling Exchange Method:
Automatic
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²
Tooling Pulling Force:
Max 6800
Tooling Back Air Pressure:
5.6-6.0 Kgf/cm²
Tooling Connection:
BT30 Shank
Cooling:
water cooling
Encoder:
Square wave TTL (optional)
Coolant Pressure:
≥2.5 Kgf/cm²
Approach Switch:
PNP ON
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
Clamp Mount
Vibration Value:
≤0.8
Weight:
26kg
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 5
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 6
Packing&Shipping
Packed in export standard carton or plywood case, with PP bag, thick foam.
DECI Spindle / cnc in Machining.
diy atc spindle motor
atc spindle belt drivenatc spindle belt driven
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 7
Related Products
Applicable industry
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 8
Why Choose Us
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 9
Company Profile
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 10
DECI Brand
Guangzhou Ruiheng Technology Co., Ltd is located in the Eastern Development Zone of Guangzhou. (Foshan Nanhai Xingtuo Precision Machinery Co., Ltd. is our subsidiary.) The company was established in 2009. We are a national high-tech enterprise integrating R&D, production, sales and maintenance of high-speed electric spindle. With the concerted efforts of all employees, a number of self-developed patented products, and the rapid development of the industry, the product quality and accuracy requirements are getting higher and higher. For this reason, the company has introduced advanced high-precision production of Swiss, German, British, Korean and other technologies for the electric spindle. Equipment and testing and calibration equipment, with the goal of "doing fine, coming stronger and bigger", more than 60% of our products are exported to the United States, Europe, India, Brazil, Dubai and other countries to help customers continuously update with quality service. Work hand in hand with customers, develop together, use morality as a product, and create a first-class product with magnetic "DECI" to help China create!
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 11
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 12
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 13
Certifications
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 14
FAQ
Q1:Are you a trading company or a manufacturer?
A1: We are the manufacturer of DECI electric spindles.

Q2:Do you have the products in stock?
A2:Our products are manufactured according to your order required except normal products.

Q3:Can I get some samples first?
A3: We can supply the sample if in stock, but the customers have to pay the sample cost and the courier cost..

Q4:How does your factory do regarding quality control?
A4:Quality is priority. Quality first. We We have been paying close attention to the quality control in the production process to ensure each product passes various tests before shipping.

Q5.How about the warranty of the products?
A5: We offer 12 months of technical service and after-sales service. If any problem about the machine after receivd, feel free to contact us.

Q6:How do you make our business long-term and good relationship?
A6:1.DECI keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
DECI CNC Spindle Motors 12.5KW 120mm Clamp Mount ER25 Collet 30000rpm HSK40E Electric 15
