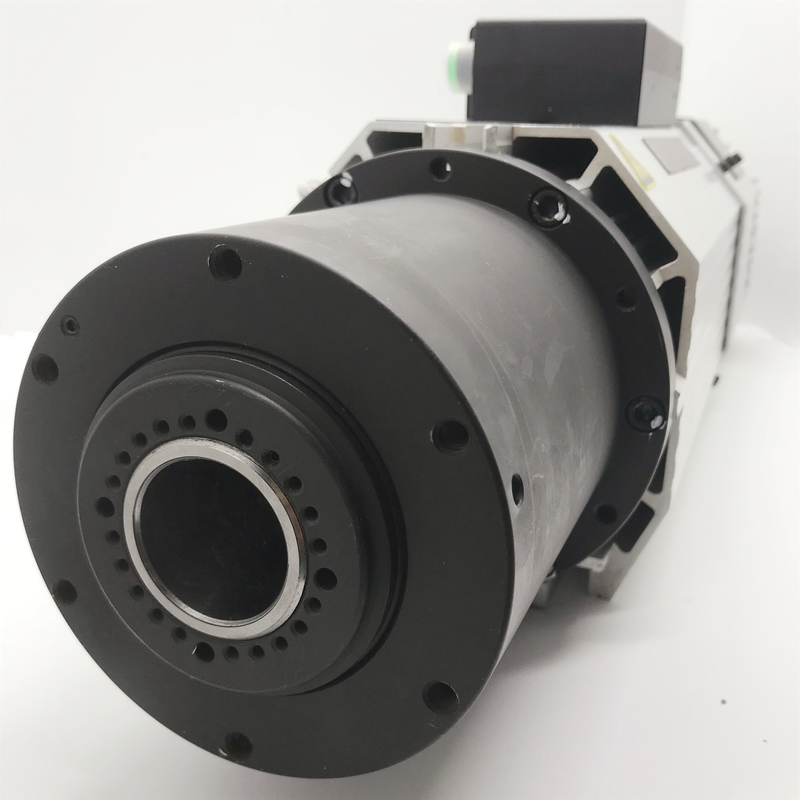

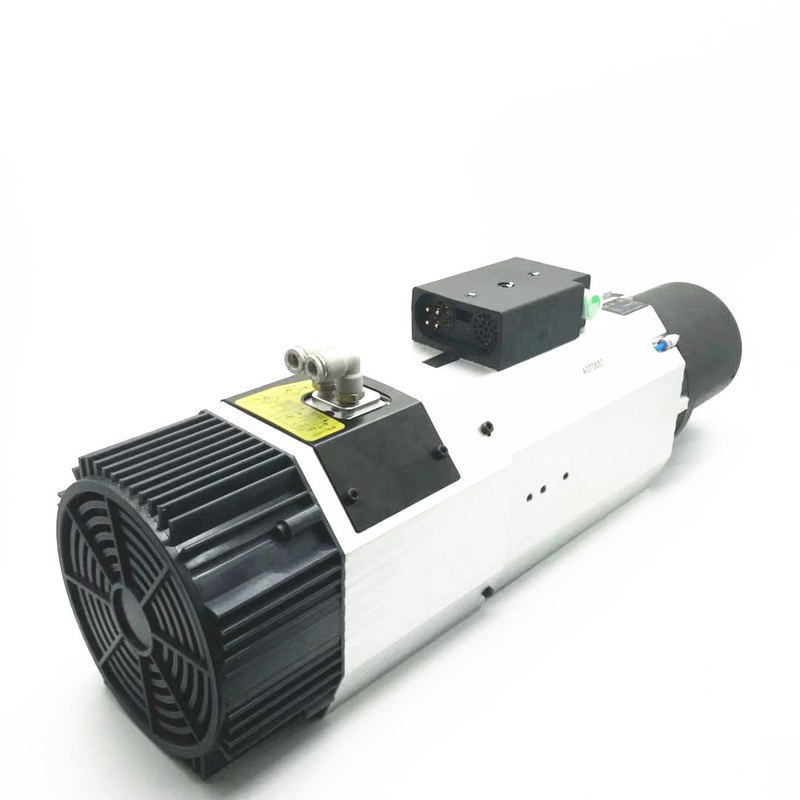

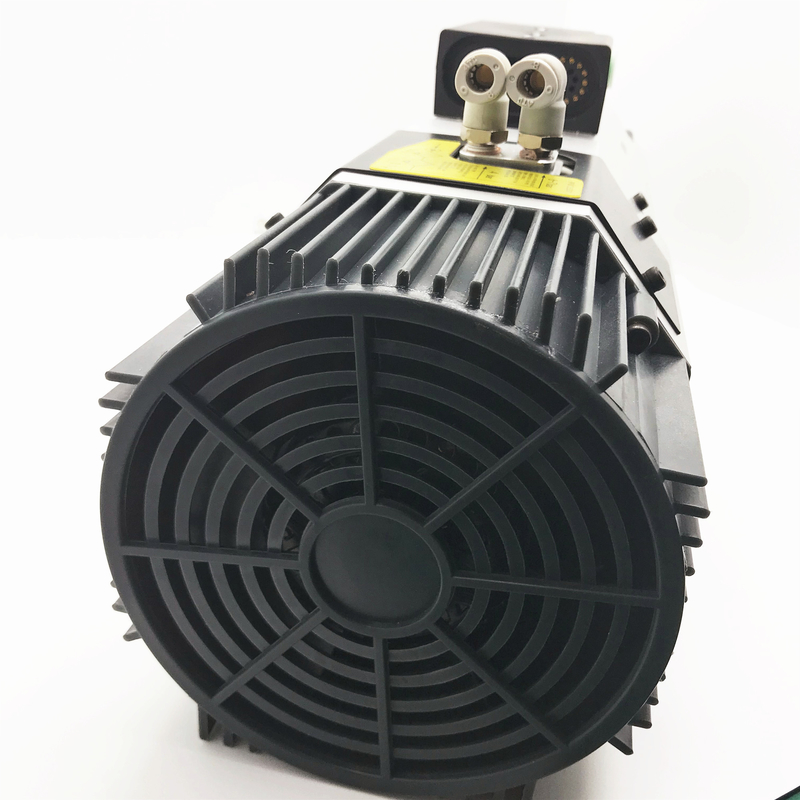

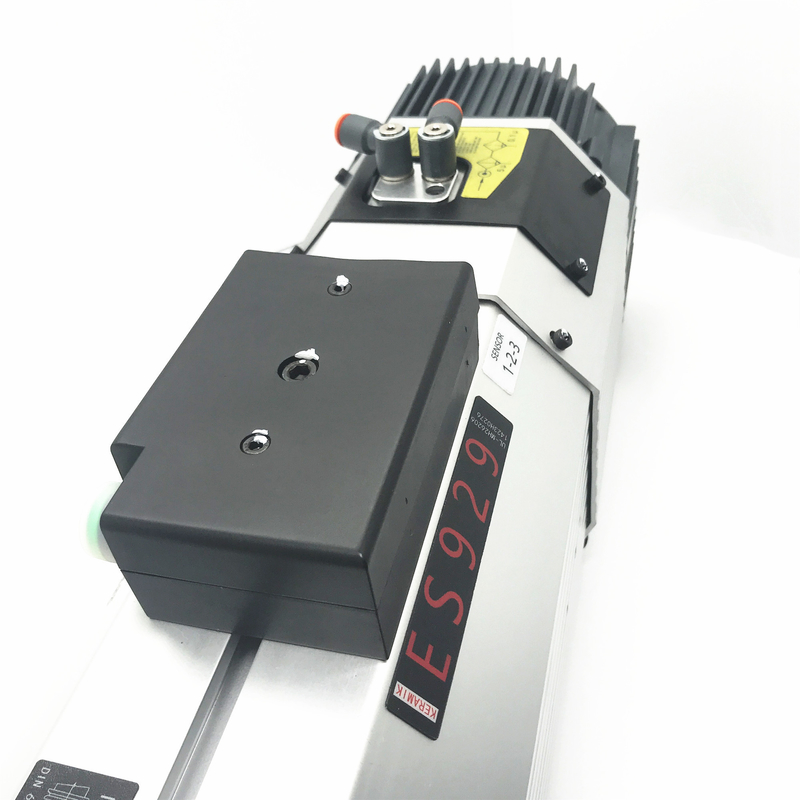

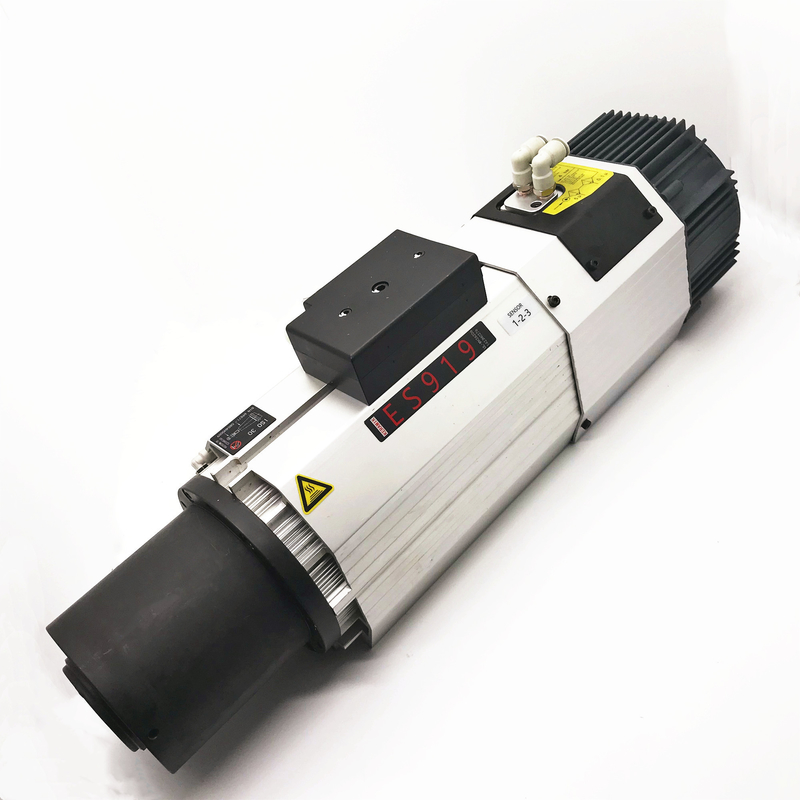

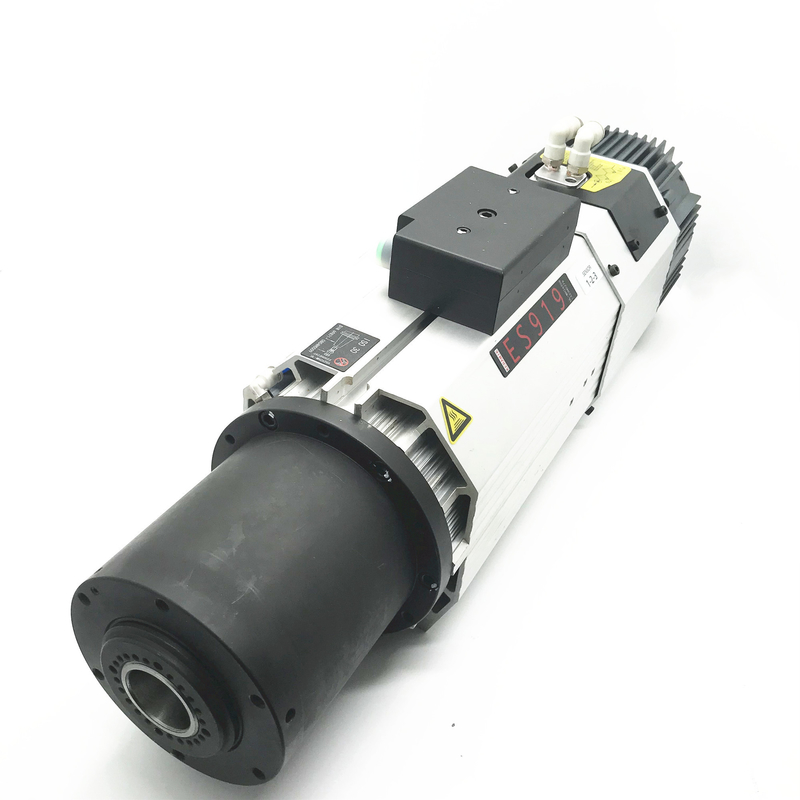

DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motor

DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw 380V 240000RPM milling atc spindle motor

  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
  • Weight (KG)
    35
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product
  • Application
    Engraving
  • Maximum Torque
    7.16/9.55N.M
  • Drive
    Motor
  • Operating Speed
    24000rpm
  • Warranty
    6 Months
  • Core Components
    Bearing
  • Current
    23A
  • Power
    9.0/12.0KW
  • Voltage
    380(3~)
  • Frequency
    800Hz
  • Weight
    29KG
  • Cooling Method
    Water / Air Cooling (Optional)
  • Tools Connector
    HSK63F
  • Place of Origin
    Guangdong,china
  • Brand Name
    DECI
  • Price
    $2,150.00/sets 1-19 sets
  • Supply Ability
    500 Set/Sets per Month

DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw 380V 240000RPM milling atc spindle motor

Specificiations




DECI DC-WP145B-HSK63F
Parameters
Motor Power: 9.0/12.0KW  Rated voltage: 380V(3~)
 Max rotate speed : 24000rpm/min  Max currency: 23A
 Max Frequency: 800Hz  Torque: 7.16/9.55N.M
Specification
Cone surface spring at shaft end:  ≤0.001mm Tooling Releasing  Air curtain:  5.6-6.0 Kgf/cm²
 Tooling Exchange Method:  ATC Air curtain pressure at front end:  2.5-3.0 Kgf/cm²
 Tooling Pulling Force:  ≥2900 N Tooling Back Air Pressure: ~
 Tooling Connection: HSK63F tool holder Cooling: water /air cooling optional
 Encoder: Square/Sine wave (Optional) Coolant Pressure: 2.5-3.0 Kgf/cm²
 Approach Switch: PNP normally open Bearing Lubrication Method:  Grease
Balance Level :  G1 Tooling Instalation Method: T-slot
Vibration Value:  ≤0.8 Weight: 29.6kg
DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motorDECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motorDECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motorDECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motorDECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motorDECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motor
Applicable industry

DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motor

Packaging & Shipping

DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motor

Why choose us



DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motor







Company Information

DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motor

Certifications

DECI High speed HSK63 woodworking spindle automatic tool change HSK63F 9kw  380V 240000RPM milling atc spindle motor

FAQ

Q: Are you trading company or manufacturer ?
A: We are the manufacturer of DECI electric spindles.



Q:Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?A

A:we have all the packages. We can get the engineer to program you.


Q:
What's your delivery time?
A: It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.


Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.

Q:
Which payment method and Express can you accept?

   1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.

   2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.


Q: How do you make our business long-term and good relationship?
A: 1. DECI keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
