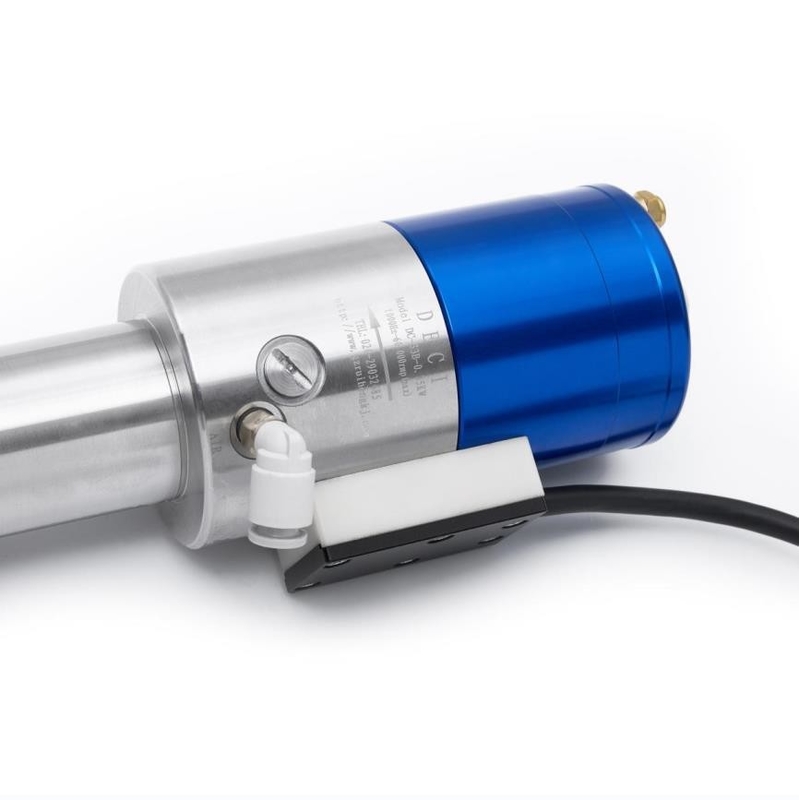

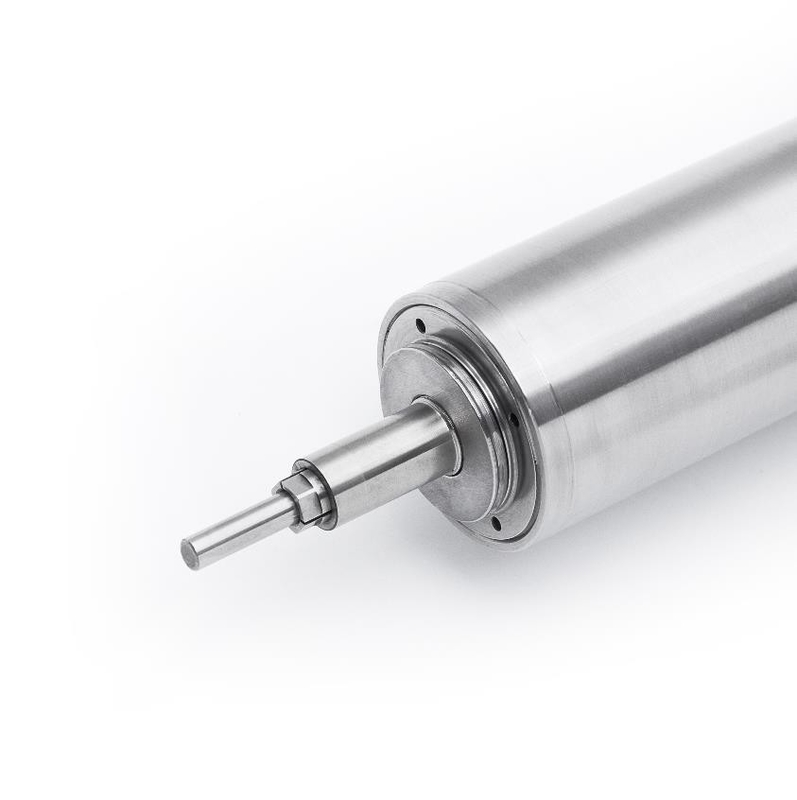

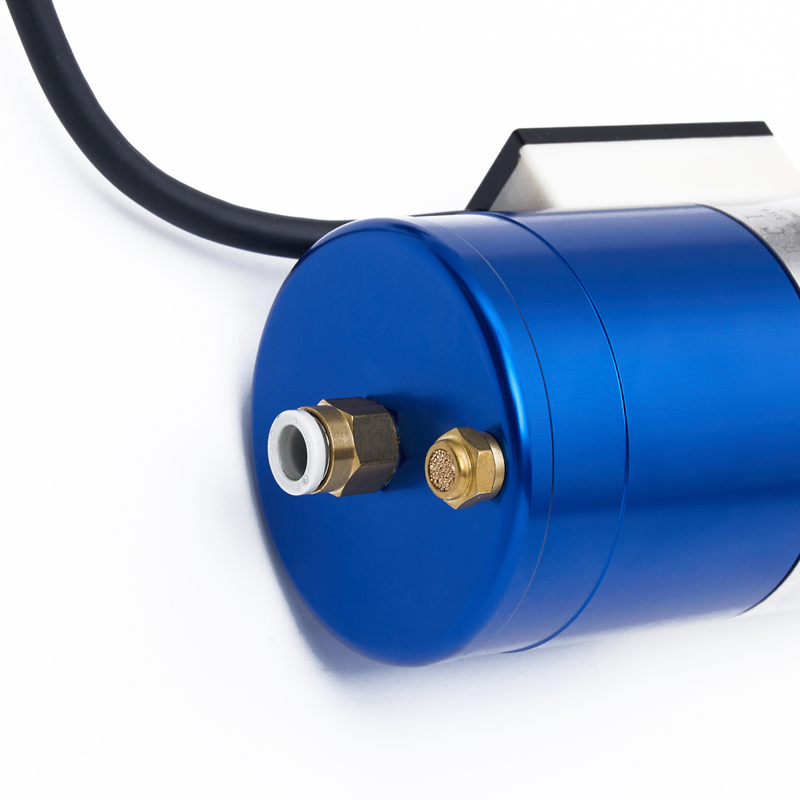

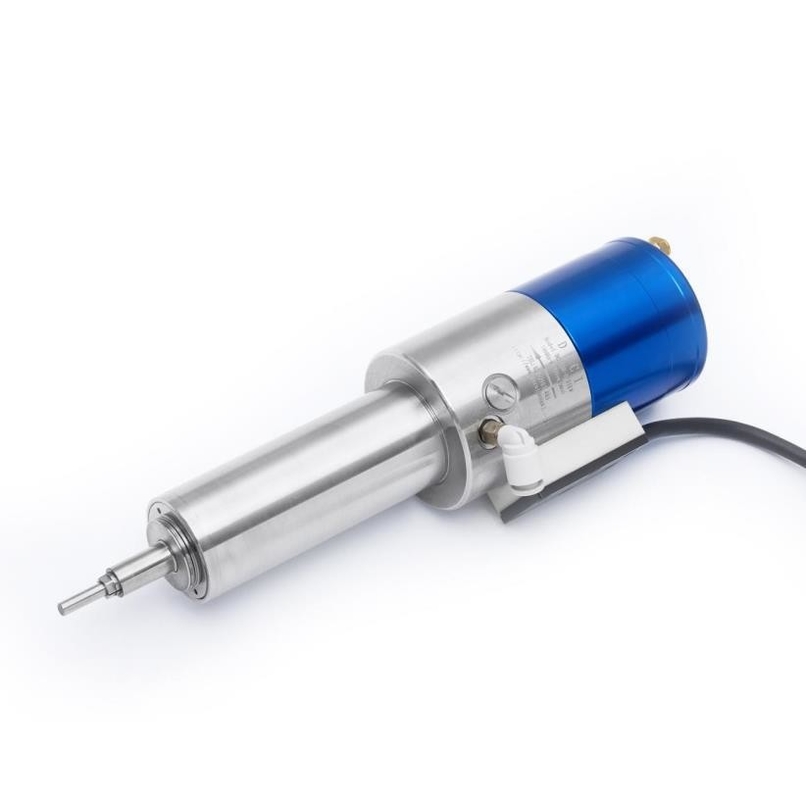

250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM

250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM

Products - PCB Spindle Motor
  • Application Material
    Zirconia Wax PMMA PEEK
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Other
  • Weight (KG)
    1.5
  • Application
    Milling, PCB
  • Maximum Torque
    0.04
  • Drive
    Motor
  • Operating Speed
    80000RPM
  • Warranty
    1 Year
  • Core Components
    Bearing, Motor, Gear
  • Power
    250W
  • Voltage
    72V(DC)
  • Frequency
    1000HZ
  • Current
    5.5A
  • Weight
    1.1KG
  • Cooling Method
    Air Cooling
  • Wattanty Period
    1 Year
  • Joint Of Nose
    4mm Collet
  • Place of Origin
    guangdong,china
  • Brand Name
    DECI
  • Price
    $1,016.00/sets 1-24 sets

250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM

  • 250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM
  • 250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM
  • 250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM
  • 250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM
  • 250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM
  • 250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM
Get Price Contact Now
DC-33C
Parameters
Moter Power(KW)
0.25
Rated voltage (V/DC)
72



Maximum speed(Rpm)
80000
Maximum current (A)
5.5



Maximum frequency (Hz)
1333
Torque (N·M)
0.04



Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.001
Tooling Releasing pressure (Kgf/cm²)
5.0-6.0



Tooling Exchange Method
ATC
Front curtain pressure (Kgf/cm²)
—



Tooling Pulling Force(≥N)
1000
Tool return pressure(Kgf/cm²)
—



Tooling Connection
φ3,175/φ4 collet chuck
Cooling method
Water cooling / Air cooling



Encoder (Optional)
—
Coolant Pressure (Kgf/cm²)
≥ 2.5



Proximity switch
—
Bearing lubrication mode
Grease



Balance Level
G1
Tooling Installation Method
Flange / Clamp



Vibration value (mm/s)
≤ 0.8
Weigh (Kg)




250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM 0
250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM 1
250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM 2
250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM 3
250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM 4
250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM 5
250W 72V Dental Spindle for PCB Zirconia Teeth Milling Drilling Engraving at 80000RPM 6
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
    work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
    2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
