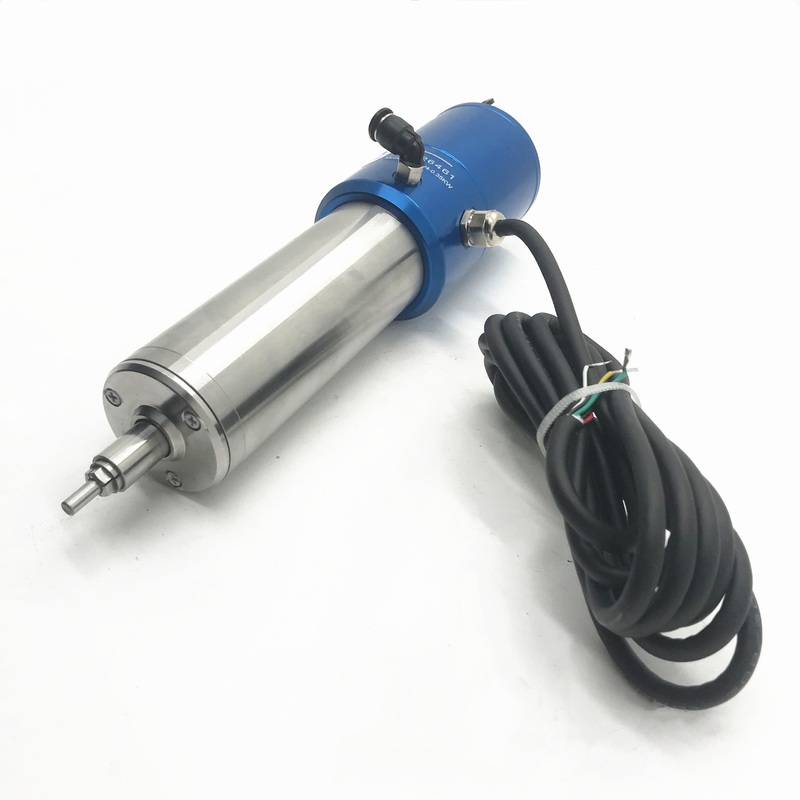

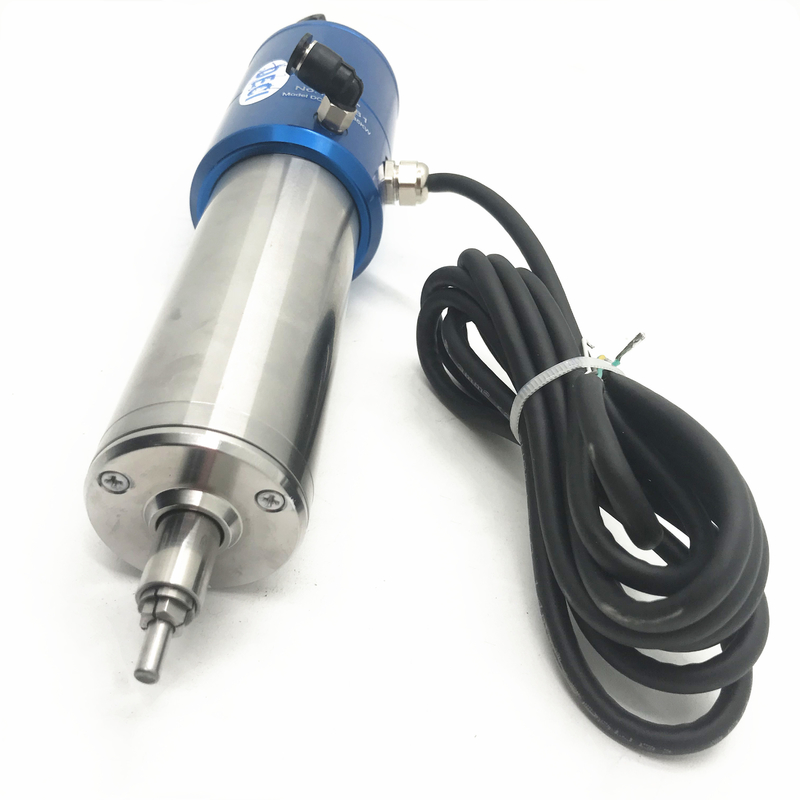

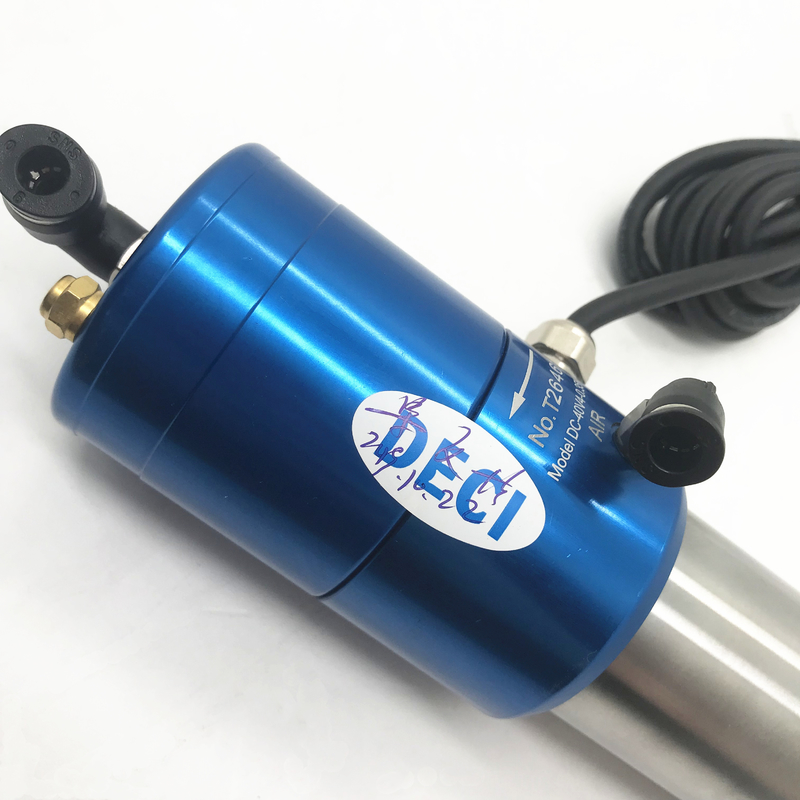

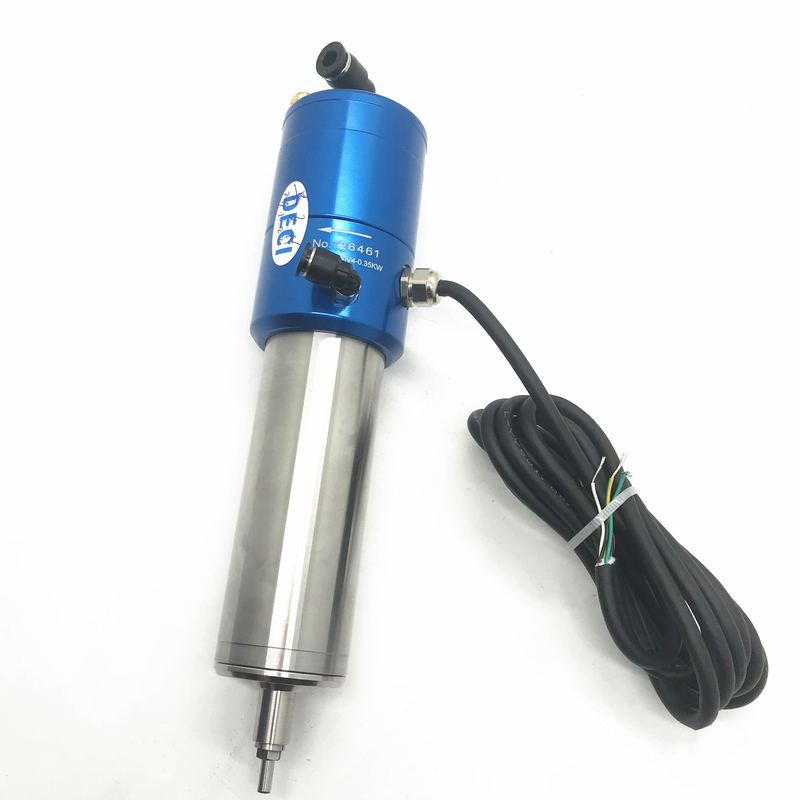

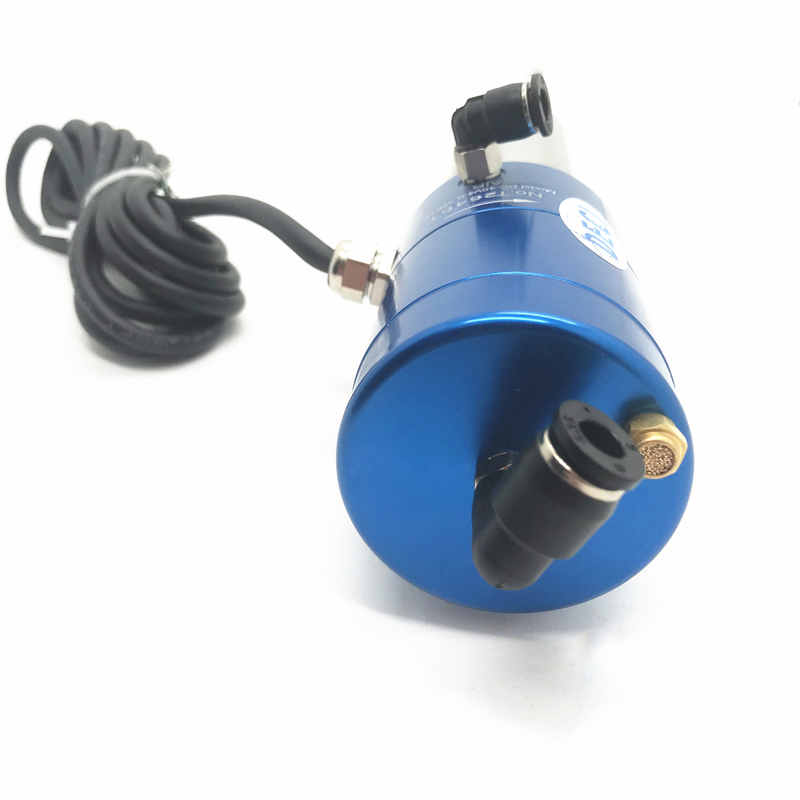

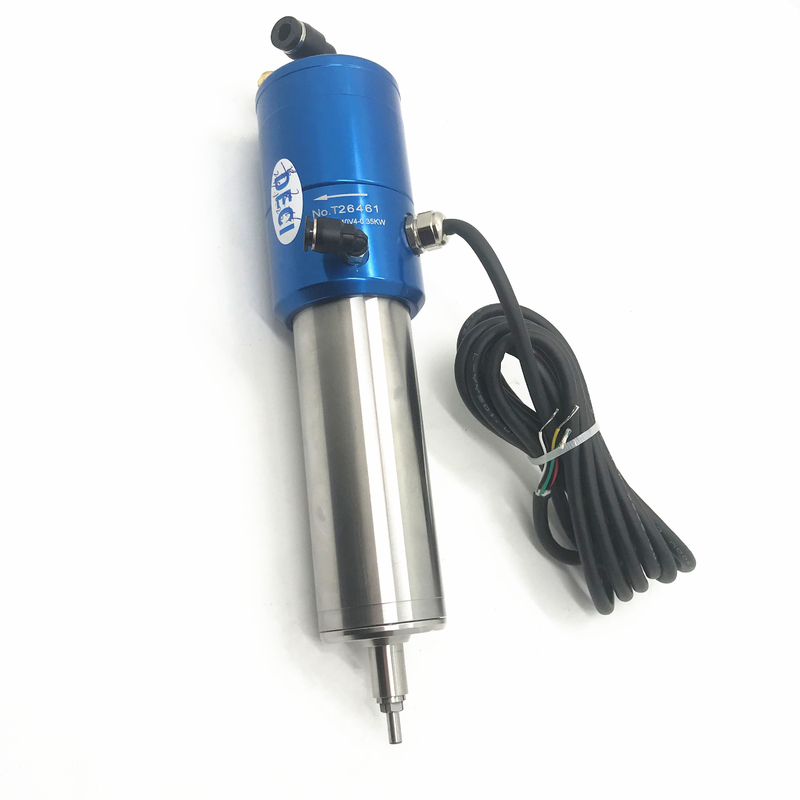

This product is a dental high-speed electric spindle with a maximum speed of 60,000 rpm and a rated power of 0.35 kW. It is suitable for the processing of composite materials such as zirconia and ceramic grinding.
DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
DECI More Spindle is also available with best price, if needed, welcome contact us.
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw
Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.
| DC-40V3Parameters Motor PowerKW0.35Rate voltageV/AC100(3~)Max rotate speed Rpm60000Max currentA2.5Max FrequencyHz1000TorqueN·M0.056Specification Cone at the end of the shaft pulsatesmm≤0.001Tooling releasing air pressureKgf/cm²5.0-6.0Tooling Exchange Method~ATCAir cutain pressure at front endKgf/cm²~Tooling pulling forceN≥1000tooling back air pressureKgf/cm²~Tooling connection~Φ4 colletCooling~Air coolingEncoder~~coolant pressureKgf/cm²2.5~3.0Approach switch~~Bearing Inbrication method~GreaseBalance level~G1Install method~FlangeVibration Valuemm/s≤0.8WeightKg1.35 |
Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A:we have all the packages. We can get the engineer to program you.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Click for more information
Our products are sold all over the world, you can rest assured.
