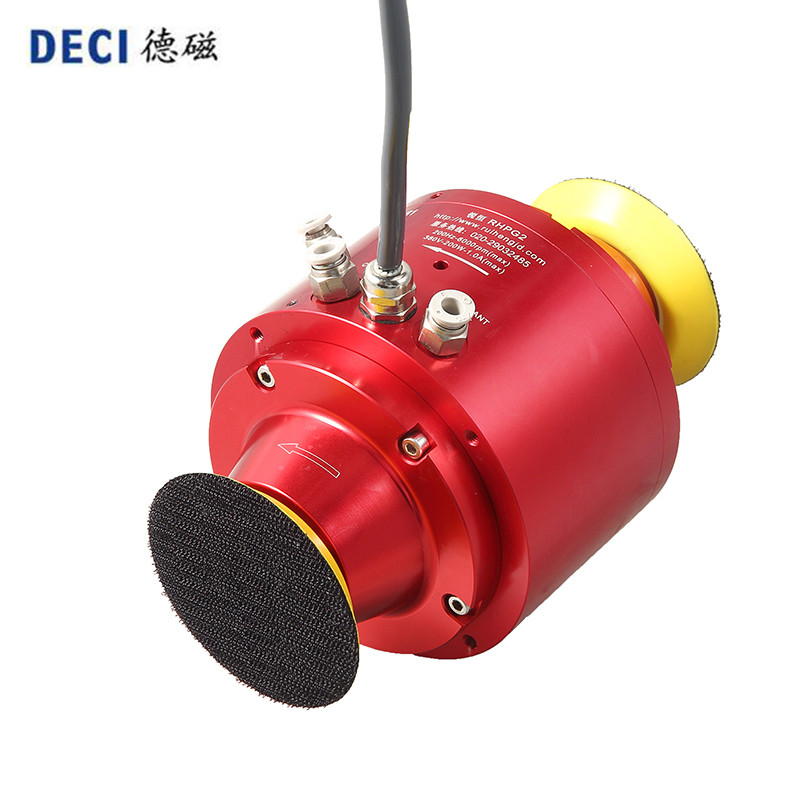

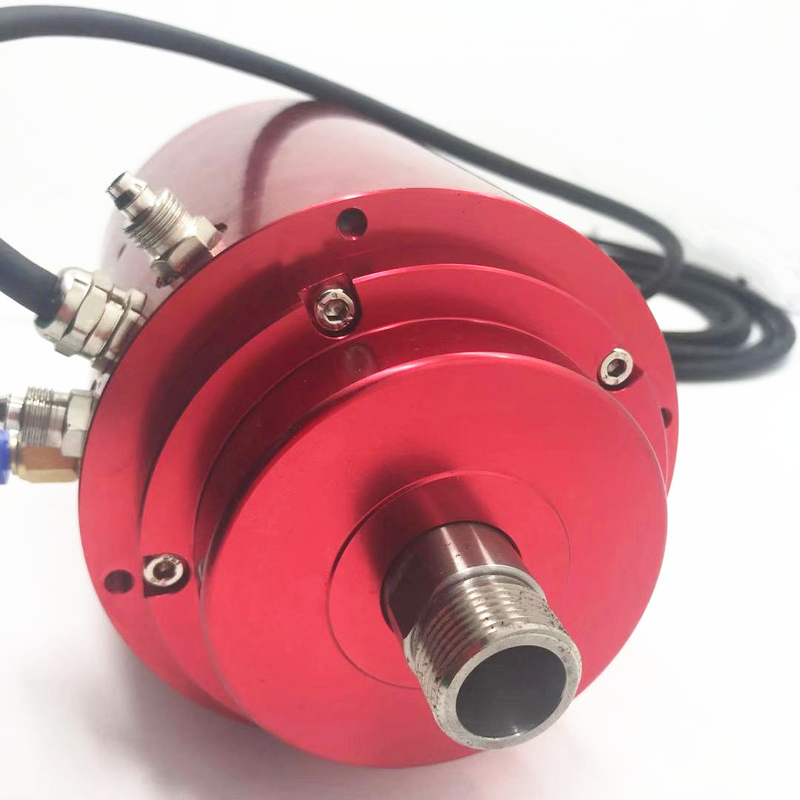

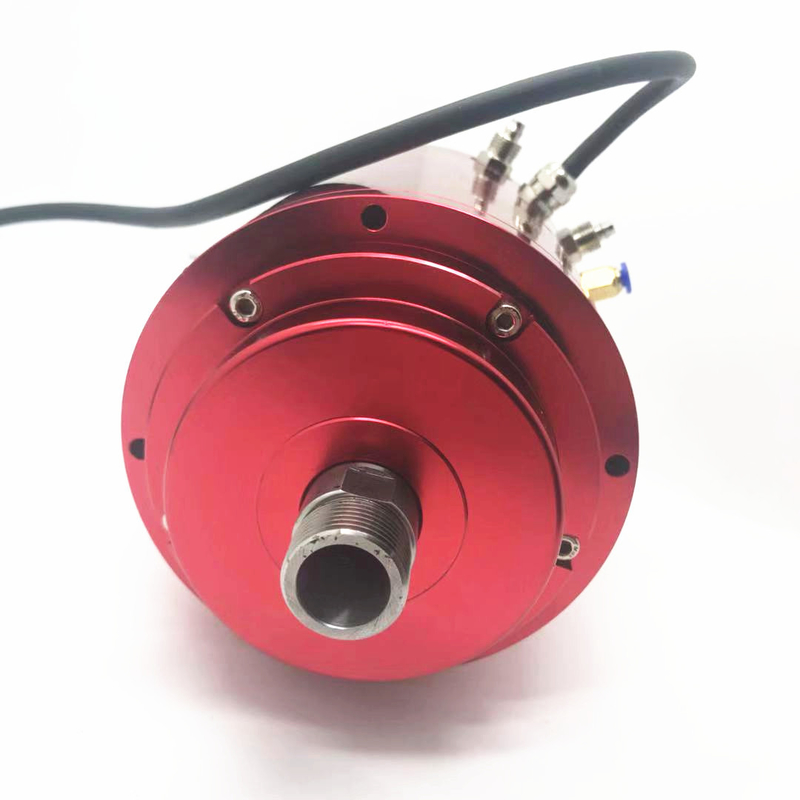

DC-RHPG2 | ||||||
Parameters | ||||||
Moter Power(KW) | 1.3 | Rated voltage (V/AC) | 380（3~） | |||
Maximum speed(Rpm) | 6000 | Maximum current (A) | 2 | |||
Maximum frequency (Hz) | 200 | Torque (N·M) | 2 | |||
Technical parameters | ||||||
Shaft Rotation Accuracy (mm) | ≤ 0.001 | Tooling Releasing pressure (Kgf/cm²) | — | |||
Tooling Exchange Method | Manual | Front curtain pressure (Kgf/cm²) | ≥ 5.0 | |||
Tooling Pulling Force(≥N) | 3-5 inches | Tool return pressure(Kgf/cm²) | — | |||
Tooling Connection | — | Cooling method | Water cooling | |||
Encoder (Optional) | — | Coolant Pressure (Kgf/cm²) | ≥ 2.5 | |||
Proximity switch | — | Bearing lubrication mode | Grease | |||
Balance Level | G1 | Tooling Installation Method | Flange | |||
Vibration value (mm/s) | ≤ 0.8 | Weigh (Kg) | 3.9 | |||
Our products are sold all over the world, you can rest assured.
