DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle

DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle

Products - Polishing spindle
  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining, Medical
  • Weight (KG)
    6.3
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2024
  • Application
    Polishing
  • Maximum Torque
    2.5N.M
  • Drive
    Motor
  • Operating Speed
    6000rpm
  • Warranty
    1 Year
  • Core Components
    Engine, Bearing, Motor, Gear
  • Product Name
    Polishing Spindle
  • Diameter
    116mm
  • Power
    1.6kw
  • Voltage
    380(3~)
  • Frequency
    200HZ
  • Current
    3A
  • Weight
    6.3 Kg
  • Cooling Method
    Water Cooling
  • Tooling Exchange Method
    Manual
  • Installation Method
    Flange
  • Place of Origin
    Guangzhou,china
  • Brand Name
    DECI
  • Price
    $599.00/pieces 1-9 pieces
  • Supply Ability
    500 Set/Sets per Month

DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle

  • DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle
  • DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle
  • DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle
  • DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle
  • DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle
Get Price Contact Now
DC-RHPG3
Parameters
Moter Power(KW)
1.6
Rated voltage (V/AC)
380 / 220(3~)
Maximum speed(Rpm)
6000
Maximum current (A)
3
Maximum frequency (Hz)
200
Torque (N·M)
2.5
Technical parameters
Shaft Rotation Accuracy (mm)
≤ 0.02
Tooling Releasing pressure (Kgf/cm²)
_
Tooling Exchange Method
manual
Front curtain pressure (Kgf/cm²)
≥ 5.0
Tooling Pulling Force(≥N)
_
Tool return pressure(Kgf/cm²)
_
Tooling Connection
3-5 inches
Cooling method
Water cooling / Air cooling
Encoder (Optional)
Square wave / Square wave TTL / Sine wave / Sin or Cos, 1 VPP
Coolant Pressure (Kgf/cm²)
≥ 2.5
Proximity switch
_
Bearing lubrication mode
Grease
Balance Level
_
Tooling Installation Method
Flange
Vibration value (mm/s)
≤ 1.5
Weigh (Kg)
6.3

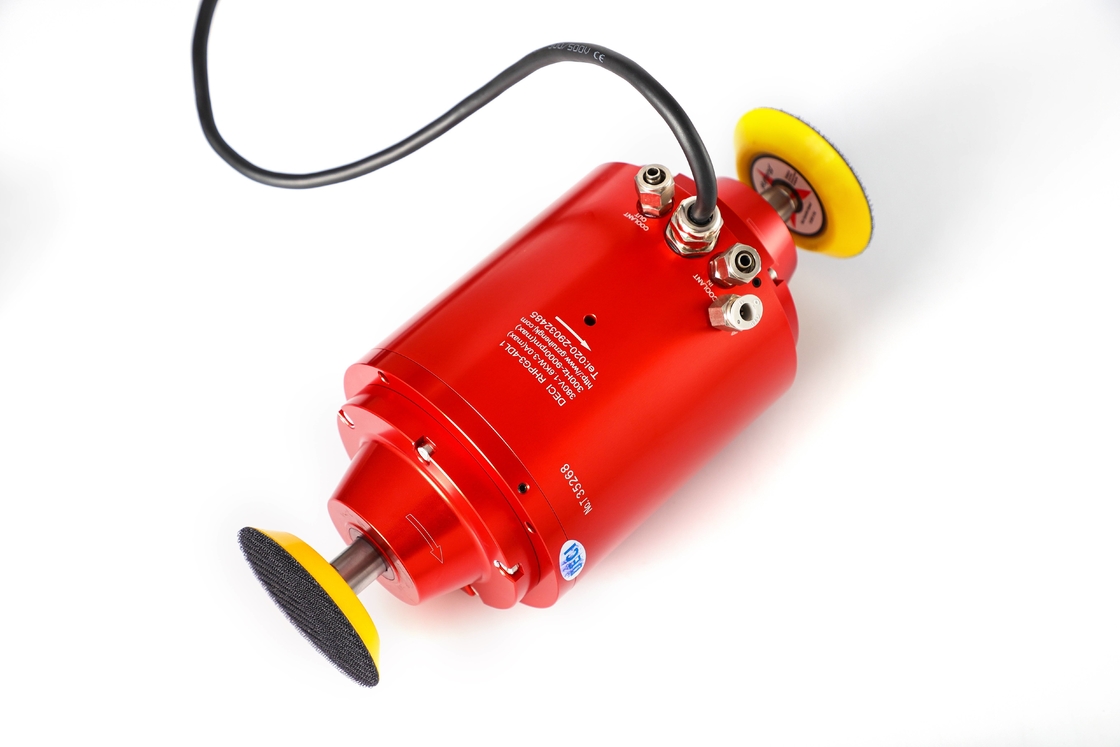

DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle 0

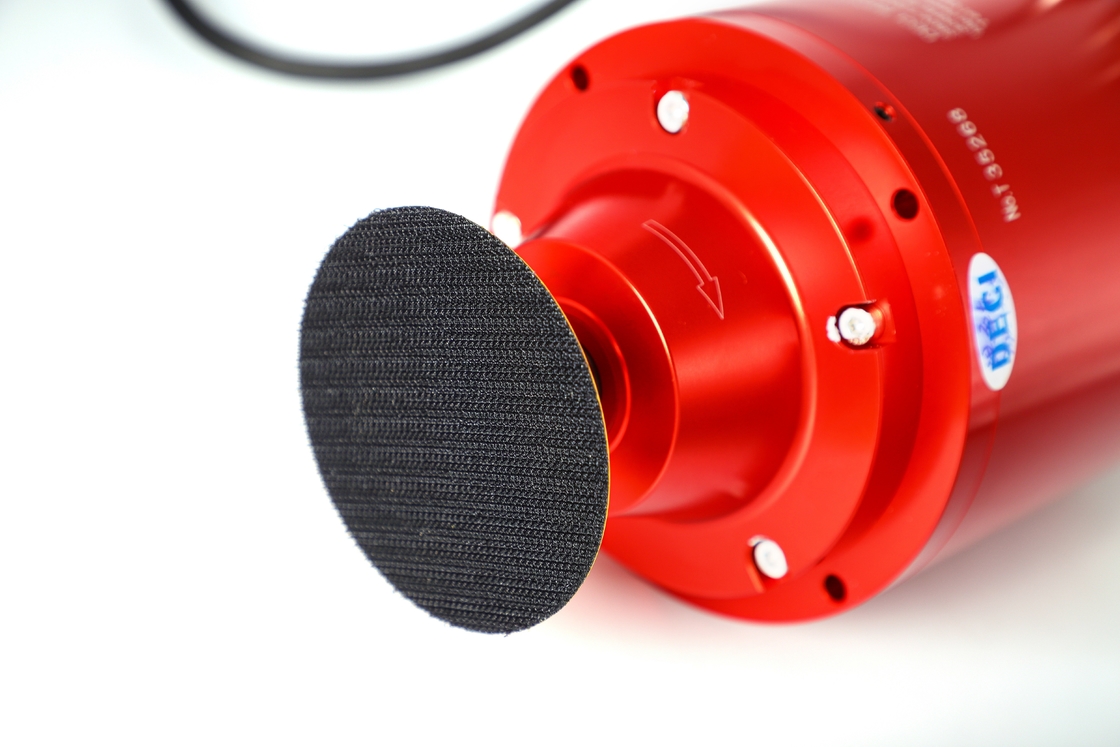

DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle 1

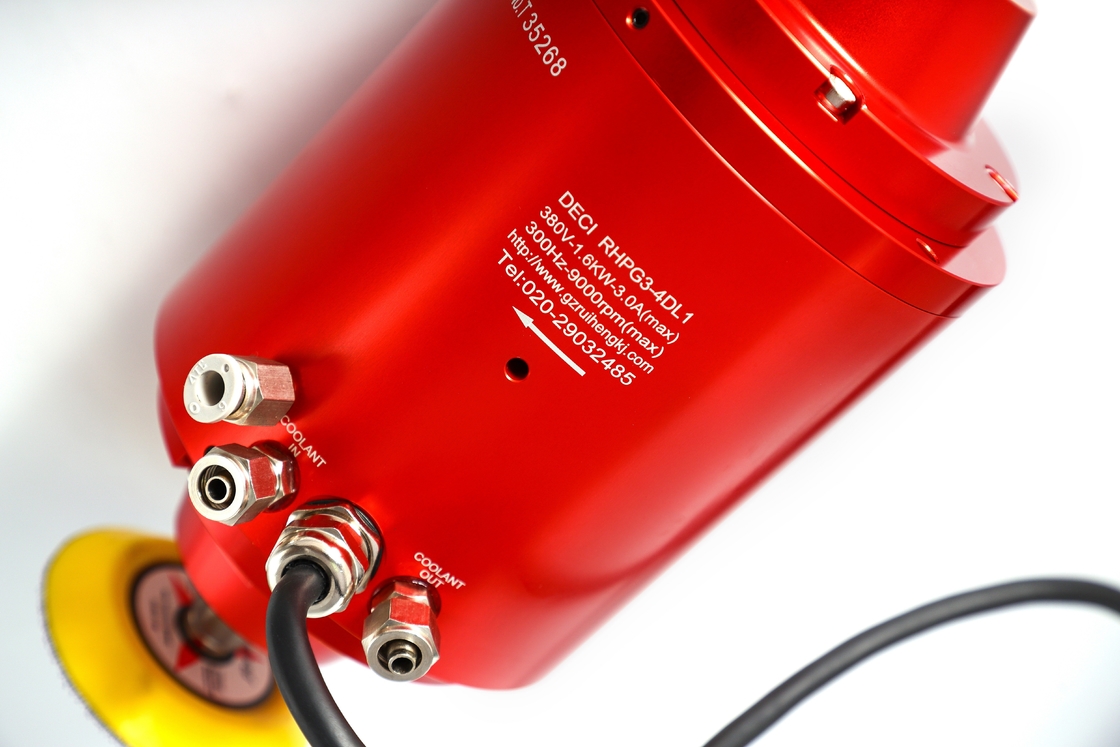

DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle 2

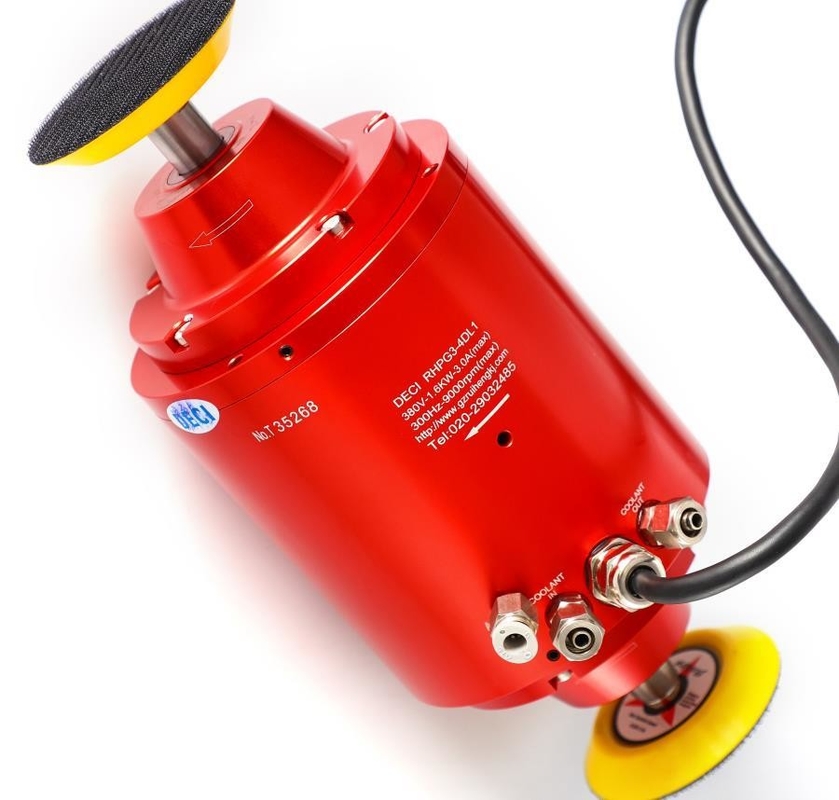

DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle 3

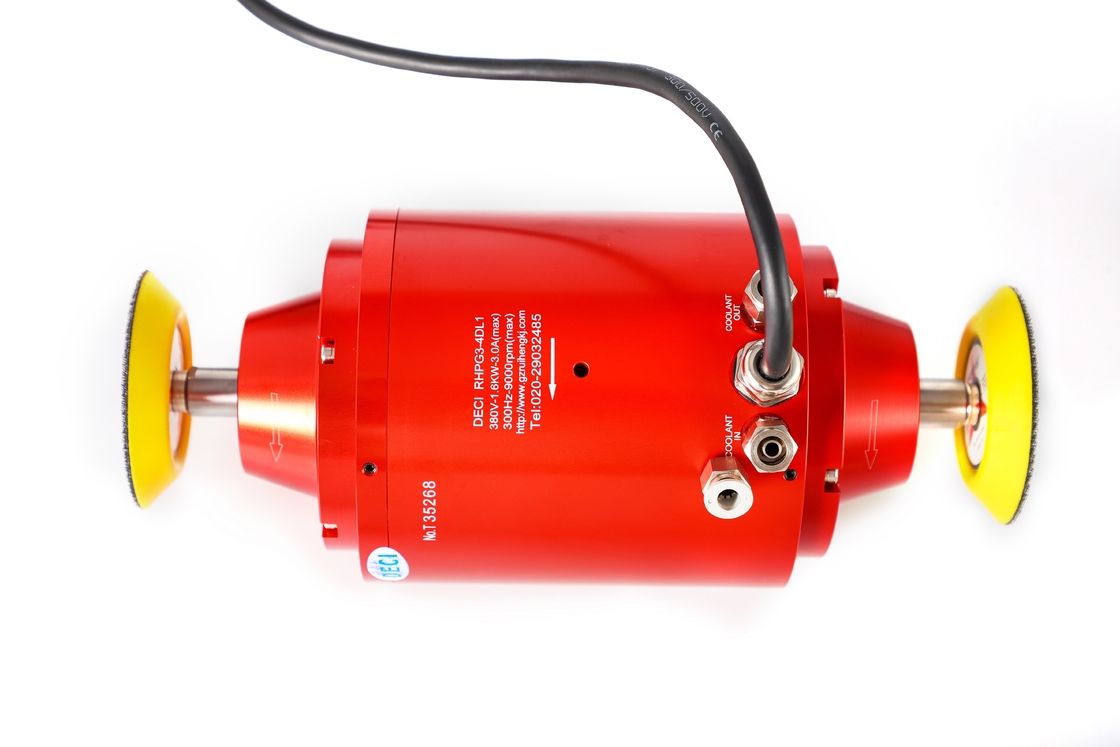

DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle 4
DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle 5
DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle 6
DECI 6000rpm water cooled polishing spindle 1.6KW 3-5 inches flange motor 2.5 torque 380V automatic tool change spindle 7
Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.

Q: do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A: We have all the packages. We can get the engineer to program you.

Q: What's your delivery time?
A: It depends. If your order is standard and in stock,we can deliver immediately. If not, about 7
work days.

Q: Do you provide samples ? Is it free or extra ?
A: Sorry, we don't offer samples.

Q: Which payment method and Express can you accept?
A: 1. Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2. Express: UPS, DHL, FEDEX, TNT, EMS and etc.

Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
