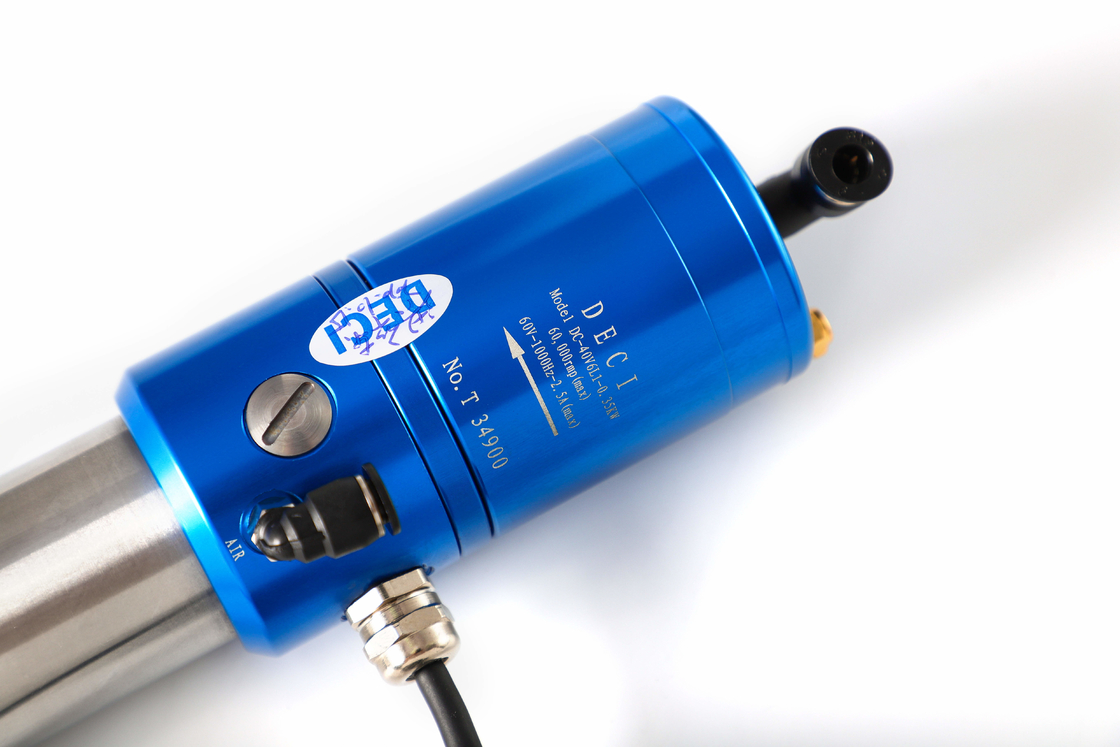

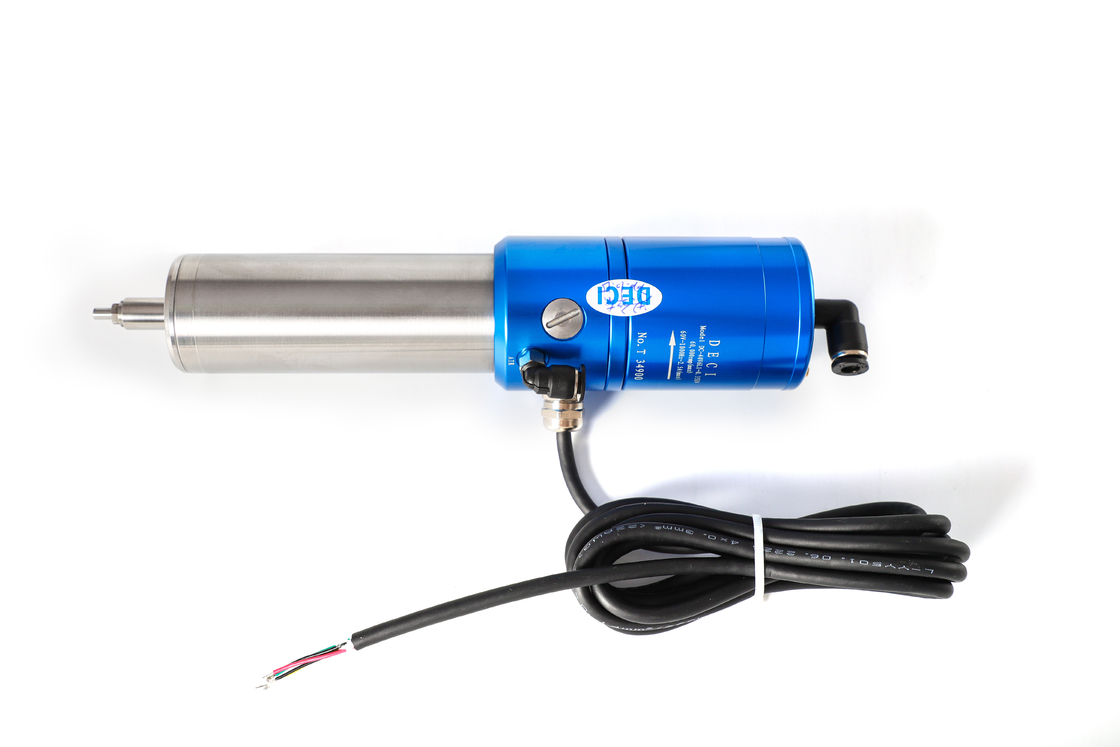

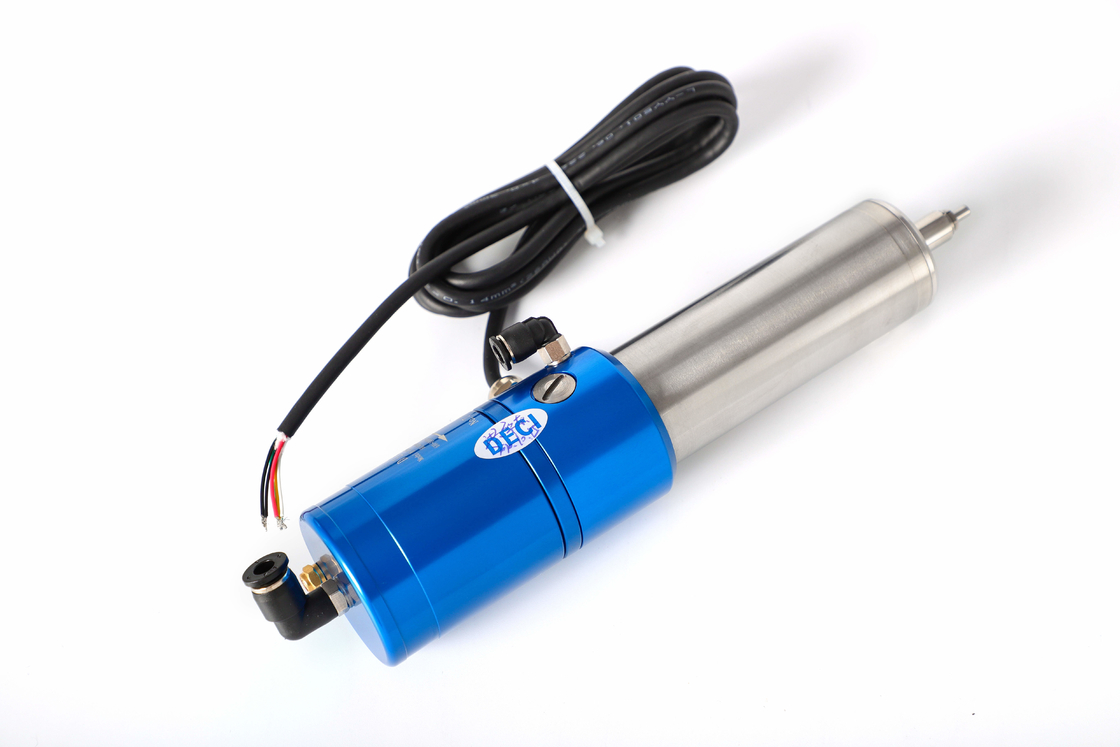

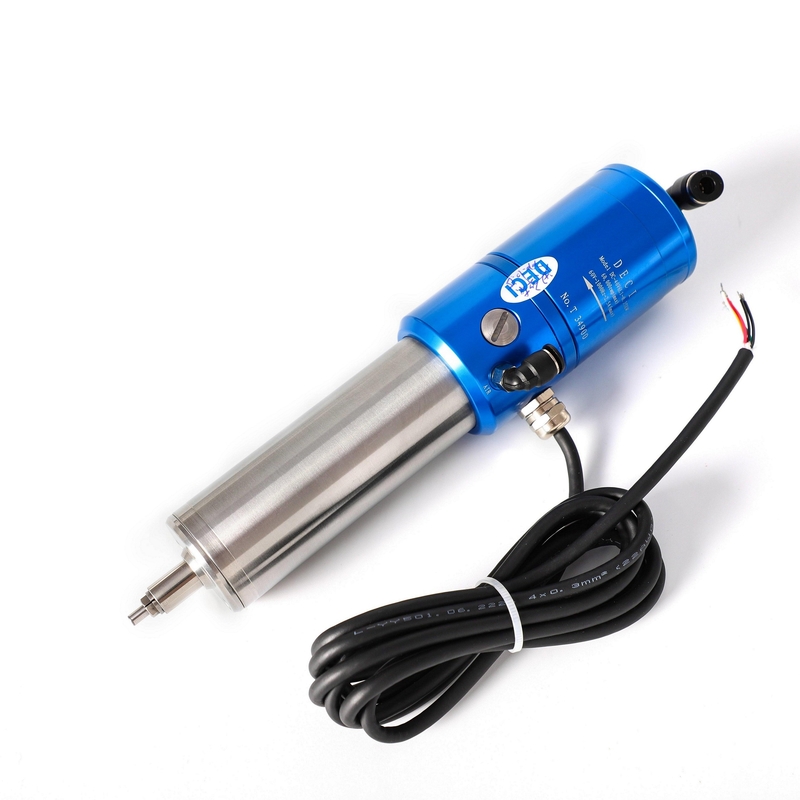

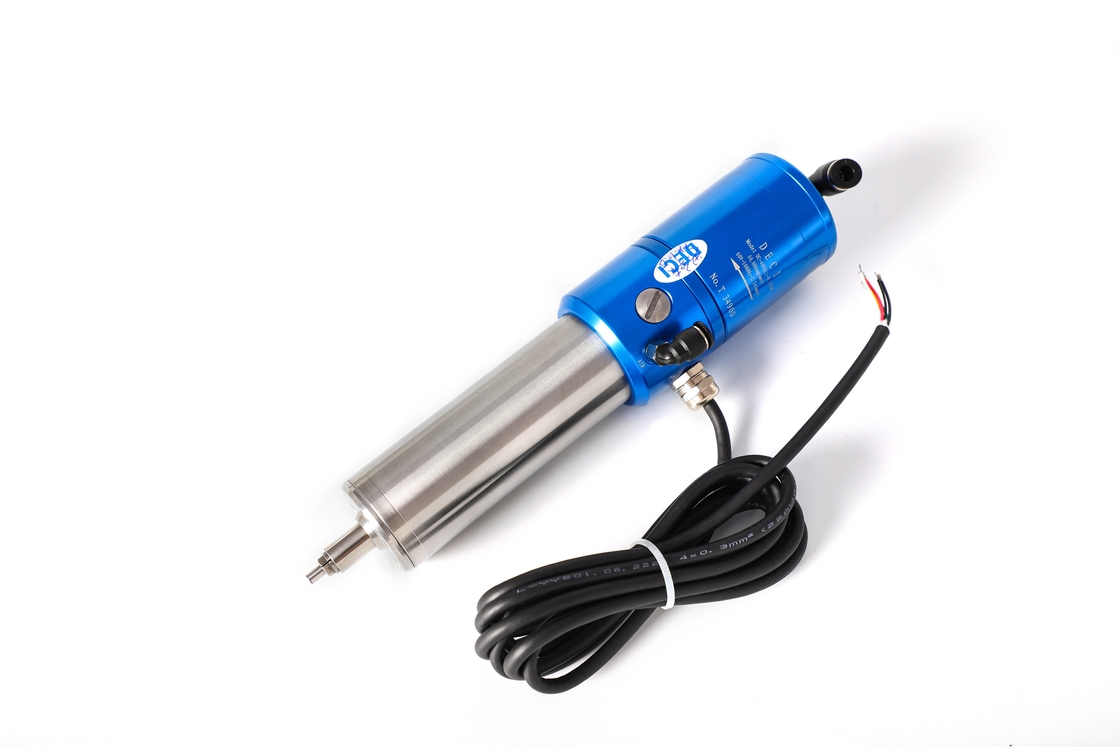

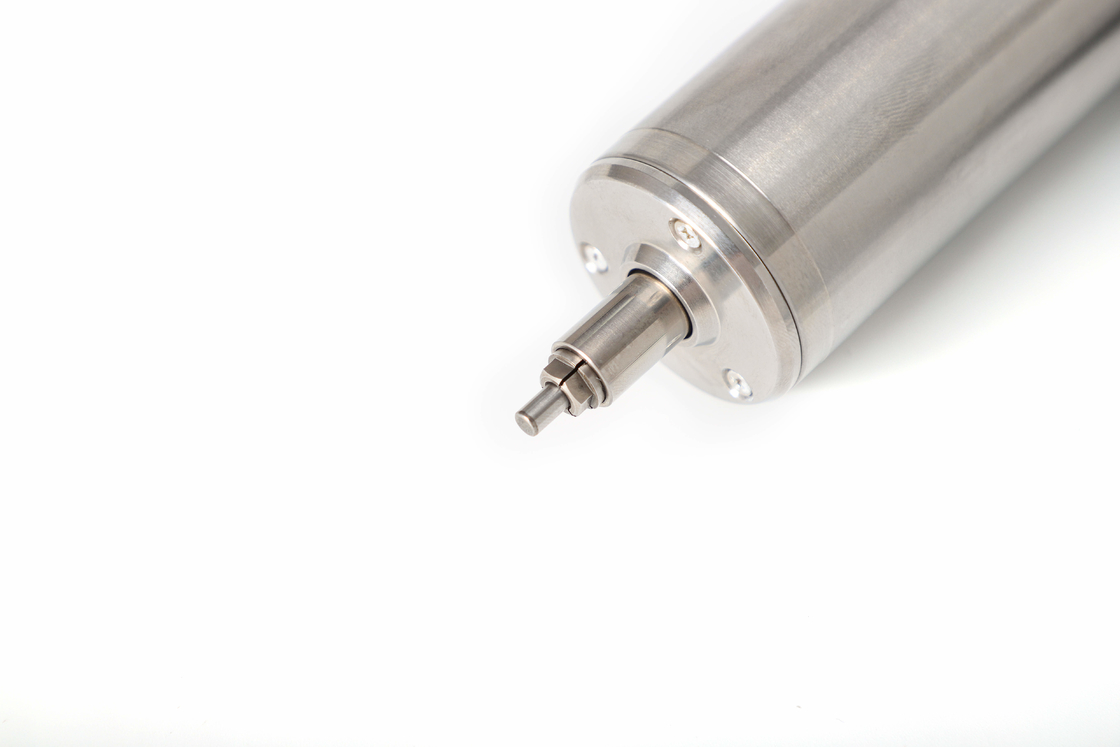

DECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramics

DECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramics

  • Condition
    New
  • Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Energy & Mining
  • Weight (KG)
    1.8
  • Showroom Location
    None
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    New Product 2020
  • Application
    Milling
  • Maximum Torque
    0.056
  • Drive
    Motor
  • Operating Speed
    60000rpm
  • Warranty
    1 Year, 12 Months
  • Core Components
    Bearing
  • Power
    0.35KW
  • Voltage
    100V(3~)
  • Frequency
    1000HZ
  • Current
    2.5A
  • Weight
    1.35KG
  • Cooling Method
    Water Cooling
  • Application Material
    Zirconia Wax PMMA PEEK
  • Place of Origin
    guangdong,china
  • Brand Name
    DECI
  • Price
    $1,205.10/sets 1-9 sets
  • Supply Ability
    1000 Set/Sets per Month

DECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramics

Product Description

 This product is a dental high-speed electric spindle with a maximum speed of 60,000 rpm and a rated power of 0.35 kW. It is suitable for the processing of composite materials such as zirconia and ceramic grinding.



DECI spindle Motor Feature

1) Imported bearings with good quality, long working life.

2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.

3) There are water cooling spindle  , air cooling spindle and self cooling spindle for your choose.

4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.



DECI More Spindle is also available with best price, if needed, welcome contact us.

1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw

2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw

3.cooled by self: 400w

4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw

cooled by air: 8kw,9kw (same HSD)

5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw

Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.

DECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramicsDECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramicsDECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramicsDECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramicsDECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramicsDECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramics

Specificiations
                                                                                     DC-40V3
Parameters
Motor Power KW 0.35 Rate voltage V/AC 100(3~)
Max rotate speed  Rpm 60000 Max current A 2.5
Max Frequency Hz 1000 Torque N·M 0.056
Specification
Cone at the end of the shaft pulsates mm ≤0.001 Tooling releasing air pressure Kgf/cm² 5.0-6.0
Tooling Exchange Method ~ ATC Air cutain pressure at front end Kgf/cm² ~
Tooling pulling force N ≥1000 tooling back air pressure Kgf/cm² ~
Tooling connection ~ Φ4 collet Cooling ~ Air cooling
Encoder ~ ~ coolant pressure Kgf/cm² 2.5~3.0
Approach switch ~ ~ Bearing Inbrication method ~ Grease
Balance level ~ G1 Install method ~ Flange
Vibration Value mm/s ≤0.8 Weight Kg 1.35

DECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramicsDECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramics



Applicable industry

DECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramics

Packaging & Shipping

DECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramics

Company Information

DECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramics

Why choose us



DECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramics





 DECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramics

Certifications

DECI DC-40V6 atc dental milling spindle motor for machining zirconia ceramics

FAQ

Q: Are you trading company or manufacturer ?
A: We are the only factory for DECI brand.



Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?

A:we have all the packages. We can get the engineer to program you.


Q:
What's your delivery time?
A: It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.


Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.

Q:
Which payment method and Express can you accept?

   1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.

   2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.


Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
